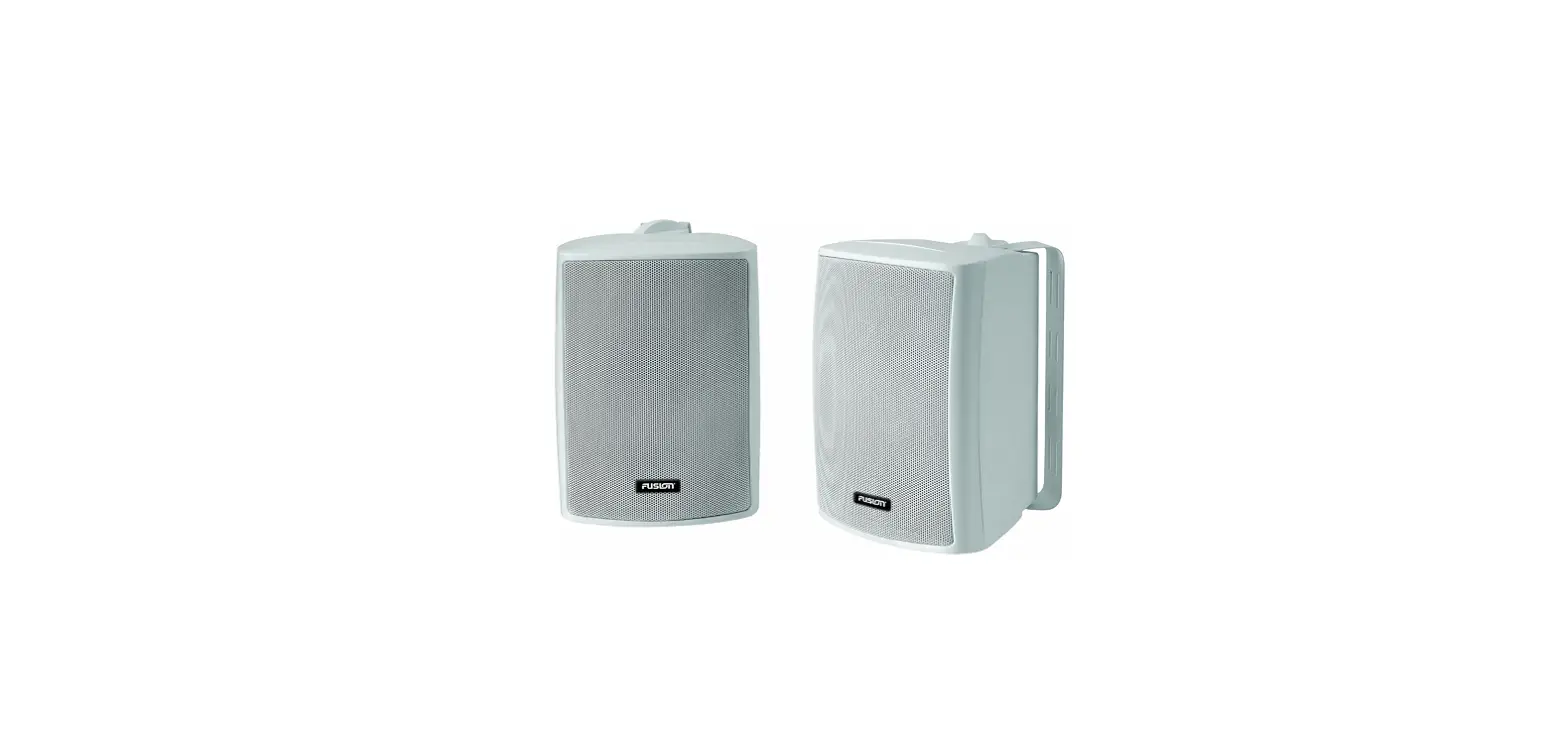

Fusion Ms-os420 Marine Compact Box Speakers User Guide

Fusion MS-OS420 Marine Compact Box SpeakersINSTALLATION TIPS

Any speaker will perform to its best capabilities, when correctly placed in the listening area. FUSION Engineers recognize that unlike a home or motor vehicles installation, there are an extremely wide range of marine environments where speakers may be placed. FUSION Marine Speakers are optimized to perform in the widest possible range of mounting locations, but a little thought and care with placement will always be rewarded with better sound.

• High frequencies are directional. Placing the speakers low down in the boar will lose some of this information.
• Speakers should be placed to simulate “sound stage”, by being placed where you are able to hear both speakers in a stereo situation.

TROUBLESHOOTING

Before you contact your FUSION dealer or service center, FUSION requires that you do some simple trouble shooting to help diagnose the problem.

YOU CAN HELP PROTECT THE ENVIRONMENT

Please remember to respect the local regulations:
Hand in the non-working electrical equipment to an appropriate waste disposal Centre.

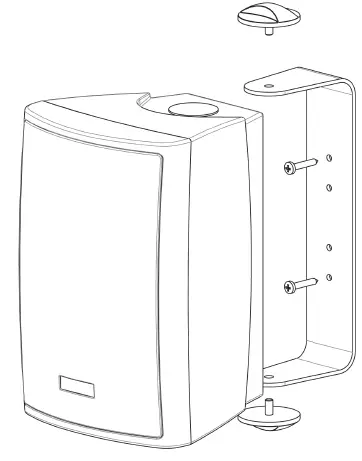

INSTALLATION GUIDE

1. Check mounting position for adequate space (See caution).
2. Place the mounting bracket in position, then mark and drill the mounting holes.
3. Place the mounting bracket and insert screws.
4. Connect the wires from the source unit to the box speaker ensuring the correct polarity is observed.
5. Attach the box speaker to the bracket using the mounting knobs supplied.
6. Adjust the angle of the speaker to the preferred position before tightening the mounting knobs.

CAUTION:  For speaker mounting restrictions, please refer to manufacturers recommendations for related navigation equipment.

REGISTER YOUR PRODUCT ONLINE

For your own peace of mind, register your product purchase online at www.fusionelectronics.com

We’ll keep you up to date with any news related to your product, any software upgrades or new accessories to help you get the most from your product.

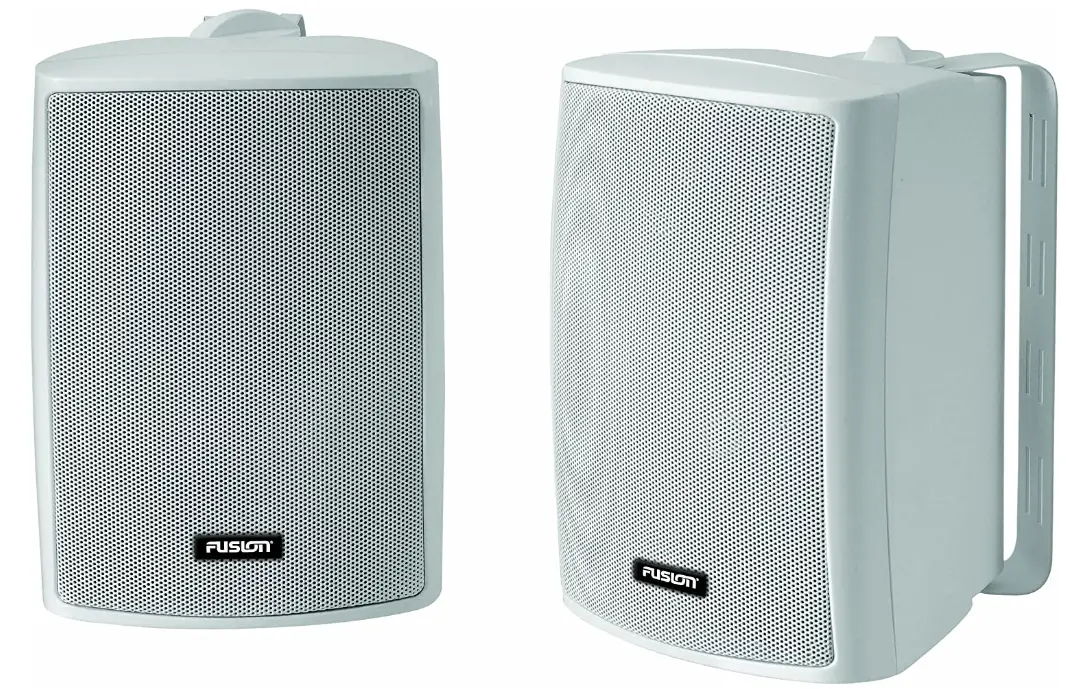

CONTENTS OF BOX

FUSION Marine/Outdoor Speakers are optimized for outdoor use. FUSION Box Speakers are extremely versatile and perfect for boats where flush mount installation is not practical.
These speakers have been thoroughly tested to ensure consistent and reliable performance.

LIST OF CONTENTS

• 2 X Speakers
• 2 X Connection Wire
• Mounting Hardwire
• 2 X Mounting Brackets
• 4 X Mounting Knobs
• Manual
• Warranty Card

PRODUCT SPECIFICATIONS

• TWEETER TYPE PEI Cone
• MAX POWER (WATTS) 100
• EFFI CIENCY (1W1M) 86db
• FREQUENCY RESPONSE 80Hz – 20kHz
• IMPEDANCE 4 ohms

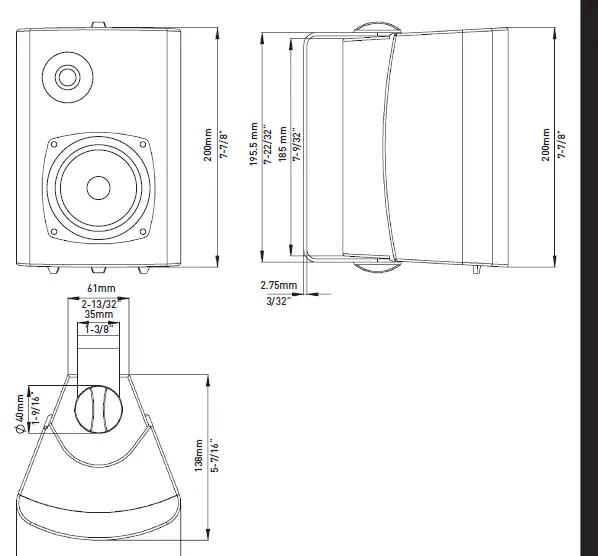

LINE DRAWINGS & DIMENSIONS

FAQs

Do you need an amp for Fusion MS-OS420 marine speakers?

The majority of maritime stereos come equipped with an amplifier, some of which are very powerful. Without an external amplifier, good sound is definitely feasible. Almost always, you can add an amplifier later, therefore I advise most people to test their stereo without one first.

What do Fusion MS-OS420 marine speakers do?

Marine speakers are those that are more suitable for use in the water. They are typically more durable in addition to being water-resistant. Marine speakers are designed to resist varying exposure to moisture, climate, and other elements.

What makes a good Fusion MS-OS420 marine speaker?

Most marine speakers are incredibly long-lasting and sturdy. Make sure the speakers you are purchasing are high-quality, rust- and corrosion-resistant, and have a sturdy construction. For good weather protection, look for speakers with plastic cones, such as those with polypropylene and neoprene rubber surrounds.

What is a Fusion MS-OS420 two-way marine speaker?

Two-way, or coaxial, speakers have a separate tweeter that is housed inside the woofer to handle the high frequencies and precisely reproduce the audio spectrum of your music. Three-way speakers, also known as triaxial speakers, have a midrange driver in addition to a woofer and a tweeter for more richness and realism.

What is a Fusion MS-OS420 marine grade speaker?

Speakers Made for Marine Environments, Exposure to Corrosive Atmospheres, Salt-Spray, and Outdoor Applications | Shop Weatherproof and Direct Weather Speakers

How long do Fusion MS-OS420 marine speakers last?

Marine speakers are made specifically for use on boats. Thorough testing guarantees that they will withstand the elements.

What are Fusion MS-OS420 marine speakers made of?

Heavy-duty materials are used to construct marine speakers to ensure their durability in the more challenging marine environment. They are made of stainless steel components to endure unexpected temperature changes and are made of special plastic to withstand the elements.

How do you protect Fusion MS-OS420 marine speakers?

We advise purchasing single barrel speaker covers or double barrel speaker covers for the best defence. These are made of outdoor poly fabric, which is three times thicker than the majority of speaker covers, and they won’t muffle sound.

How can I make my Fusion MS-OS420 marine speakers louder?

Since subwoofers are designed to reproduce bass, the whole sound is immediately enhanced. They play with more detail in addition to turning up the loudness. Your boat speakers will be louder and more enjoyable with the addition of a subwoofer.

Do Fusion MS-OS420 marine speakers have good bass?

The marine speaker produces passable bass performance and has a good full-range sound response between 80 Hz and 20 kHz.

Do boats need Fusion MS-OS420 marine speakers?

Yes, for a variety of reasons, we always advise buying genuine marine grade speakers. JL Audio marine products are first and foremost made to endure the wetness and UV rays seen in a marine environment.

Will Fusion MS-OS420 marine speakers work in car?

You can definitely install marine speakers in your car. Because the quality can be so much better and the music so much louder, doing this is actually incredibly enjoyable. However, there are a few things to think about first. A boat’s wiring will probably be significantly different from your car’s.

What is the difference in marine speakers and car speakers?

Unlike a car speaker, a marine speaker is made to project and spread sound across a larger area. As they are made to transmit music in a tiny, confined automotive space, ordinary car speakers may not be able to project sound across a larger path.

What are Fusion MS-OS420 marine speakers used for?

A set of speakers, amplifiers, and other devices are part of the marine audio system, which is used to play music on boats. It is typically installed in the cockpit or cabin.

Where do Fusion MS-OS420 marine speakers go?

For the optimum sound quality, you should always install your full-range speakers as high as you can. Don’t mount them near your feet or under seats. You should think about mounting speakers above your head on bigger boats and wherever it is practical. On the other hand, subwoofers are the exact opposite.
