Panasonic FV-01VCN1 WhisperAir Repair Purified
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment that are important for safety. These parts are marked by in the Schematic Diagrams, Exploded Views, and Replacement Parts List. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without the manufacturer’s approval.
Please have a static electricity depletion process in place before handling these components.. Please use gloves when handling PCB parts during the repair process.

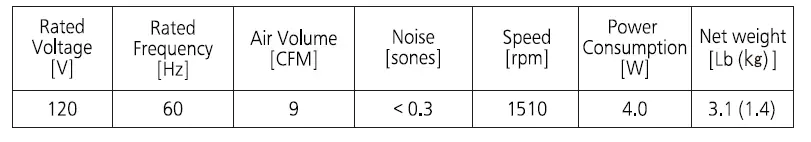

Specification

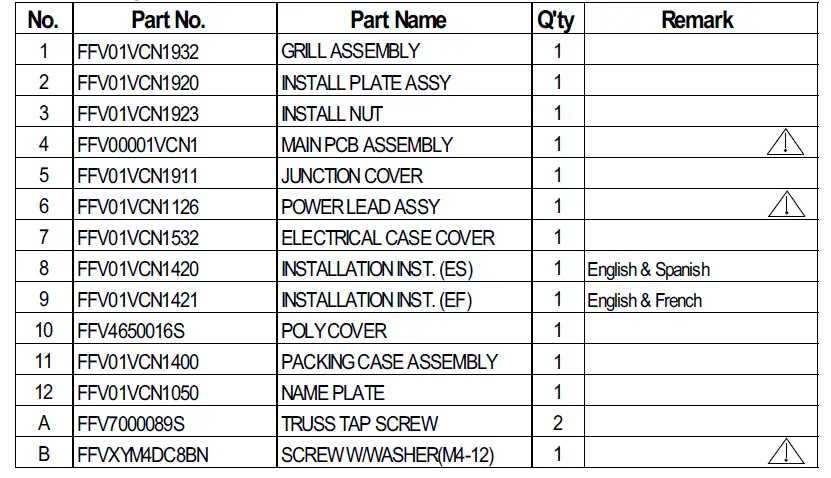

Parts Identification

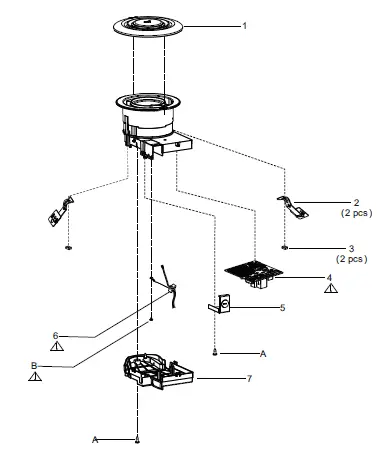

Main Body Section

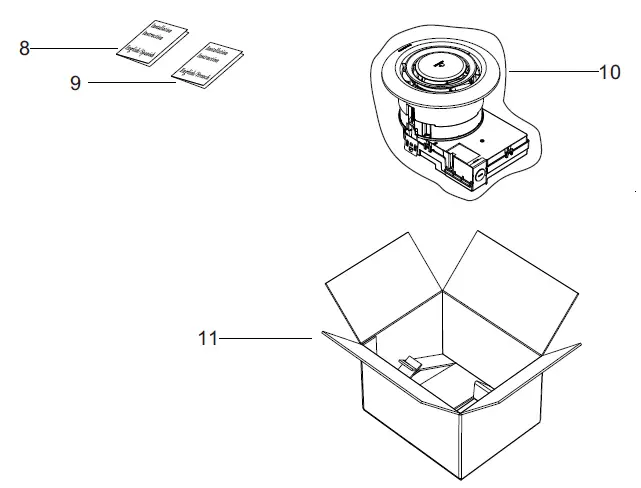

Packing Section

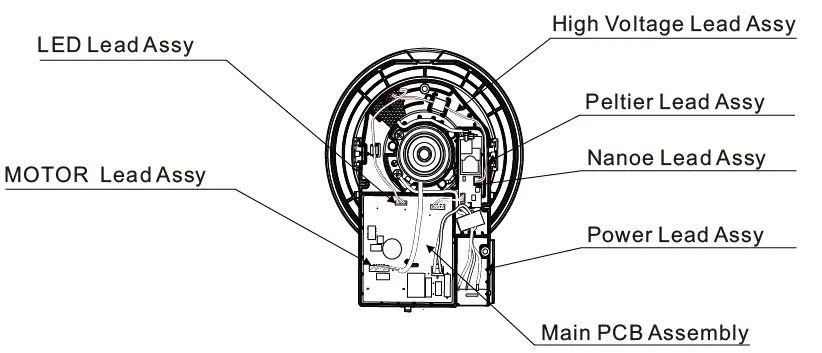

Wiring Section

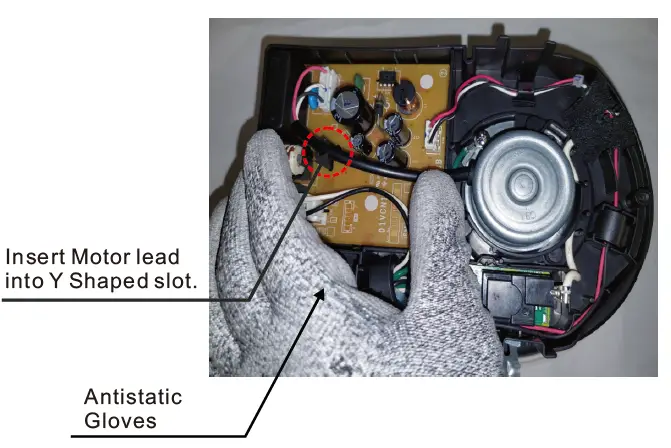

When replacing the Lead Wire or Main PCB, please be sure to hold the main PCB in place before pulling out the lead wire. Otherwise, the PCB may be deformed or damaged because it does not have screws.
Always take measures to prevent electrostatic discharge when handling these parts.
