QUARTZ INFRARED HEATER LAMPS
QUARTZ INFRARED HEATER LAMPS • REFERENCE
Quartz Infrared Heater Lamps
QIH
Quartz Infrared Heater Lamps
The quartz infrared heater (QIH) lamps provide clean, instantaneous, and precision-controlled heat for use in applications such as baking, drying, curing, dehydrating, warming of foods, and general area warming.

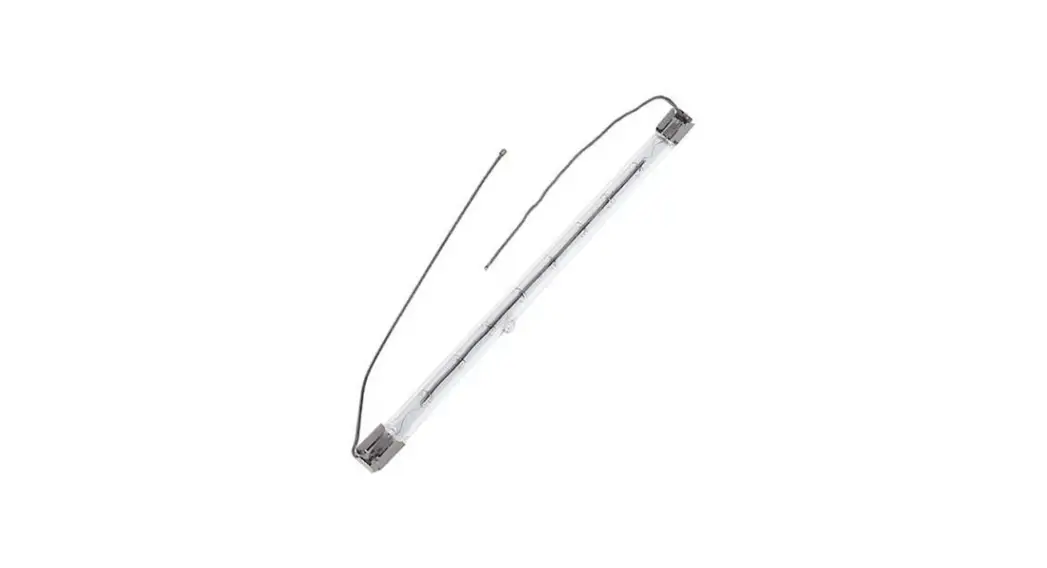

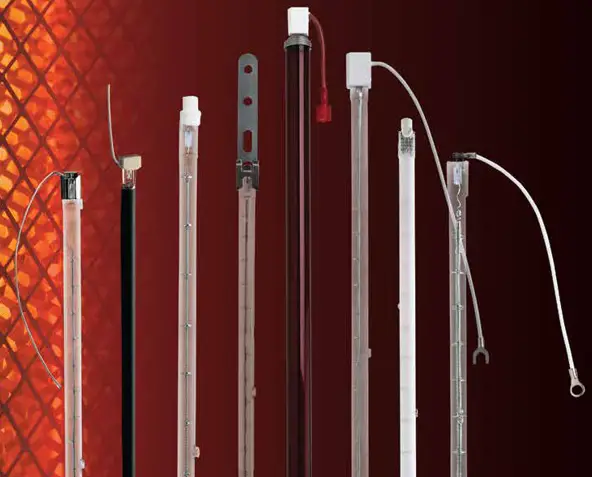

Infrared heater lamps are available in a variety of base configurations and a variety of design alternatives.
Including segmented lamps for uniform heating, coated lamps for better directional efficiency, and special filament designs for medium wave lamps.
We also offer a wide array of twin-tube, circular, and other bent-type lamps to meet your specific heating requirements.
USHIO QIH PART NUMBER REFERENCE GUIDE

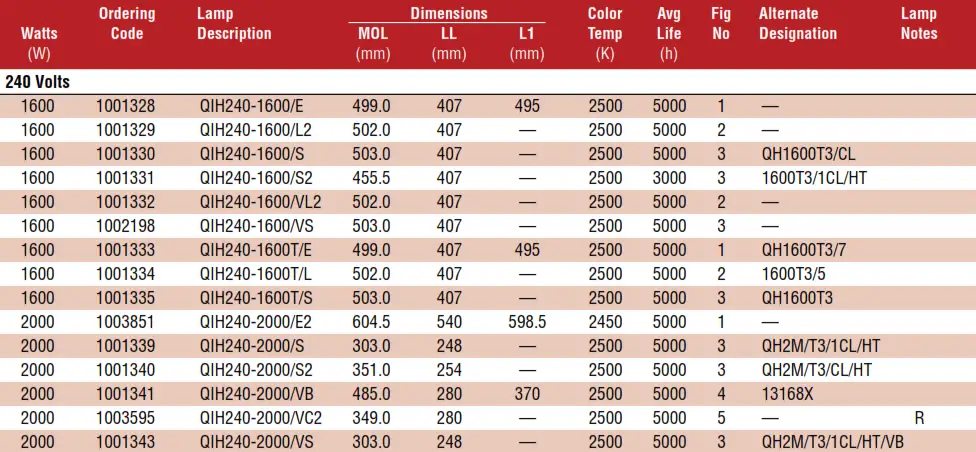

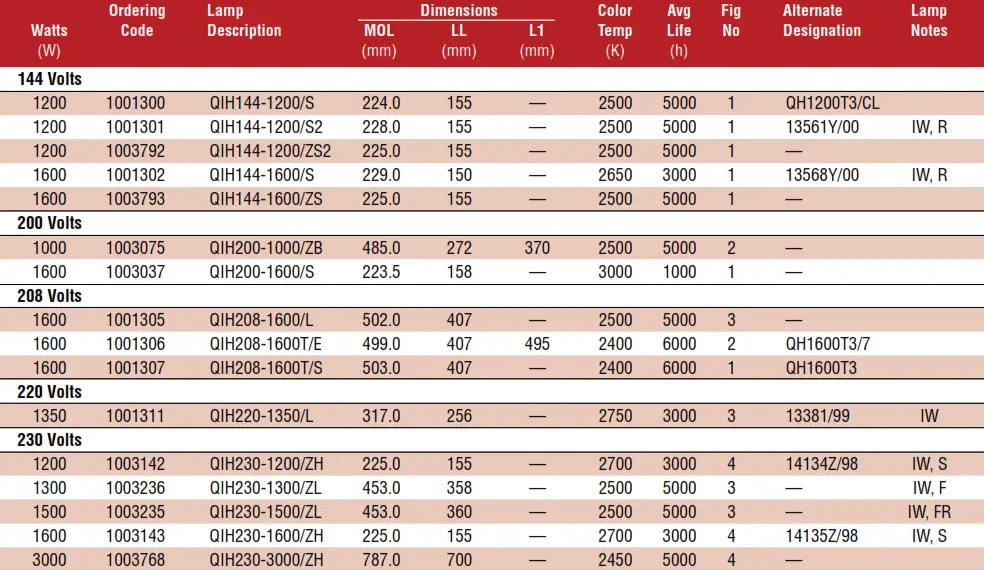

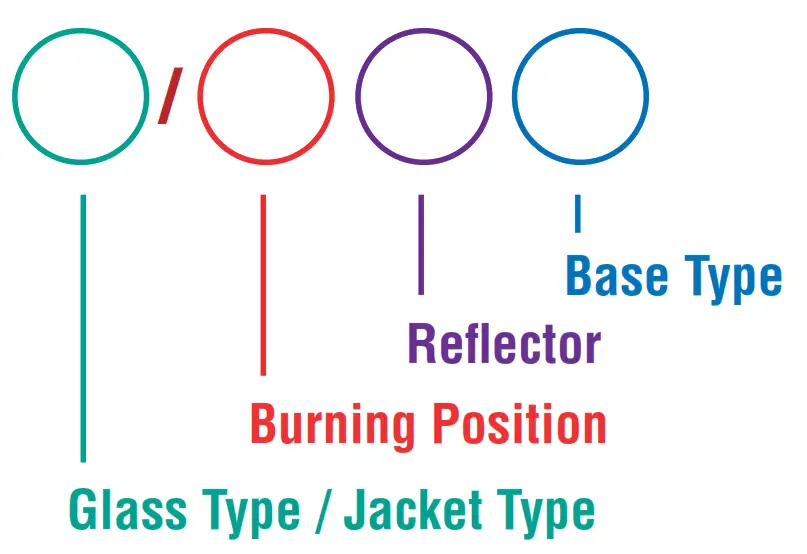

Q I H 240-1000

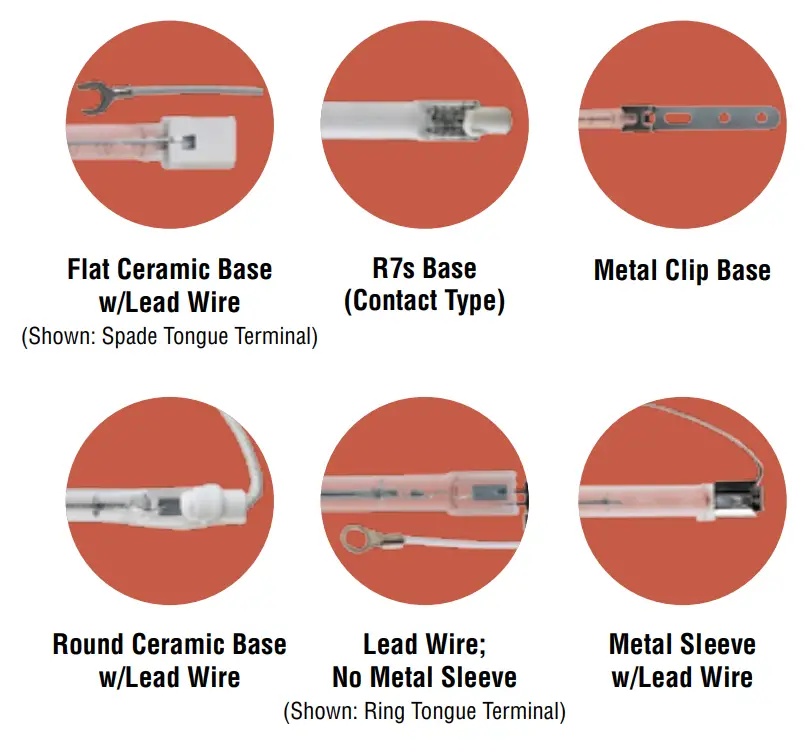

| Glass Type T Translucent Quartz No Indication; Clear Quartz Jacket Type C Clear R Ruby Burning Position V Vertical Burning No Indication; Horizontal Burning | Reflector Z White Coated Reflector No Indication; No Reflector Base Type B Metal Clip Base E R7s (Contact Type) S Metal Sleeve w/Lead Wire C Lead Wire; No Metal Sleeve L Round Ceramic Base w/Lead Wire D Flat Ceramic Base w/Lead Wire H Flat Ceramic Base w/Lead Wire (no adhesive) |

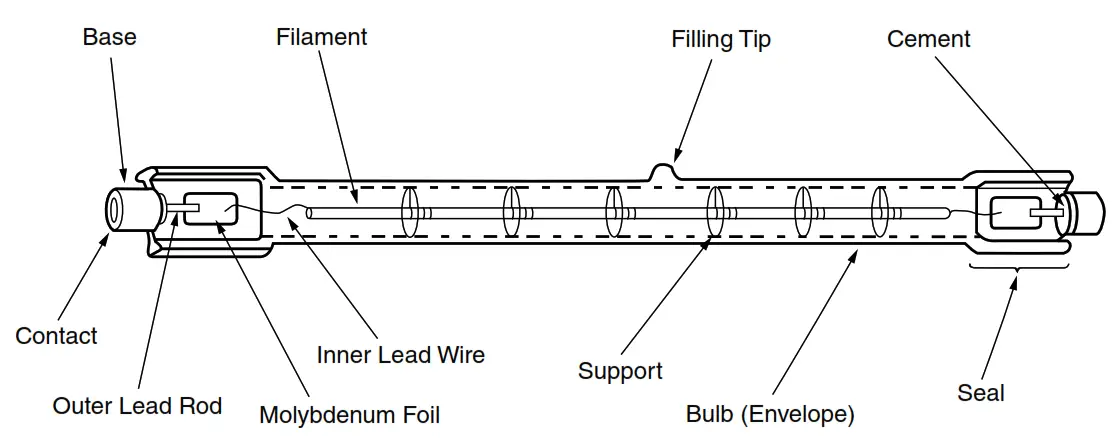

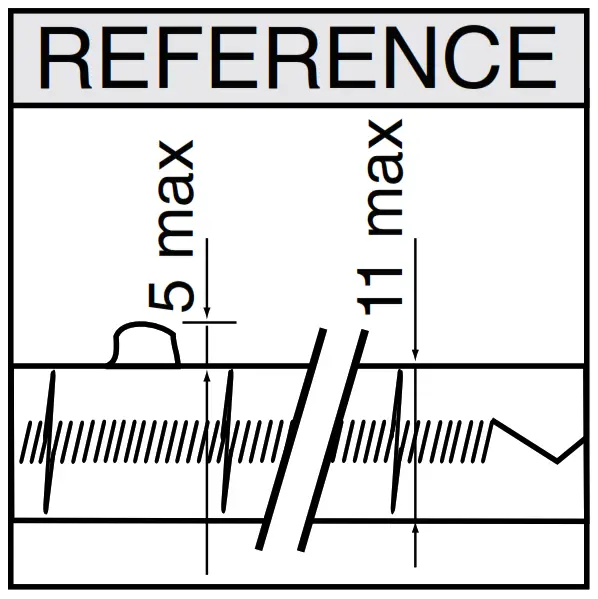

GENERAL PROPERTIES OF A QIH LAMP

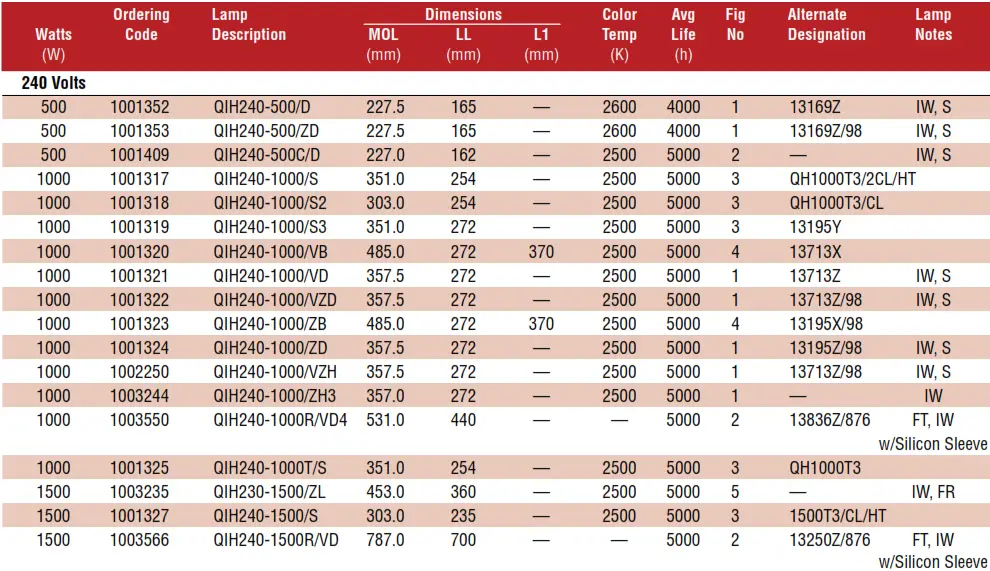

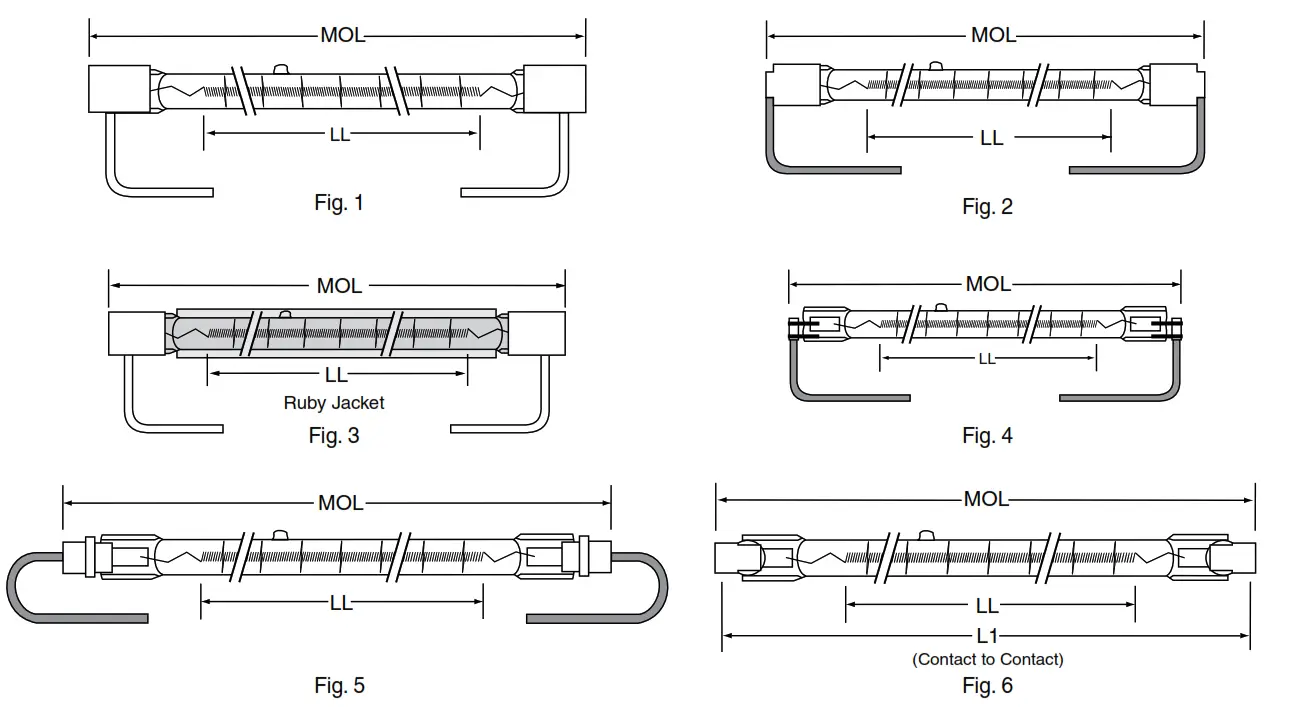

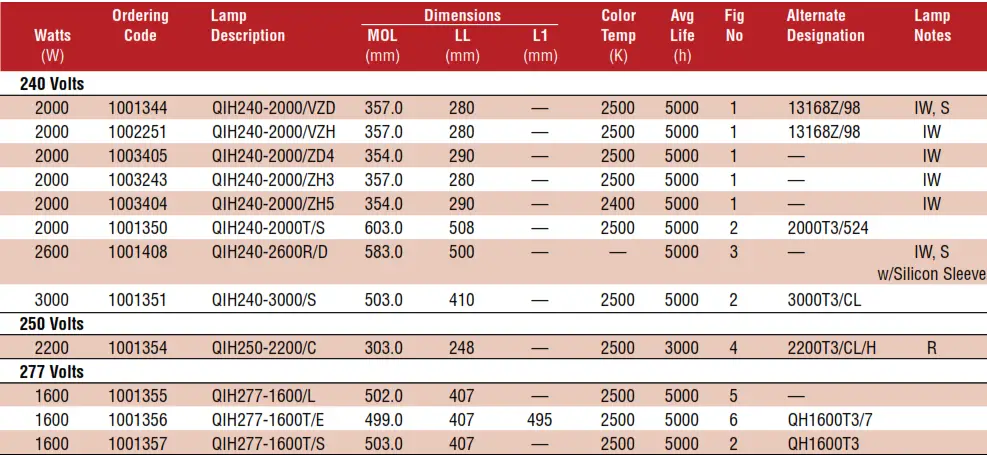

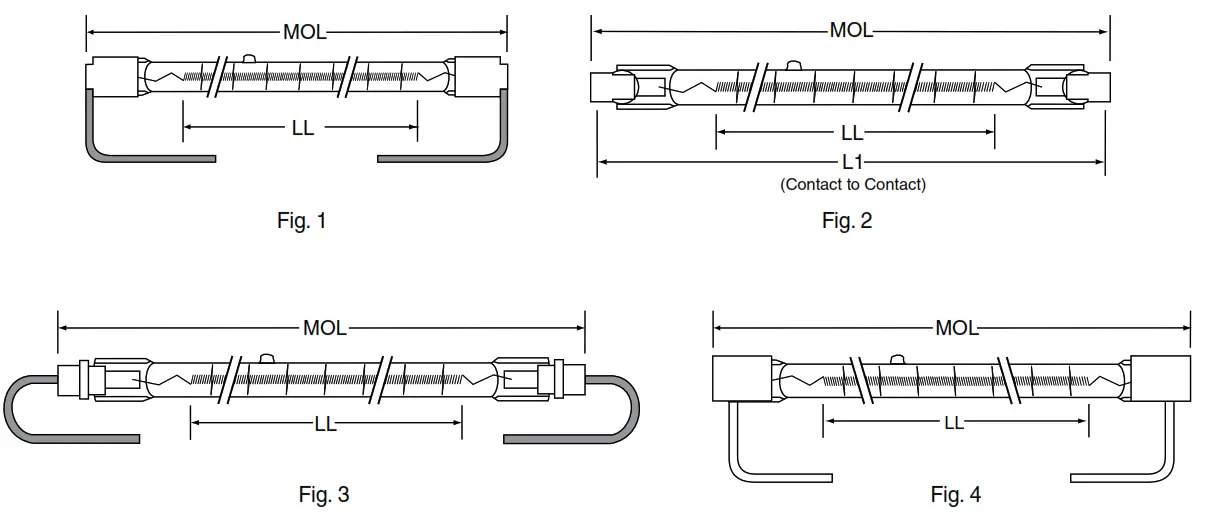

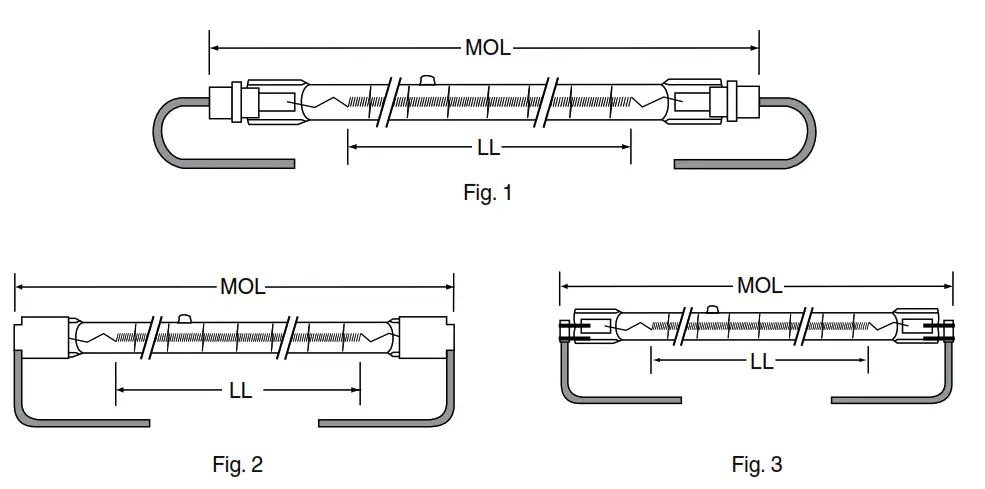

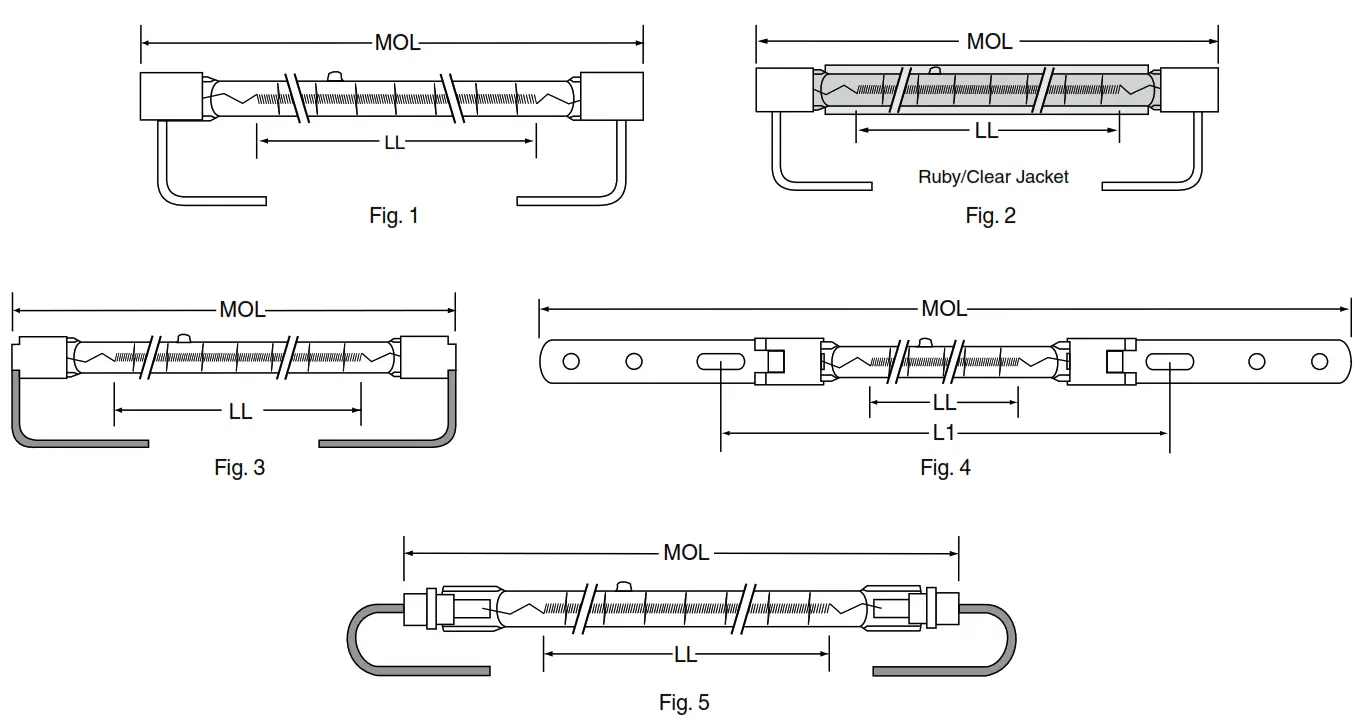

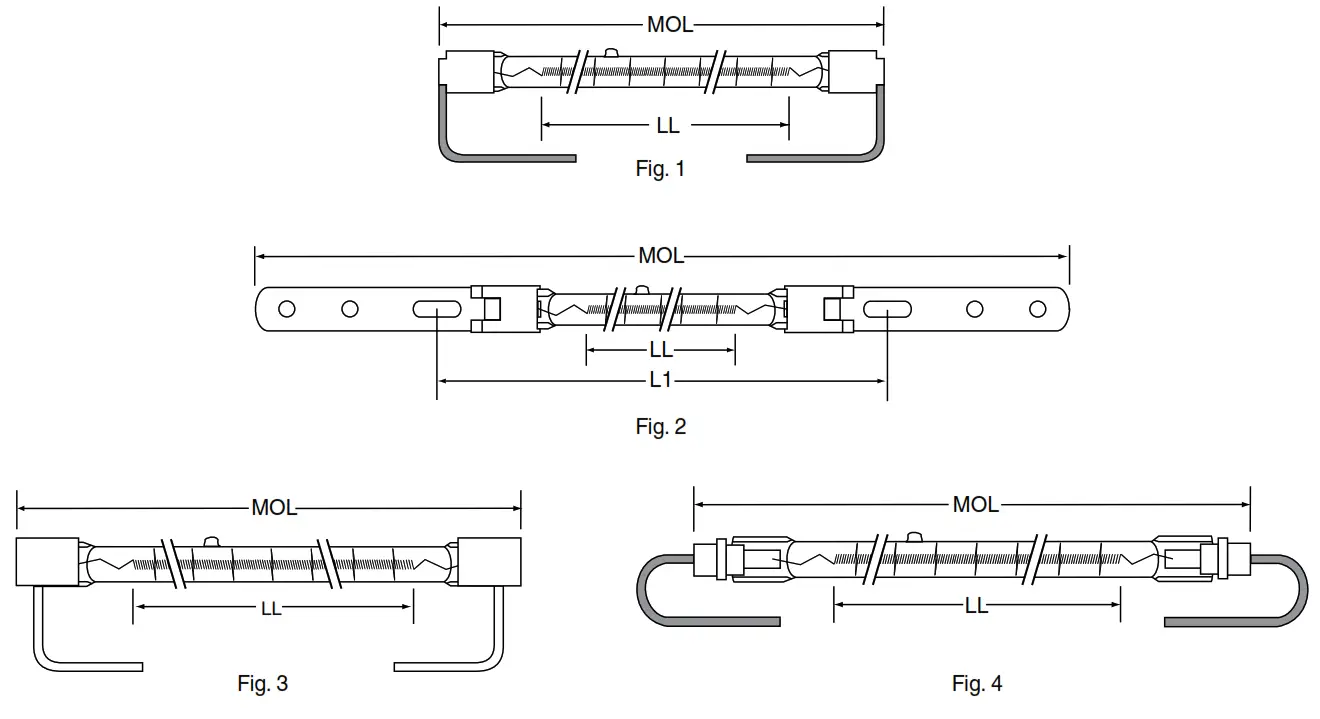

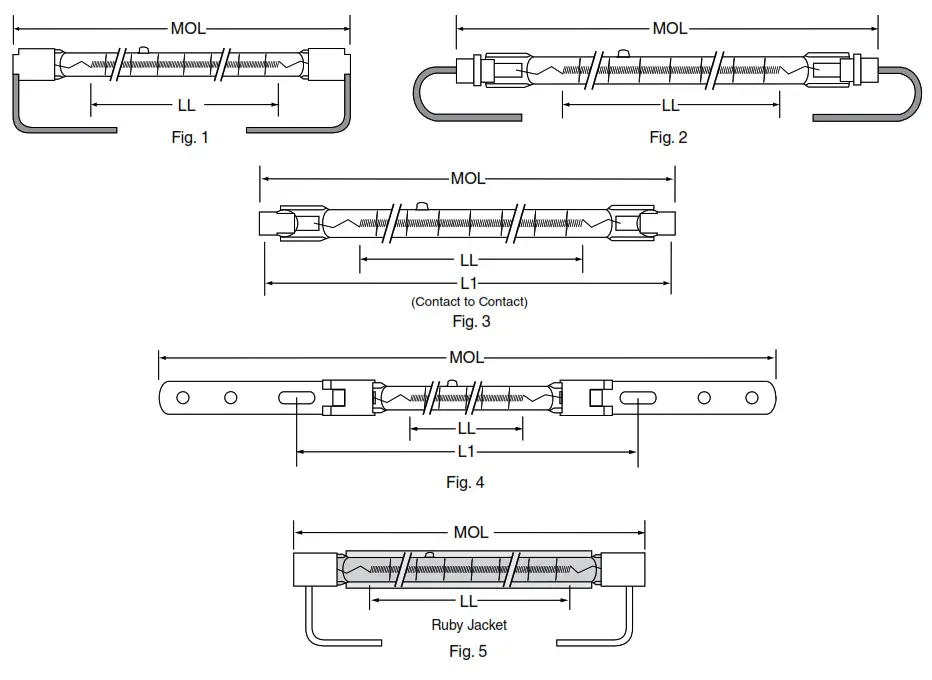

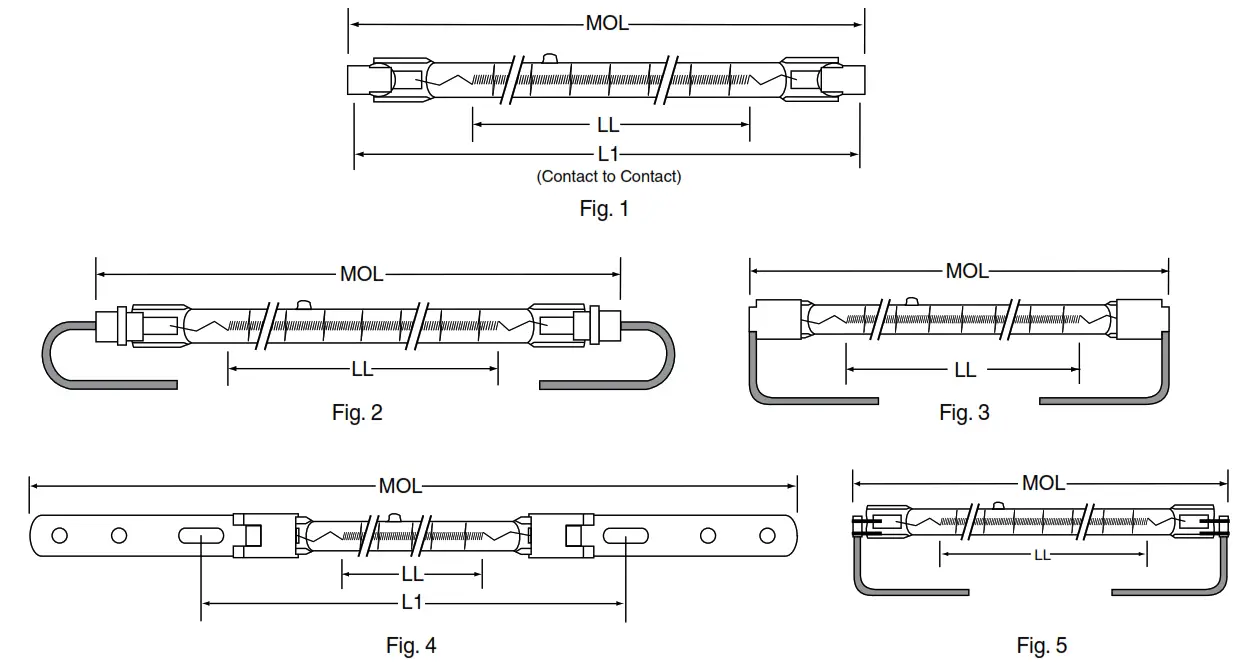

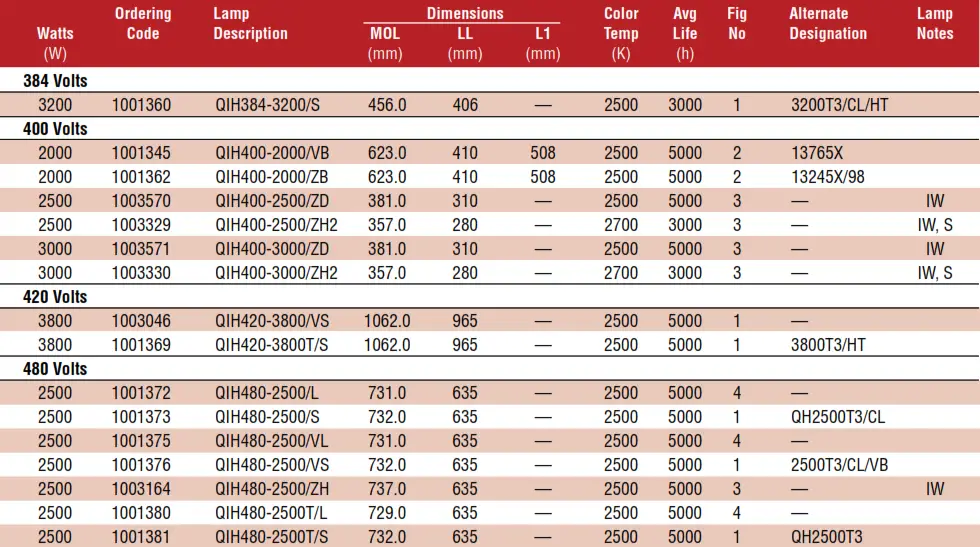

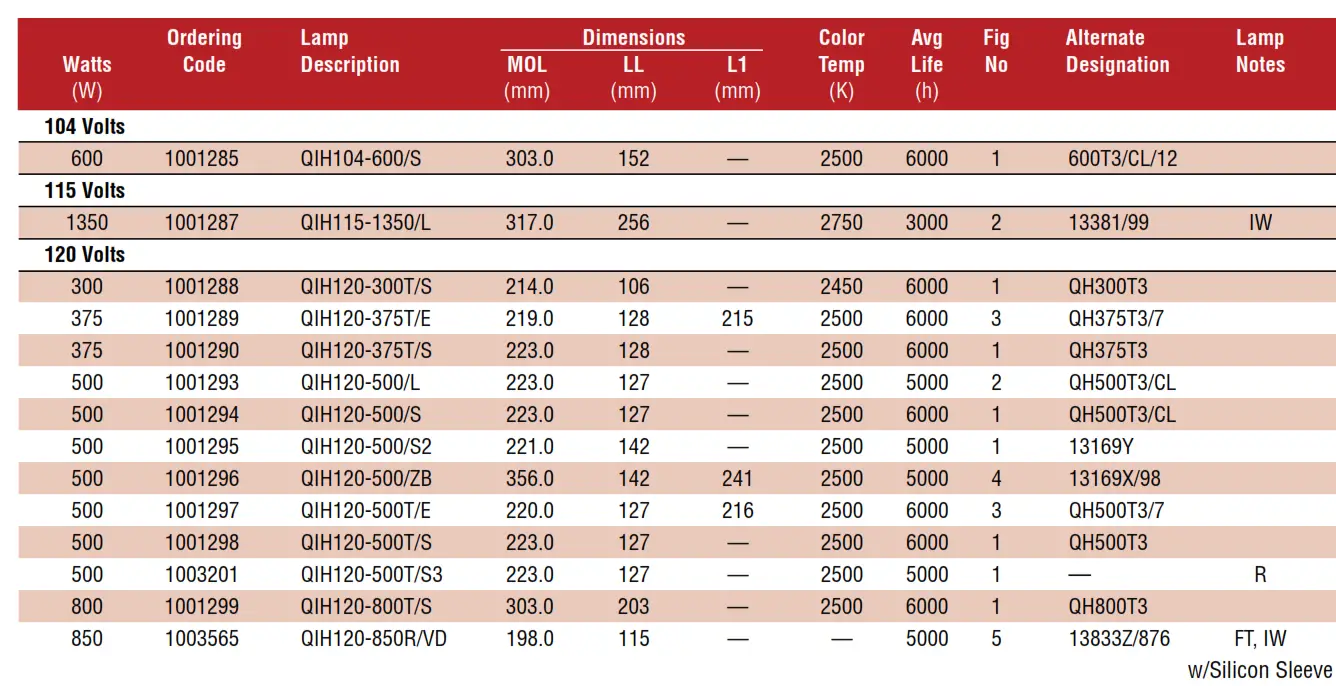

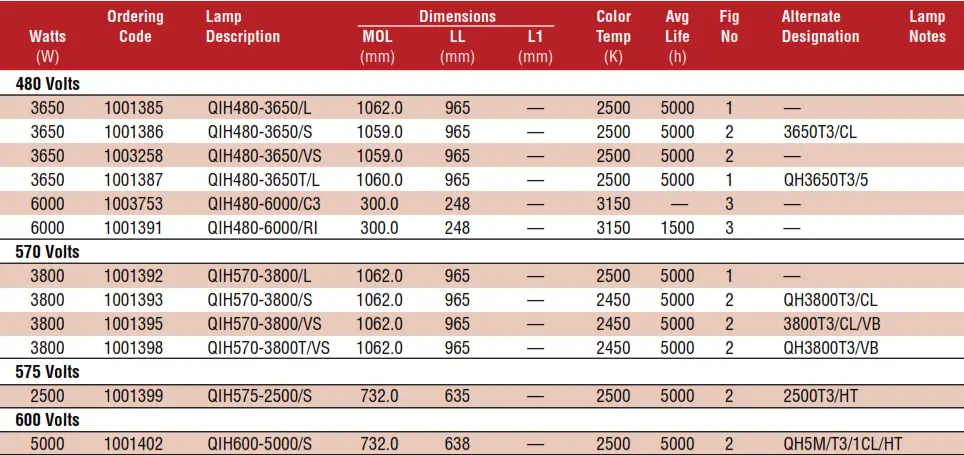

| Dimensions MOL = Maximum Overall Length LL = Lighted Length (Filament Length) (Avg.) L1 = Contact to Contact Length | Lamp Notes F = Faston Terminal FR = Faston Receptacle FT = Faston Tab IW = Insulated Wire R = Ring Tongue Terminal S = Spade Tongue Terminal / Standard Lead Wire Length: 145mm |
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the USA
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
QIH
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
QI
- Short, Medium & Long Wavelengths Available
- ISO 9001 Certified
- Custom Designs
- Manufactured in the U.S.A.
