EVERTONE MC0313 Prosage Thermo Massage Gun

EVERTONE MC0313 Prosage Thermo Massage Gun

Thank you for your purchase of Prosage Thermo. Please read the user manual before use.
The Prosage Thermo is the only professional Hot and Cold massage, percussive therapy gun with warm up technology for everyday pains.

• Prepares your muscles for the deep tissue massage
• Helps prevent future injuries
• Helps Improve range of motion
• Helps activate your muscles to perform at peak levels.

Safety Instruction

  • For adult use only.
  • Use only on a dry surface of the body by lightly pressing and moving across the body for approximately 60 seconds per region.
  • Use the Prosage Thermo only on the body’s soft muscle tissue as desired without producing pain or discomfort. Do not use on the head or any hard, bony area of the body.
  • Use only the attachments provided.
  • Bruising can occur regardless of control setting or pressure applied. Check treated areas frequently and immediately stop at first sign of pain or discomfort.
  • Keep fingers, hair, or any other body part away from the shaft and backside of the applicator as pinching may occur.
  • Do not place any objects into the ventilation holes of the Prosage Thermo.
  • Do not immerse in water or allow water to enter the ventilation holes of the Prosage Thermo.
  • Do not drop or misuse the Prosage Thermo.
  • Only recharge with supplied 9VDC Prosage Thermo Charger
  • Never leave the Prosage Thermo operating or charging unattended.

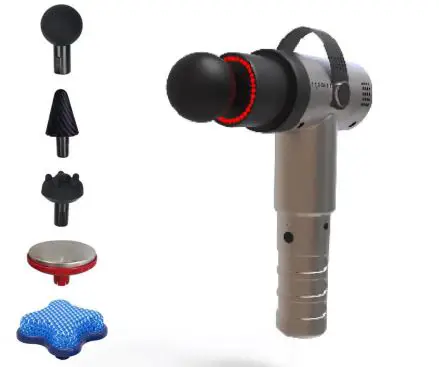

Product Features

EVERTONE MC0313 Prosage Thermo Massage Gun fig1

This Set Includes:
1 x Massager Device
5 x Interchangeable Attachments
1 x Charging Base/ Holding Stand
1 x DC Adaptor

Attachments:
1. Silicone Ball Head
2. Silicone Cone Head
3. Silicone Accupressure Head
4. Heat Attachment
5. Cold Gel Attachment

Charge the device

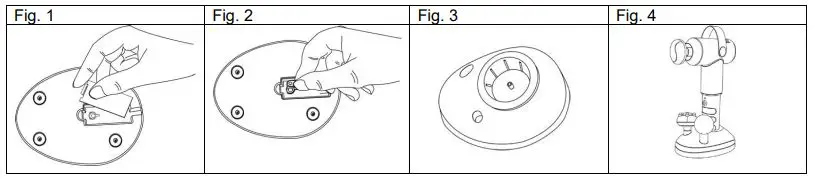

  • Remove the adaptor cover at the bottom of the charging base. (See Fig. 1)
  • Place the 9VDC adaptor into compartment (See. Fig 2) and secure the cover.
  • Then the adaptor jack will be fixed firmly on the charging base (See Fig. 3)
  • Plug the AC adaptor cable into a wall outlet and then place the device on the charging base (See Fig. 4)
  • The charging indicator light on the device (above the control button) will blink Red. Upon full charge the indicator light will turn Blue. (*Please Note: The device cannot be used whilst charging.)
  • Charge for 3-4 Hours for full charge. This will charge the device for use of 1.5 hours.
    EVERTONE MC0313 Prosage Thermo Massage Gun fig2

Operating Instructions

  • Select the appropriate interchangeable attachment for your needs, then screw the selected attachment (clockwise) the into the massager head.
    • *Please note: The Cold Gel attachment needs to be placed in the freezer for 1-2 hours before use.
  • Power the device ON by pressing and holding the power button (located on the shaft of the device) for 3-5 seconds.
  • The blue light on the shaft will indicate the device is ON and will auto start at LO level. Press the power button again to select MID level, and once more for HI level.
    •  *Please note: The Theralite function is not intended for use with the Hot and Cold attachment heads. The Theralite will be blocked during use with the Hot & Cold attachments.
  • Massage the desired body part at the desired speed, applying pressure as needed.
  • Use the silicone strap to better assist your grip and angle whilst in use.
  • The massager is preset with a 10 minute AUTO-OFF timer.
  • When the power/intensity begins to lessen (slow down), please place the device on
  • the charging base to recharge.
    EVERTONE MC0313 Prosage Thermo Massage Gun fig3

Ma intenance and Caring

  • For Maintenance, use a slightly damp towel to clean the device and dry with a soft dry cloth.
  • Do not use the product for over 30 minutes continuously. Doing so may activate the over-heating protection switch and stop operation automatically. If this happens, please wait at least 30 minutes in order to let the device cool down before re-using again.

Technical Specification

Battery Capacity2600 mAH
Power byDC adaptor input 100-240V/50-60Hz
Output Voltage9V DC 1A
Max. Current2000 mA
Power Consumption15 W
1st mode Speed2800 Rpm 46Hz
2nd mode Speed3400 Rpm 56 Hz
3rd mode Speed3900 Rpm 65 Hz
Charging Time3-4 hours
Work for when fully charged1.5 hours
Auto Timer10 minutes
Weight only the massager682 gms   / 1.50 lbs
weight – full set960 gms   / 2.12 lbs
Overall size of massager23.5 x 6 x 19 cm

Warranty

1. Damage caused by failure to follow the instructions, human factors, force majeure, etc. is not covered by warranty.
2. Maintenance cost will be charged for product out of warranty.
3. You can register for your free warranty on www.EVERTONEPROSAGE.com.

In order for this free warranty to be valid and to allow us to meet your requirements, please register your purchase(s) with evertoneprosage.com. Please visit www.evertoneprosage.com and complete all details. You must have a valid email address to register. Please retain your original receipt to validate your purchase.

Disclaimer

In the process of the preparation of this manual, we have sought to make the content correct and complete. However, there is no guarantee that there are no errors or omissions in the manual.

We reserve the right to change specifications of the products mentioned in this manual at any time without prior declaration. No part of this manual shall be reproduced, transmitted, transcribed or stored in a searchable  system or translated into any other languages without the written authorization of our company. The company is not responsible for the loss caused by non-standard or wrong operation.

The Prosage Thermo System does not guarantee specific results for individuals who use Prosage Thermo due to many factors that can influence health & weight loss. Prosage Thermo is not intended to diagnose, treat, cure or prevent any disease, illness or medical condition.
This is not a weight loss system. Individual results may vary. We make no warranties or guarantees. No individual results should be considered typical or guaranteed. The results of Prosage Thermo may be temporary. This product has not been evaluated by the FDA. Patent Pending Applied.

To Purchase
To replace or repurchase attachments, or to purchase new attachments and ad-ons, please visit us at www.evertoneprosage.com

Customer Service:
Phone: 516-723-9947
Email: [email protected] www.evertoneprosage.com

EVERTONE MC0313 Prosage Thermo Massage Gun fig4EVERTONE MC0313 Prosage Thermo Massage Gun fig5
