SC1455 EV Charger
Owner’s Manual

READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.

IMPORTANT SAFETY INSTRUCTIONS

– SAVE THESE INSTRUCTIONS
1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions.
1.2 Keep out of reach of children.
1.3 Do not expose the charger to rain or snow.
1.4 Be sure the area around the vehicle is well ventilated while ft is being charged.
WARNING: RISK OF ELECTRIC SHOCK,
1.5 The charger plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. The plug pins must fit the receptacle (outlet). Do not use with an ungrounded system.
1.6 DANGER: Never after the AC cord or plug provided – if it does not fit the outlet. have a proper grounded outlet installed by a qualified electrician. An improper connection can result in a risk of an electric shock or electrocution.
1.7 Do not use with an extension cord.
1.8 Do not operate charger if it has received a sharp blow. been dropped, or otherwise damaged in any way; take it to a qualified service person.
1.9 Do not disassemble charger take ft to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
1.10 Use the charger only for charging compatible EV vehicles.

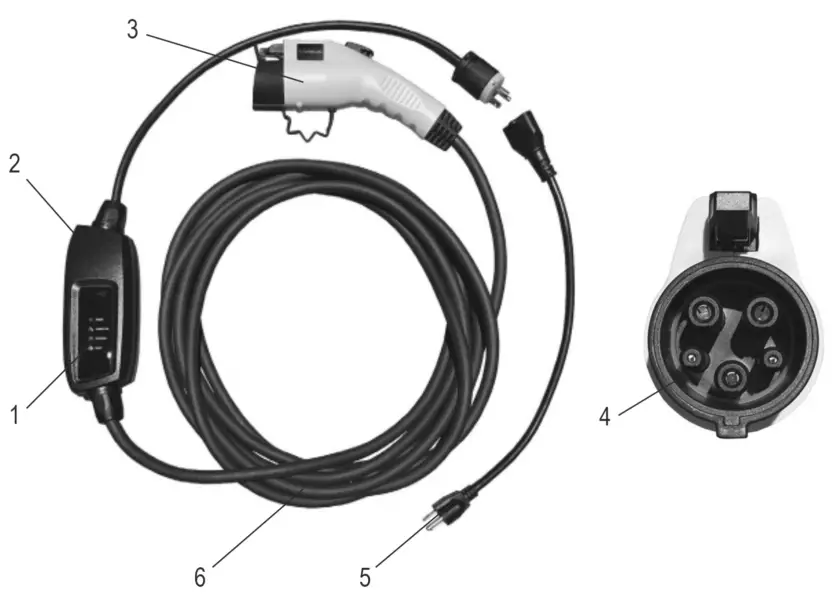

FEATURES

1. Charging status LEDs
2. Control panel
3. EV charger
4. Universal J1772 connector
5. 120V adapter cable
6. 28-foot cable

OPERATING INSTRUCTIONS

1. Connect the power plug to the AC power outlet.
   • Level 2 charging: connect to a 240V AC outlet.
   • Level 1 charging: use included 120V adapter cable, and connect to a 120V AC outlet.
2. Check Power LED.
3. Connect the SAE J1772 plug to your electric vehicle.
4. Check LEDs for charging status. See table below.
5. When charging is complete, disconnect the SAE J1772 plug from the vehicle, and then unplug the cable from the power outlet.
6. Store indoors when not in use.
   LED INDICATORS
   POWER (red)
   CONNECTION (green)
   CHARGING (blue)
   FAULT (yellow)
   LED BEHAVIOR

   POWER (RED)	CONNECTION (GREEN)	CHARGING (BLUE)	FAULT (YELLOW)	CONDITION
   SOLID	OFF	OFF	OFF	Receiving power, but not connected
   SOLID	SOLID	OFF	OFF	Connected, but not charging
   SOLID	SOLID	BLINKING	OFF	Charging
   SOLID	SOLID	SOLID	OFF	Charging completed
   SOLID	SOLID	OFF	SOLID	Communication fault
   SOLID	BLINKING	BLINKING	OFF	Overload protection
   SOLID	SOLID	BLINKING	SOLID	Abnormal current
   SOLID	BLINKING	BLINKING	SOLID	Leakage protection
   SOLID	OFF	OFF	BLINKING	Overvoltage or undervoltage protection
   SOLID	SOLID	SOLID	SOLID	Protection against unit overheating

SPECIFICATIONS

BEFORE RETURNING FOR REPAIRS

For REPAIRS OR RETURNS, visit 365rma.com
Visit batterychargers.com for Replacement Parts.

LIMITED WARRANTY

For information on our one year limited warranty, please visit batterychargers.com or call 1-800-621-5485 to request a copy.
Go to batterychargers.com to register your product online.
