SOUNDBAR
BLUETOOTH ® MANUAL
1AND100BL v1 001

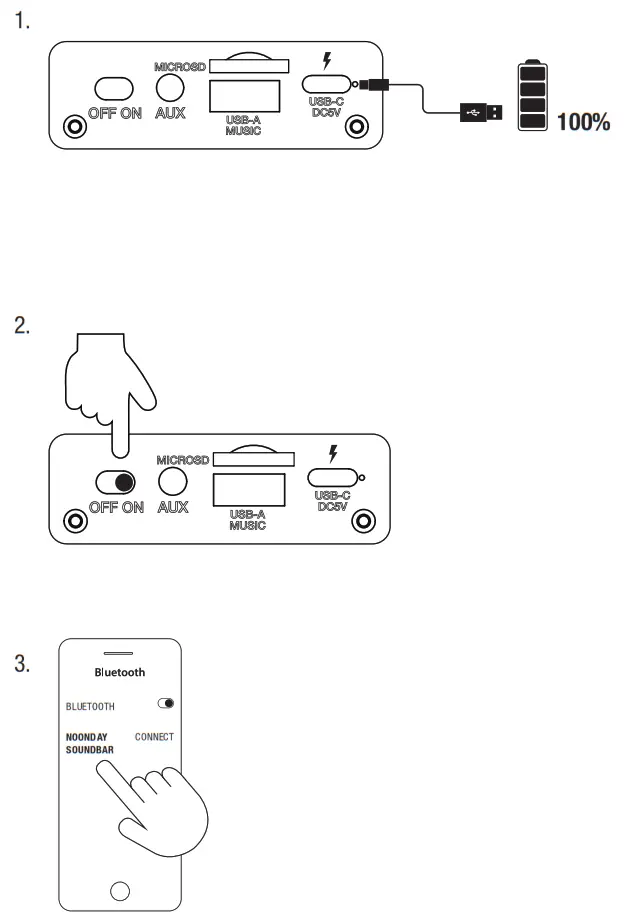

FIRST TIME PAIRING

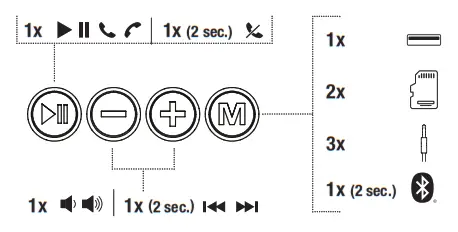

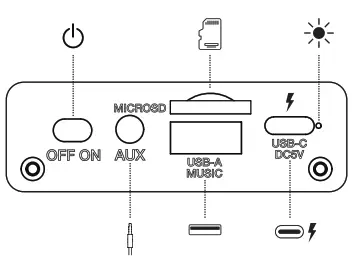

BUTTON BEHAVIOUR
LED BEHAVIOUR
Specifications
Noonday Soundbar 1AND100BL v1 001
- Bluetooth 5.1
- Working range: 10 m
- Operating frequency band: 2402 to 2480 MHz
- Maximum radio frequency power transmitted: 4 dBm / 2.51 mW
- Output power: 2 x 5 W
- Signal to noise ratio: > 65 dB
- Frequency response: 80 Hz – 18 kHz
- Sound pressure level: 90 ± 3 dB
- Aux input: 3.5mm
- Data input: micro SD and USB-A
- Built-in rechargeable battery: 1200 mAh Li-ion
- Play time: approximately 16 hours (volume at 50%)
- Charge time: approximately 3 hours
- Automatic power off after 10 minutes without connection or activity
- Integrated microphone
- Power input: USB-C 5 V 0.5 A
- Dimension: 380 x 55 x 55 mm
- Including USB-C charging cable and aux cable
WARNING
Always follow all instructions and warnings closely. Do not disassemble or modify. Do not open or repair the device yourself. Do not expose to liquids. Do not use or store in damp, humid or wet environments. Do not expose to excessive heat or open fire. Avoid abrupt changes in temperature. Do not burn or incinerate.
CAUTION: This products contains a rechargeable 3.7V 1200mAh Lithium battery. Do not open the device and do not try to retrieve or replace the battery. There is a danger of explosion when the battery is not handled properly. Do not dispose of the device together with other waste. To avoid possible environmental pollution, the device must be disposed of at a recycling centre.
Frequent or extended exposure to loud noise or sounds can cause temporary or permanent hearing loss. Individual susceptibility to noise-induced hearing loss and potential hearing problems varies. Minimize your exposure to loud noises or sounds when using your soundbar. To minimize the potential for hearing damage, keep the volume low enough that you can carry on a conversation with people nearby. Copyright 2022 Sitecom Europe B.V. All rights reserved. The Bluetooth ® wordmark and logos are registered trademarks owned by Bluetooth SIG, and any use of such marks by Sitecom Europe B.V. is under license.
The packaging materials have been selected for their environmental friendliness and are recyclable. Dispose of packaging materials which are no longer needed in accordance with applicable local regulations.
| PACKAGING RECYCLING | |
| Box | Protective Bag |
| Cardboard | CPE |
 |  |
| PAPER COLLECTION | PLASTIC COLLECTION |
| Scatola | Borsa Protettiva |
| Carta PAP 21 | Plastica CPE 07 |
| Raccolta carta e cartone | Raccolta plastica |
