FERM PRM1020P 550W Power Trimmer

Thank you for buying this Ferm product. By doing so you now have an excellent product, delivered by one of Europe’s leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come. For your own safety and for the safety of others, please read these instructions carefully before using this appliance. It will help you understand your product more easily and avoid unnecessary risks. Keep this instruction manual in a safe place for future use

Introduction

The trimmer has been designed for routing of wood and wood products. Check the machine, for loose parts and accessories from transport damage.

MACHINE SPECIFICATIONS

Technical specifications

• Voltage 220-240 V~
• Frequency 50 Hz
• Power input 550 W
• No load speed 35.000/min
• Weight 1.6 kg

using the tool for different applications, or with different or poorly maintainted accessories, may significantly increase the exposure level  the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

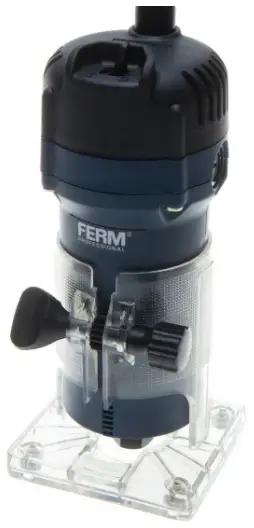

Product description

1. On/off switch
2. Handle
3. Base plate
4. Accessory nut
5. Depth scale
6. Collet nut
7. Spindle
8. Clamping knob
9. Parallel guide
10. Edge guide
11. Template guide
12. Chip deflector
13. 10mm wrench
14. 17mm wrench

SAFETY INSTRUCTIONS

The following symbols are used in these instructions for use

• Read the instructions carefully.
• Danger of life and risk of injury as well as risk of damage to the machine in case of non-adherence to the safety instructions in these instructions of use.
• Danger of electric shock.
• Remove the plug from the mains socket.
• Variable speed control.
• Wear ear and eye protection.
• Wear a dust mask.
• Wear protection gloves.

Additional safety instructions

• Please check workpieces for any obstructions on the surface of the material, such as protruding nails etc., to protect the trimmer head.
• Wait until the trimmer has come to a complete stop before removing any blocked or routed material around the cutter. Use a long stick for this and never your finger.
• Please keep your hands away from the routing surface.
• Immediately switch off the tool if it starts producing any unusual noise or starts vibrating excessively.
• Please check that all parts are secure, tools are removed etc. before operation. Always check that the power supply corresponds to the voltage on the rating plate. Your machine is double insulated, therefore no earthwire is required.
• Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.
• Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm2. When using a cable reel always unwind the reel completely.

Prior to mounting an accessory always unplug the tool. Wait until the machine has come to a complete standstill and the cutter has cooled down before replacing a cutter

ASSEMBLY

Router Bit Selection
Depending on processing and application, router bits are available in the most different designs and qualities: Router bits made of high speed steel (HSS) are suitable for working with soft materials, e. g. soft wood and plastic. Carbide tipped router bits (HM) are particularly suitable for hard and abrasive materials, e. g. hard wood and aluminium

Mounting and removing cutters
Only use cutters with a shaft diameter which corresponds with the size of the collet. Only use cutters which are suited for the maximum speed of the machine. The cutter diameter should not exceed the maximum diameter. Never tighten the collet nut, if there is no router bit in the collet; the collet may be damaged

• Lock the spindle (7) by holding it with the small spanner.
• Open the collet nut (6) using the big spanner.
• Place the cutter shaft in the collet.
• Tighten the collet nut so that the cutter is locked properly.
• Open the collet nut (6) when you want to replace a cutter.

Adjusting the parallel guide
The parallel guide is a useful tool for precision
routing at a fixed distance from the edge of the
workpiece or another ridge. This tool can also be
used to trim circles.

• Place the desired cutter in the tool.
• Slide the parallel guide (9) into the accessory holder.

Mounting the template guide
The template guide is a handy aid for cutting a pattern when the template guide is mounted, you can easily run it along a pre-cut template to cut the material beneath in the same shape. Mount the template guide (11) on the trimmer by removing the bottom plate and mounting the template guide between the trimmer base plate and the bottom plate.

Switching on and off

• Switch the machine on by flipping the On/Off,switch (1) to “I”.
• To switch the machine off flip the On/Off switch (1) to “O”.

Usage tips

• After switching the machine on, make sure the machine reaches full speed before using it on the workpiece.
• Clamp the workpiece and make sure that the workpiece cannot slide from under the machine during the cutting activities.
• Hold the machine firmly and move it evenly over the workpiece. Do not force the machine.
• Only use cutters which do not show any signs of wear. Worn cutters have a negative effect on the efficiency of the machine.
• Always switch off the machine first before removing the plug from the wall socket

Height setting of the trimmer column

• The clamping knob (8) is used to set the height of the trimmer.
• The current height can be read off on the scale (5).

MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor. These machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning
Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Troubleshooting
Please find some potential causes and solutions to possible failure.

1. The operating switch is switched on, but the motor is not working
   1. The electric circuit is broken
   2. Have the electric circuit repaired
   3. Wires in the mains plug or in the socket are loose
   4. Have socket and plug checked or repaired
   5. The switch is faulty
   6. Have the switch repaired
2. Router runs slowly
   1. Blunt or damaged cutter
   2. Re-sharpen or replace cutter
   3. Variable speed set low
   4. Increase variable speed
   5. Motor is overloaded
   6. Reduce pushing force on router
3. Excessive vibration
   1. Bent cutter shank
   2. Replace cutter
4. Sparks inside the housing
   1. Carbon brushes are worn
   2. Replace the carbon brushes

Faults
Should a fault occur, e.g. after wear of a part, please contact the adress on the warranty card. Included you find an exploded view showing the parts that can be ordered

ENVIRONMENT

In order to prevent the machine from damage during transport, it is delivered in a sturdy packaging. Most of the packaging materials can be recycled. Take these materials to the appropriate recycling locations. Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way

WARRANTY

The guarantee conditions can be found on the separately enclosed guarantee card. The product and the user manual are subject to change. Specifications can be changed without further notice.

Spare parts list

PRM1020P

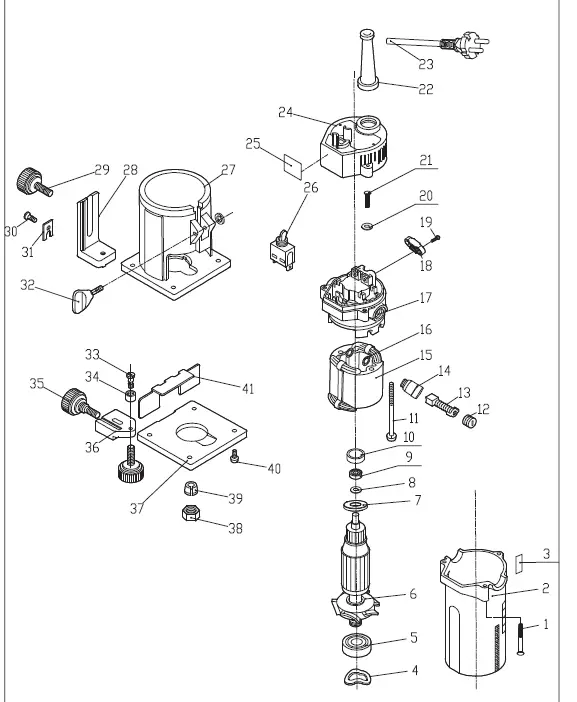

Exploded view
