OWNER’S MANUAL

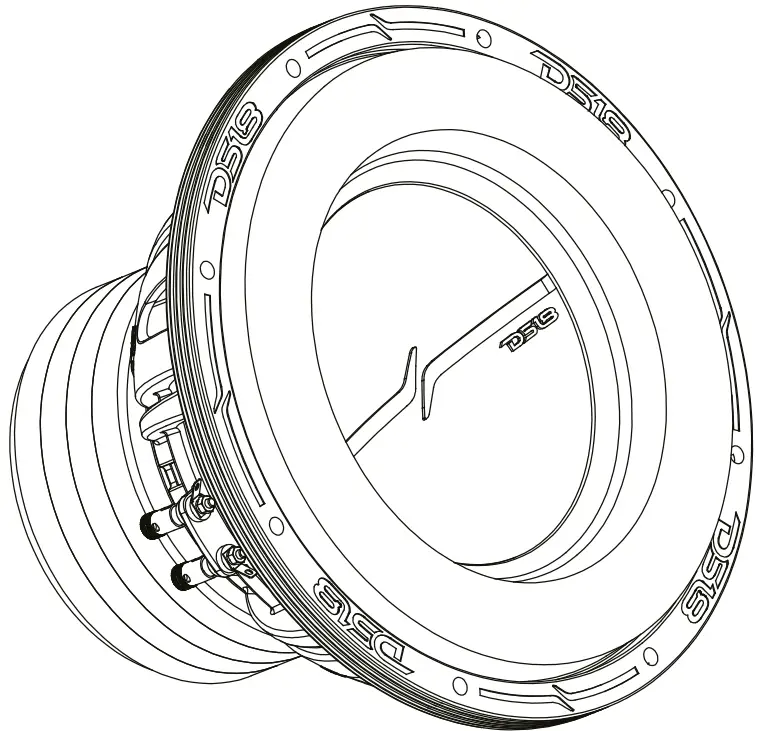

ZXi12.4D
HIGH EXCURSION
12″ SUBWOOFER DVC 4-OHM
ZXi12.4D
Specifications:
Nominal Diameter…………………………………………………………..12″
Nominal Impedance …………………………………………………….4 + 4 ohms
RMS Power Handling ………………………………………………….1000 Watts
MAX Power Handling ………………………………………………….2000 Watts
Sensitivity (1w/1m) ………………………………………………………..89.2dB

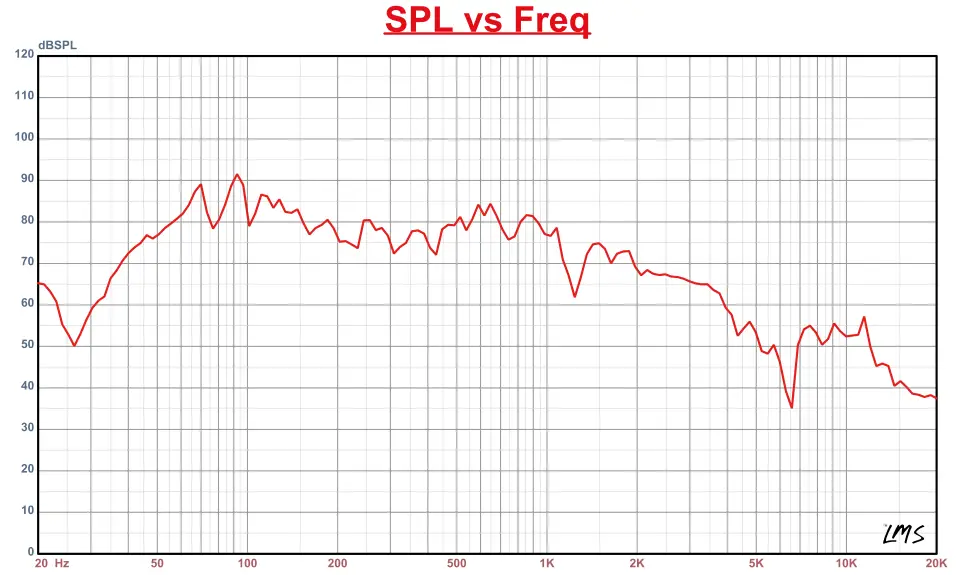

Frequency Response………………………………………………….10Hz – 1.8KHz
Recommended Lo Pass Crossover……………………90Hz
Motor:
Voice Coil Diameter…………………………………………………….3″ (76.5mm)
Voice Coil Former Material………………………………………Black Aluminum
Winding Material…………………………………………………………….CCA
Cone Material………………………………………………………………….Non-Pressed Paper
Dust Cap Material………………………………………………………….PPI
Surround Material…………………………………………………………. Foam
Basket Material……………………………………………………………….Aluminum
Magnet Material………………………………………………………………Ferrite
Magnet Weight……………………………………………………………….224 Oz (4 x 56 oz)
Displacement Volume………………………………………………….0.14 ft3 / 3.99 L
Thiele & Small Parameters:
| Equivilant Volume Excursion (one way) Free Air Resonance Mechanical Factor Electrical Factor Total Factor Moving Mass Compliance Bl Factor Voice Coil Inductance Diaphragm Area Dc Resistance Efficiency Bandwith Product | Vas……………..15.635L Xmax…………32mm Fs ……………….31.4Hz Qms ………….5.274 Qes…………….0.594 Qts……………..0.534 MMS……………238.433g Cms……………0.065 Bl………………….14.55 Le………………..12.89 mh Sd……………….530.93cm Re……………….4.0+4.0 ohms EBP…………….52.8 |
Measurements:

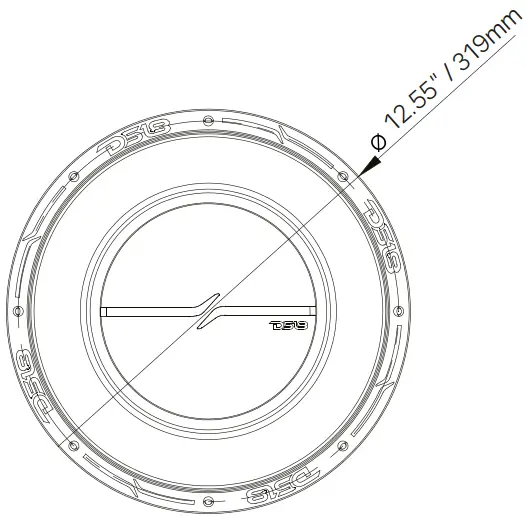

Overall Diameter…………………………………………………………….12.55″ / 319mm

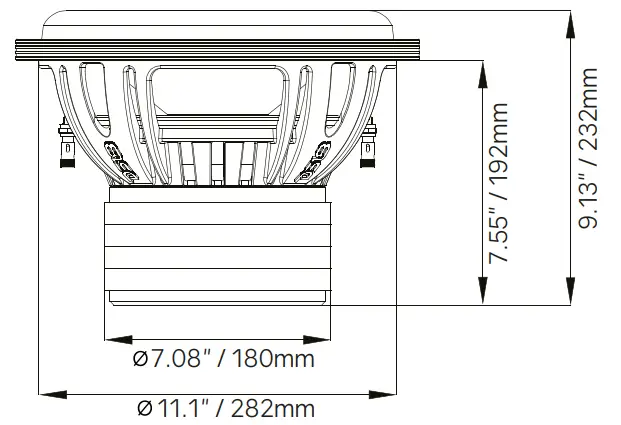

Overall Depth………………………………………………………………….. 9.13″ / 232mm
Front Mount Baffle Cutout………………………………………… 11.1″ / 282mm
Mounting Depth…………………………………………………………………7.55″ / 192mm
Motor Diameter………………………………………………………………7.08″ / 180mm
