cnw MCB Low voltage circuit protection switch gear

Quicklag accessories

Quicklag’s extensive range of accessories extends its features & benefits to many applications. Moulded covers & polycentres allow for retrofit installations where space is limited. A wide range of locking devices can easily provide extra security & safety in situations where it is required.

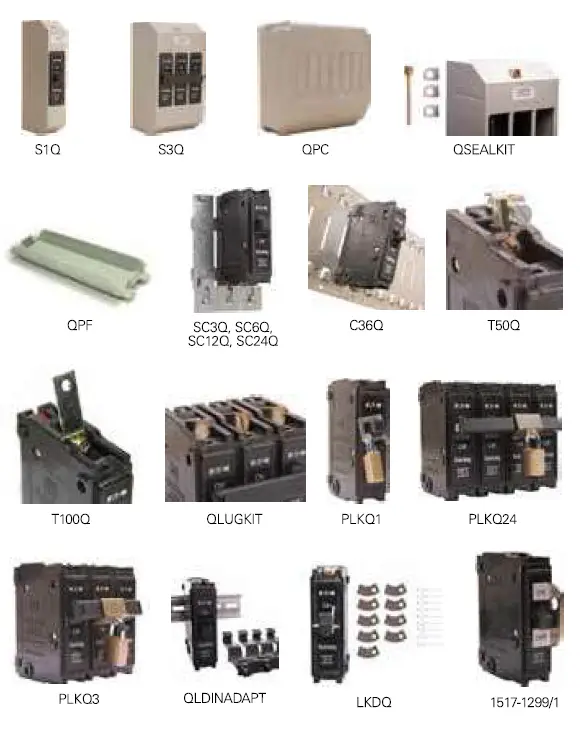

Description & Item no.

• 1-Pole Moulded Cover: S1Q
• 3-Pole Moulded Cover: S3Q
• Ouicklag Polycentre 6-Pole: QPC
• Sealing Screws for Ouicklag Covers (Kit of 10): QSEALKIT
• Ouicklag Pole Filler: QPF
• Sliding Clip Tray 3-Pole: SC3Q
• Sliding Clip Tray 6-Pole: SC6Q
• Sliding Clip Tray 12-Pole: SC12Q
• Sliding Clip Tray 24-Pole: SC24Q
• Standard Clip Tray 36-Pole: SC24Q
• 50A Terminal 25mm2: T50Q
• 100A Terminal 50mm2: T100Q
• Tunnel Kit 35mm2 – 3 pieces: QLUGKIT
• Handle Lock 1-Pole + Padlock: PLKQ1
• Handle Lock 2 or 4-Pole + Padlock: PLKQ24
• Handle Lock 3-Pole + Padlock: PLKQ3
• Lock Off device (opposing breaker): 1517-1277/1
• Quicklag DIN Adaptor (Pack of 6): QLDINADAPT
• Lockdog Ouicklag (Pack of 10): LKDQ
• MCB Lock Off Bracket Kit (Pack of 10): 1517-1299/1
• Tee-off Insulation Cap: 1521-1287/1
• Busbar Comb 24-Pole: 1521-0070/15
• 250 A main switch kit for xBoard Plus Ouicklag : XDBPQ-M/S

ELQ Earth Leakage breaker

The ELO Earth Leakage breaker combines overload, short circuit & residual current
(earth leakage) protection in one compact unit.

Features & Benefits

• Overload, short circuit & residual current protection in one compact unit
• 6kA at 240V AC/Sym (AS2184)
• Sensitivity available in 10, 30 & 100mA models
• Approval No. NSW27675
• Trip indication window
• Test button with preventative accidental push design

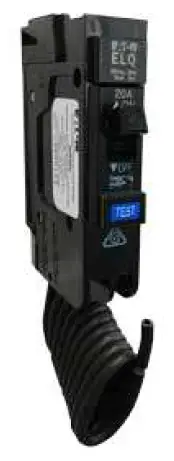

ELQ Earth leakage breaker

ELQ specific Accessories

Description & Item no.

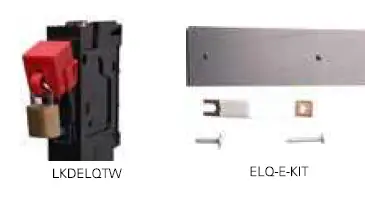

• ELO to E-Frame Adaptor Kit: ELQ-E-KIT
• Lockdog Kit ELO (No Padlock, 1-Pole): LKDELQTW
