Exit Toys Msp-410-v01 Soccer Goal Instruction Manual

Product Information

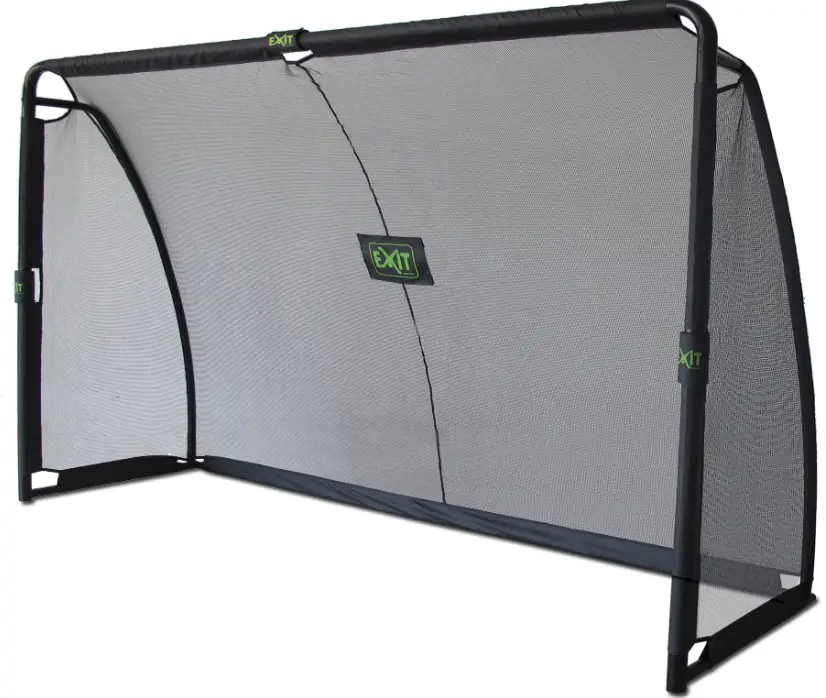

Product Name: Soccer Goal

Model: EXIT Scala 300×100

Model Number: MSP-410-V01

Product Usage Instructions

1. Step 1: Unpack the soccer goal and make sure all the components are included.

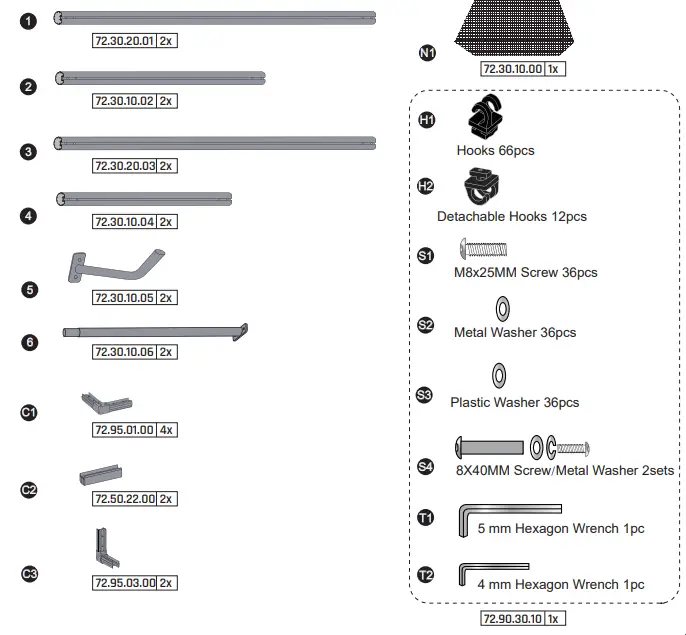

2. Step 2: Identify the following components:
   – 72.30.20.01: 2x
   – 72.30.10.02: 2x
   – 72.30.20.03: 2x
   – 72.30.10.04: 2x
   – 72.30.10.05: 2x
   – 72.30.10.06: 2x
   – 72.95.01.00: 4x (C1)
   – 72.50.22.00: 2x (C2)
   – 72.95.03.00: 2x (C3)
   – 72.30.10.00: 1x (N1)
   – Hooks (H1): 66pcs
   – Detachable Hooks (H2): 12pcs
   – M8x25MM Screw (S1): 36pcs
   – Metal Washer (S2): 36pcs
   – Plastic Washer (S3): 36pcs
   – 8X40MM Screw/Metal Washer (S4): 2sets
   – 5 mm Hexagon Wrench (T1): 1pc
   – 4 mm Hexagon Wrench (T2): 1pc (72.90.30.10: 1x)

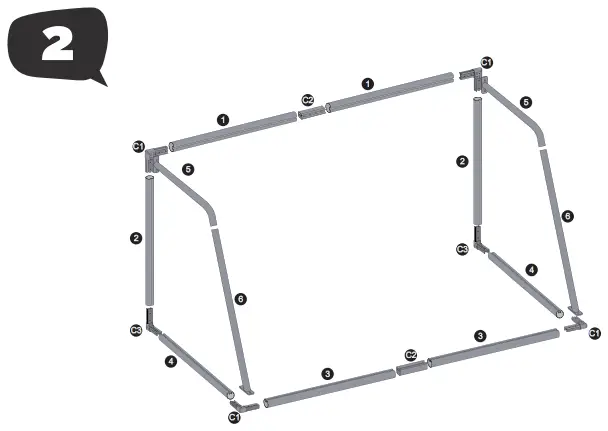

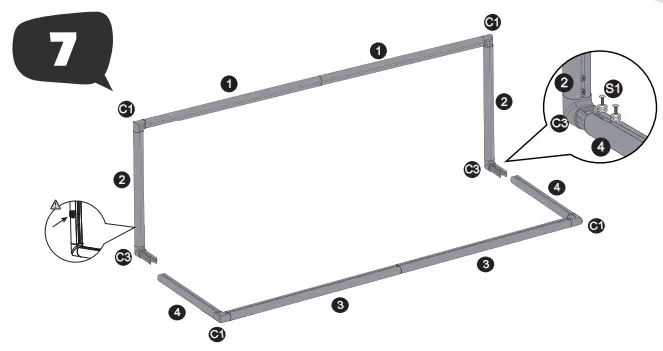

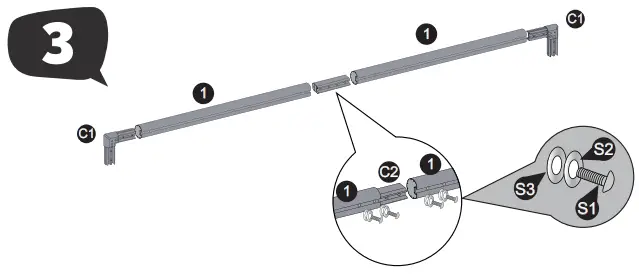

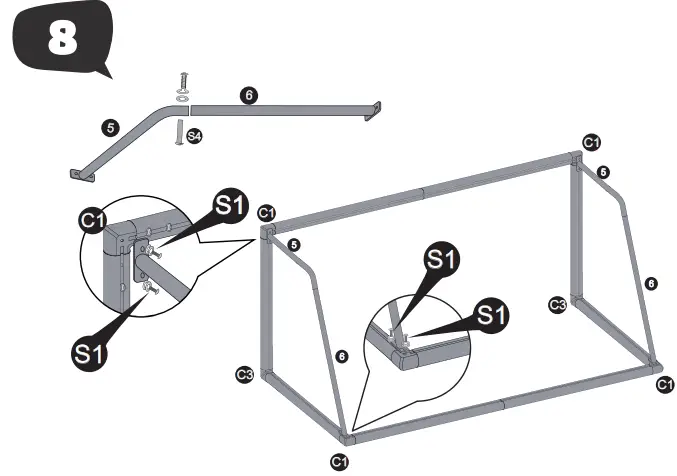

3. Step 3: Assemble the soccer goal according to the provided diagram and instructions.

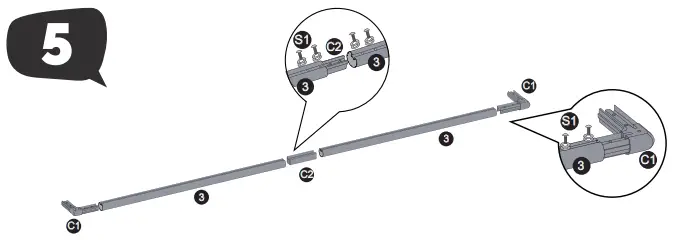

   – Use the provided screws, washers, and hexagon wrenches to secure the components together.

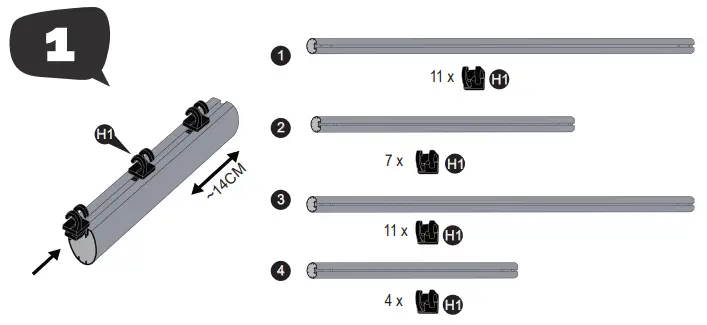

4. Step 4: Attach the hooks (H1) and detachable hooks (H2) to the designated areas on the soccer goal.

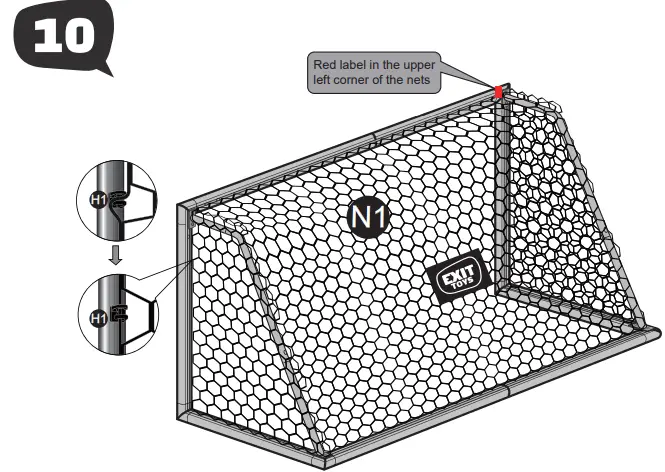

5. Step 5: Install the nets (N1) by attaching them to the hooks and ensuring the red label is in the upper left corner.
6. Step 6: Once assembled, the soccer goal is ready for use.
