DESK MOUNT FOR SCREENS
17″ – 32″
INSTALLATION MANUAL
DB5032TNR-B
VESA Compatible 75×75 100×100

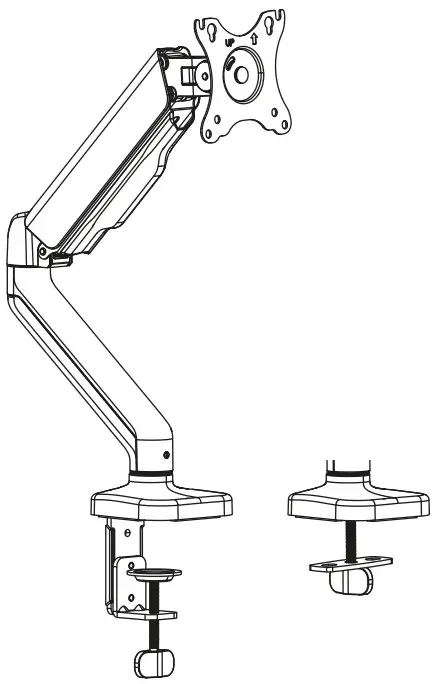

DB5032TNR-B Desk Mount for Screens

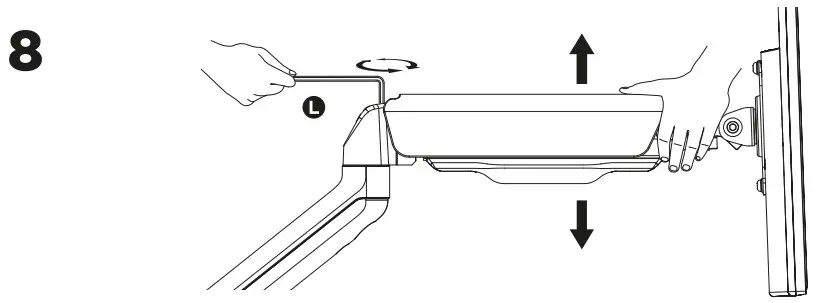

- To properly balance the arm with monitors mounted, adjust the spring tension using the supplied Allen Key as follows:
- First, position and firmly hold the arm horizontally as shown. Ask for assistance should you require it.
CAUTION: To avoid damage to monitors or mount, always keep the arm in a horizontal position while making adjustments. Again, ask for assistance if required.
If the arm drops, turn the adjustmentscrew clockwise until it stays in ahorizontal position.
If the arm rises, tum the adjustment screw counter-clockwise until it stays in a horizontal position.
CAUTION: Do not over tighten the screws.
If the arm drops, turn the adjustmentscrew clockwise until it stays in ahorizontal position.
If the arm rises, tum the adjustment screw counter-clockwise until it stays in a horizontal position.

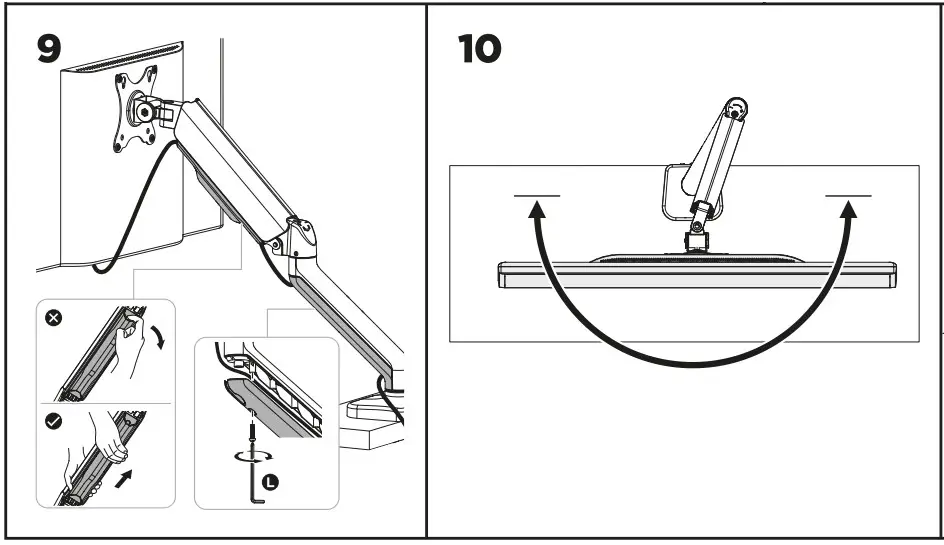

CAUTION: DO NOT rotate monitor past rear edge of desk to avoid anunstable situation may cause tipping.

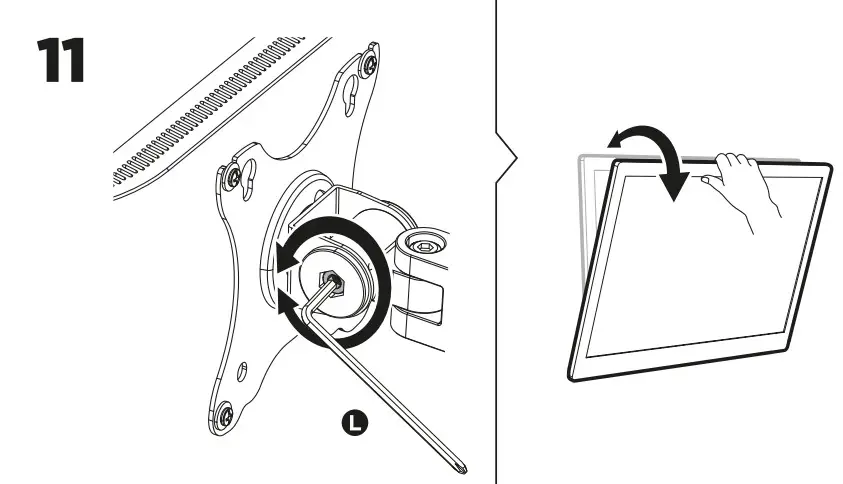

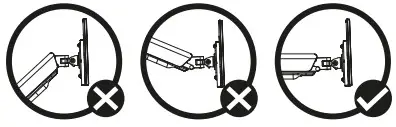

Note: If the display does not stop at your desired position, tighten the screws as shown.
Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.
CAUTION: Use with products heavier than the rated weights Indicated may result in instability causing possible injury.
- Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
- Safety gear and proper tools must be used. This product should only be installed by professionals.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

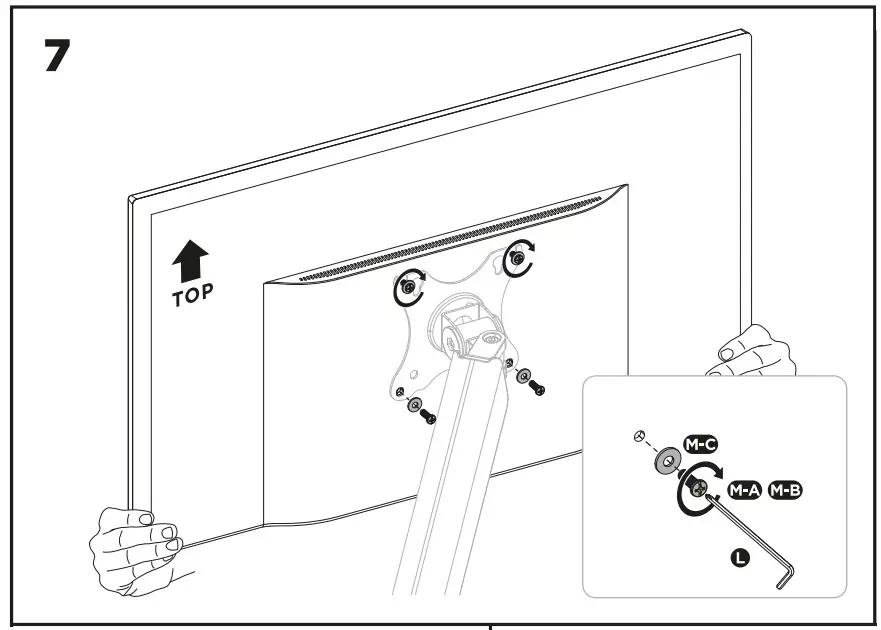

- Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws
- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

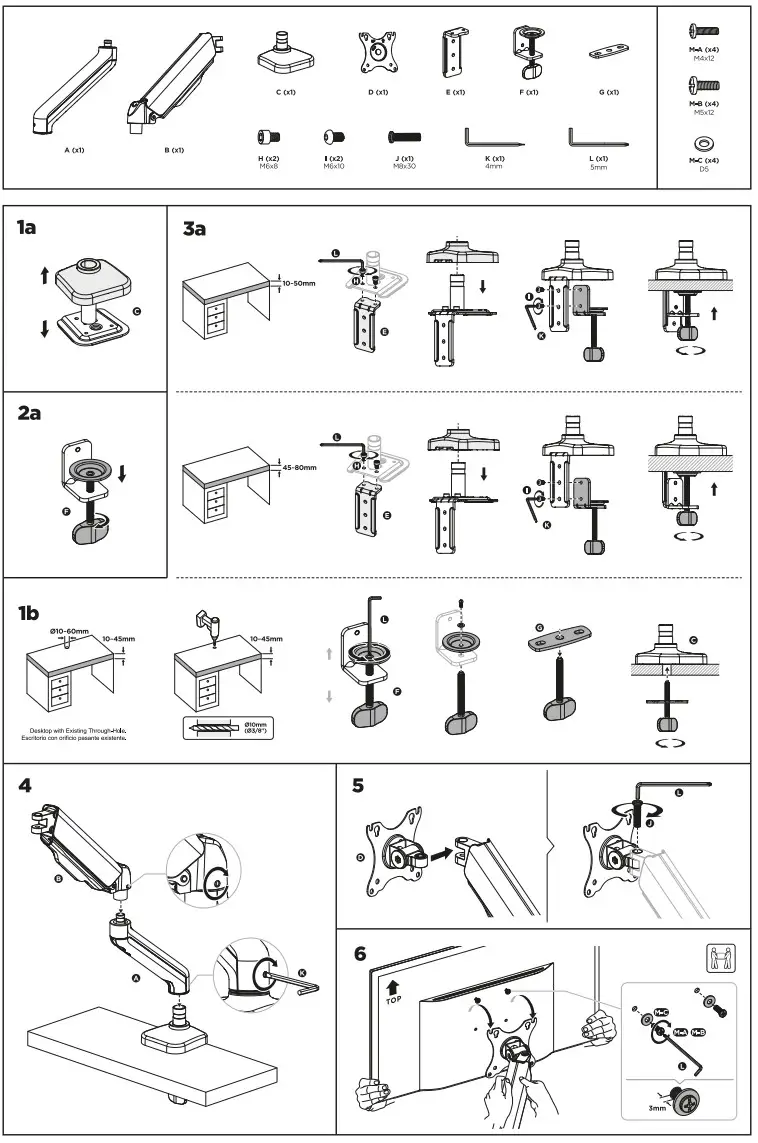

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.
MAINTENANCE: Check that the bracket is secure and safe to use at regular intervals (at least every three months).
©2023 by TOOQ technology, S.L.
Released in 2023/07.
All Rights Reserved.
tooq.com
