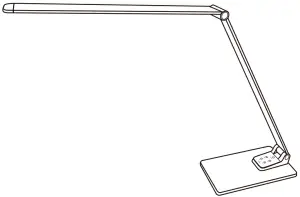

LED ALUMINIUM DESK LAMP WITH USB PORT
Product code: 330013
INSTRUCTION MANUAL
Backed by Nero’s 12-month replacement guarantee
Imported by R Weatherdon & Co Pty Ltd
www.weatherdon.com.au | Made in China
Warning & Cautions:
- Do not disassemble the product, to avoid any electric shock.
- Use only original manufacturer parts and adapters.
- Do not overextend the hinge, overextending will cause damage to the lamp.
- Do not use or place the lamp in high-temperature or high-humidity environments.
- Do not look at the LED light source directly, doing so can cause damage to eyesight.
- In case of any malfunction, IMMEDIATELY disconnect the power cord and DISCONTINUE USE.
- Examples of possible malfunctions:
● The power cord or power plug breaks
● The lampstand becomes damp or wet
● The lamp hinge breaks
● The light bulb or surrounding area starts to smoke or spark
● Abnormal flickering
| Material | Qty of LED: | Luminous Flux ( Lm) | Illumination (lux) | CCT |
| Aluminum, Steel, ABS | 66pcs | 500 | H30cm=1800 | 30000K/4000K/5000K |
| Power | CRI | Voltage: | Switch: | Color: |
| 12W | ≥80 | DC 12V 2A | Touch Control | Silver/Blue Champaign/Black |
Features:
● High polish aluminum treatment.
● USB Port to charge mobile devices.
USB output DC5V 1A
● 5 color temperature modes. (3000K/3500K/4000K/4500K/5000K)
● 6 step dimming touch switch.
● 30/60 Mins power off.
● More than 20,000 hours long life span.
User guider:
1. Connect the power adapter to the rear of the lampstand.
(USB output DC 5V 1A)

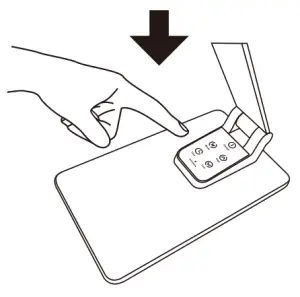

2. Touch the:
1. Turn on/off the light
∧. Increase brightness
∨. To reduce brightness
M. Change the different color temperatures (3000K/3500K/4000K/4500K/5000K)
∠. 30/60 Mins power off

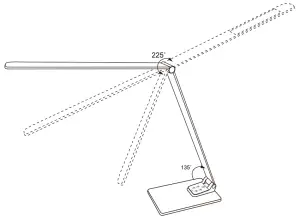

4. Lamp head can be adjusted up to 225 degrees in a left/right direction and lamp arm 135 degrees in an up/down direction. (When adjusting the lamp, please hold the base).
