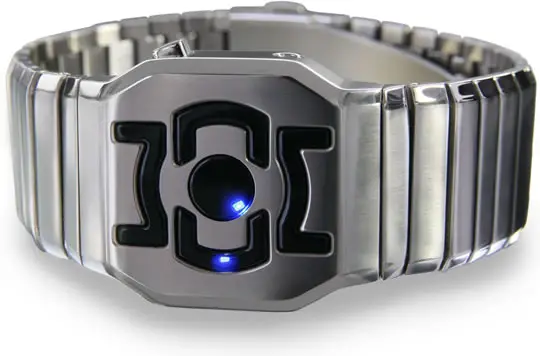

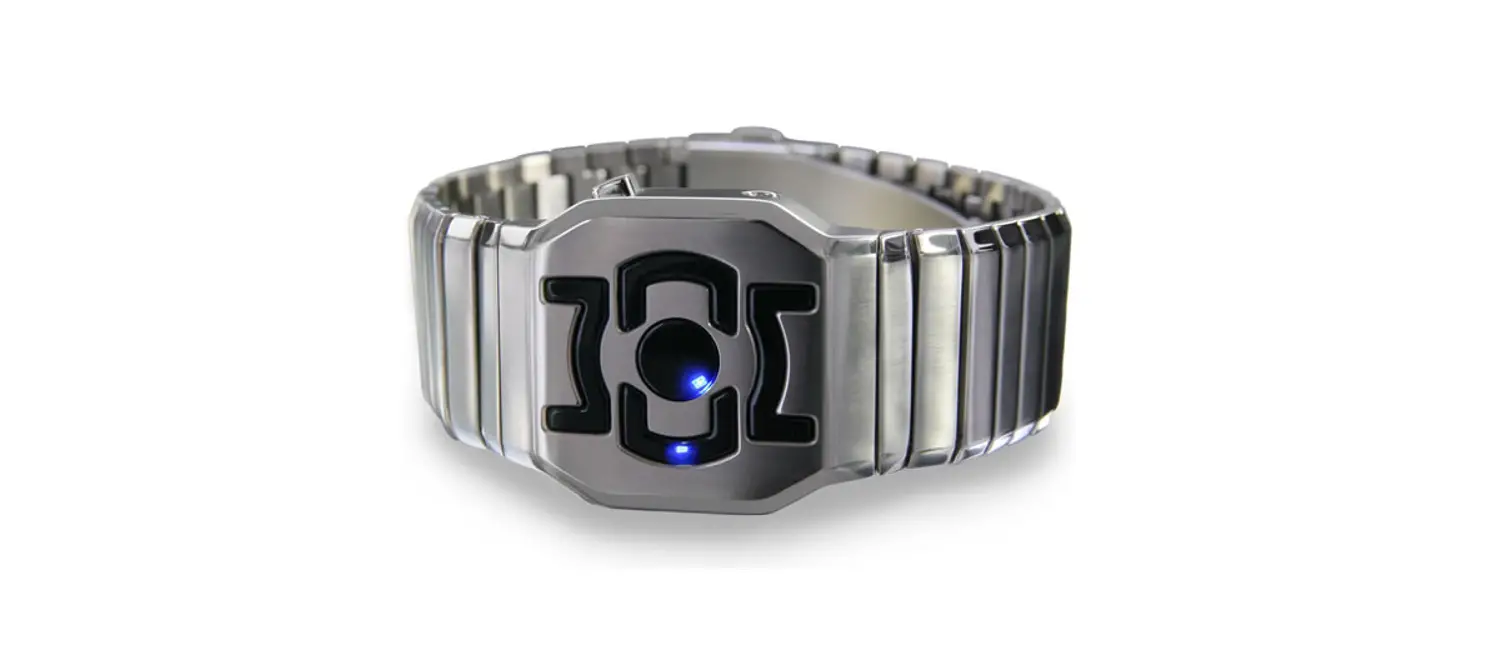

TOKYOFLASH JAPAN Hanko LCD Watch
How to read the time
- Press the button A once to display the time.
- The animation will last for 1 second, then the time will be displayed for 7 seconds. Please note: the LEDs automatically shut down after 7 seconds of inactivity.

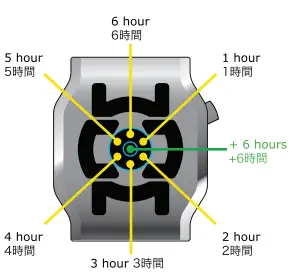

Reading the hours
The center circle contains the hours. The hours 1 to 6 are presented starting from the top right and finishing at the 12 o’clock position. The center LED represents 6 hours and is only lit from 7 to 12 o’clock.
For example: if it’s 7 o’clock the center LED plus(+) the 1 hour LED will be lit.
Reading the minutes
- The outer 5 minute indicators are located in the same location as a regular clock. The four LED indicators located between the hours and the outer ring represent minutes 1 to 4.
How to set the time
First press button A to display the time, then press and hold button B for 4 seconds to enter setting mode.
Please note: setting mode will shut down after 7 seconds of inactivity .
Setting the time (Hours)
- The hour LEDs will be flashing
- Press button A to increase the LEDs and set the hours. Press button B to confirm and move to the time (minutes) setting mode.
Please note: setting mode will shut down after 7 seconds of inactivity.
Setting the time (Minutes)
- The minute LEDs will be flashing.
- Press button A to increase the LEDs and set the minutes.
- Press button B to confirm and wait 7 seconds to end setting mode.
Battery Replacement
- This watch uses a CR2025 battery. We recommend that you take the watch to a specialist for the battery replacement.
- The battery in your watch is factory fitted and is used to check the functions and performance of the watch. It may need to be replaced within 1 year of purchase.
Caution
Your watch is water resistant to 3 ATM. Please do not use the watch In the shower, for swimming sports or for other water related activities.
Warranty
- This watch is covered by a one year manufacturers warranty.
- This warranty does not cover water damage, accidental damage, neglect or unauthorized repair.
