advidia M-87-V 8MP IR Dome Network Camera
Overview
- 8MP IR
- True WDR 120dB
- 2.8mm to 12mm motorized lens
- H.265
- IP67
- IK10 Rated
Technical Specifications
| Device | |
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Min Illumination: | Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR |
| Shutter Time: | Auto/Manual, 1 ~ 1/100000s |
| Lens: | 2.8 ~ 12mm |
| WDR: | 120 dB |
| Angle of View: | H: 107.4°~ 29.2°, V: 54.2°~ 16.3°, O: 111.0°~33.1° |
| Angle Adjustment: | Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~ 355° |
| 3-Axis Adjustment: | Yes |
| Day & Night: | IR-Cut Filter with Auto Switch (ICR) |
| IR Range: | Up to 40m (131ft) IR range |
| Compression Standard | |
| Video Compression: | H.265, H.264, MJPEG |
| Video Bit Rate: | 128 Kbps~16 Mbps |
| Tri-Stream: | Yes |
| Analytics: | Cross Line, Intrusion, Enter Area, Leave Area Detection; Motion Detection, Tampering Alarm, Audio Detection |
| Image | |
| Max. Image Resolution: | 3840 x 2160 |
| Frame Rate: | 20fps (3840 x 2160) |
| ROI Codec: | Up to 8 areas |
| Image Setting: | White Balance, Digital Noise Reduction, Smart IR, Flip, Dewarping, HLC, BLC |
| Network | |||
| Alarm Channels: | 1 Channel In | 1 Channel Out | ||
| Protocols: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP | ||
| Interface | |||
| Communication Interface: | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Local Storage: | Micro SD, up to 256GB | ||
| Audio: | Input: Impedance 35kΩ; Amplitude 2V [p-p] Output: Impedance 600Ω; Amplitude 2V [p-p] Built-in Mic or External Audio Input/Output | ||
| General | |||
| Safety | UL (IEC62368-1), CE, IEC62368-1 | ||
| EMC | FCC (Part15 ClassA), EN55032 ClassB, EN55024 | ||
| Operating Conditions: | Temperature:-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (Non-Condensing) | ||
| Power Consumption: | Max 9.0W | ||
| Power Supply: | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Weather Proof Rating: | IP67 | ||
| Vandal Resistant: | IK10 | ||
| Dimensions: | Φ148 x 111mm (Ø5.8” x 4.4”) | ||
| Weight: | 0.97kg (2.14lb) | ||
| Software: | Includes Video Insight VMS License | ||
 | M-JB | M-WM-JB | M-FM |
| M-PM | M-Pendant-Ex | M-Pendant | |

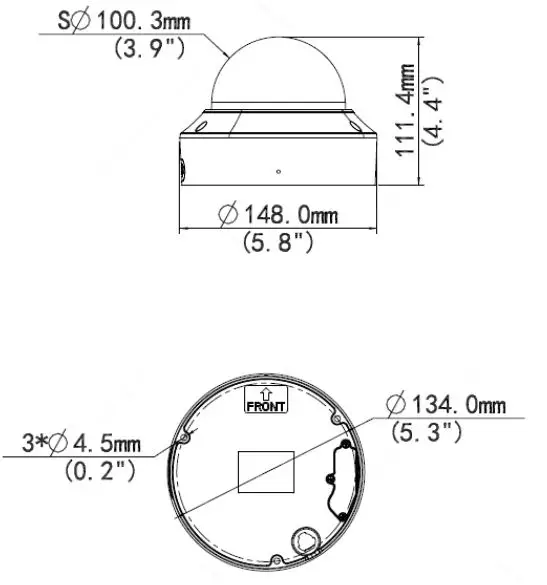

DIMENSIONS
