Speaka 1611100 Lcd Wall Bracket Instruction Manual (+ PDF)

speaka 1611100 LCD Wall Bracket

Contents hide

1 Intended use

2 Delivery content

3 Latest operating instructions

4 Explanation of symbols

5 Safety instructions

6 Mounting

7 Technical data

8 Mounting Instructions

9 Documents / Resources

9.1 References

10 Related Posts

Intended use

The product is designed to fix LCD monitors with a weight of up to approx. 15 kg, with “VESA wallmount system” onto the wall (75 mm or 100 mm).
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product for purposes other than those described above, the product may be damaged. In addition, improper use can cause hazards. Read the instructions carefully and keep them. Make this product available to third parties only together with its operating instructions. This product complies with the statutory national and European requirements. All company names and product names are trademarks of their respective owners. All rights reserved.

Delivery content

TFT wall bracket

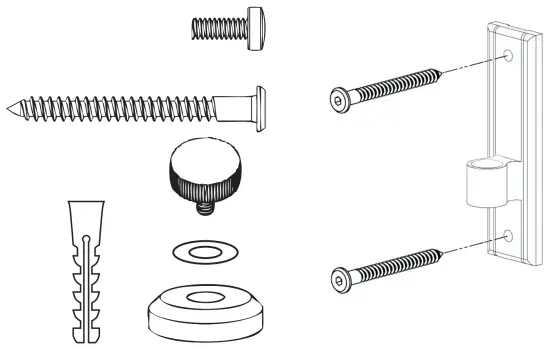

Mounting material
Operating instructions

Latest operating instructions

Download the latest operating instructions via the link www.conrad.com/downloads or scan the QR code shown. Follow the instructions on the website.

Explanation of symbols

An exclamation mark in a triangle indicates important instructions in this operating manual that absolutely have to be observed.

Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

The device is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. This may become dangerous playing material for children.
Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapours and solvents.
Do not place the product under any mechanical stress.
If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. Safe operation can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.
Do not overload the product! Mind the weight details given in the technical data.
Consult an expert when in doubt about operation, safety or connection of the device.
Maintenance, modifications and repairs are to be performed exclusively by an expert or at a qualified shop.
If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.

Mounting

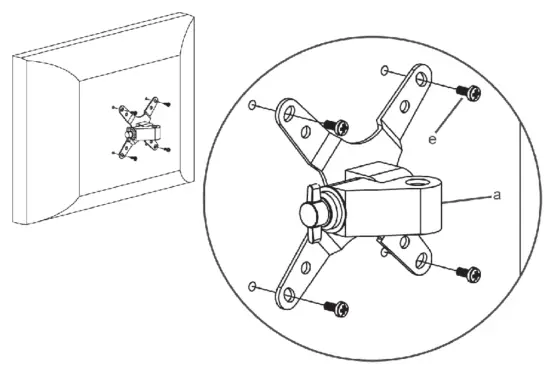

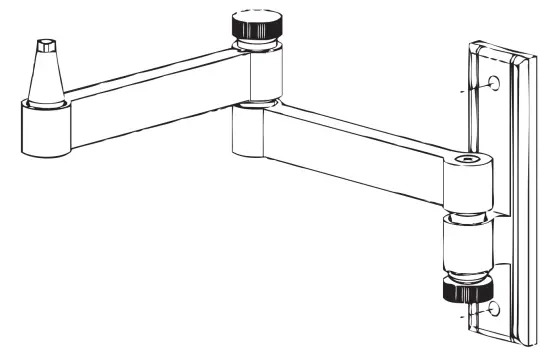

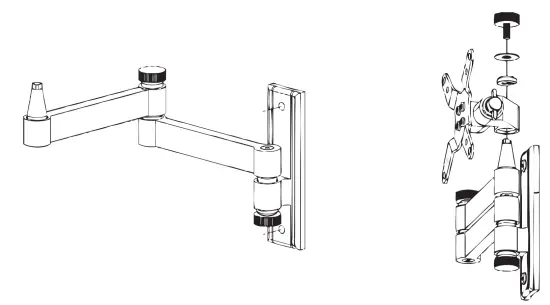

Follow the installation instructions on the back. They explain the installation of the product step by step.

Technical data

Standard ………………………………………. 75 mm and 100 mm VESA assembly
Load………………………………………………max. 15 kg

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
Copyright 2018 by Conrad Electronic SE.
