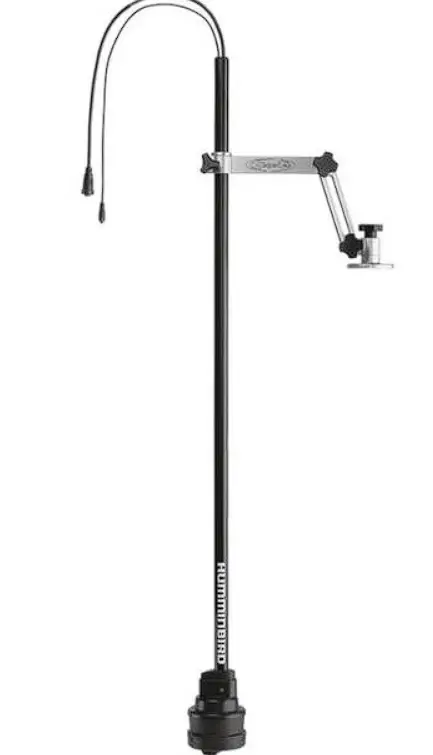

HUMMINBIRD 082324055355 Mega 360 Imaging Universal

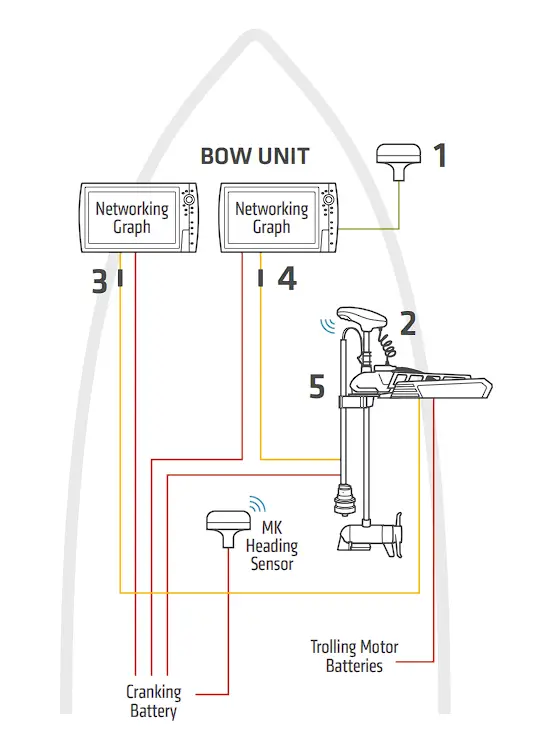

Adding a MEGA 360 Imaging – Ultrex model to a boat with (2) bow-mounted Humminbird units and Minn Kota motor with built-in MEGA Imaging.
| 1 | GPS + Heading Sensor AS GPS HS | #408400-1 | GPS + Heading Sensor APEX: AS GPS HS | #408400-1 AS GPS | #720113-1 SOLIX: AS GPS HS | #408400-1 AS GPS NMEA | #720080-1 |
| 2 | Minn Kota Trolling Motor with i-Pilot Link and built-in MEGA Imaging* | Minn Kota Trolling Motor with i-Pilot Link and built-in MEGA Imaging* |
| 3 | Adapter Cable for built-in MEGA Imaging MKR-MI-1 (HELIX 8-12 G2N and newer) #1852088 MKR-MDI-2 (HELIX 7 G3/G3N and newer) #1852086 | Adapter Cable for built-in MEGA Imaging N/A |
| 4 | MEGA 360 Adapter Cable AD HELIX M360 (included with MEGA 360) | MEGA 360 Adapter Cable N/A |
| 5 | MEGA 360 Imaging MEGA 360 Imaging – Ultrex | #411250-1 | MEGA 360 Imaging MEGA 360 Imaging – Ultrex | #411250-1 |
*One (1) AS ECX 30E ethernet extension cable included with i-Pilot Link trolling motor.
The accessories and part numbers listed above are valid as of November 2021. Installations shown are for HELIX G3N/G4N and APEX/SOLIX G2/G3 networking models and Minn Kota trolling motors with i-Pilot Link.
