Lenovo Jg 210x Electric Bone User Manual

Lenovo JG 210X Electric Bone

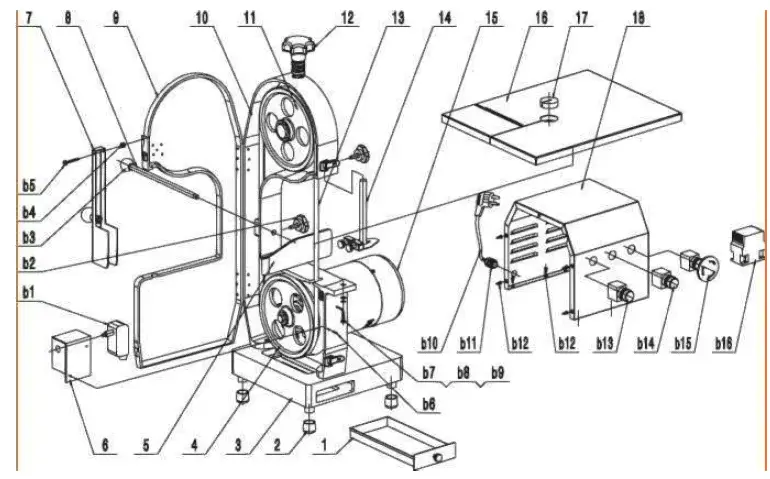

^XPLOSIVEVIEW JG210 SERIES

I TUMNIGAL BHTUII-IUA IIUNB：

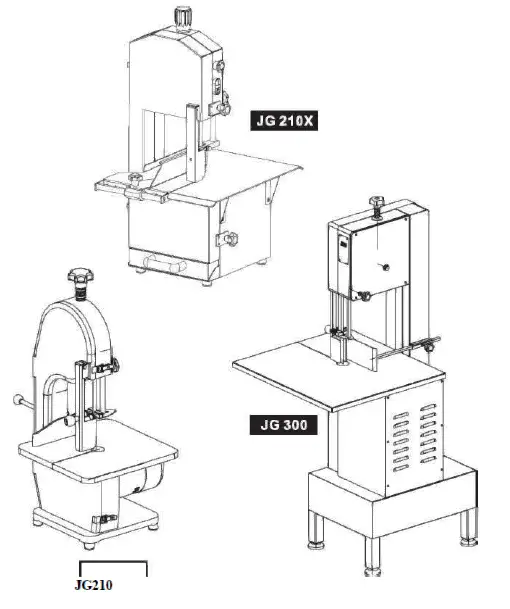

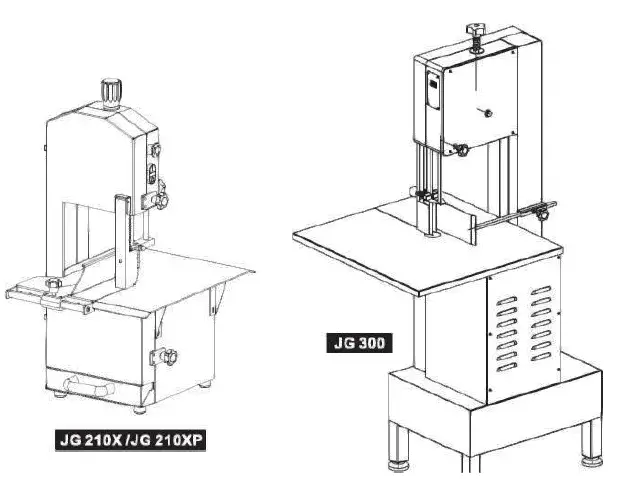

• Model
• JG210X JG210XP JG300
• Voltage
• 110/220V 110/220V 110/220/380 V
• Frequency
• 50/60HZ 50/60HZ 50760Hz
• Input Power 950W 950W 1800W
• Out Power 850W 850W 1500W
• Wheel Diameter 210 mm 210 mm 300 mm
• Blade Length 1650 mm 1650 mm 2400mm
• Blade Speed 15/19 m/s 15/19 m/s 11.5/13.6 m/s
• Table Size 445×600 mm 445×600 mm 712×662 mm
• Table Material 304 S.S 304 S.S 304 S.S
• Cutting Thickness  4-180 mm 4-180 mm 30-250 mm
• Sawdust Container
• Product Size 46x55x90cm 46x55x100cm 85x70x166cm
• Product Weight 53 KG 103 KG


Safety notices

• Please read these instructions carefully and use the device only for food processing.
• Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
• Only place the unit out of the reach of children.
• To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
• Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
• Do not use solvents, benzene or alcohol to clean the unit
• Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
• The machine with 3 phase motor must be checked the machine rotates in the direction indicated by the rotation mark. If direction is wrong, change the two of the three line-wire each other to make the rotation direction
• The machine with 3 phase motor must be connected to the switch of at least 3mm touch-point distance which installed by user. Rated current of the switch must be not lower than 35A.

IMPORTANT:

• Avoid contact with moving parts. To prevent personal injury and property damage, make sure that: hands, hair, clothing and cooking accessories do not come
• into the rotating area of the appliance during use.
• The bone saw is intended exclusively for meat and bone, under no circumstances for other purposes.
• To avoid clogging the filling opening, do not process too large quantities at once.
• If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
• Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.

Intended use

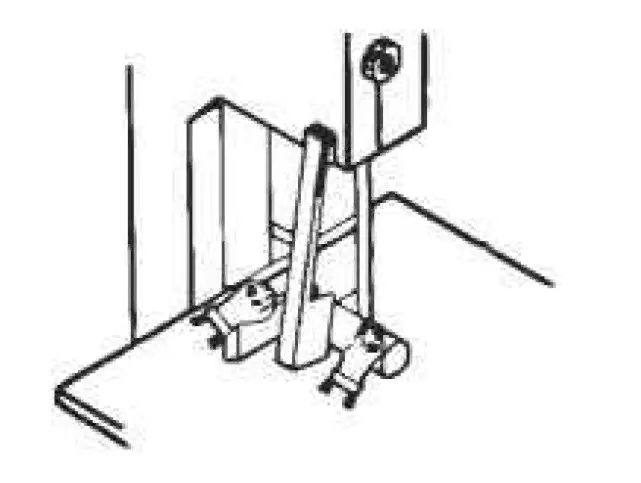

Make sure the machine should be placed on the level ground or desk. Open the door cover, check if the blade and wheels fit well. Adjust the wheel by the top adjust screw. Attention: in order to protect the saw blade teeth. The teeth need out of the wheel about 2~3mm According the cutting thickness request, adjust the protect plate to correct position, and start. IMPORTANT: Remember use the pusher to protect your hand.

Cleaning and care instructions

The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food. After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning. Replace the saw blade if the sawing speed is slow.

Always disconnect the mains plug before cleaning.

Environmental protection

The package materials are recyclable. Pleasures do not throw the package into the household waste but reuse it. Old devices contain valuable recyclable materials which should be recycled. For this reason, please dispose of old devices only at suitable collection points.
