Experiences That Matter
QUICK GUIDE
AVAYA ROOM CAMERA
RC100
RC100 Avaya Room Camera
Congratulation on purchasing your Avaya Room Camera RC100. With its UltraHD 4K sensor, RC100 provides an edge quality experience with XT Series, CU360 and with your Laptop
- XT Series: up to 1080p60
- CU360: up to 1080p30 in IP mode, and 720p30 in USB mode
- Laptop: up to 2160p60 (depending upon the laptop capabilities)
- 24x Full HD Zoom
- 8x Extra Digital Zoom
- Optimal horizontal field of view for video conferencing rooms
Package Contents
- 1X Avaya RC100 Camera
- 1X Lens Cover
- 1X Remote Control
- 2X AAA Batteries
- 1X Power Supply
- 1X HDMI Cable
- 1X USB Cable
- 1X Wall Mount
- 1X Screws Set
- Documentation

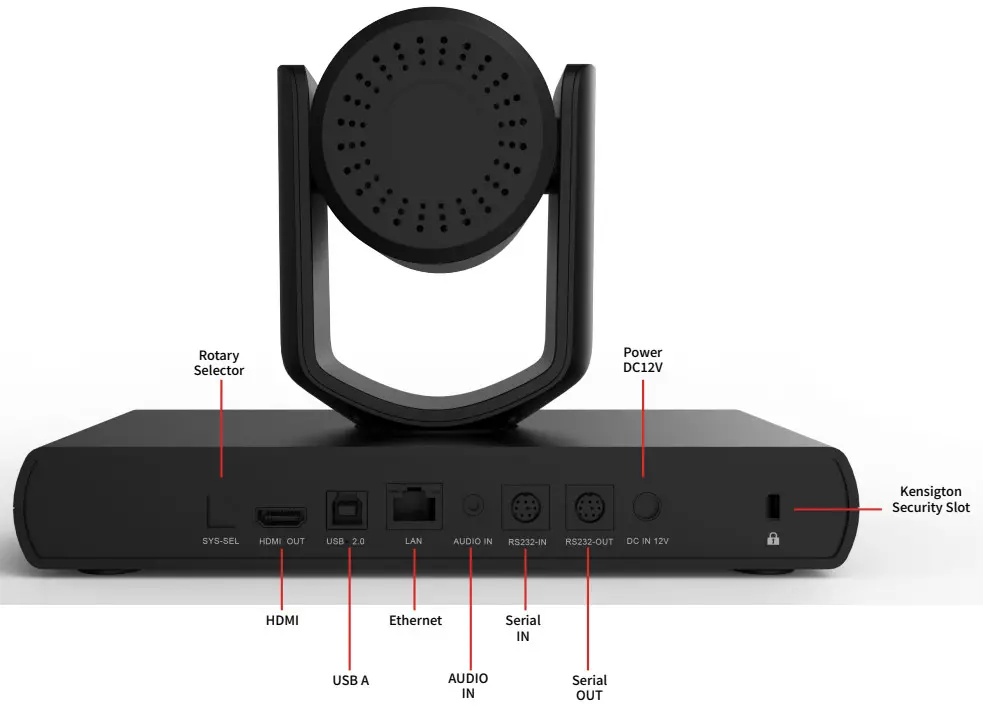

Connections & Interfaces

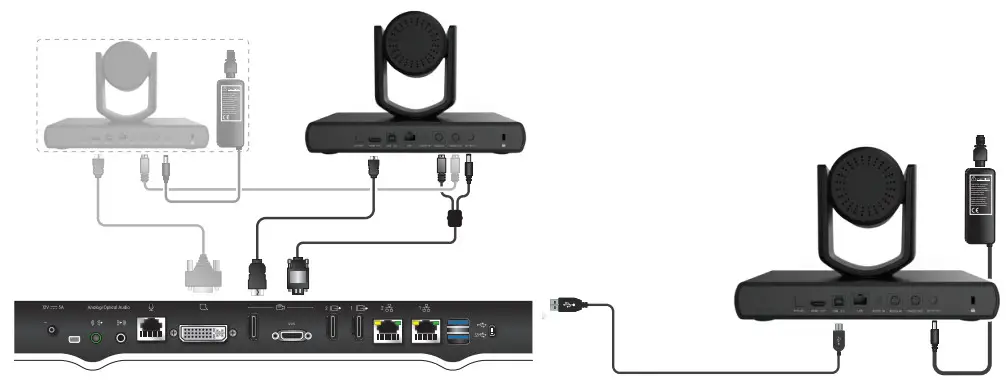

Connection with XT Series – HDMI / USB

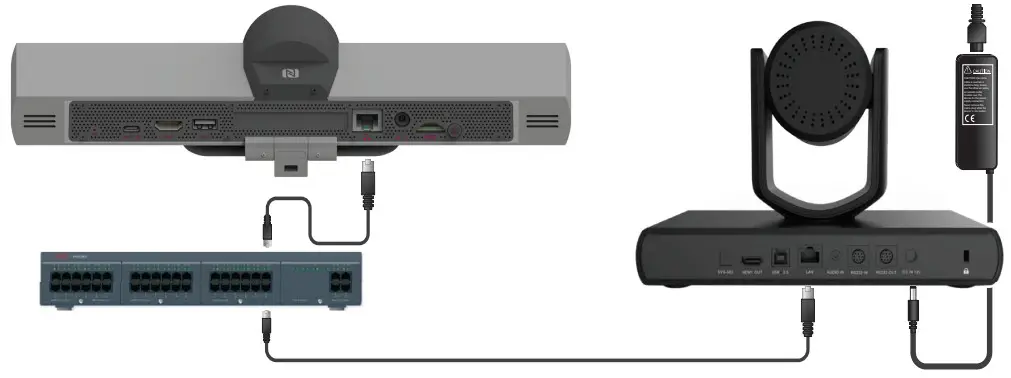

Connection with CU360 – IP

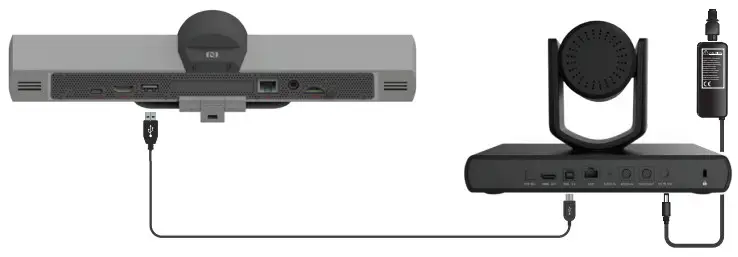

Connection with CU360 – USB
Connection with Laptop – USB
You can find further information about the Avaya RC100 Camera Setup and Configuration on the Avaya Support Site scanning the QR Code or using the following link:
https://downloads.avaya.com/css/P8/documents/101078477
