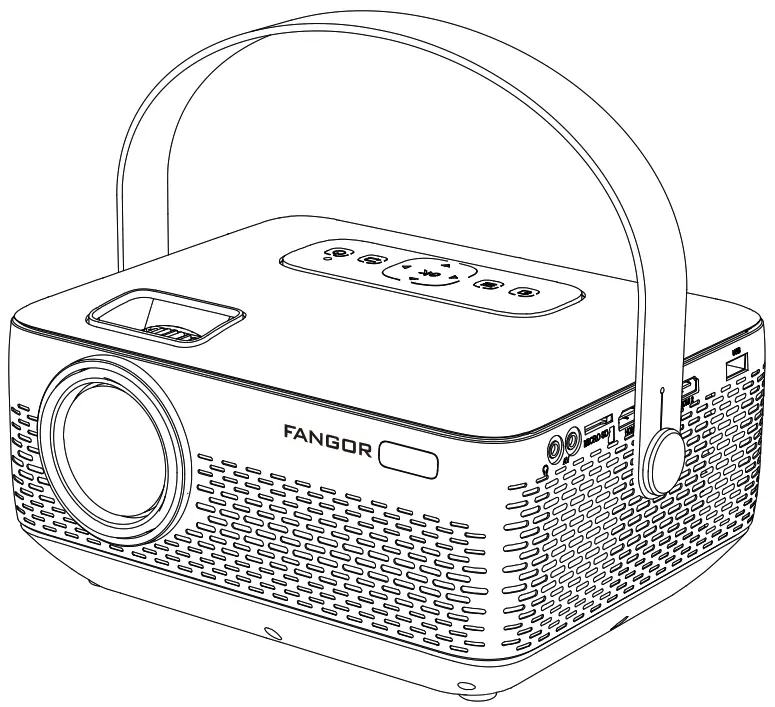

Fangor F-601 Full Hd Projector User Manual

Home Theater Projector
USER MANUAL

F-601

Safety Instructions & FCC Warning

Important Safety Instructions

• Please use the included AC power cable to power the machine. Only use the included accessories specified by the manufacturer.
• It is normal for the machine to generate heat during operation. To prevent overheating, do not block the ventilation openings.
• CAUTION: Do not look straight into the projector lens while on, as it may cause serious eye damage. Do not touch the lens.
• Clean only with a dry cloth.
• To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. Objects filled with liquids, such as vases, should not be placed on these devices, as it may lead to potential accidents that damage the device.
• Protect this device from overexposure to direct sunlight, heat, big temperature fluctuations, and moisture. Avoid extreme temperatures. The suitable operations and storage temperature for this device and its accessories are 0°C to 35°C / 0°F to 95°F.
• Avoid any type of impact, as it may damage the internal components.
• Do not make any repairs to this device by yourself. Our company will not cover the warranty if self-repair efforts were undertaken.
• Please contact the seller for technical support when the product has any type of problem, Contact details are revealed at the end of this manual.

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
reorient or relocate the receiving antenna.
increase the separation between the equipment and receiver.
connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

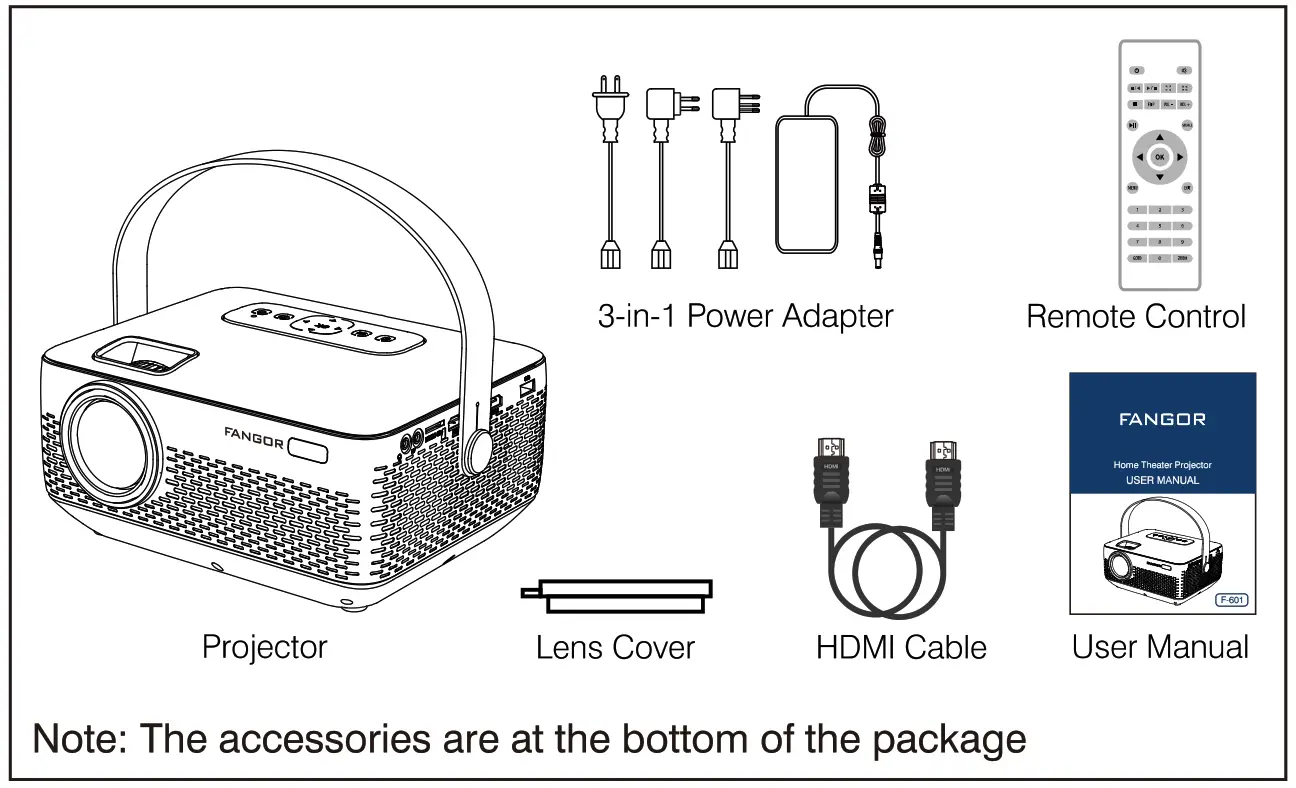

Package Listing

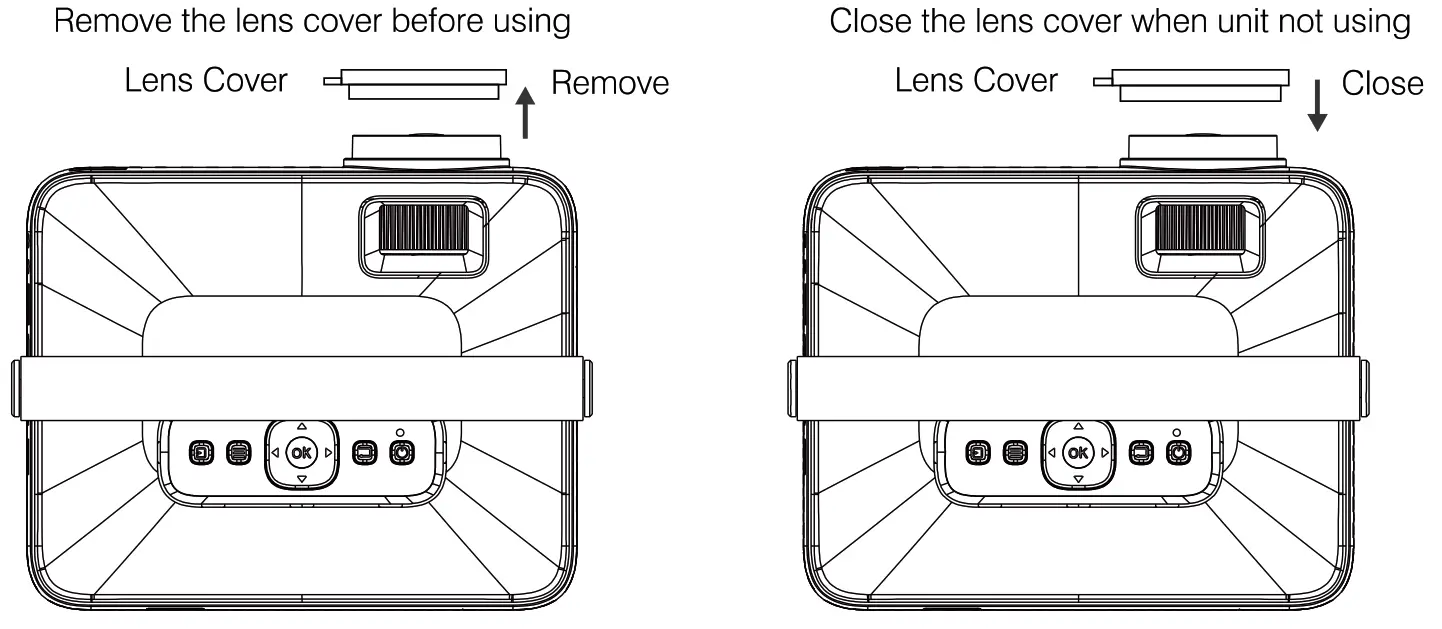

Remove &Close The Lens Cover

Boot Operation Guide

TURN ON

1)Turn on the power switch at the bottom. Indicator light: Red. (If used at home, it is recommended to plug in the power adapter)
2) Press the power button . Indicator light: Green.
3) The projector turned on after 5 seconds.
Note: When the battery is exhausted, please charge it for 10-15 minutes before turning on the projector.
TURN OFF 1: Turn off the power button
2: Turn off the power switch (OFF ON
3: Unplug the power adapter.
Note:
Please turn off the projector before unplugging the power source, so as not to affect the life and operation of the projector.

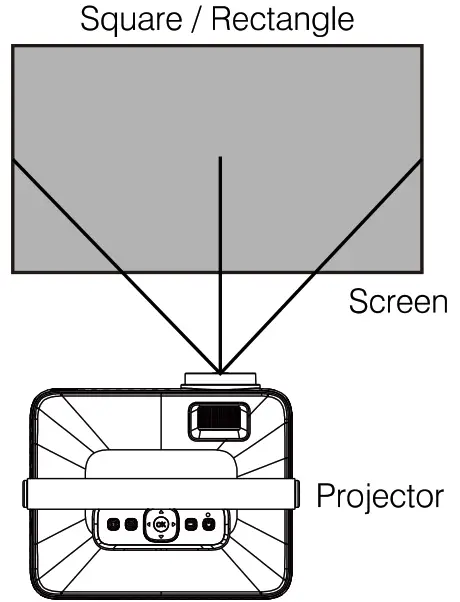

Distance Between The Projector And Screen

Viewing Options

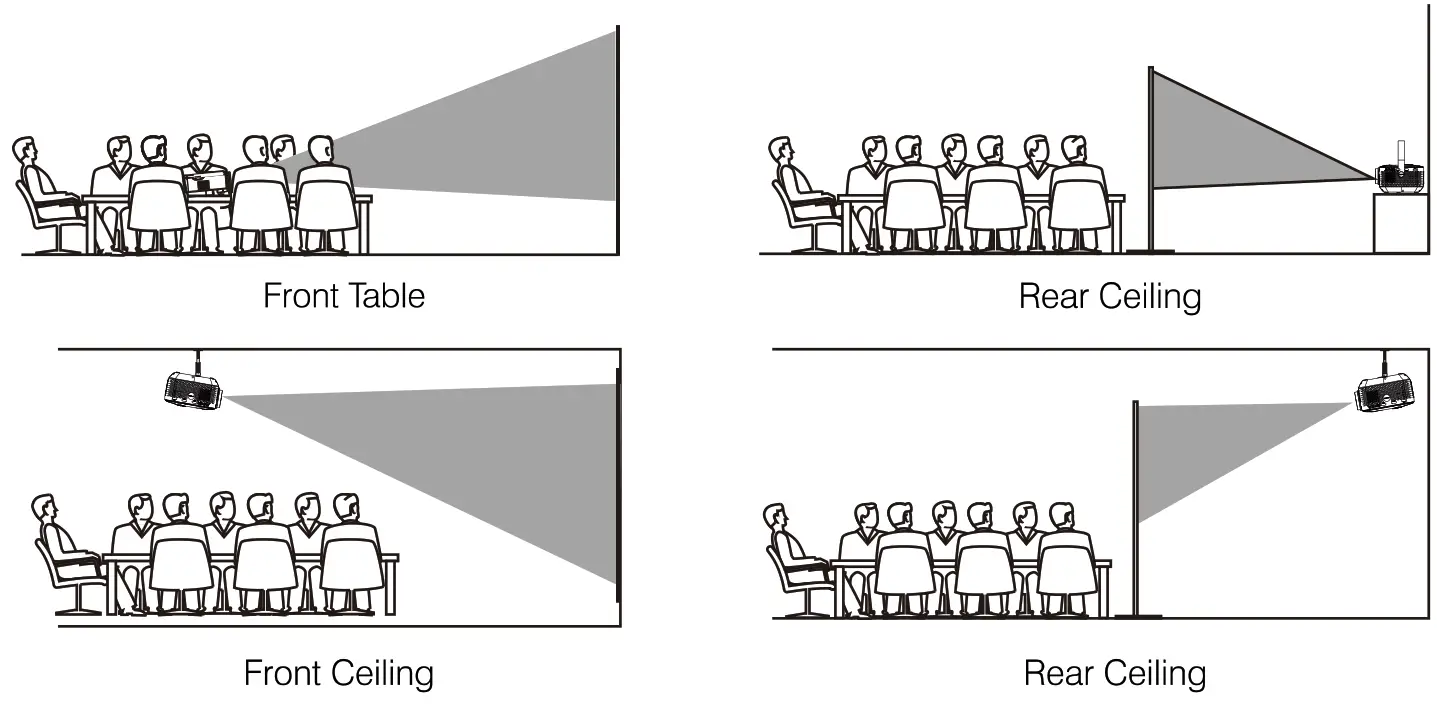

The projector can be used to project onto a wall or screen, mounted from the ceiling or on a table, When projecting from the rear position, a special screen will be needed (not included) to display the image. Be sure to aim the remote at the sensor on the front or rear of the projector.

Placing Your Projector On Ceiling

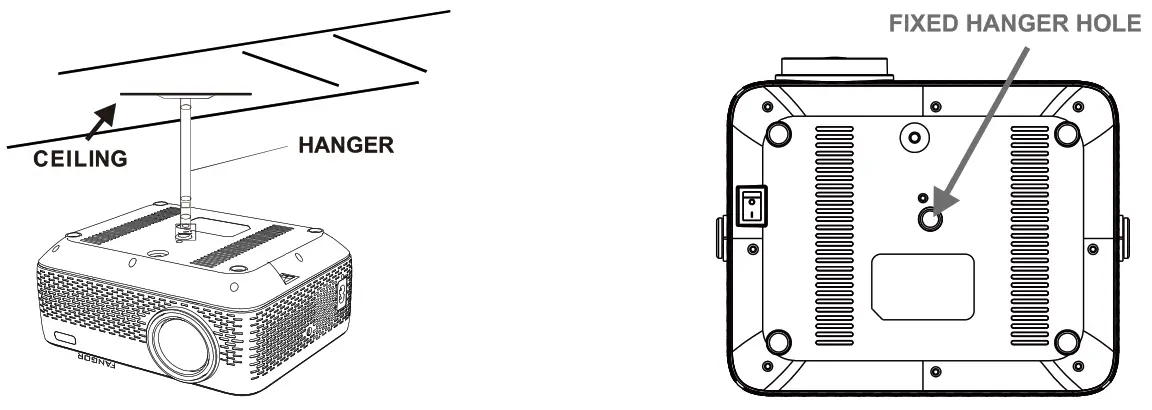

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount. Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt, please ask the advice from an installation professorial. NOTE: Projector mount and screw(s) not included

Adjust the Vertical Location

Follow below picture to adjust the vertical location

Adjust the Focus and Keystone

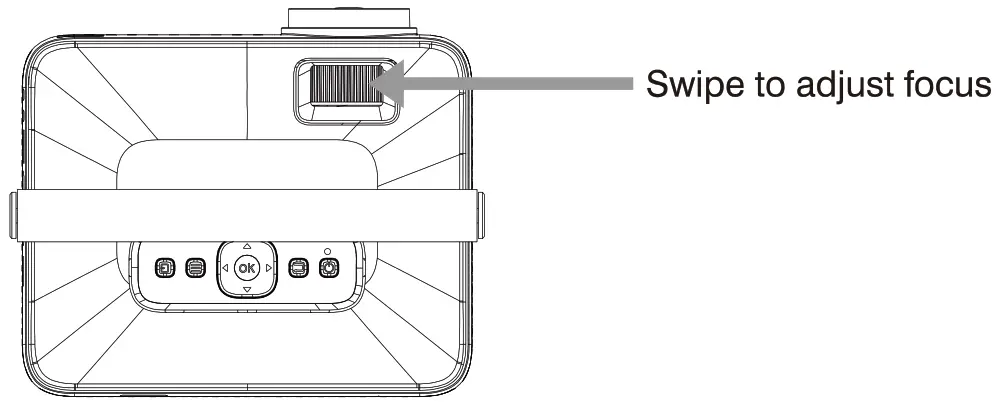

As shown in the picture, adjust the lens focus wheel until you get a clear picture.

Keystone Correction on the remote control Patel :
On the remote control, press N,  . Path2: Click “SETUP” -select “Option”-click “Keystone Correction”-Adjust by Up and down keys on the remote control.

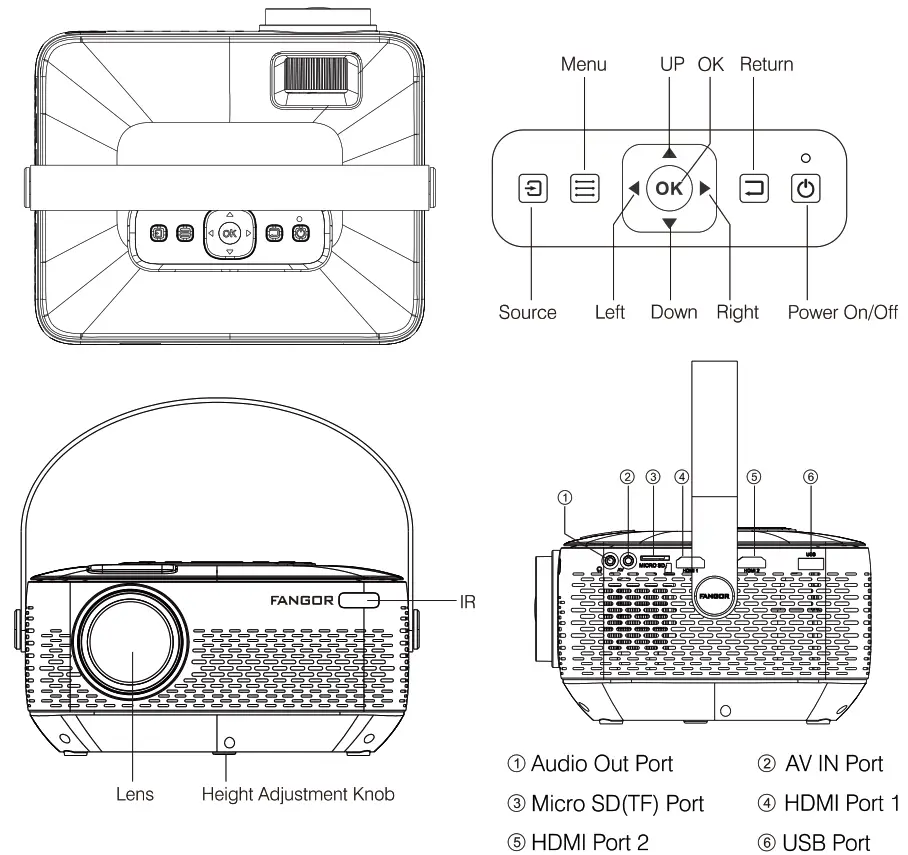

Functional Overview

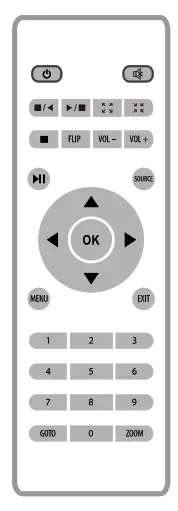

Controls of Remote

Power	Press to power ON. Press and hold to power OFF.
	Press for keystone correction. 0° to ± 22°
	Press for digital zoom ” 0-10 “
Play/Pause	Press to play or pause an individual chapter or track
Arrows/OK	Press to navigate and confirm selections in Settings and other menus
	Press to access projector Settings
Gob Number Keypad	Press to enter specific chapters or track numbers. Use the play button to begin playing
MUTE	Press to mute volume
back/fwd	Press to reverse or fast forward during playing video/music
VOL+/VOL-	Press to adjust the audio level.
SOURCE	Press to select media source (AV, PC, HDMI, MEDIA)
EXIT	Press to exit menus.
ZOOM	Press to adjust the aspect ratio during playing video (Auto/16:9/4:3)

Install Remove Battery Of Remote

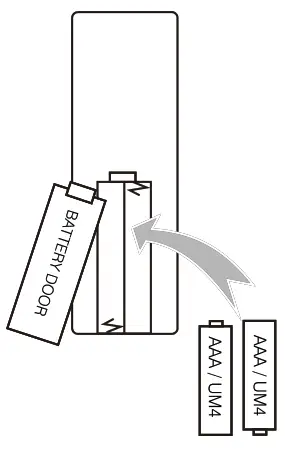

Remove the battery compartment cover on the back of your remote by carefully sliding it open. The battery cover can then be lifted away. Fit the correct batteries (2XAAA batteries not included), referring to the polarity markings. Finally, replace the cover.
NOTE:

• Batteries shall not be exposed to excessive heat such as sunshine, fire.
• Make sure that the batteries are installed polarity correctly.
• Only same or equivalent type batteries as recommended are to be used.
• Do not dispose of batteries in fire, the battery may explode or leak. Do not try to recharge a battery.
• Do not mix old and new batteries.
• Do not mix alkaline, standard(carbon-zinc), or rechargeable (ni-cad,ni-me,etc) batteries.

Built-in Rechargeable Lithium Battery

1. When using the remote controller, please make sure that the signal transmitter of the remote controller aims at the infrared signal receiver of the projector ( front or rear )
2. If you are not using the remote controller for an extended period please take out the batteries(Battery on include) to prevent batteries leakage.

• Battery capacity: 8400mAh.
• Battery properties: Polymer lithium battery
• Playing time: 2.5-3 hrs
• Charging time: 5 hrs
• Charging time during playback: 8 hrs
• Indicator light: Charging – Red light; Fully Charged – Greenlight
  Notes:
• The above parameters are tested by engineers and are for reference only. The actual parameters depend on the brightness of the environment, temperature, battery consumption, etc.
• Please use the machine principle as a heat source.
• In order to prevent excessive current from causing damage to the machine, please pay attention to the current and voltage before charging, Avoid overcharging.
• Batteries are dangerous goods. If you have any questions about charging, it is recommended to contact our technical team directly through the last page.

Connection Instructions

Select an input source

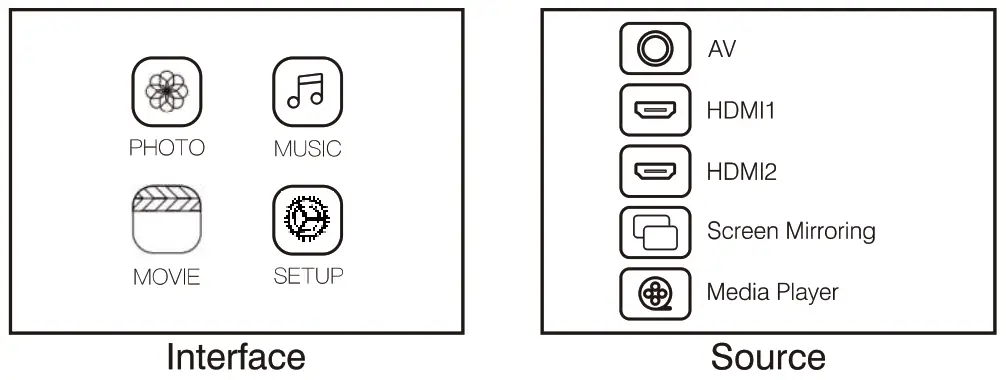

You will see the picture below when the projector is turned on. You can choose between the different input sources ( AV / HDMI1 / HDMI2 / Screen Mirroring/ Media Player) by pressing the ” Source ” button at the projector touch panel, or remote controller.
You can connect different devices with the projector, according to the following connection instructions.

Multimedia connection

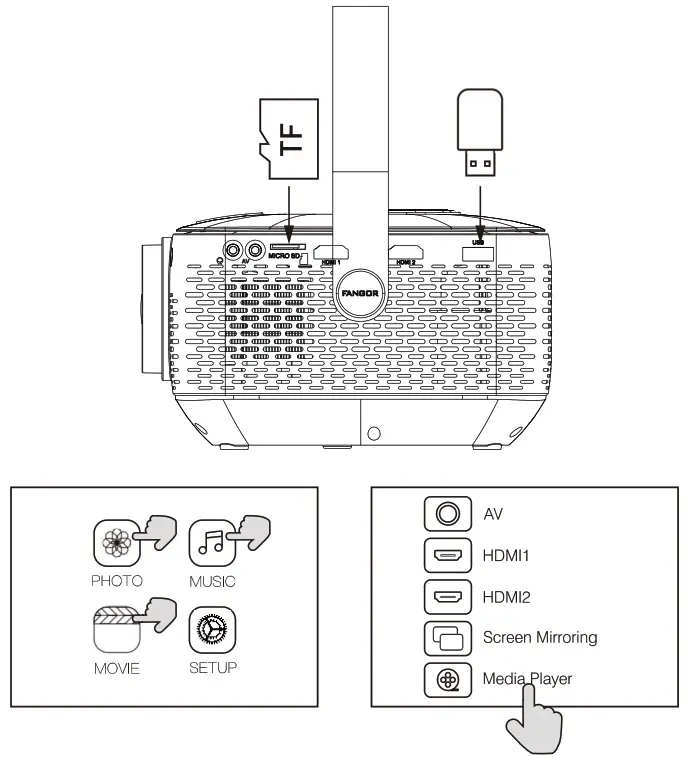

Insert USB / Micro SD card ( TF card ) into the corresponding slots (as shown in the picture). Choose Media source, Select ” Video “, ” Music “, ” Picture ” to enter the content you want to play.

HDMI device connection

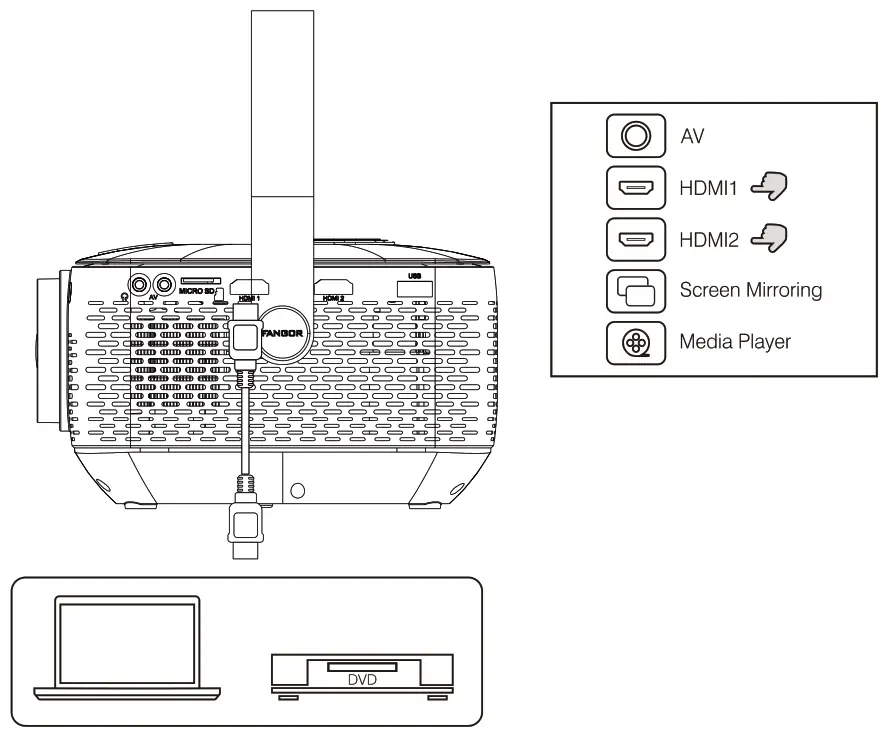

The projector can connect to devices with HDMI input functions. It is compatible with laptops, DVD players, Blu-ray players, Chromecast, TV Stick, etc. An HDMI cable is included. The F-601 projector is equipped with 2 HDMI input ports, C)If you connect your devices to the projector via the “HDM 1” port, please choose the “HDMI 1″ input source. Olt you connect via the ” HDMI 2″ port, please choose the ” HDMI 2″ input source.

AV video device connection

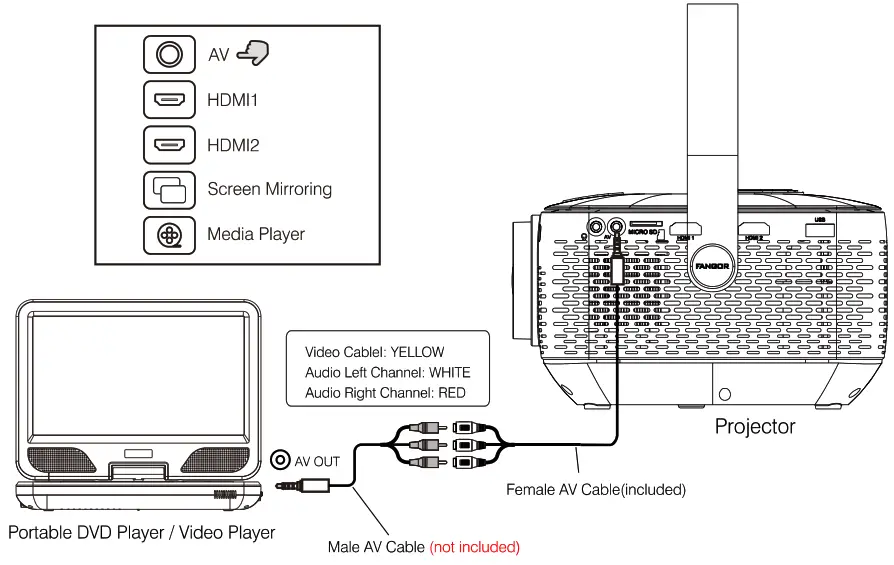

Connect the projector AV interface with the AV cable (Not included), as is shown in the pictures.

Audio devices connection

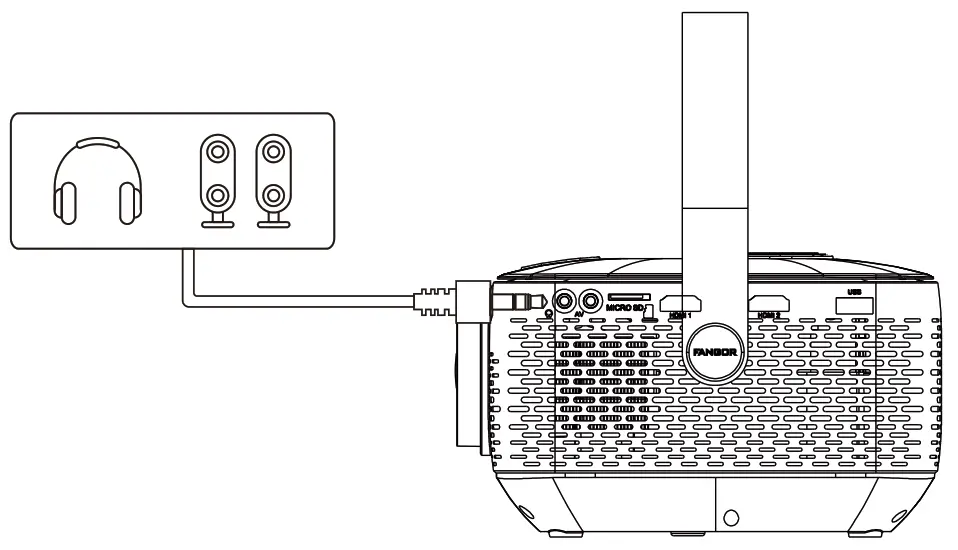

The projector can connect to a headphone and to a wired audio system using a 3.5mm jack ( not included)

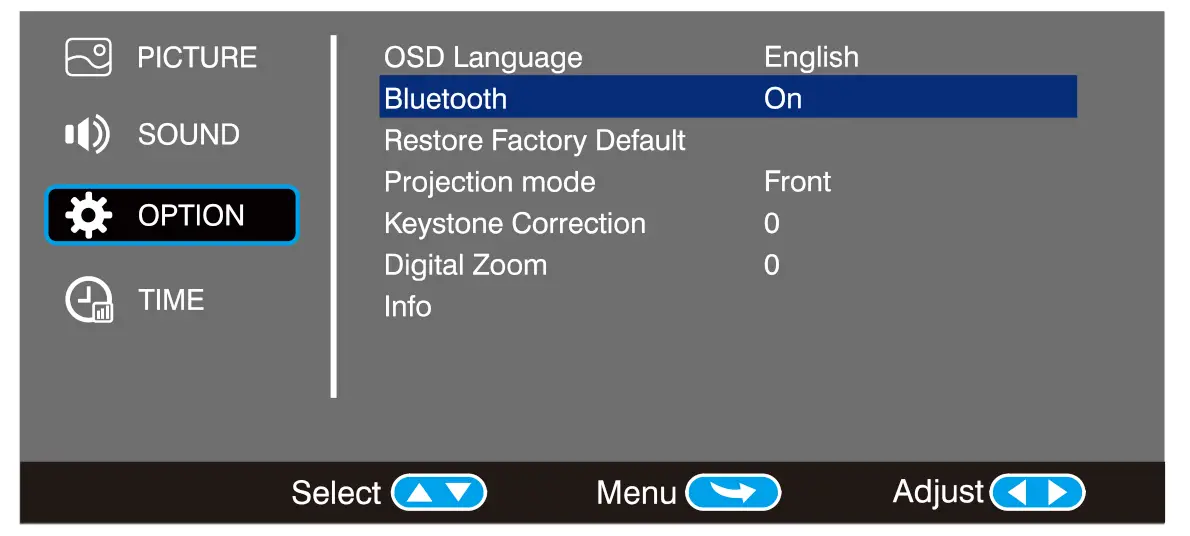

Using Bluetooth Playback

FAQ

Specifications

Warranty
Customer support
If you have any questions about this projector, please contact us.
Email: [email protected]
