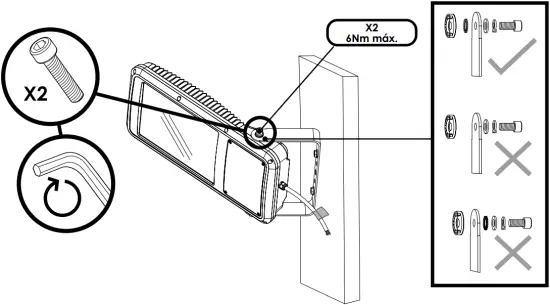

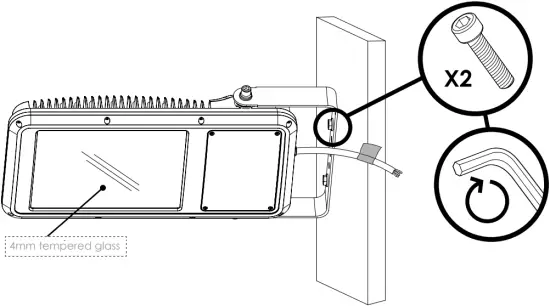

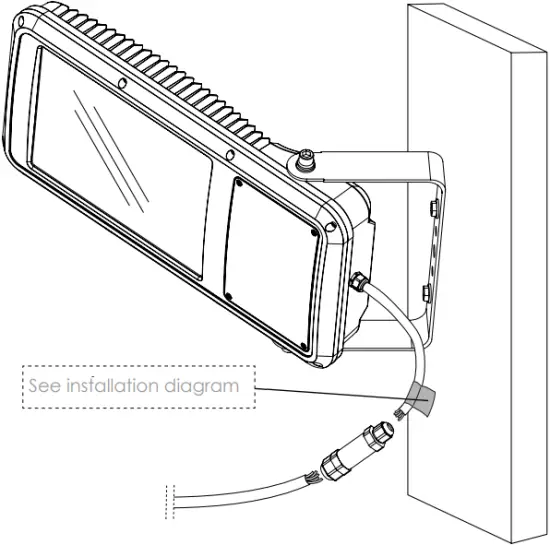

7 INSTALLATION DIAGRAM

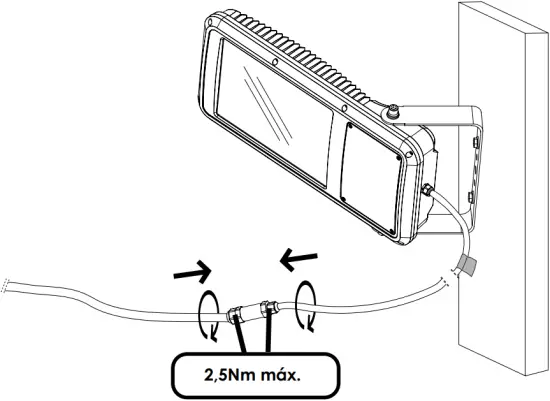

8 ELECTRIC CONNECTION

9 Documents / Resources

10 Related Posts

Instruction manual

Specifications
Electrical isolation	CI
Sealing rating	IP66
Impact resistance	IK09
Impact resistance G.O	IK10

LED Number	12 LED	32 LED
Weight	7,2Kg
Maximum surface wind exposed	0,137 m²

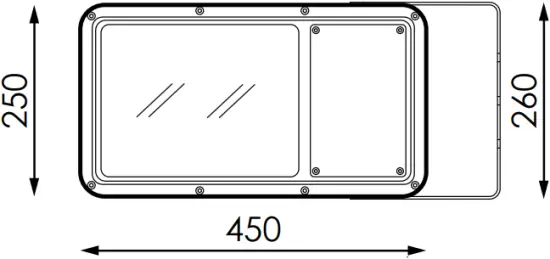

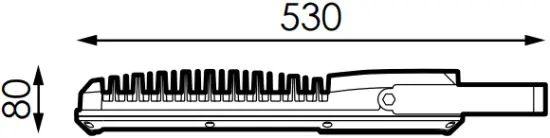

(GRAPHICS: Units in mm)

PRECAUTIONS:

Keep the product out of the reach of children.
Do not immerse this product in water or handle it with wet hands.
Do not hit the product.
Do not install the product where there are heat sources or moisture concentrations.
Do not handle the product while it is in operation and allow it to cool before touching it with your hands.
The product must not be covered with thermal insulation material under any circumstances.
Maintain a minimum distance of 1 m from the surface or object to be illuminated.
If the product is damaged, replace it immediately with a new one.
Disconnect power before installing the product.
This product contains components sensitive to static electricity and a discharge to it could destroy or damage its components.
Before carrying out any work or maintenance, make sure that the device is completely disconnected from the power supply.
The replacement or maintenance of any component must be carried out with the same elements recommended and supplied by the manufacturer himself. If this is not the case, any incident on an installation that has not been carried out in accordance with this instruction sheet is the responsibility of the installer.

WARNING

BEFORE INSTALLING THIS PRODUCT, PLEASE READ THE INSTRUCTIONS CAREFULLY AND STORE THEM IN A SAFE PLACE.

THE INSTALLATION SHOULD BE CARRIED OUT BY TRAINED STAFF.

INCORRECT HANDLING OF THE PARTS OR THE LIGHT FIXTURE ITSELF MAY IMPAIR THE PROPER PERFORMANCE OF THIS PRODUCT. IN THIS CASE, THE MANUFACTURER GUARANTEE SHALL BE DEEMED VOID.

THE MANUFACTURER GUARANTEE SHALL BE DEEMED VOID: IF THE INSTALLATION IS NOT PERFORMED IN ACCORDANCE WITH THE SPANISH LOW VOLTAGE ELECTROTECHNICAL REGULATION 2002 (REBT 2002).

THE APPLICATION OF IBC BT09-4 OF REBT (INSTALLATION OF LINE AND LIGHT FIXTURE SURGE PROTECTORS) IS ESSENTIAL FOR INDUSTRIAL AND PUBLIC LIGHTING INSTALLATIONS. THE GUARANTEE DOES NOT COVER AGAINST DAMAGES CAUSED BY SURGES IN LIGHT FIXTURES WITHOUT SURGE PROTECTORS INSTALLED.

ATTENTION!!!
