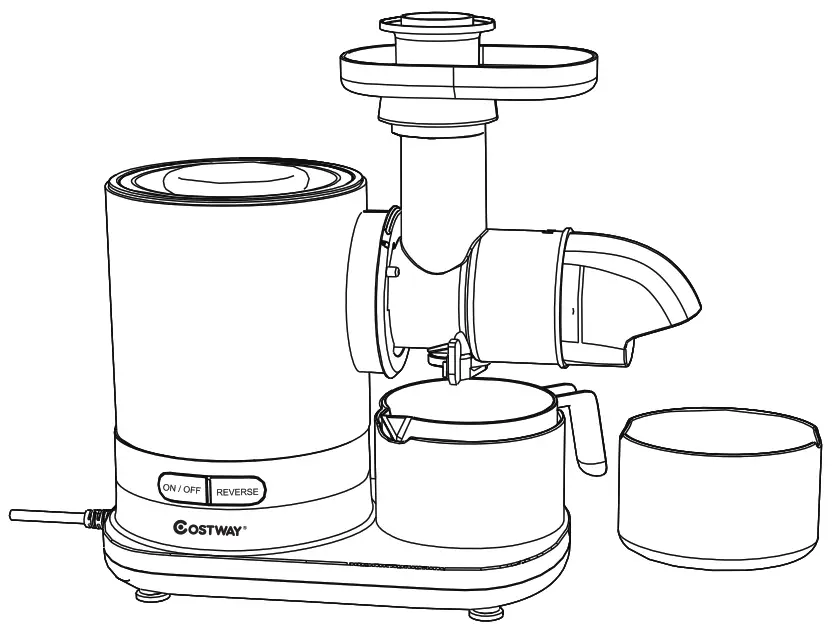

USER’S MANUAL Slow Juicer
ES10002DE/ES10002GB
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP IT FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP!
Follow Costway
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [email protected]
UK: [email protected]
Before You Start
Please read all instructions carefully.Retain instructions for future reference.Separate and count all parts and hardware.Read through each step carefully and follow the proper order.We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.Always place the product on a flat, steady, and stable surface.Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.
Please read all manual carefully before using
Attentions
- Be sure to disconnect the power supply before taking apart, packing, or commissioning any part of this product.
- This product belongs to the Y connection. If power supply cords are damaged, please contact with our Customer Service Department in order to avoid risks. Be sure not to take apart or repair by yourself.
- Before use, please check if the power cord, plug, fine strainer, auger, noodle extruding body, and other parts are damaged. Please stop using the product if any damage is found, contact our customer service department in time, and do not disassemble and repair voluntarily in case of danger.
- If this product needs to be repaired in the course of application, please contact with our Customer Service Department. Be sure not to take apart or repair by yourself in order to avoid risks.
- Before switching on the power, please make sure that the removable parts are fully installed, such as the juicing body, auger, fine strainer, juicing body cover, etc.
- During operation, in case of any damage to the operator or the product, it is strictly forbidden to put fingers or sharp objects into the material inlet to directly contact the rotating parts such as the auger, etc.; it is strictly forbidden to use any object to replace pusher rods. It is strictly forbidden to keep eyes close to the material inlet in case of an accident.
- The ingredients should be cut into small pieces so that they can be put into the inlet of the juicing body. If there are fruits and vegetables with kernel, hard seed, thick skin, or hard shell, remove them before process¬ing.
- When ingredients are put in, the force to push the ingredients should not be so great, and it is advisable that the ingredients can be cut off.
- It is normal for the fine strainer, juicing body cover, auger, and other parts to be stained after juicing certain fruits and vegetables. It does not affect the quality of the food and will not be harmful to eaters’ health.
- The product is equipped with an intelligent protection chip, making it automatically stop after 20 minutes of continuous work. At this time, please stop the operation for 20-30 minutes, and then continue to use the motor after cooling. This method is conducive to extending the service life of the product.
- The product has a current limiting design. When processing harder ingredients, the motor will be locked-rotor and the current will increase. When the current exceeds 2A, the machine will make a “tick” sound and the motor will stop working. This method can effectively protect the motor from over-current and extend the service life of the motor.
- If the motor stops due to current limiting protection or locked rotor and the motor cannot be automatically reversed during the operation process, start the “Reverse” key of the power switch. You need to get the ingredients out, and then start the “ON” key of the power switch for normal use of the machine. If it is still locked-rotor, it is recommended to clean up the ingredients in the auger and continue to use it. This method is to protect the motor.
- After use, please wait until the motor and auger stop rotating and make sure that the power is disconnected before removing the removable parts of the machine.
- All parts of this product are not allowed to be disinfected with hot water over 80°C and microwave ovens to avoid thermal deformation damage. Parts and materials in contact with food ingredients are in line with food hygiene certification, clean, hygienic, and reliable.
- Do not put the juicer body into water or other liquids, nor flush it with water or other liquids to avoid any damage to the machine’s body.
- Not allowed to use steel wool, abrasive cleaner, or corrosive liquid (e.g. petrol or acetone) to wash this product
- This product is only applicable to individual or home applications.
- This product is a Class I appliance. The grounding wire of the socket must be well-grounded.
- The instructions for appliances warn against misuse.
- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, or cleaning.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and if they understand the hazards involved.
- Children shall not play with the appliance.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- This appliance is intended for household use and similar applications such as,
– staff kitchen areas in shops, offices, and other working environments
– farmhouses
– by clients in hotels, motels, and other residential type environments
– bed and breakfast type environments
The symbol on the product or its packaging indicates:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dump hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please contact your local or regional waste authority for more information on the collection, reuse, and recycling programs.
Directions for use

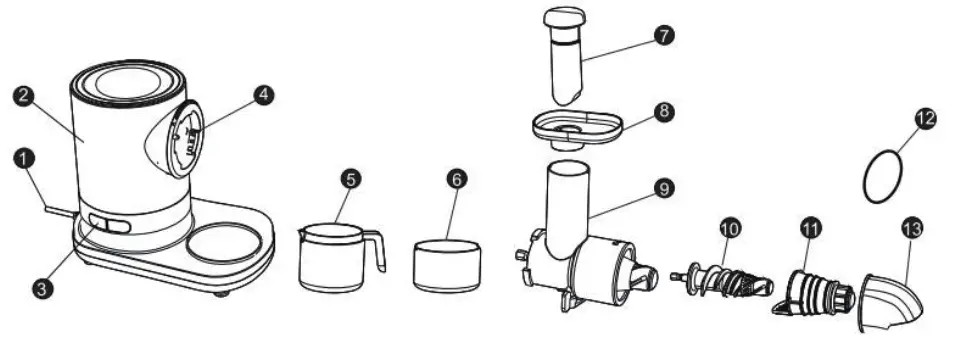

Parts And Functions
| Serial number | Part name | Function introduction |
| 1 | Power Line | Used to power on and provide power. |
| 2 | Juicer Body | The main parts of the machine, including the motor and other parts. It is the source of this machine and provides power. |
| 3 | Power Switch | Control the working status of the product, including forwarding rotation, closing, and reverse rotation. |
| 4 | Button | It is used to lock the juicing body and prevent the body from loosening from the machine body during operation. When you need to remove the juicing body from the machine body, you must Press and hold the button. |
| 5 | Juice Cup | Catch and collect fruit juice separated from the juicing body. |
| 6 | Pomace Cup | Catch and collect pomace separated from the juice. |
Serial number | Part name | Function introduction |
| 7 | Pusher | When ingredients are placed, gently push the ingredients so that the ingredients are in full contact with the auger to increase the juicing efficiency. |
| 8 | Hopper | It is mainly used to store juiced ingredients. |
| 9 | Juicing body | It is the main part of juicing. The ingredients are put in from the inlet on top of the juicing body and discharge the juice and pomace through the juice outlet and pomace outlet. |
| 10 | Auger | It is the main part of juicing, which is used to convey the ingredients and grind the ingredients by running in with the fine strainer. |
| 1 1 | Fine strainer (with a screen inside) | Run in with the auger to grind the juiced Ingredients and filter out the juice. |
| 12 | Juicing body cover silicone loop | It is placed at the joint between the juicing body and the juicing body cover (to prevent the juice from flowing out from the joint) and also to adjust the tightness of the juicing body and the juicing body cover. |
| 13 | Juicing body cover | The main components of juicing connect the. juicing body to play a role in security protection. |
Method of Application
Before using this product for the first time, please thoroughly wash parts that touch with foods (see “Maintenance and Preservation”)
 | Keys operation instructions: • ON: normal operation key • OFF: Close, stop -Reverse: Used when the pomace discharging is not smooth or locked. Hint: When the flushing off of the pulp is unsmooth or the motor is stuck, please turn off the appliance, press and hold the “Reverse” key for about 3 sec, the spiral motor starts to reverse, then release the “Reverse” key to stop the reversion; Press the “ON” key to continue the normal process. |
I. Product Usage
Follow these steps to install and use the product:
 | 1 | Connect the juicing body to the machine body: 1. Put the central position of the inlet of the juicing body to align the position of the “unlocking sign” on the machine body (the three fasteners of the juicing body will be aligned). 2. Then rotate counterclockwise, and when you hear a “tick” sound, it shows that the juicing body is fully connected. |
 | 2 | Align the auger’s hexagonal axis with the hole in the machine body and push it horizontally to the bottom. (If it is not aligned, slightly align by rotating the auger) |
 | 3 | Put the larger end of the fine strainer in from the end of the auger, and align the three fasteners of the fine strainer to the three fastening slots in the juicing body. (The fine the strainer is only used in conjunction with the juicing button on the back and this function is used for juicing) |
 | 4 | Displace the three fastening slots on the juicing body cover from the three fastening slots on the juicing body, push into horizontally, and then rotated counterclockwise to screw tightly the juicing body cover and the juicing body. |
 | 5 | Place the juice cup next to the machine body and its opening aligns the juice mouth of the juicing body. |
 | 6 | Put the pomace cup under the pomace outlet of the juicing body, close to the juice cup (the high end of the pomace cup shall be close to the pomace outlet, which is more conducive to pomace discharging). |
 | 7 | Place the hopper on the upper end of the feeding barrel of the juicing body. The hopper makes feeding ingredients more convenient, especially when processing small-grained ingredients such as grapes, strawberries, etc. |
 | 8 | Turn on the power and get ready for work. (Make sure the switch is off before turning on the power) |
 | 9 | Wash the fruits and vegetables, cut them into pieces that can be put into the feed inlet, and place them on the hopper for use. • Please remove kernels, hard seeds, thick or hard shells of fruits and vegetables first. • Fruits such as sugar cane, guava, and mango cannot be juiced with this machine. |
 | 10 | Press the “ON” key of the switch and the product starts to work. The working time shall be less than or equal to 10 minutes. • Do not touch the power switch with wet hands to avoid electric shock, electric leakage, or fire. |
 | 11 | Put the ingredients into the feed inlet of the juicing body and push the ingredients with the pushrod. • When ingredients are put in, the force to push the ingredients should not be so great, and it is advisable that the ingredients just can be cut off. • Don’t put your fingers or other objects into the feed inlet of the juicing body. If the pomace cup or juice cup is full, disc¬onnect the power and clean it before use. |
 | 12 | Pour the squeezed juice into the cup and enjoy. |
Tips for Fruit Selection
- Select and use fresh fruits and vegetables, which contain more juice. Particularly suitable fruits include pineapple, celery sticks, apples, cucumbers, spinach, melons, tomatoes, oranges, grapes, and the like.
- Instead of paring the thin skin of fruits and vegetables, you only need to pare the thick skin of fruits and vegetables like oranges, pineapples, etc. Seeds of citrus fruits also need to be removed because they will bring bitterness to the juice.
- When apples are squeezed, the concentration of apple juice depends on the type of apple selected; the juicier the apple juice is, the clearer it is, so choose the type of apple to be used for juice based on the concentra¬tion of juice you want.
- Freshly juiced apple juice may quickly turn brown, and you can add a few drops of lemon juice to slow this process.
- Leaves and leaf stems (such as lettuce) can be juiced with this machine.
- The nutrients of common fruits and vegetables are as follows:
Fruits/vegetables | Vitamins/mineral substances | KJ/Caloric |
| Apple | Vitamin C | 200g=150KJ (72Calorie) |
| Apricot | Abundant in dietary fiber, containing calcium | 30g=85KJ (20Calorie) |
| Beet | Good sources of folic acid, dietary fiber, vitamin C, and calcium | 160g=190KJ (45Calorie) |
| Blueberry | Vitamin C | 125g=295KJ (70Calorie) |
| Brussels sprouts | Vitamin C, B, B6, E, folic acid, and dietary fiber | 100g=110KJ (26Calorie) |
| Cabbage | Vitamin C, folic acid, calcium, 136, and dietary fiber | 100g=110KJ (26Calorie) |
| Carrot | Vitamin A, C, B6, and dietary fiber | 120g=125KJ (30Calorie) |
| Celery | Vitamin C and calcium | 80g=55KJ (13Calorie) |
| Cucumber | Vitamin C | 280g=120KJ (29Calorie) |
| Foeniculum vulgare | Vitamin C and dietary fiber | 300g=145KJ (35Calorie) |
| Grape | Vitamin C, 136, and calcium | 125g=355KJ (85Calorie) |
| Kiwi fruit | Vitamin C and calcium | 100g=100KJ (40Calorie) |
| Melon | Vitamin C, folic acid, dietary fiber, and vitamin A | 2008=210KJ (50Calorie) |
| Nectarine | Vitamin C, B3, calcium, and dietary fiber | 100g=90KJ (22 Calorie) |
Fruits/vegetables | Vitamins/mineral substances | KJ/Calorie |
| Peach | Vitamin C, B3, calcium and dietary fiber | 150g=205KJ (49Calorie) |
| Peer | Dietary fiber | 150g=250KJ (60Calorie) |
| Pineapple | Vitamin C | 150g=245KJ (59Calorie) |
| Raspberry | Vitamin C, fen–um, kalium and magnesium | 125g=130KJ (31Calorie) |
| Tomato | Vitamin C, dietary fiber, vitamin E, folic acid, and vitamin A | 180g=355KJ (85Calorie) |
Cleaning and Maintenance
■ Maintenance and Preservation
- Before washing this product, be sure to turn off the switch and disconnect the power supply.
- Please timely wash this product after application.
- The juicer body must not be washed with water. The stains on the body must be wiped with a drying rag or drying cotton cloth.
- Please make sure the product is clean and dry before storage.
- Please refer to the following steps to disassemble the juicer and then clean.
 | 1 | Take out the pusher and the hopper first. |
 | 2 | Hold the button near the juicing body down, and at the same time rotate the juicing body clockwise to take the body down. If the button is not pressed, the body can’t be taken down. |
 | 3 | After the juicing body is disassembled, take the juicing body cover, the juice fine strainer, and the auger down in proper order, and the removable parts can be cleaned with clear water. |
Product Safety Indexes
| Rated voltage | 220V-240V |
| Rated power | 150W |
| Rated frequency | 50/60Hz |
| Continuous Working Hours | ≤20minutes |
| Interval | ≥20-30minutes |
Abnormality Analysis and Solution
| Fault phenomenon | Analysis of causes | Fault resolution |
| After connecting the power supply, turn on the switch, but this product cannot work | 1. The power plug is not plugged in properly. 2. The outlet is in poor contact 3. The internal cable of the main unit is off, or the circuit board is damaged. | 1. Plug the power plug back in again. 2. Replace the power socket and try again. 3. Please contact our Customer Service Department. |
| When this product is used initially, the motor smells terrible | This is not an abnormal occurrence. | If the product still emits this odor after repeated use, please contact our Customer Service Department. |
| This machine stops during the application | 1. The voltage is too low 2. Excessive or hard ingredients 3. The continuous working hour is too long | 1. Check if the voltage is too low. 2. Disconnect the power and remove the excess ingredients (Sugar cane cannot be juiced. Hard skin/hardcore fruits and vegetables should be first removed the hard skin/hardcore before juicing). 3. It is a normal phenomenon, and the motor will resume operation after a break. |
| Fault phenomenon | Analysis of causes | Fault resolution |
| Noise at work | 1. The auger and fine strainer are not fully installed, resulting in unsteady operation. 2. The start motor in the machine’s body breaks down. 3. It sounds a little noisy when some ingredients are juiced. | 1. Fully install the auger and fine strainer. 2. Please contact with our Customer Service Department. 3. The food itself has a rubbing sound, which is normal. |
| It is difficult to unscrew the juicing body cover after juicing | 1. There is an oil stain on the surface of the juicing body cover; 2. The ingredients in the juice net are not juiced completely. | Clean the surface of the juicing body cover; 2. Continue to turn on and juice the ingredients completely or long-press the reverse button for a few seconds to rotate the ingredients out of the juice net. |
Note:
The above are analysis and resolution of common faults. As for other faults,
please contact with our Customer Service Department. Be sure not to take apart or repair by yourself.
