FL3 Smart Cordless Vacuum and Washer
User Manual

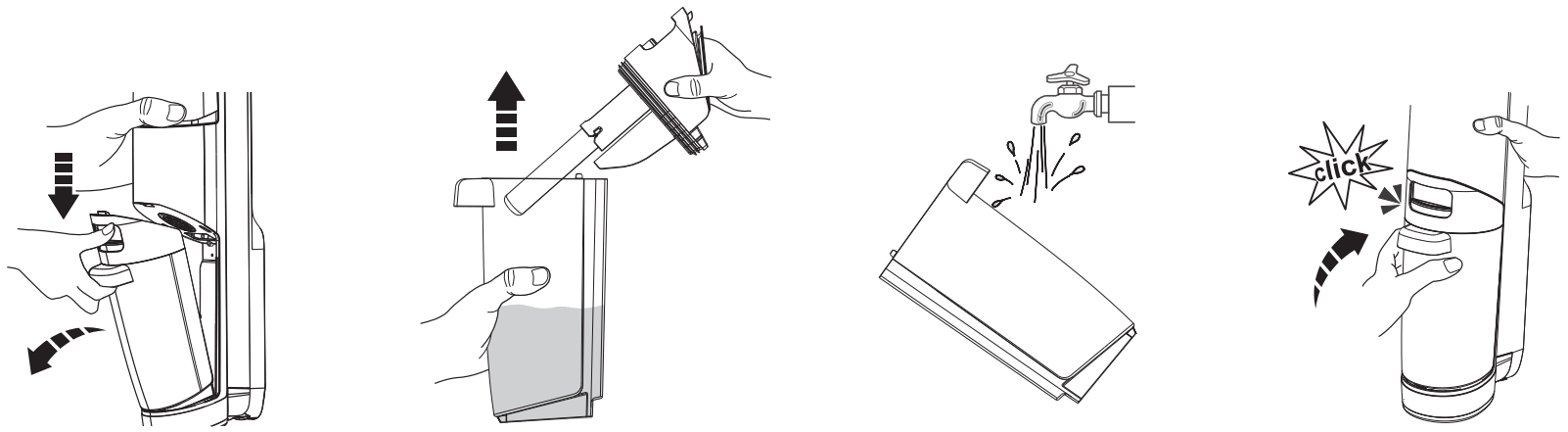

Dirty Water Tank
- When dirty water reaches the Max line, the floater will block off the DWT and create a high-pitched sound indicating it’s time to switch off the appliance.
- Pull up the tank lid to empty the DWT. Rinse the inside of the DWT and place it back into the appliance.

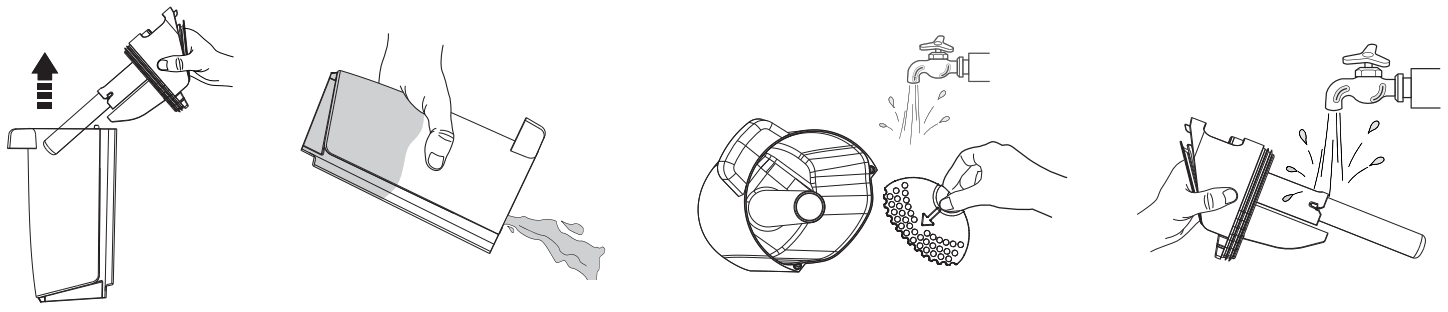

Filter & Floater
If the filter and the floater have been blocked, rinse with water.
Remove the filter from the tank lid, remove the floater, and rinse both parts with water.

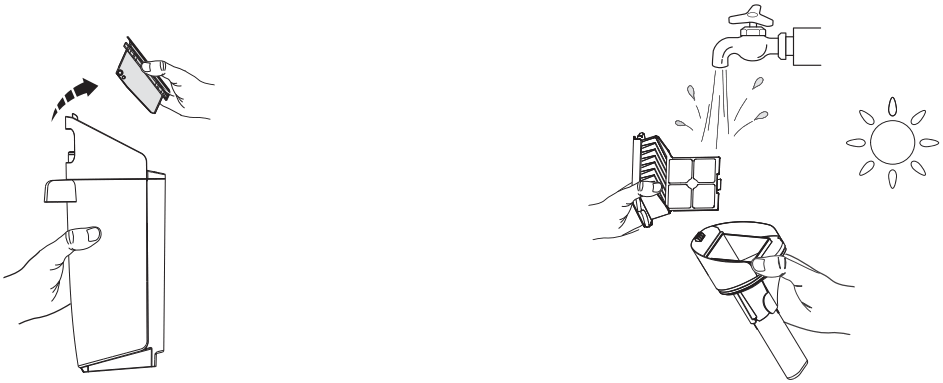

Dry Filter
Grasp the recessed area on each side of the filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

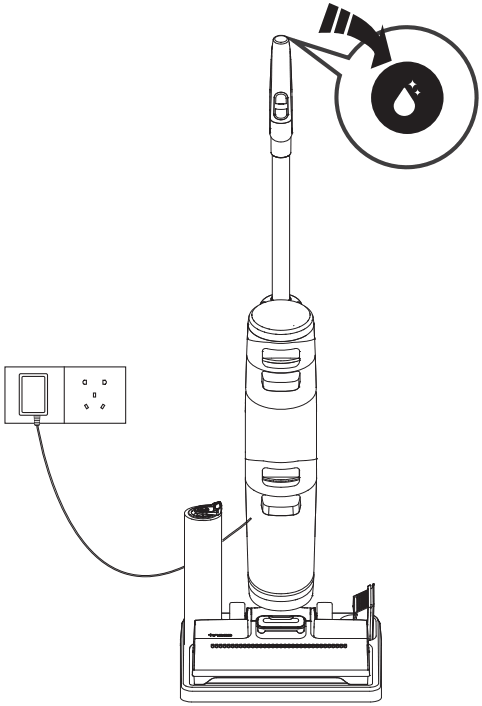

Self-cleaning
- Place the appliance on the storage tray and plug it in. Press the self-cleaning button and begin the process.
- Once complete, the appliance will begin charging. Clean the Dirty Water Tank after cleaning is completed.
Note:
- Ensure the appliance is plugged in and the battery level is >10%.
- Before the self-cleaning cycle, please clean the DWT and ensure the water level in the CWT exceeds 40%.

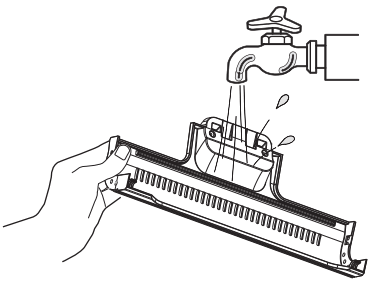

Brush Roller Cover

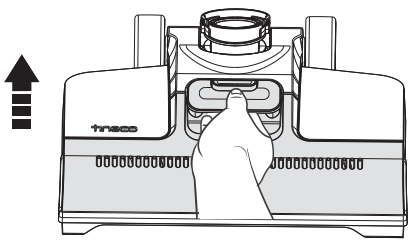

 | Grab the front handle while pressing the button and pull upward to remove it. |
 | Rinse with water. |

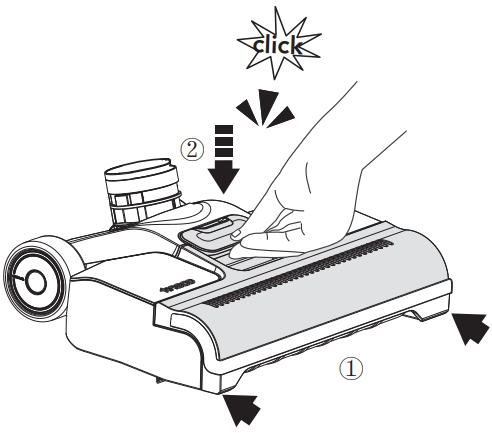

 | When replacing, always latch the brush cover into place to avoid leakage. |
Brush Roller

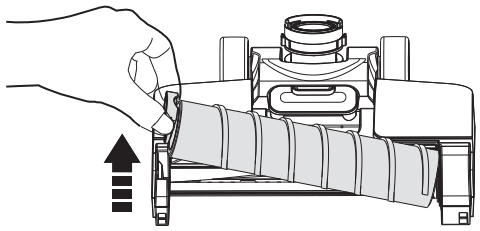

 | Remove the brush roller by grabbing the brush roller tab and pulling upward. |

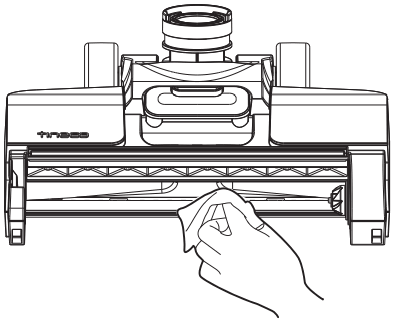

 | Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth. |

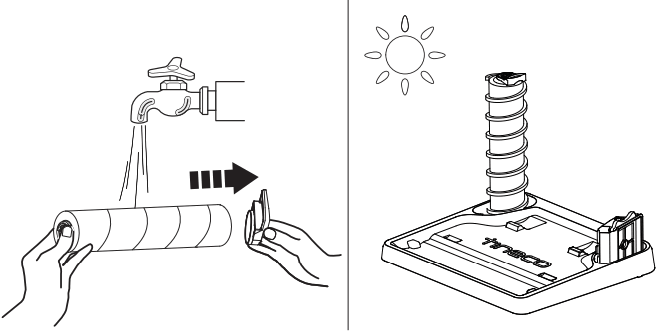

 | Remove the hair and debris wrapped around the roller and rinse with water (the brush roller tab can be removed). Replace the brush roller back onto the storage tray, and allow it to dry completely before reinstalling. |

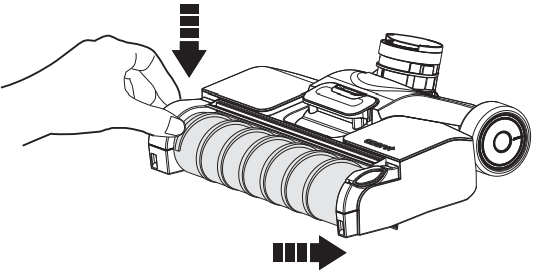

 | Replace the brush roller by inserting the brush roller end into the right side of the holder, then lock the pull tab into place by pressing downward. |
Note:
To maintain high performance, replace the brush roller every 6 months.
Troubleshooting
| Problem | Possible cause | Solution |
| The appliance does not turn on | Auto protection for overheating | Restart after cooling doom |
| The appliance has no power | Charge the appliance | |
| Weak suction | The dry filter is not installed, or the dry filter is dirty | Install the dry filter or clean and allow it to dry completely |
| The suction mouth is blocked | Pull up the brush roller and remove blockages | |
Brush roller tangled indicator blinking  Voice prompt:1. Please clean the brush roller  2. Please install the brush roller correctly | 1. The brush roller is blocked 2. The brush roller is not installed | 1. Remove blockages 2. Install brush roller correctly |
The WiFi indicator is off | WiFi is not connected | Follow the in-app guide to connect to WiFi |
CWT empty indicator blinking Voice prompt: Clean Water Tank empty, please refill water and cleaning solution | CWT is empty | Refill CWT |
All lights are off in operation  | Battery overheat or malfunction | Cool the appliance down and restart |
| Battery level indicator blinking Voice prompt: Low battery, please charge  | Low battery | Charge the appliance, or restart |
LED loop illuminates red Voice prompt Please begin the self-cleaning cycle | Dirt sensor malfunction or blocked | Remove blockages, clean the debris channel, or restart |
Self-cleaning icon blinking | The brush roller is dirty | Start self-cleaning |
Power indicator blinking | Motor malfunction | Contact Customer Service |
Note:
If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.
Warranty
2-YEAR LIMITED WARRANTY
- Only applies to purchases made from authorized retailers of Tinoco.
- Is subject to adherence to the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
- This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide a 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.
WHAT IS COVERED?
- Your Tineco appliance has a 2-year warranty against original defects in material and workmanship when used for private household purposes in accordance with the Tineco Instruction Manual.
Motorized accessories and batteries bought separately come with a 1-year warranty. - This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
- This warranty will only be valid if the appliance is used in the country in which it was sold.
WHAT IS NOT COVERED?
Tinoco shall not be liable for costs, damages, or repairs incurred as a result of:
- Appliances purchased from an unauthorized dealer.
- Careless operation or handling, misuse, abuse, and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
- Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
- Use of parts not in accordance with the Tineco Instruction Manual.
- Use of parts and accessories other than those produced or recommended by Tinoco.
- External factors are unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges, or acts of God.
- Repairs or alterations carried out by unauthorized parties or agents.
- Failing to clear the blockage and other hazardous material from the appliance.
- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer’s instructions or failure to turn the brush bar off when necessary.
- Reduction in battery discharge time due to battery age or use.
WARRANTY LIMITATIONS
- Any implied warranties relating to your appliance including but not limited to the warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
- Warranty coverage applies to the original owner and to the original battery only and is not transferable.
- This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
- Manufacturers’ warranties may not apply in all cases, depending on factors such as the use of the product, where the product was purchased, or who you purchased the product from.
Please review the warranty carefully, and contact the manufacturer if you have any questions.
WARRANTY SERVICE

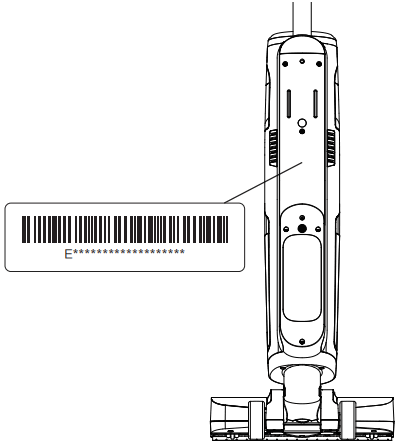

Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (found on the back of the appliance).
Failure to register your product won’t diminish your warranty rights.
How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.
All work will be carried out by Tineco or its authorized agency.
Any replaced defective parts will become the property of Tinoco.
Service under this warranty will not extend the period of this warranty.
Contact our Customer Service
Hotline: 1-855-292-8864
or Visit the Tineco website
www.tineco.com
for expert customer service.
