hager EE960 Incandescent Lamp Instructions

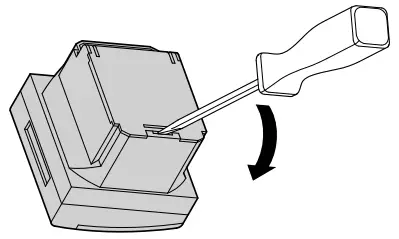

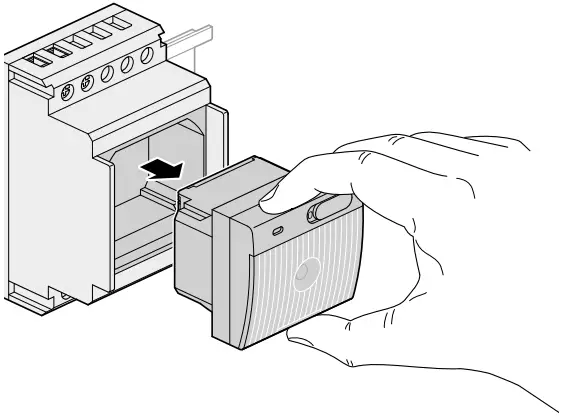

Assembly Instructions
Green
I : Automatic switching on of the lamp in case of voltage disconnection.
Red
0 : No automatic switching on of the lamp in case of voltage disconnection.
I : Manual switching on of the lamp.
0 : Manual switching off of the lamp.
Clean the contacts before putting new batteries.
Do not incinerare old batteries.
Keep batteries out of children’s reach.
Technical characteristics
| Supply voltage | 230 V ± 10 % |
| Lighting | 50 / 60 Hz |
| Charging time | 12 heures, Stunden, hours, ore, horas |
| Lighting time after 12 h | 3 ± 15 heures, Stunden, hours, ore, horas |
| Life time and endurance | 500 cycles, Zyklen, cycles cicli, ciclos |
| Operating temperature | 0 °C  + 40 °C |
| Storage temperature | – 5 °C + 50 °C |
| Connection capacity | 1 4 mm2 |
| Rated wattage | 1,7 VA |
| Insulation class | II |
Correct Disposal of this product
(Waste Electrical & Electronic Equipment).
(Applicable in the European Union and other European countries with separate collection systems).
This marking shown on the waste or its literature indicates that it should not be disposed with other household wasted at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this product from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this device for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes of disposal.
Usable in all Europe
and in Switzerland
Hager worldwide
