Ø150mm ORBITAL POLISHER 750W/230V
MODEL NO: OP750

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Refer to instructions	Wear eye protection	Wear ear protection	Wear gloves	Wear gloves	Keep dry

SAFETY

1.1. ELECTRICAL SAFETY
 WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before use. Inspect power supply leads, plugs, and all electrical connections for wear and damage. Sealey recommends that an RCD (Residual Current Device) is used with all electrical products. You may obtain an RCD by contacting your local Sealey Stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
For electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse – see fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a fi rm grip on the plug.
DO NOT use worn or damaged cables, plugs, or connectors. Ensure that any faulty item is repaired or replaced immediately by a qualified electrician.
1.1.4. This product is fitted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove it from use.
Replace a damaged plug with a BS1363/A 13 Amp 3-pin plug. If in doubt contact a qualifi ed electrician.

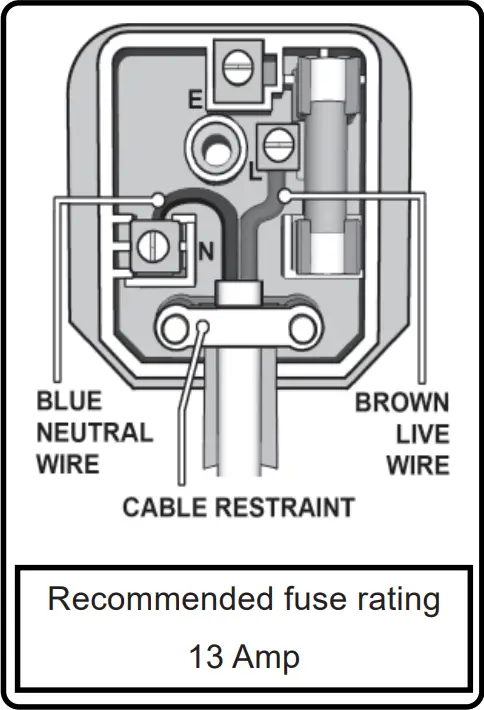

Class II products are wired with live (brown) and neutral (blue) only and are marked with the Class II symbol;
A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO NOT connect either wire to the earth terminal.
Sealey recommends that repairs are carried out by a qualified electrician.
1.1.5. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection.
A cable reel with an RCD fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cores of the cable is important. We suggest a 1.5mm section as a minimum but to be absolutely sure that the capacity of the cable reel is suitable for this product and for others that may be used in the other output sockets, we recommend the use of a 2.5mm² section cable.
1.2. GENERAL SAFETY
 WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
Familiarise yourself with the applications, limitations, and hazards associated with this product.
 WARNING! Disconnect from the mains’ power and ensure the disc is at a complete standstill before changing accessories, servicing, or performing any maintenance.
Maintain the polisher in good condition (use an authorized service agent).
Replace or repair damaged parts. Use genuine parts only. Unauthorized parts may be dangerous and will invalidate the warranty.
 WARNING! Keep all guards and holding screws in place, tight, and in good working order. Check regularly for damaged parts. A guard or any other part that is damaged must be repaired/replaced before the tool is next used.

Locate the polisher in a suitable working area, and keep the area clean and tidy, and free from unrelated materials.
Ensure there is adequate lighting.
Keep the polisher clean for the best and safest performance.
Before each use check abrasive attachments for condition. If worn or damaged replace it immediately.
Ensure there are no flammable or combustible materials near the work area.
 WARNING! Wear approved eye safety protection, ear defenders and if dust is generated, respiratory protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewelry, and contain and/or tie back long hair.
Keep children and unauthorized persons away from the working area.
Secure an unstable workpiece with a clamp, vice, or another adequate holding device.
DO NOT use the equipment for any purpose other than that for which it is designed.
DO NOT operate the polisher if any parts are damaged or missing as this may cause failure and/or possible personal injury.
 WARNING! DO NOT polish any materials containing asbestos.
DO NOT switch the polisher on whilst the head is in contact with the workpiece and avoid unintentional starting.
DO NOT get the polisher wet or use it in damp or wet locations or areas where there is condensation.
DO NOT operate the spindle lock button while the pad is rotating.
DO NOT operate power control while the spindle lock is operating.
DO NOT allow untrained persons to operate the polisher.
DO NOT operate the polisher when you are tired or under the influence of alcohol, drugs, or intoxicating medication.
DO NOT use the polisher where there are flammable liquids, solids, or gases such as paint solvents, etc.
DO NOT leave the polisher operating unattended.
DO NOT carry the polisher with your finger on the power switch.
DO NOT pull the cord to remove the plug from the power supply.
Use a qualified person to lubricate and maintain the polisher.
When not in use unplug from the mains power supply and store in a safe, dry, childproof area.

INTRODUCTION

21mm Orbit specifically designed for use in the Bodyshop. 6-Stage variable speed control ranging from 2000-4500rpm. Vibration-reducing motor and rubberized gear head cover allow for greater comfort and reduce user fatigue. Soft start for greater control. Speed stabilizer to ensure constant speed output. Fitted with 5m mains cable. Supplied with Ø150mm backing pad, two Ø180mm foam polishing pads, side handle, wrench, and spare brushes.

SPECIFICATION

Model no: ………………………………………………………….OP750
Pad size: ……………………………………………………….. Ø150mm
Thread size …………………………………………………………….. M8
No load speed: …………………………………………2000-4500rpm
Orbit size …………………………………………………………. Ø21mm
Power: …………………………………………………………………750W
Supply: …………………………………………………………………230V
Noise power: …………………………………………………………93dB
Noise pressure: ……………………………………………………..82dB
Vibration: ………………………………………………………. 4.919m/s²
Uncertainty: ………………………………………………………. 1.5m/s²

OPERATION

 WARNING! Ensure the unit is not plugged into the mains before assembly, usage, or maintenance.
 WARNING! Before use, ensure that you have read and understood Section 1 Safety Instructions.
4.1. INSTALL HOOK AND LOOP BACKPLATE
4.1.1. With the tool unplugged from the power supply, place it on a tool rest with the spindle upright.
4.1.2. Firmly attach backplate to the machine spindle using bolt and hex key supplied while ensuring the engagement of hexagonal spindle.
4.2. ATTACHING THE SIDE HANDLE
4.2.1. Attach the side handle to either side by screwing it into the desired fixing hole in the head.
4.3. ATTACH THE POLISHING PAD.
4.3.1. Align the velcro area of the pad with the backing pad and ensure that the polishing pad is centered.
4.4. STARTING AND STOPPING
4.4.1. Plug the sander into the power supply.

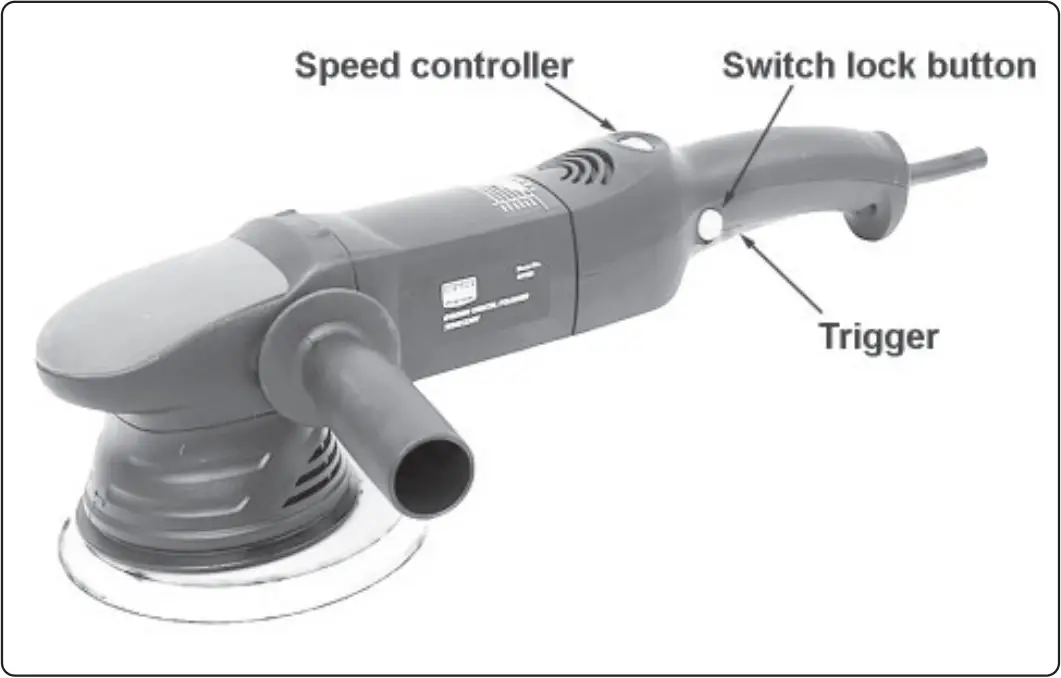

4.4.2. The sander has a six-position speed controller numbered 1 to 6 operating speeds from 2000 to 4500 RPM (fi g.1).
4.4.3. Set speed control to the required value and pull the trigger to start. To stop the machine release the trigger.
4.4.4. For continuous operation press the switch lock button to lock the trigger (fi g.1). Pull the trigger again to stop the tool.

MAINTENANCE

 WARNING! Before attempting any maintenance ensure the unit is unplugged from the mains power supply.
 WARNING! Wear approved safety eye protection and, if necessary, respiratory protection.
5.1. Keep the machine clean and dry. DO NOT use abrasives or solvents to clean the unit. Ensure all external head screws are tight.
5.2. Clean regularly by blowing a jet of compressed air through side vents to ensure motor ventilation is kept clear.
5.3. When not in use disconnect from mains supply and store in a safe, dry childproof location.

WARNING! – Risk of Hand Arm Vibration Injury.

This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a):. . . . . . . . . . 4.919m/s²
Uncertainty value (k):. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably and depend on many factors.
Such factors include; the operator, the task, and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration Syndrome.
Health surveillance.
We recommend a program of health surveillance to detect early symptoms of vibration injury so that management procedures can be modified accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and Maintenance section in these instructions. Guidance relating to the management of hand-arm vibration can be found on the HSC website www.hse.gov.uk – Hand-Arm Vibration at Work.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories, and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications, and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: The guarantee is 36 months from the purchase date, proof of which is required for any claim.

Sealey Group, Kempson Way, Suffolk Business Park,
Bury St Edmunds, Suffolk. IP32 7AR
01284 757500
01284 703534
[email protected]
www.sealey.co.uk
© Jack Sealey Limited
Original Language Version
OP750
Issue 2 (1,F)
05/10/21
