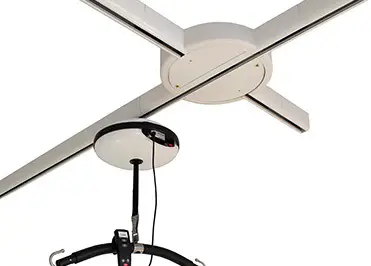

WINNCARE e-Station Moving and Handling User Manual

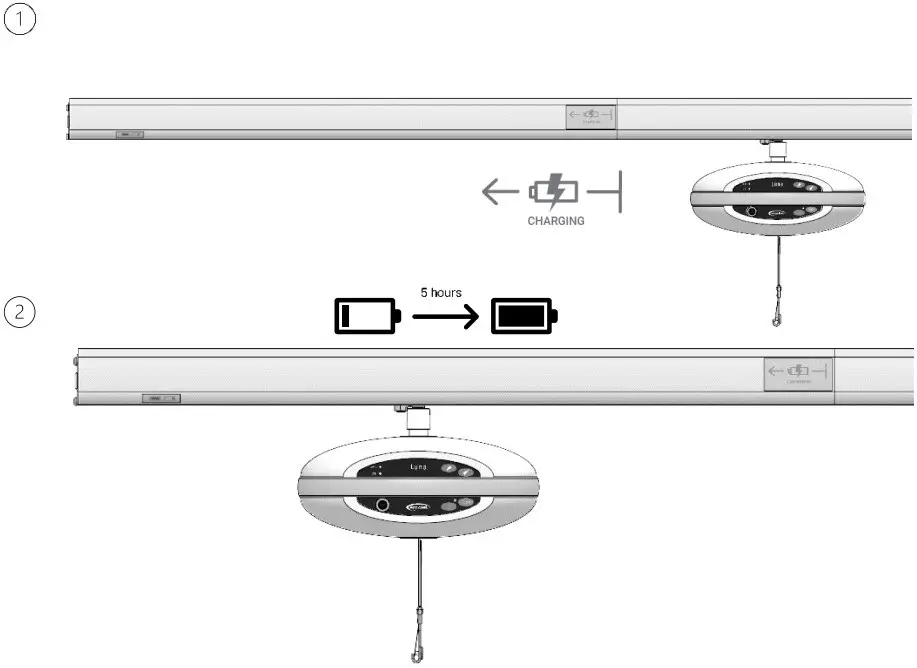

Charging one Luna

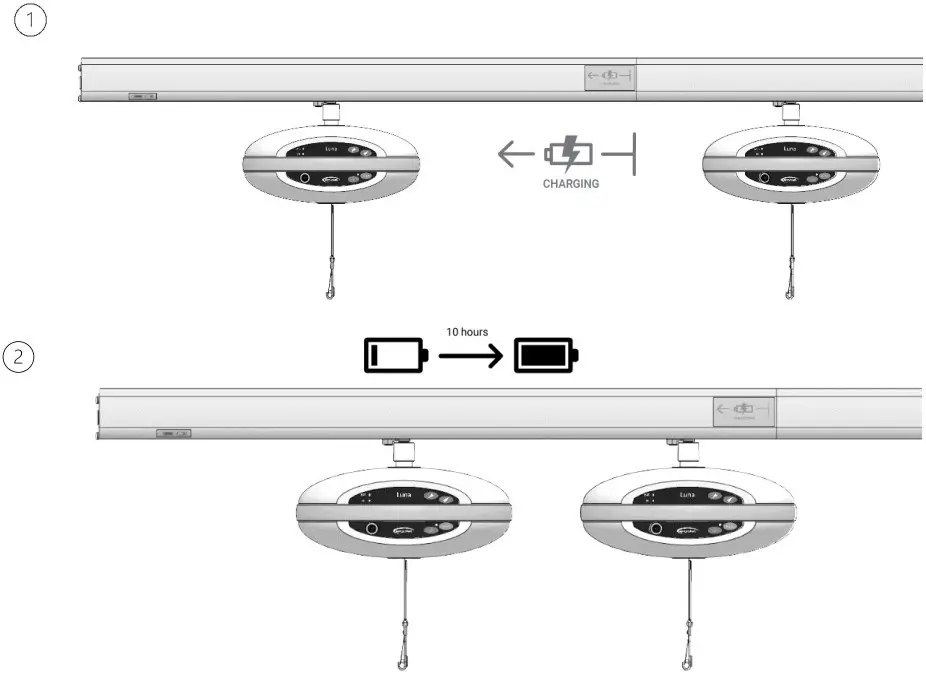

Charging two Luna simultaneously
+
Verify installation
| To do: | Charger light identification: | Not charging: |
| Move the Luna into the e- Station. | Green diode = Fully charged Red diode = Charging | If the diode doesn’t change from green to red, while moving the Luna up and down. See Troubleshooting. |
Troubleshooting
| Description: | Error: | Solution: |
| No light indication on the charger. | Charger is not connected to the main supply. | Connect charger to the main supply. |
| Luna not charging. Charger light indication is on. | Conductor kit’s polarity is not the same, for both the e- Station and the cart. | See installation guide – Conductor kit alignment. |
| Damaged/dirty conductor wheels. | See annual service. |

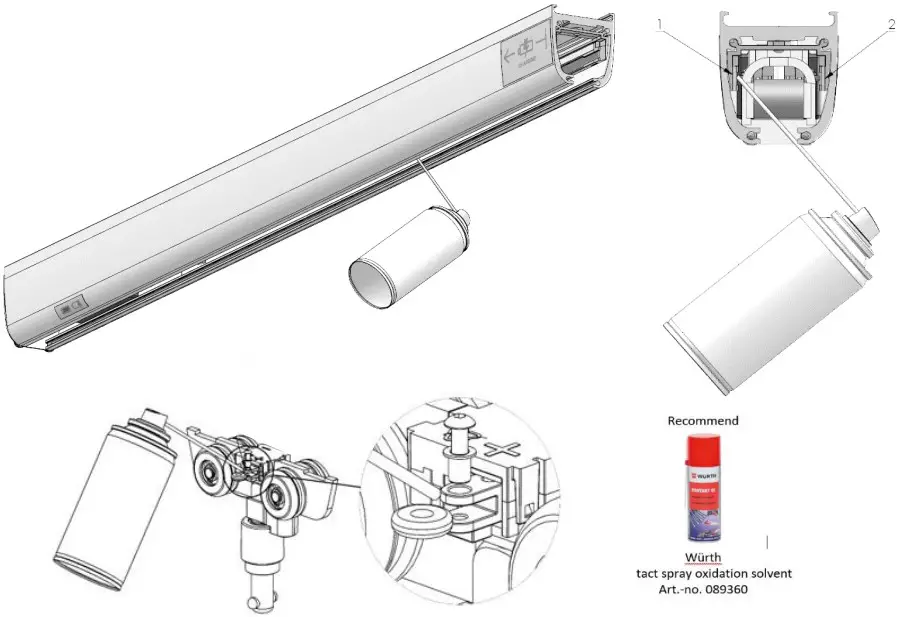

Annual service
Manufacturer:
Winncare Nordic ApS
Taarnborgvej 12C
4220 Korsoer
Denmark
www.winncare.com
Distributor/service:
Date: 05.10.2021
Version: 1
UM-910-09000
