Simaluba Sl09 Biodegradable Grease Instruction Manual

simaluba SL09 Biodegradable Grease Instruction Manual

Define installation type, lubricant, lubricator size, dispensing time, and accessories

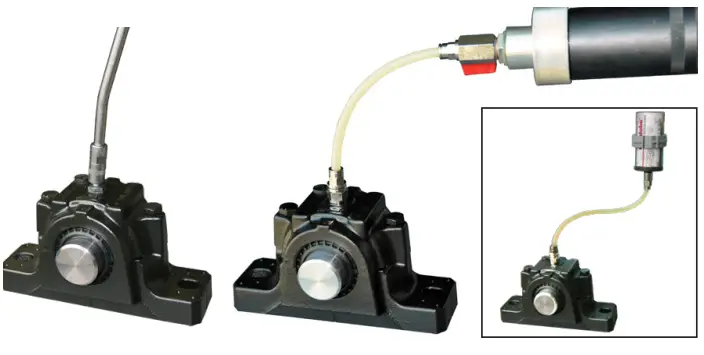

• Direct installation

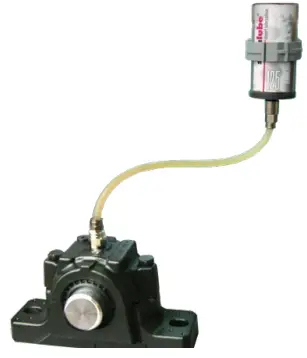

• Indirect installation

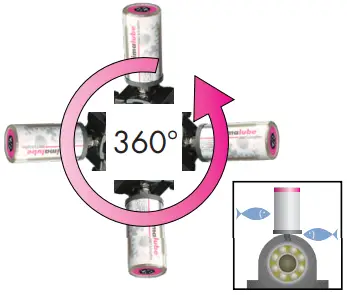

• simalube lubricators can be installed in all positions, even underwater.

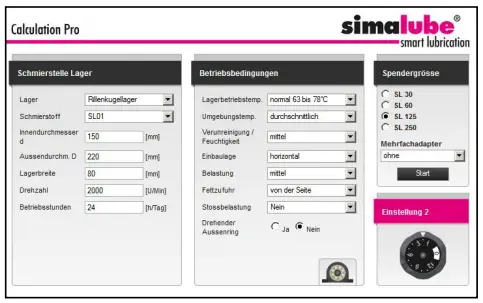

• Use “Calculation Pro” to choose correct lubricant, dispensing time, and lubricator size.
  (“Calculation Pro” is available at www.simatec.com, in the App Store, and in the Android Market.)



Prepare lubrication point

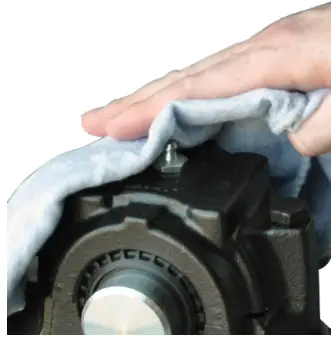

• Clean lubrication point

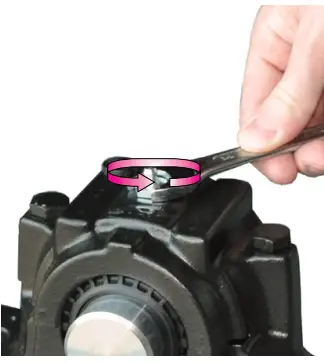

• Remove connector nipple

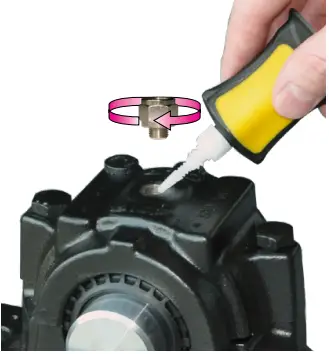

• Screw in reducing nipple
  (if necessary, seal lubrication point)

• Lubricate the grease lines with a grease gun
  (fill tubes completely)


Install and activate simalube

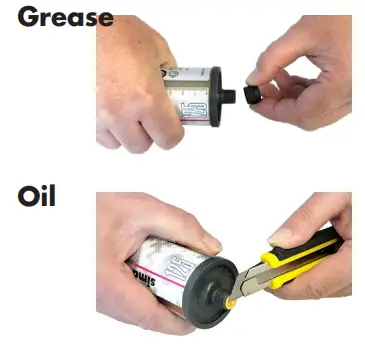

• Cut off plug from lubricator or remove black plug

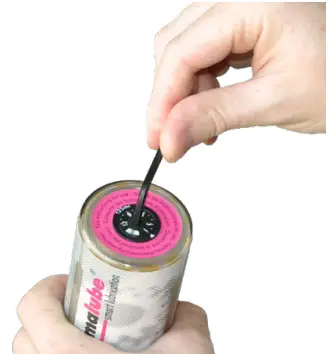

• Activate dispensing time with 3 mm Allen key

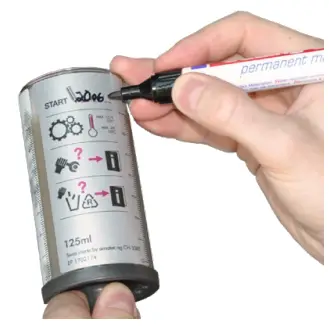

• Write in activation date

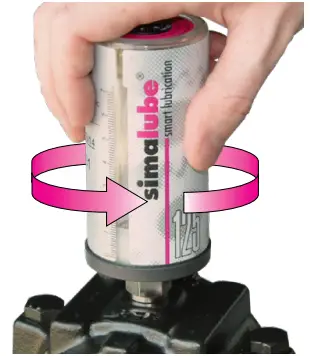

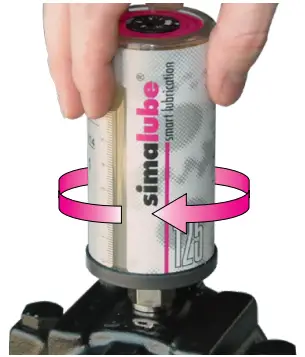

• Screw in lubricator

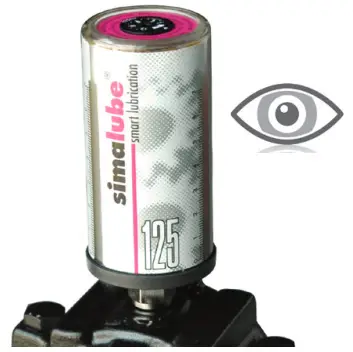

• Regularly check simalube


Dispose of simalube correctly

• Either refill or dispose of empty lubricators

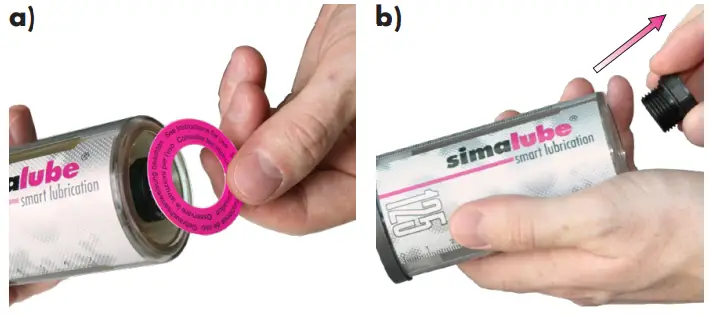

• a) Remove cover disk
  b) Remove gas generator with a socket wrench (SW21mm)

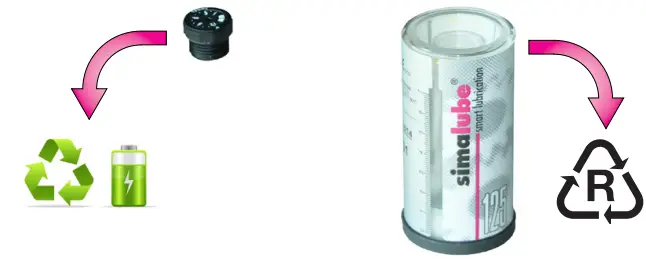

• Dispose of intact gas generator in battery recycling and empty housing in plastic recycling.
  ( Warning: dispose of leftover grease separately )


simatec ag
Stadthof 2
CH-3380 Wangen a. Aare

Tel.: +41 (0)32 636 50 00
Fax.: +41 (0)32 636 50 19
[email protected]
www.simatec.com
