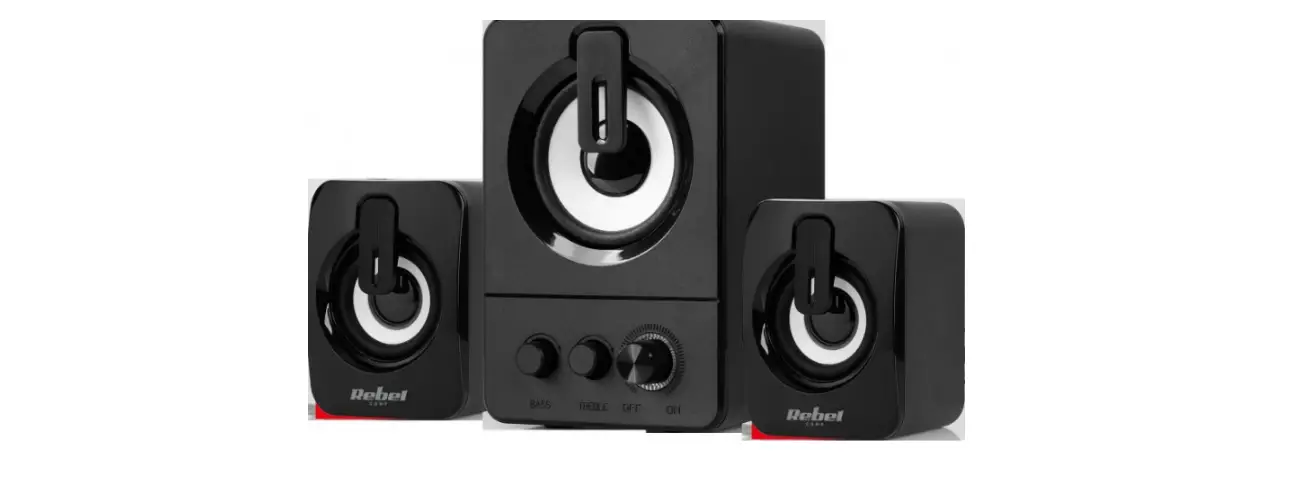

KOM1150 USB Speakers
User Manual
model: KOM1150
KOM1151 KOM1160 KOM1165
SAFETY INSTRUCTIONS
- Keep the device away from water, moisture and other liquids. Do not use and store the device in a strong magnetic field or at extreme temperatures. Do not expose it to direct light a is sun to other heat sources. DO NOT manipulate device with wet hands. Protect the power cord from sharp edges and other factors that could lead to its damage.
- Protect the device from shocks and do not drop it.
- The device is intended for indoor use only.
- Unplug the device from the power source if it will not be used for a longer period of time.
- Keep the volume at a reasonable level throughout using the device. To prevent hearing damage, don’t listen too loud.
- Do not use the device if the power cord is deteriorated.
- Do not disassemble or repair this product. The device it has no user-serviceable components. In the in case of damage, contact an authorized service for check or repair.
- Clean the device with a soft, slightly damp cloth, without abrasive agents. Disconnect the device from the source of power before cleaning.
FUNCTIONING

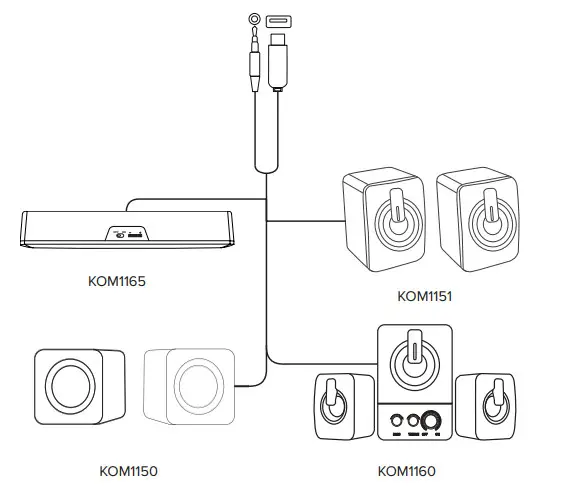

- Connect the USB plug to the USB input (of a USB port compatible with a computer or a power adapter).
- Connect the 3.5 mm jack plug to the audio source.
- Adjust the volume using the volume button.
- Only for KOM1160: To turn on the speaker, turn the volume button. Adjust the bass and treble level with using the buttons.
| KOM1150 | KOM1151 | KOM1160 | KOM1165 | |
| Volume slider |  | | | |
| Power | 2 x 3 W | 2 x 3 W | 5W (subwoofer) 2 x 3 W (speakers) | 2 x 3 W |
| THD | 10% | |||
| S/N ratio | >60 dB | >88 dB | >80 dB | >85 dB |
| Frequency response | 90 Hz ” 20 kHz | 45 Hz “16 kHz | 45 Hz “16 kHz | 45 Hz “16 kHz |
| Impedance | 40 | |||
| Power supply | USB 5 V | |||
| Cable length | 65 cm | 140 cm | 140 cm | 125 cm |
| Dimensions | 61x 61x 57 mm | 67×90 x60 mm | 67x 90 x60 mm | 280x60x46mm |
Romania
Correct recycling of this product
(waste from electrical and electronic equipment)
The markings on this product or mentioned in its instructions for use indicate the fact that the product should not be thrown away with other household waste when it is no longer in working condition. To prevent possible effects harmful to the environment or to people’s health uncontrolled discharge of residues, please separate this product from others types of waste and recycle it responsibly to promote reuse material resources. Home users are asked to contact either the distributor from whom they purchased this product, or with the local authorities, to receive information about where and how I can store this product in view its ecological recycling. Institutional users are requested to contact the supplier and check the conditions stipulated in the sales contract. This product does not it must be mixed with other residues of a commercial nature.
Distributed by Lechpol Electronic SRL, Republicii no. 5, Resita, CS, ROMANIA.
