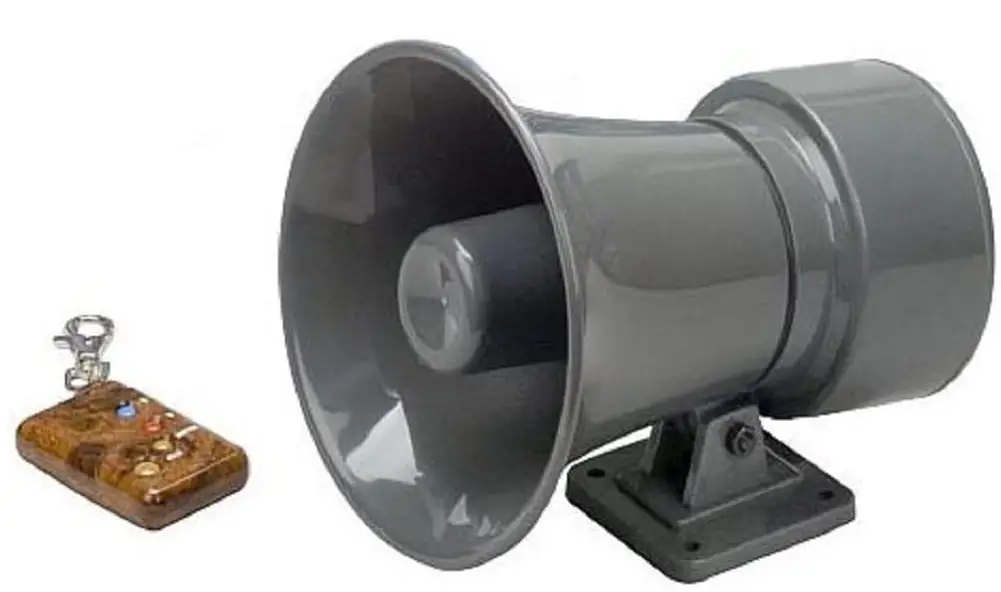

Wolo 002 Music Time Remote Controlled Speaker
INTRODUCTION
Property installed “Music Time”™ will provide years of high quality sound. Give your installation the same care and attention that went into making this fine product. Once installed Music Time™ requires no maintenance.
MOUNTING THE MUSICAL SPEAKER
Carefully select a position in the engine compartment that will keep the speaker and the electronics dry. Equally as important, protect the plastic speaker housing by not allowing it to come in contact with hot engine parts.
With the mounting position located, use the musical speaker as a template, and mark the location of the four mounting holes. Drill 4 holes using a 7/32 drill bit. Remove the mounting bracket from the speaker and fasten the bracket to the vehicle using the hardware provided. Secure the speaker to the mounting bracket, tilting speaker housing slightly downward to prevent water from collecting in speaker cone.
WIRING
Music Time ™ will be ready to work after making only two electrical connections. Connect the fuse wire to any electrical circuit that is powered when the ignition is ”on”. Secure the wire with the ring terminal under a speaker mounting bolt or to any convenient body bolt.
CONTROLLER
Four buttons on the key chain transmitter provides Music Time™ with full control of all sound functions.
Button functions: The “Large” button turns the system on and off. “Red and Blue” buttons select songs, and volume button adjusts the sound level.
PRODUCT DESCRIPTION
The Wolo 002 is an easy to install one piece musical horn that delivers true musical instrument sounds. Simple to install into the engine compartment; connect one wire to ground, the other to 12-volt and Music Time is ready to play. All functions: on/off, volume and song selection are controlled by a key chain transmitter from within or outside the vehicle. Packaged in an attractive full color box.
FEATURES
- Easy to install one piece musical horn that delivers true musical instrument sounds
- Simple to install into the engine compartment; connect one wire to ground, the other to 12-volt and Music Time is ready to play
- All functions: on/off, volume and song selection are controlled by a key chain transmitter from within or outside the vehicle
- Packaged in an attractive full color box
WARRANTY
Wolo Manufacturing Corporation (“Wolo”) warranties to the original purchaser, for three months from the date of pur-chase, that this product is free from defects in workmanship and materials. If there is such a proven defect, Wolo, at its option, will either repair or replace the item free of charge, if it is returned to Wolo within three months from the date of purchase together with proof of purchase as described below. Wolo reserves the right to inspect any defect prior to settling any warranty claim by repair or replacement. This warranty is limited as above provided and Wolo will not be responsible for fire or other casualty or accident, due to neglect, abuse, abnormal use, modifications, faulty installation of this product, or natural causes.
ANY EXPRESSED WARRANTY NOT PROVIDED HEREIN IS EXCLUDED AND DISCLAIMED. THE IMPLIED WAR-RANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF THREE (3) MONTHS. UNDER NO CIRCUMSTANCES SHALL WOLO BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY OR OTHERWISE.
Note: If your transmitter should ever be misplaced, a new unit is available for $28.65. This price includes postage. When ordering by check allow 10 days. Using a credit card or money order will make expedited delivery. Please be sure to include your name, address with zip number and, also the system’s 3 digit code number located on the rear of the speaker.
Your sound system is guaranteed to be free of defective components or a failure due to workmanship for 90 days from the date of purchase. If service should be required, return the speaker and transmitter to the address below, with the dated receipt of purchase. Include a check or money order for ten dollars ($10.00) to cover shipping. Do not void guarantee by removing rear speaker cover in an attempt to make repairs.
Have any questions, call our help line: 1-888-550-4676
WOLO MANUFACTURING CORP. One Saxwood Street, Deer Park, NY 11729
E-mail: [email protected]
FAQs
Being audible from as far away as a mile. USCG Accredited. at least 70 bursts (1 second blast)
It operates by pressing the rubber bulb that is attached to the metal horn. When the bulb is pressed, a steel reed that is located in the horn’s throat pushes the air out. The throat consequently vibrates and produces one note.
Electronic horns on vehicles produce warning signals that are produced by an electrical circuit. A solenoid is magnetised and demagnetized to produce the fundamental frequency and cause the diaphragm to vibrate. High pressure is consequently generated, and this pressure enters the trumpet horn to create sound.
HornBlasters contains the necessary parts as well as wiring guidelines and a diagram. Furthermore, the wiring procedure takes one to two hours.
It produces sound electronically by using a thin metal disc and an electromagnet or solenoid. As soon as the solenoid is turned on or energised by the button, it exerts force against the metal disc. This action results in the production of a loud vehicle sound known as horns.
Speaking horns work by matching the acoustic impedance of outgoing sounds to the surrounding air, whereas hearing horns amplify sounds when waves are reflected into a gradually smaller zone, raising the sound pressure that reaches the ear [21,22].
In addition to acting as a warning system, automobile horns can be utilised as a signal when remotely locking the vehicle. Only the softer horn is commonly used by the central locking system.
Identify the circuit’s power side and test it in accordance with the instructions in your car’s manual. To check for electricity, set your metre to the volts setting. Put a one-meter lead on the horn connector’s (+) pin and a second lead on the ground. Your metre should display battery voltage.
The primary advantage of horn loudspeakers is their increased effectiveness; on average, they can produce three times (10 dB) as much sound pressure from an amplifier output as a cone speaker.
Shouting horns are prohibited under Section 177 of the Motor Vehicles Act
The horn relay is the electronic component that is a part of the car’s horn circuit. For the circuit that powers the car’s horn, it serves as a relay. When current is provided to the relay, causing the horn to operate and ring, the horn’s power circuit is complete.
A standard car horn is made up of a spring steel-based flexible metal diaphragm, an electromagnet created from a wire coil, a switch, and a case resembling a megaphone.
After fastening one clamp to the horn’s terminal, touch the other end of the clamp to the positive battery connector. If the fuse burns out, the horn won’t function. A poor ground connection could be the root of the problem if the horn clicks. After cleaning the ground connection, try re-energizing the horn.
To be able to work without needing to be grounded, your horn needs two terminals. If it just has one contact point, it must be grounded in order to form a complete circuit. Jumper cables and battery power make it easy to test the horn’s operation.
