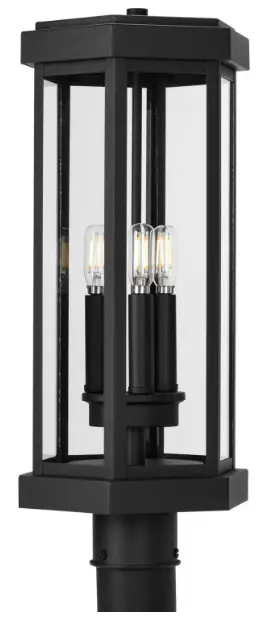

P540104 3-Light Post Mount
Instruction Manual
P540104
3 – L T POST MOUNT
P540104 3-Light Post Mount
Package Contents

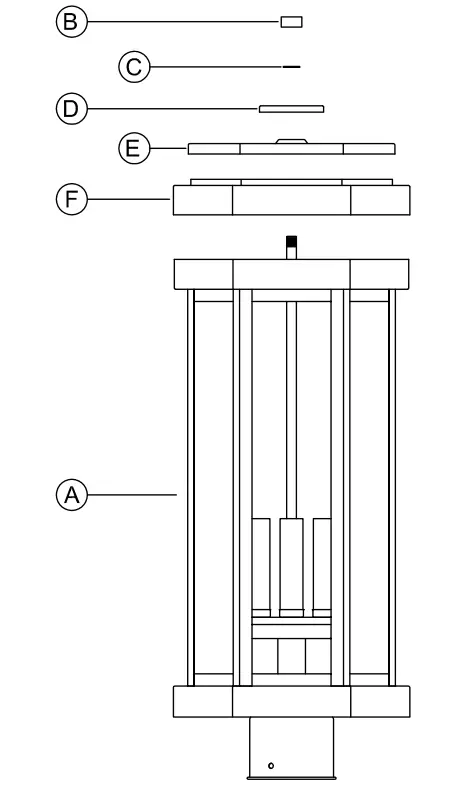

| Part | Description | Quantity |
| A | Fixture | 1 |
| B | Finial | 1 |
| C | Rubber Washer | 1 |
| D | Check Ring | 1 |
| E | Top Hex Cover | 1 |
| F | Hex Cover | 1 |

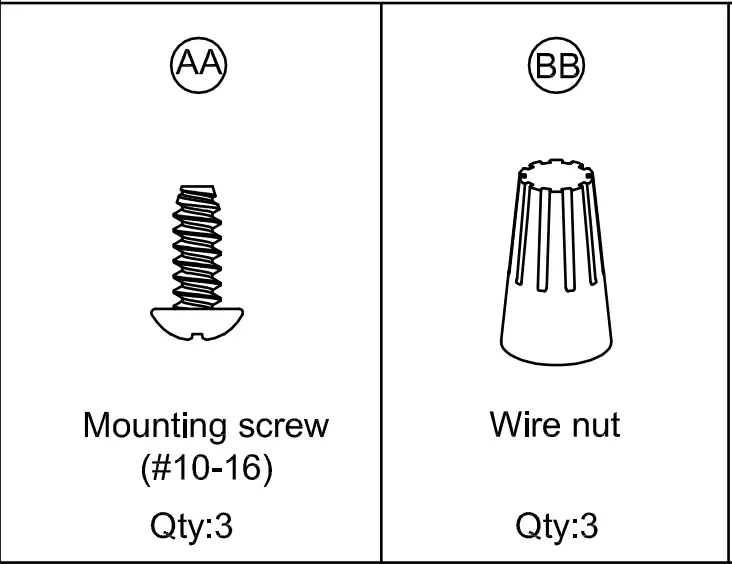

Hardware Contents
(not actual size)
Safety Information
Please read and understand this entire manual before attempting t o assemble, operate or install the product.
CAUTION: Read instructions carefully and turn electricity off at main circuit breaker panel before beginning installation.
CAUTION: Risk o f fire. Min . 90°C supply conductors. Consult a qualified electrician t o ensure correct branch circuit conductor.
WARNING: If any Special Control Devices are used with this fixture, follow instructions carefully t o assure full compliance with N.E.C. requirements. If there are any questions, contact a qualified electrical contractor.
CAUTION: All glass is fragile. Use care when handling glass shades and bulbs.
Preparation
- Before beginning installation, make sure all parts are included using the contents diagrams from page1 .If any part i s missing or damage, do not attempt to assemble, install or operate the product.
- Estimated assembly time: 30 minutes.
- Tools required for assembly (not included): Phillips screwdriver, pliers, wire stripper, safetyglasses, electrical tape, ladder, drill.
Care and Maintenance
Shut off main power supply before cleaning product or changing light bulbs. To clean, wipe with damp cloth. Do not use abrasive cleaners or cleaners that contain alcohol.
Assembly Instructions

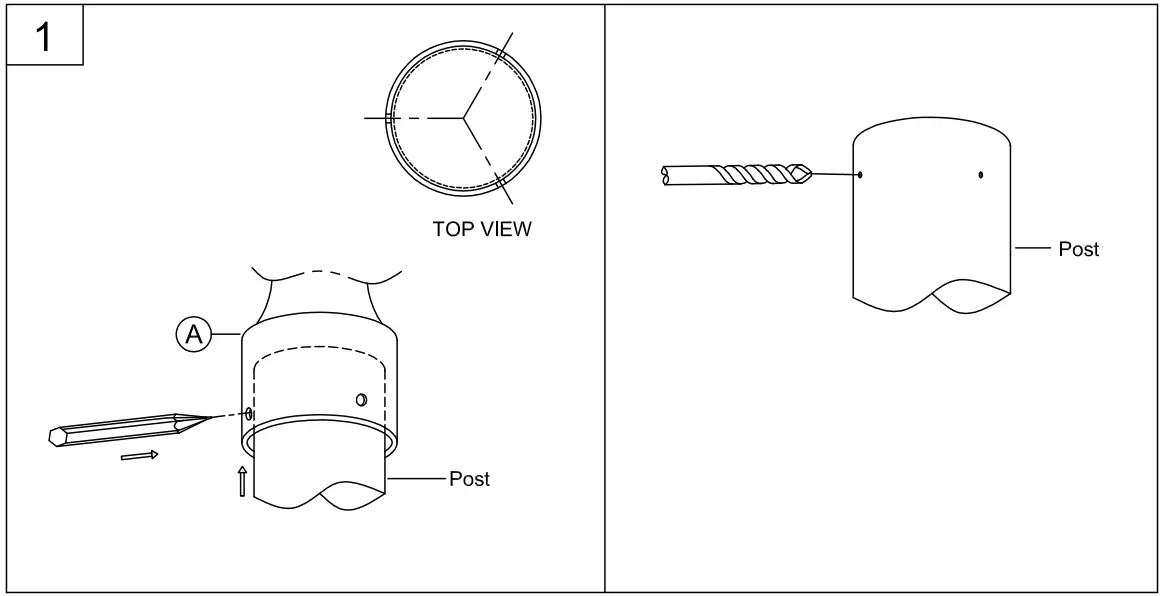

1. Place the fixture (A) on the post (not included) and use apencil to mark the locations o f the 3 mounting holes. Remove the fixture from the post and use a drill with a 0.144 (4mm) bit to create mounting holes i n the post.

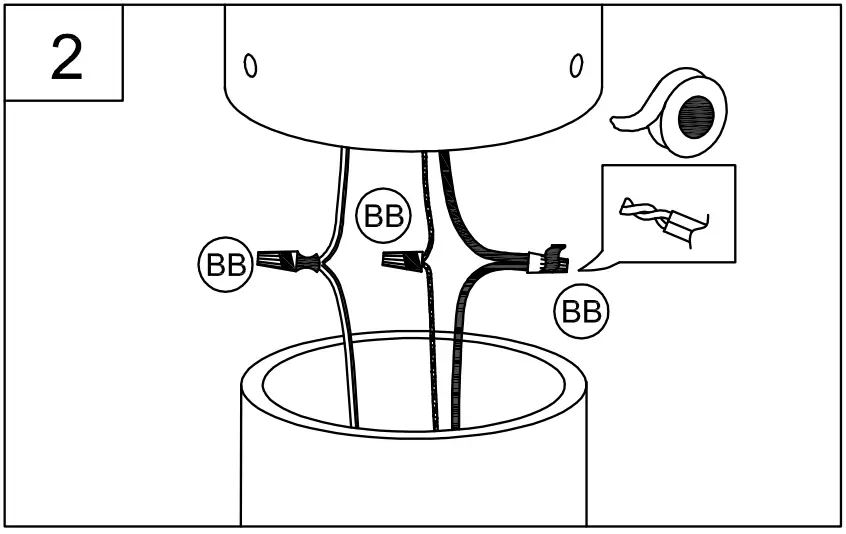

2 . Strip 3/8” of insulation from the electrical wire ends. Using wire nuts (BB), connect WHITE fixture wire to the WHITE supply wire from the pole connection; connect
the BLACK fixture wire to the BLACK supply wire from the pole connection.
Connect the fixture ground wire and supply ground wire using a wire nut. Push all wire connections into the post.

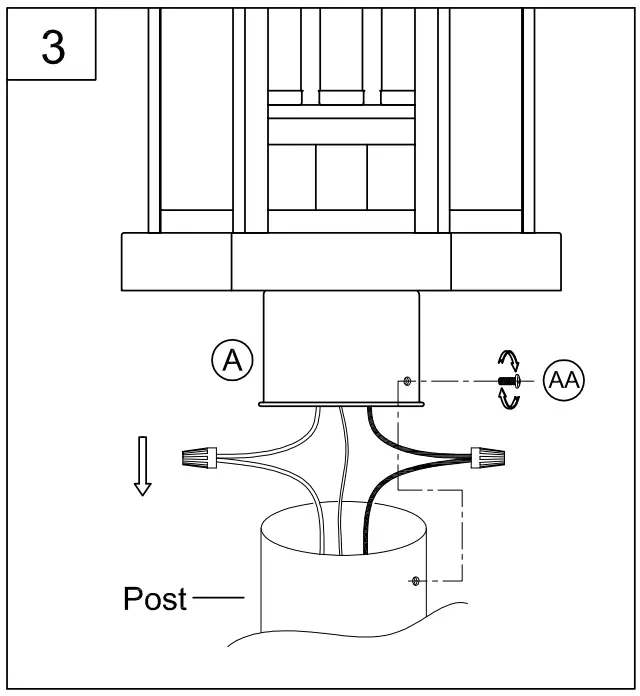

3. Insert the fixture (A) onto the post and use the mounting screws (AA) to secure the fixture tightly to the post using the holes drilled in step 1.
4. Thread the lamps (not included) into the fixture sockets. Use 60-watt MAX incandescent candelabra base, SBCFL or SBLED.

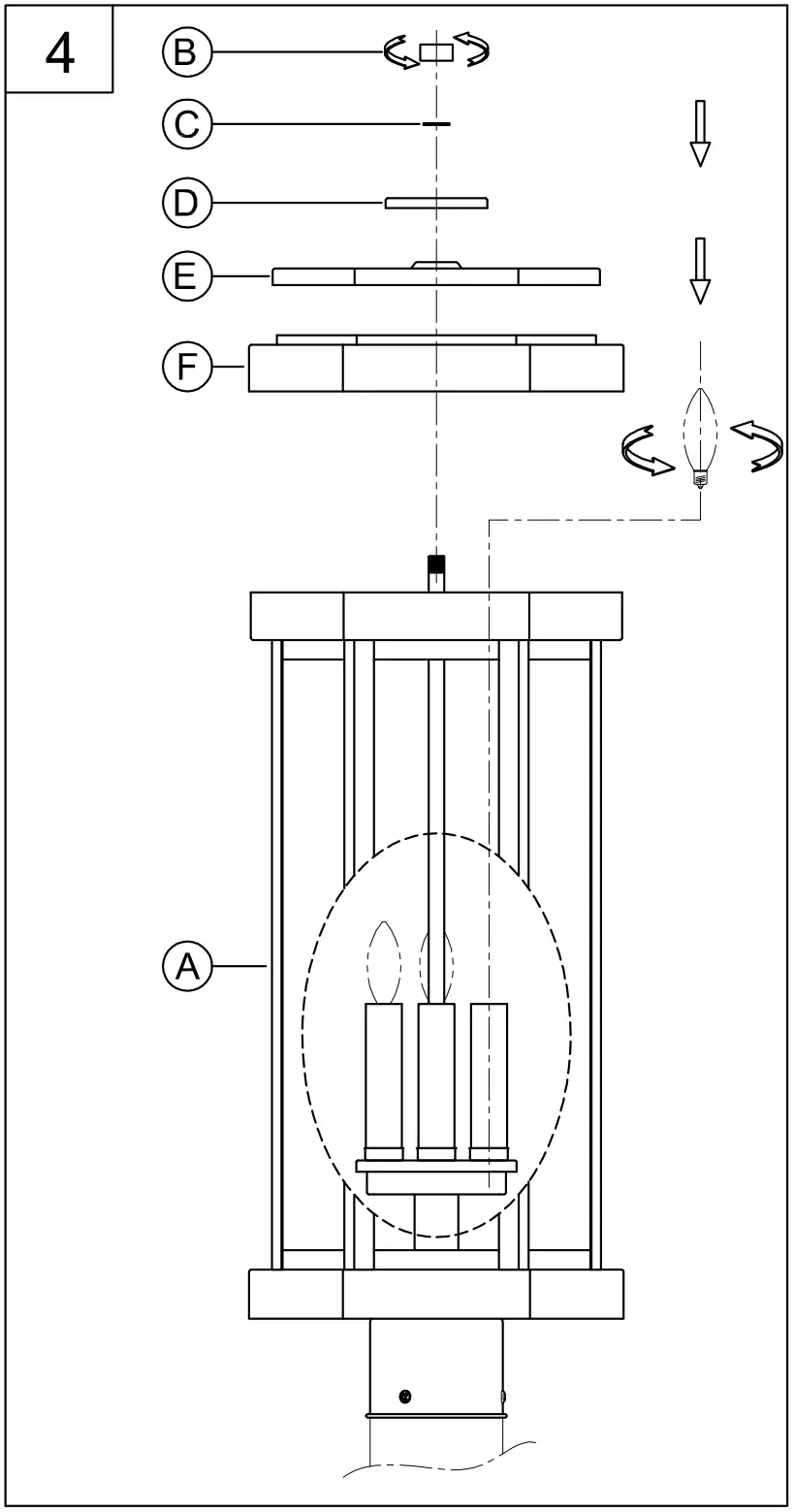

Attach the check ring (D), top hex cover (E) and the hex cover (F) onto the Fixture (A) using the finial (B) with the rubber washer (C). Tighten securely.
THANK YOU for selecting Progress Lighting
We can assist you with questions regarding product information, assembly o r missing parts
800-447-0 573 v8am-8pm (Eastern), Monday-Friday
