QUICK REFERENCE GUIDE > OR30SDE6X1
Electric Range 30″ – Ceramic
Radiant
Series 7 | Contemporary
Stainless Steel
User Guide

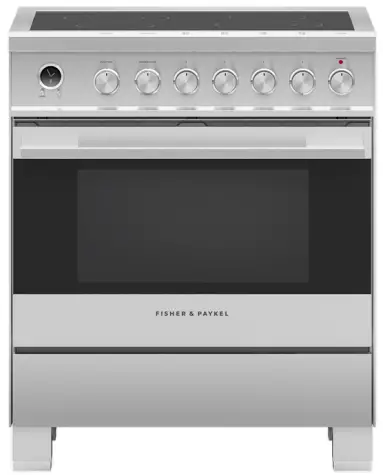

OR30SDE6X1 30 Inch Contemporary Electric Range
A refined electric range with multiple oven functions for perfect cooking of anything from a large roast to baking bread and pastry.
- Electric radiant cooktop with four cook elements
- Nine oven functions including Roast, Aero™ Pastry with Pizza mode, and Rapid Proof for baking bread
- High-temperature self-cleaning function breaks down food residue for an easy clean

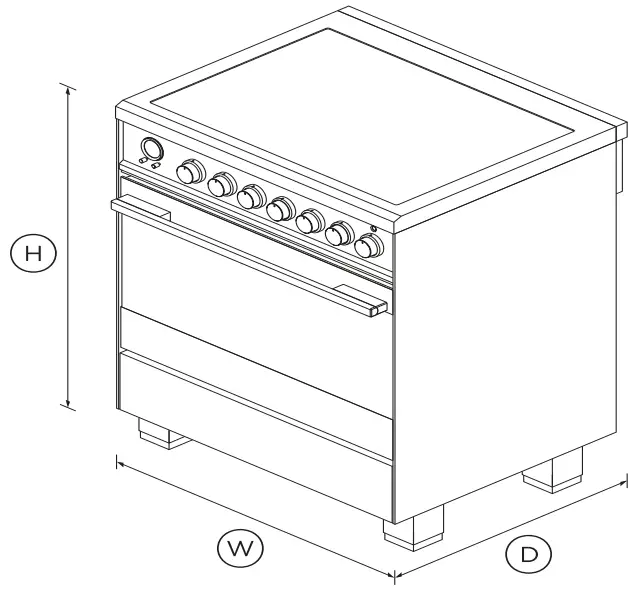

DIMENSIONS
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
Cooking flexibility
Accurate, electronically-controlled oven heat, ensures a great result every time with 9 functions and pre-set temperatures including bake, grill, pastry bake with pizza mode and fan forced, for a variety of cooking styles.
A modern legacy
A refined, minimalist style with attention to the smallest details. High-performance cooking technology offers multiple cooking functions.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, machined stainless dials and glowing halo dials all add up to an exceptional, premium range.
Large capacity oven
The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.
Easy to clean
Cleaning up spills is effortless. The flat ceramic cooktop is easily wiped after use, and the self-cleaning oven breaks down food residue at a very high temperature leaving a light ash that’s easily removed with a damp cloth.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time. Dishes on the top shelf turn out as perfectly as the ones on the bottom due to our AeroTech™ convection system that circulates air evenly throughout the entire oven.
SPECIFICATIONS
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Full Extension Telescopic | 2 sets (part 578776) |
| Hob rear trim | 3 1/8″ (part 81656) |
| Kick strip, stainless steel | Part 81660 |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down broil element | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel dials | • |
| Oven features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| True convection | • |
| Turned stainless steel clock | • |
| Oven functions | |
| Aero Bake | • |
| Aero™ Pastry with Pizza mode | • |
| Number of functions | 9 |
| Rapid proof | • |
| Roast | • |
| True convection | • |
| Oven performance | |
| Broil | 4050 BTU |
| Combined warming/Storage | 220W |
| CoolTouch door | Triple glazed |
| Warming drawer power | 220W |
| Power requirements | |
| Amperage | 50A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Hob rear trim | 3 1/8″ (part 81656) |
| Rangetop Performance | |
| Number of cooking zones | 4 |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Hi-light high speed ribbon | • |
| Individual hot surface | • |
| Non-tip shelves | • |
| Spill containment | 18 BTU |
| SKU | 81721 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
