Car Baby
Monitoring System
User Manual
Before installing please read the manual carefully

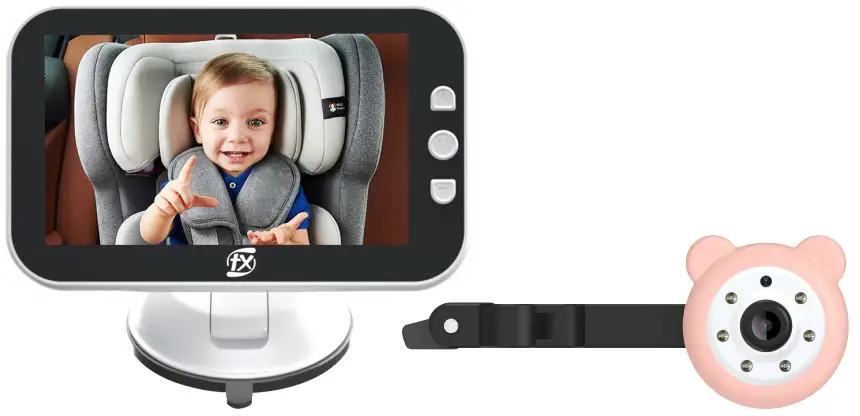

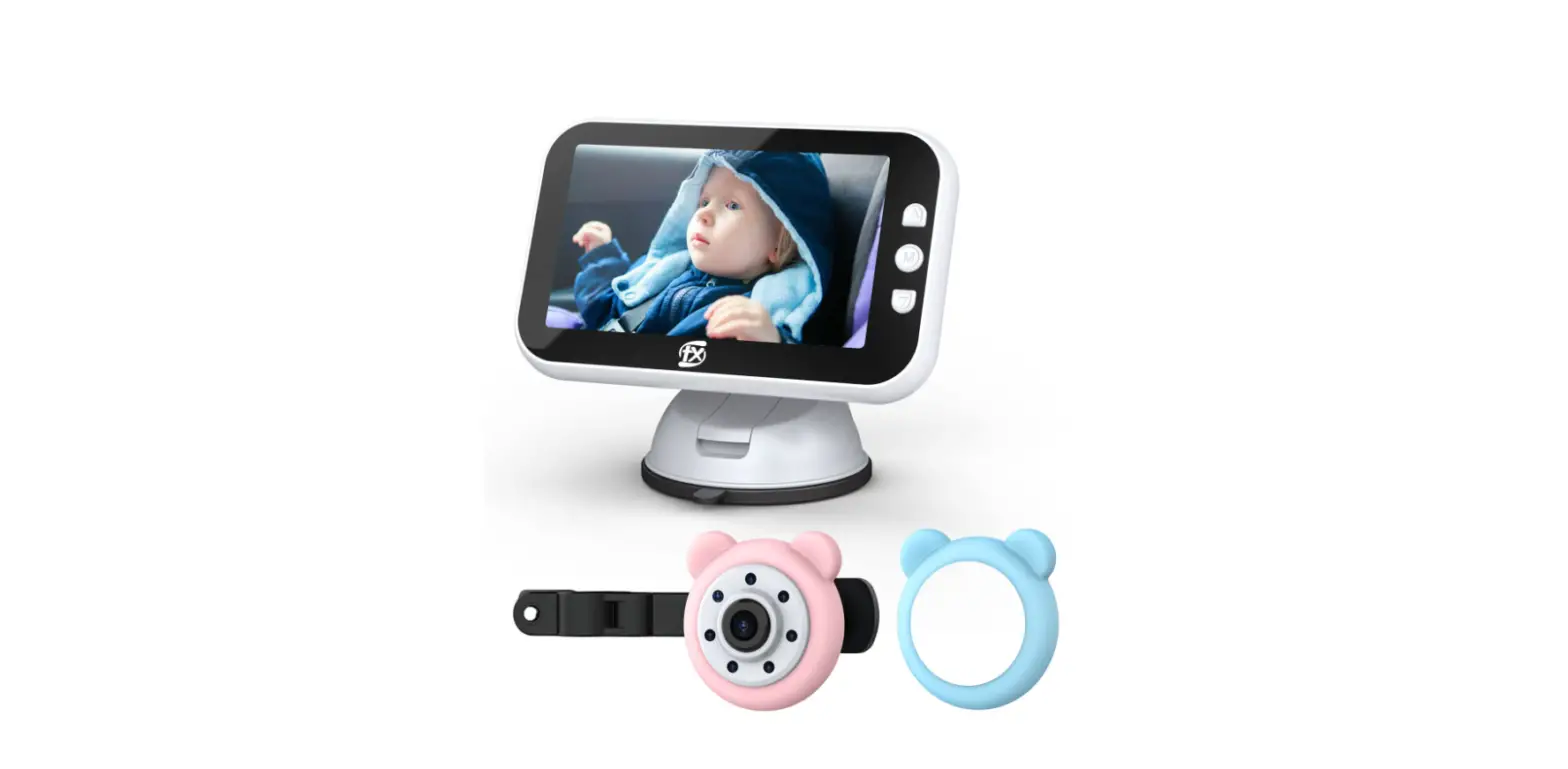

FX007 Car Baby Monitoring System

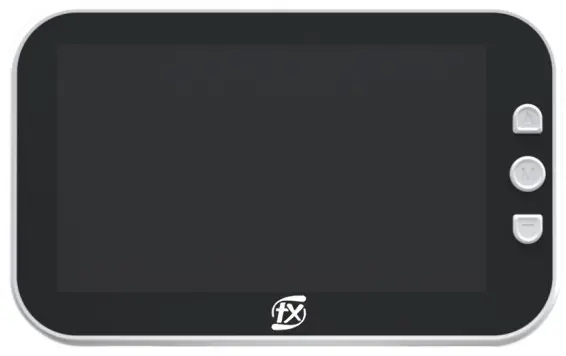

- Short press
button enter DAY MODE. - Short press
button enter NORMAL MODE. Long press button and hold 2 seconds to enter menu - Short press
button enter NIGHT MODE.
Note: Long press button enter menu. Only in NORMAL MODE, parameters can be adjusted and saved, in DAY MODE and NIGHT MODE, parameters are not adjusted. - Long press button to enter menu, short press
to adjust parameters, 4 seconds later all the operations can be automatically saved then exit. - Menu options: BRIGHTNESS,CONTRAST, SATURATION, TINT, MIRROR, LANGUA, RESET.
button enter DAY MODE.
button enter NORMAL MODE. Long press
button enter NIGHT MODE.
to adjust parameters, 4 seconds later all the operations can be automatically saved then exit.Wiring Instruction

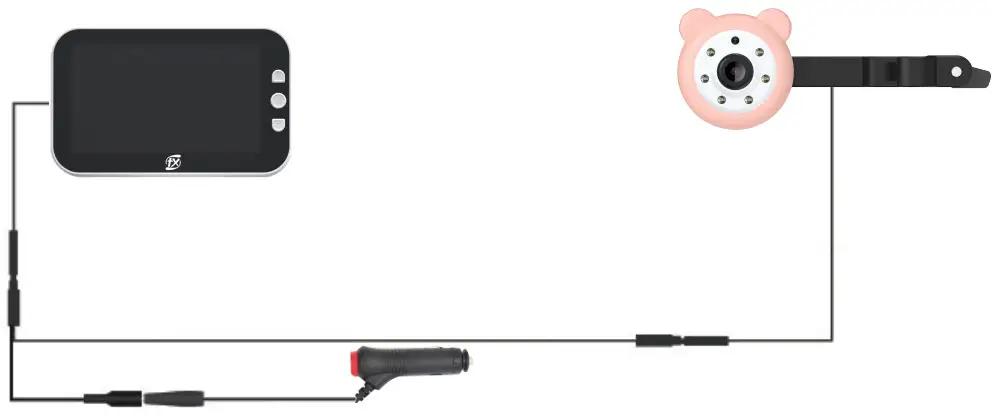

Connection method

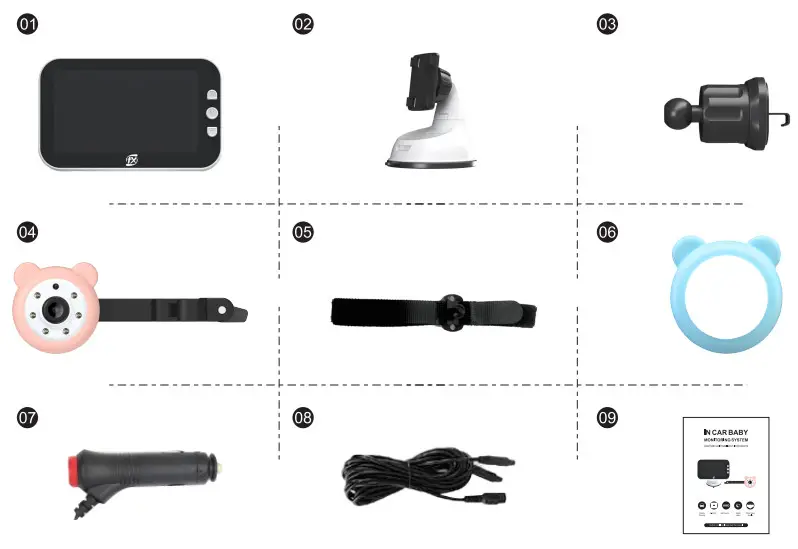

What’s in the Box
- 4.3 inch monitor x 1
- Suction Cup Mount x 1
- Air Outlet Clip x 1
- Camera with bracket x 1
- Strap connector x 1
- Camera Silicon x 1
- Car Charger x 1
- 4.5M Power Cable x 1
- Use Manual x 1
Camera Installation

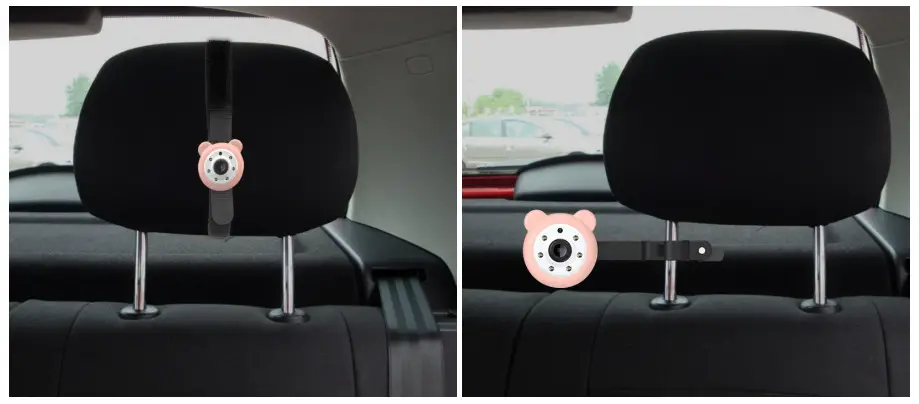

Option1: Clip the camera on the column of headrest.
Option2: Strap the camera on the headrest.
Warm tips: Invisible infrared light protect baby’s eyes
Monitor Installation

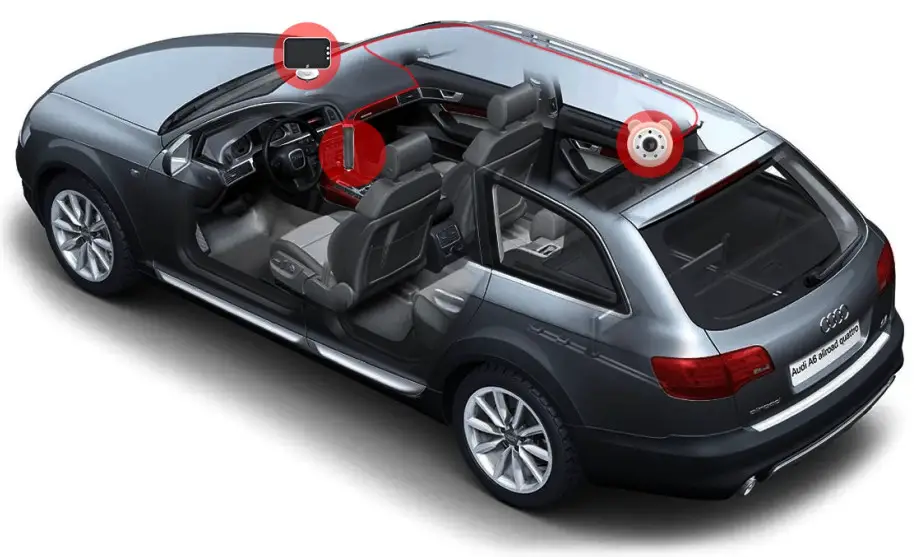

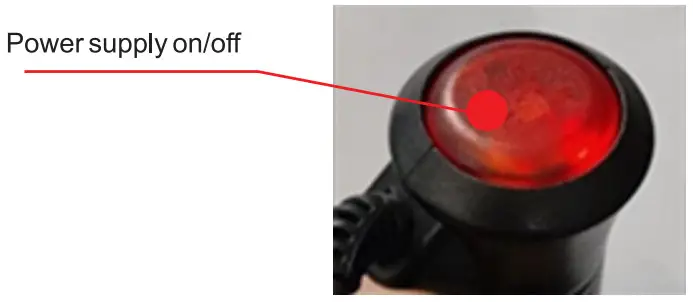

The car charger powers the baby monitor and the camera, see what baby do at all times when driving, recommended turn off the power when getting off the car or without using.

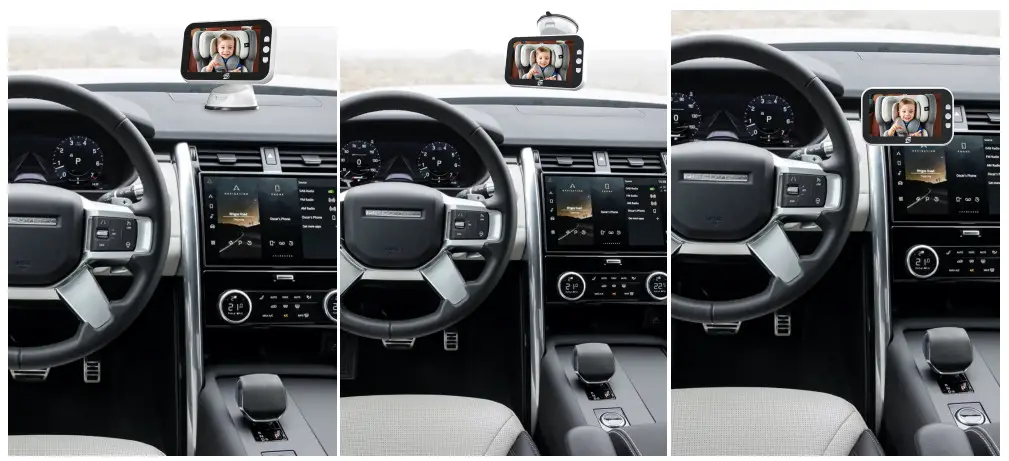

The monitor equipped with a suction cup mount, and an air outlet clip, can be installed on the dashboard, front windshield or air vent as you like.
Monitor Specification
| LCD Size | 4.3lnch Color Monitor |
| Resolution | 480×3(RGB)X272 |
| Brightness | 500cd/m2 |
| TV System | PAL/NTSC |
| Contrast | 500:1 |
| Power Supply | DC 9V-24V |
| Storage temperature | -30°C–+80°C |
| Operating temperature | -20°C–+70°C |
| Size | 128x80x20mm |
| Weight | 103g |
Camera Specification
| Image Sensor | 1/4″AHD(1 MP) |
| TV System | NTSC |
| Resolution | 800TV lines |
| Minimum illumination | 0.001 Lux |
| View angle | 120°(H) 170°(D) |
| Power Supply | DC 9V-24V |
| Storage temperature | -30°C –+80°C |
| Operating temperature | -20°C –+70°C |
| Size | 46x44x34mm |
| Weight | 80g |
Warranty and Service
We offer a 12-month guarantee time since the date of purchase. During the guarantee period, any problem pls feel free to contact our customer service: [email protected], we’ll be glad to be of any further assistance.
