Realwear HMT-1 headmount tablet android
ATTENTION: Before using the HMT-1 for the first time, visit
https://www.realwear.at/en/support from another device (phone or computer).

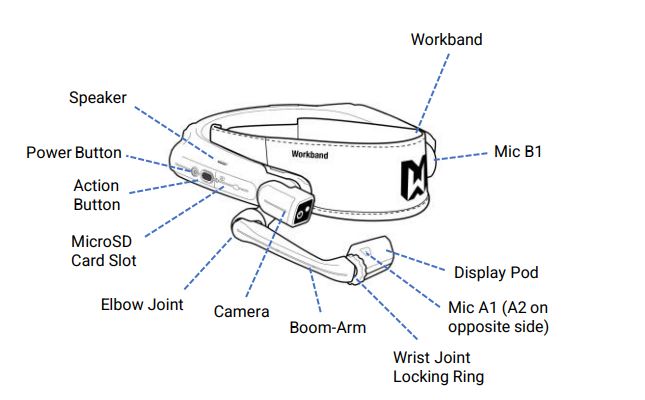

Front View

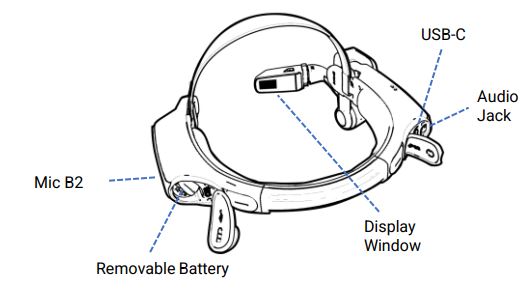

Rear View

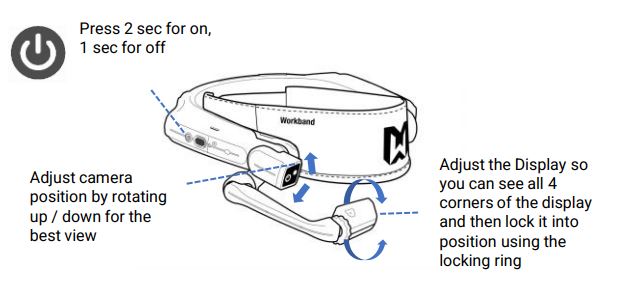

Switching on and Adjusting
Setting up the Display

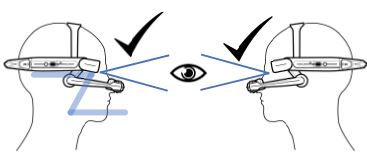

Adjust the workband so that the HMT-1 rests horizontally, and the display slightly below the line of sight
Position the boom arm and elbow joints into a “Z” shape, below the line of sight, left or right eye.
Do not extend the display too far from your eye. Keep the display as close to the eye as possible for the best view.
NOTE: Your HMT-1 is shipped partially charged from the factory. If the battery level is too low, please see charging instructions below.

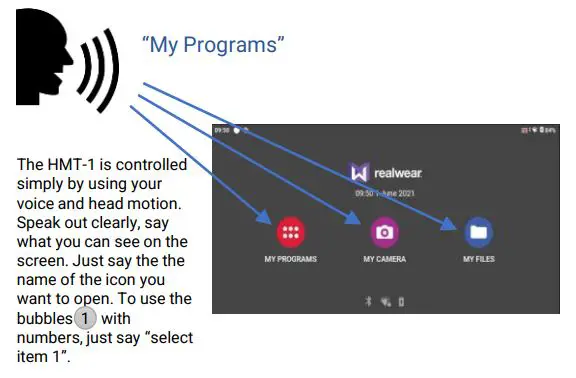

Voice Input
Charging the HMT-1
Charging the HMT-1
- Connect the USB-C charging cable to the USB-C port located under the rear cover on the same side as the boom arm.
- Connect the charging cable to the wall charger and plug the charger into a wall socket. The power button lights up ORANGE while charging. The Power button will light up GREEN, once it reached 90% battery status.
Rechargeable Battery

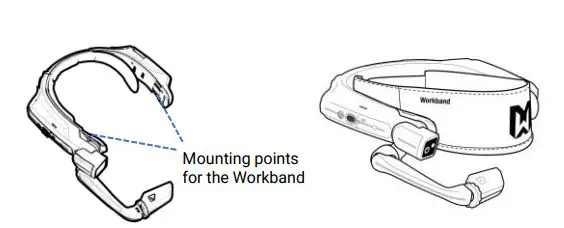

Workband
