User Manual
Product Video Information
 |  |
| Sirius Extreme Product Video https://youtu.be/nqfZ3LdB_gM | Installation Video https://youtu.be/_S_LLcqe0KI |

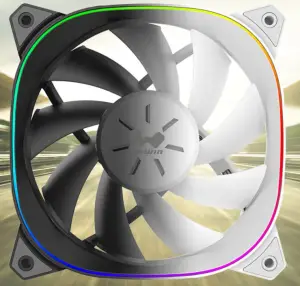

Product Story
The Extreme Series is one of InWin’s transformative pieces in the Sirius family. Beginning from the overall design, the Extreme fans possess a specialized ”Squoval” geometric
design. This provides a unique perspective on traditional case fans and features functional improvements too. This Extreme edition features 9 fan blades, which are tested to give optimal air pressure, coming with an exceptional cooling capability of 54 CFM. A fan that is seriously suitable to fit on top of your CPU cooler.

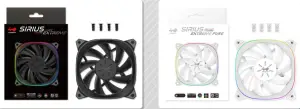

Package Contents

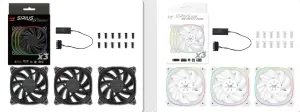

Package Contents
a. Sirius Extreme ASE120 / Sirius Extreme Pure ASE120P x 3
b. ARGB One-Click Controller v1.1 x 1
c. Screws x 12
Package Contents
a. Sirius Extreme ASE120 Fans x 1
b. Screws x 4
Cable Information

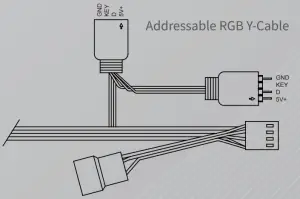

Addressable RGB Fan Cable, Addressable RGB Y-Cable
(Note: Only in Triple Pack) ARGB One-Click Controller ver. 1.1
Installation
1. Please make sure the power is off.
2. Install the fans in your PC case and mount them in the designated areas.

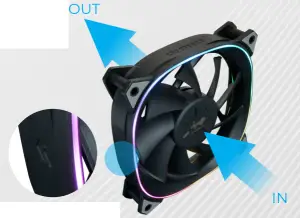

*How to determine your airflow direction:
The arrow << shows the intake direction of the air blowing through.

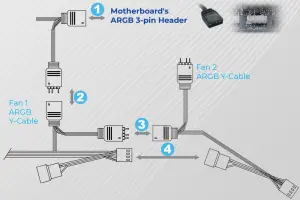

3. Addressable RGB strip and Fans Cables Installation
If your motherboard supports the addressable RGB effect, please follow the direction of sign and connect as followed:
Motherboard’s Fan 4-pin Header
If your motherboard does not support an addressable header, please use the included Addressable RGB Modular Controller to connect to your PSU’s SATA cable and the fan’s Addressable RGB Y-Cable in order to use the 14 different lighting effects.

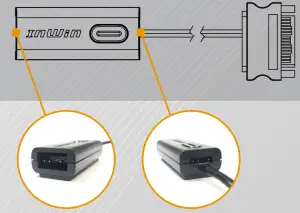

ARGB One-Click Controller ver. 1.1
Hold the button to turn on or off the lights. Tap the button to change the lighting modes.
| 1 | Rainbow |
| 2 | LED-Red Breathing |
| 3 | LED-Green |
| 4 | LED-Blue |
| 5 | LED-Purple |
| 6 | LED-White |
| 7 | Light at the end of the Tunnel |
| 8 | Light at the end of the Tunnel |
| 9 | Light at the end of the Tunnel |
| 10 | Rotating LED Trio |
| 11 | Full Circle |
| 12 | Flow-Red |
| 13 | Flow-Green |
| 14 | Flow-Blue |
*InWin reserves the right to change the lighting modes.
Troubleshooting
If your fan does not operate properly, please follow the instructions below:
1. Please check your system’s power.
2. Please make sure all the connectors are connected properly.
Troubleshooting
- Please install the fan by following our instructions.
- When storing the fan, please keep this product away from high temperatures. Keep it away from machines such as heaters that might cause high temperatures.
- Please do not put anything in the impeller.
- Please do not modify the wires or the connectors provided by InWin.
- Please do not touch the fan blades when the fan is in operation.
- Please only use your fan in a computer case.
- Please keep this product away from any liquids.
Specifications
Sirius Extreme ASE120
Sirius Extreme ASE120P
| Product Name | Sirius Extreme ASE120 / Sirius Extreme Pure ASE120P |
| Quantity Included | Single Pack Triple Pack |
| Model Number | IW-FN-ASE120-1PK IW-FN-ASE120P-1PK IW-FN-ASE120-3PK IW-FN-ASE120P-3PK |
| Colors | Black, White |

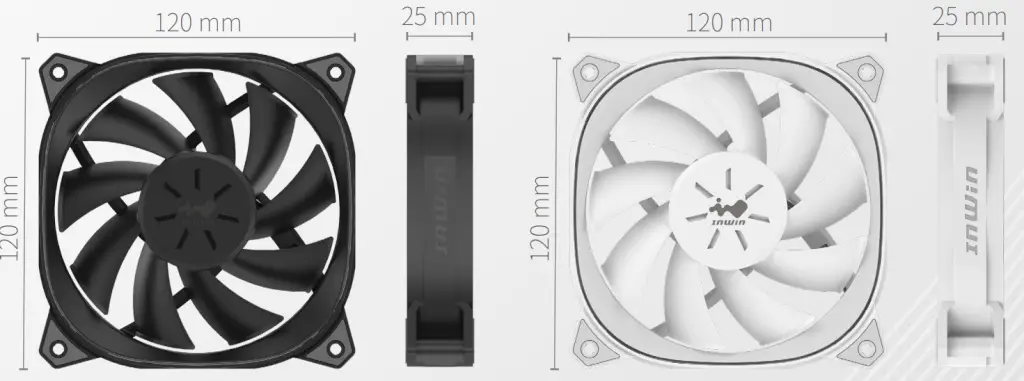

| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 1.56W |
| Rated Current | 0.13A |
| ADD RGB Rated Voltage | DC 5V |
| ADD RGB Rated Power | 1.5W |
| ADD RGB Rated Current | 0.30A |
| Speed Mode | PWM 400 – 1500 +/- 10% RPM |
| Air Flow | 54 CFM |
| Air Pressure | 1.55 mm / H2O |
| LED | Addressable RGB |
| Connector (Fan to Fan) | Non-Modular Cables |
| Connector to M/B | 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V) |
| Noise Level | 25 dB(A) (Max.) / 21 dB(A) (Normal) |
| Bearing Type | Long Lifespan Sleeve Bearing |
| Net Weight | (ASE120-1PK) 226 g (ASE120P-1PK) 225 g (ASE120-3PK) 677 g (ASE120P-3PK) 677 g |
| Bearing Type | (ASE120-1PK) 244 g (ASE120P-1PK) 243 g (ASE120-3PK) 730 g (ASE120P-3PK) 730 g |
| Package Dimensions(L x W x H) | 125 x 185 x 30 mm 125 x 185 x 80 mm |
| Warranty | 2 Years |
* InWin’s products comply with RoHS regulations.
* Specifications may vary based on different regions.CONEMPORARY&INNOVATIVE WWW.IN-WIN.COM
