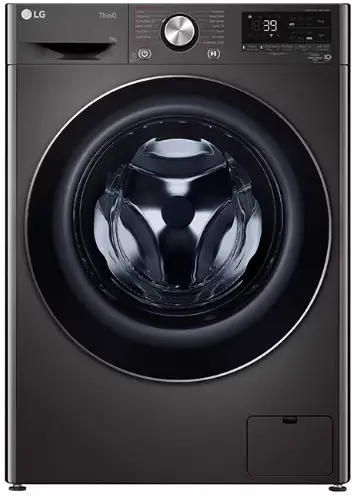

LG WV9-1610B Washing Machine
Product Information:
The washing machine has various programmes to wash clothes according to their fabric type and level of soiling. The programmes include:
- Cotton
- Cotton Eco
- TurboClean 39
- Mixed Fabric
- Easy Care
- Quiet Wash
- Allergy Care
- Delicates
- Hand/Wool
- Sportswear
- Quick 14
- Duvet
- Tub Clean
- Download Cycle
Product Usage Instructions:
To use the washing machine:
- Sort the clothes according to their fabric type and level of soiling.
- Open the door of the washing machine and load the clothes into the drum, making sure not to overload it beyond the maximum load limit specified for each programme.
- Add detergent to the detergent dispenser as per the AS/NZS standard testing guidelines, and make sure to select the appropriate programme for the type of fabric and level of soiling.
- Select any additional options such as Spin or Water Temperature as required.
- Press the Start button to start the washing cycle.
- Once the cycle is complete, remove the clothes from the drum and close the door of the washing machine.
Note that for some programmes, such as Cotton Eco, TurboClean 39, and Allergy Care, the test results may vary depending on factors such as water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of
soiling, utilized detergent, fluctuations in the main electricity supply, and chosen additional options. Also, for the Download Cycle programme, you can download a new and special washing programme to your appliance with a smartphone.
Programme Table
Washing Programme
| Cotton | 40 (Cold to 95 ) | Max. Load: Rating | |
| Description | Washes normally soiled clothes by combining various drum motions. | ||
| Cotton Eco | 40 (Cold to 60 ) | Max. Load: Rating | |
| Description | Washes normally soiled clothes by combining various drum motions with less energy consumption than Cotton programme with comparable settings. NOTE • WV9-1610B: Programme setting with Cotton Eco, 40 , Spin 1 00 option for test in accordance or in conformity with AS/NZS 2040.1 for 10 kg normally soiled cotton load. • WV9-1609B: Programme setting with Cotton Eco, 40 , Spin 1 00 option for test in accordance or in conformity with AS/NZS 2040.1 for 9 kg normally soiled cotton load. • WV9-1608B: Programme setting with Cotton Eco, 40 , Spin 1 00 option for test in accordance or in conformity with AS/NZS 2040.1 for 8 kg normally soiled cotton load. • The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling utilized detergent, fluctuations in the main electricty supply and chosen additional options. | ||
| TurboClean 39 | 40 (Cold to 60 ) | Max. Load: 5 kg | |
| Description | With 4 water jets operating during the wash and rinse, this washing machine can wash a half load of lightly soiled clothes for approximately 39 minutes. | ||
| Mixed Fabric | 40 (Cold to 60 ) | Max. Load: 4 kg | |
| Description | Washes mixed fabrics simultaneously. • Use for various kind of fabrics except special garments (silk/delicate, sports wear, dark clothes, wool, duvet/curtains). | ||
| Easy Care | 40 (Cold to 60 ) | Max. Load: 4 kg | |
| Description | Washes clothes that do not need ironing after washing. • Use for Polyamide, acrylic, polyester. | ||
| Quiet Wash | 40 (Cold to 60 ) | Max. Load: 5 kg | |
| Description | Washes clothes with less noise and vibration than other washing programmes. • Use for lightly soiled white cotton (underwear). | ||
| Allergy Care | 60 | Max. Load: 4 kg | |
| Description | Helps minimise substances that cause an allergic reaction. • Use for cotton, underwear, pillow covers, bed sheets, baby wear. | ||
| Delicates | 20 (Cold to 40 ) | Max. Load: 3 kg | |
| Description | Washes machine-washable lingerie, sheer and lacy clothes. | ||
| Delicates | 20 (Cold to 40 ) | Max. Load: 3 kg | |
| Description | Washes machine-washable lingerie, sheer and lacy clothes. | ||
| Sportswear | 40 (Cold to 40 ) | Max. Load: 3 kg | |
| Description | Washes special garments like sports and outdoor wear. • Use for water-repellent fabric laminate used on clothing. | ||
| Quick 14 | 20 (20 to 40 ) | Max. Load: 2 kg | |
| Description | Washes small loads of lightly soiled clothes for approximately 14 minutes. | ||
| Duvet | Cold (Cold to 40 ) | Max. Load: 2.5 kg (1 down duvet) | |
| Description | Washes large items such as bed covers, pillows, sofa covers, etc. | ||
| Tub Clean | – | – | |
| Description | This function helps clean the inside of your appliance’s tub. | ||
| Download Cycle | – | – | |
| Description | This programme allows you to download a new and special washing programme to your appliance with a smartphone. The default programme is Rinse+Spin. | ||
OPERATION
NOTE
- For AS/ NZS standard testing, detergent should be dissolved in 1 L of water as per clause B7.3 of standard AS/NZS2040.1 and put it in the dispenser before starting.
- Select the appropriate water temperature for chosen wash programme. Always follow garment manufacturers’ care label or instructions when washing to avoid damage to clothes.
- Select the proper wash temperature and spin speed for the desired programmes.
- Actual water temperature may differ from the declared cycle temperature.
- Neutral detergent is recommended.

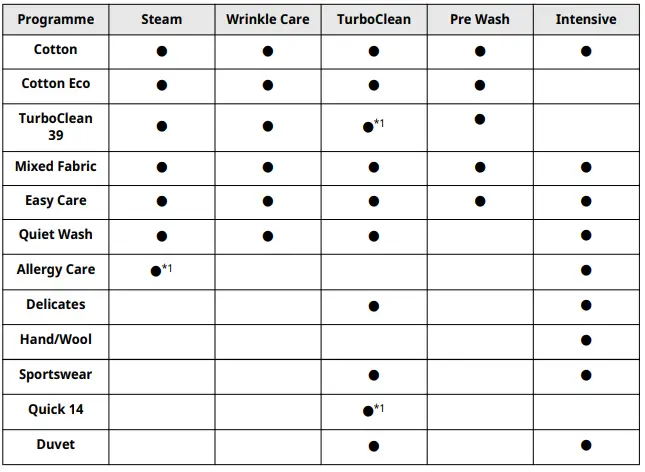

Extra Options
*1 This option is automatically inserted in the programme and can not be deselected.
NOTE
Rinse+, Delay End and Add Item options can be selected for every washing programme in the table below.
