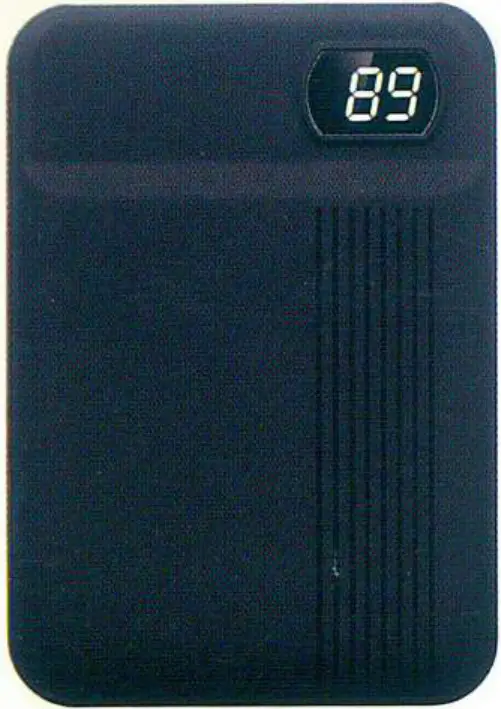

Power bank
VT-3504
User Manual
Features
- Overcharge protection and 1 ms short circuit protection
- Compact and fashion design, lightweight and portable, easy to carry
- Effectively protect power bank and digital devices as built-in advanced power management IC to control and regulate temperature, voltage, and current
- Suitable for Apple, Samsung, Nokia, Motorola, HTC smartphones and other 5V input digital devices
- Life time: Cycle more than 500 times

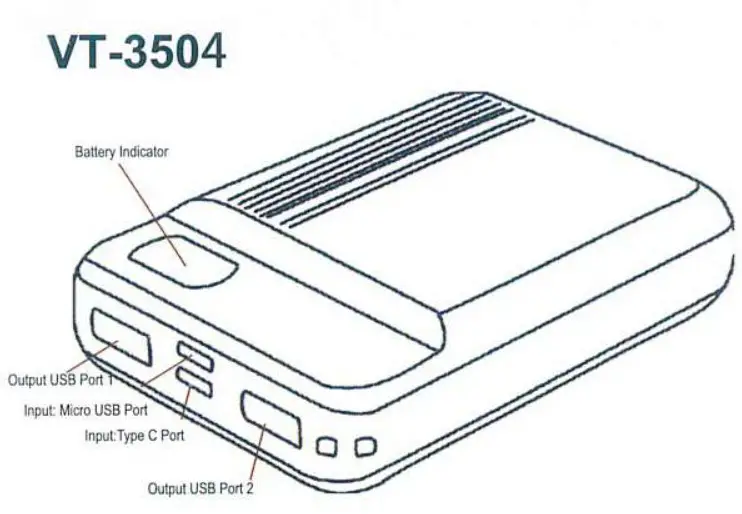

Overview
| USB Port: Output 1 | 5V-2A Output |
| USB Port: Output 2 | 5V-2A Output |
| Micro USB Port ( Input ) | 5V-2A Input |
| Type C Port(Input) | 5V-2A Input |
| Battery Indicator | Digital Indicator to show battery status |
Specification
| Model | VT-3504 |
| Input | DC 5V-2A |
| Output | DC 5V-2A |
| Capacity | 10000mAh |
| Dimension | 62x22x91mm |
| Weight | 175g |
Operation Guide
Charging power bank:
See below diagram, the display will keep increasing, 100 percent keep on means full charged. Please remove the power adapter safely after the power bank is fully charged.
Charging digital devices:
Once the power bank is connected to the digital device, the device shall be charged.
Accessories
- Micro USB charging cable
- User manual
Notes
- Please use the power adapter (5V output) of a cell phone or another digital device to charge the power bank. We recommend the adapter with at least a 5V-2A or computer USB port.
- Make sure the input voltage of your digital products fits the output voltage of the power bank.
- Please remove the adapter after the power bank is fully charged.
- Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into this power bank.
- Do not put this product into a liquid, fire, or high-temperature environment.
