Multimedia Projector User Manual

EPSON

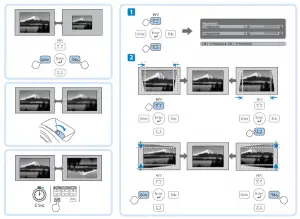

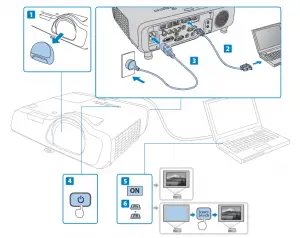

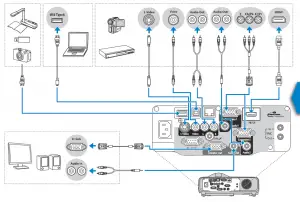

Multimedia Projector
EB-535W
EB-525W
EB-530
EB-520

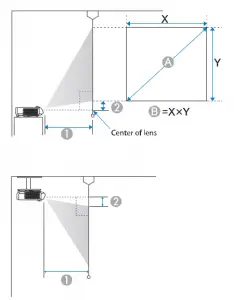

Projection Distance Table (EB-535W/525W)

Units: cm

16:10 WXGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
A55”A	118.5 x 74.0	55.9 – 76.8	8.7
56”	120.6 x 75.4	57.0 – 78.3	8.9
57”	122.8 x 76.7	58.1 – 79.7	9.0
58”	124.9 x 78.1	59.2 – 81.2	9.2
59”	127.1 x 79.4	60.3 – 82.7	9.3
A60”A	129.2 x 80.8	61.4 – 84.1	9.5
61”	131.4 x 82.1	62.4 – 85.6	9.6
62”	133.5 x 83.5	63.5 – 87.0	9.8
63”	135.7 x 84.8	64.6 – 88.5	10.0
64”	137.9 x 86.2	65.7 – 90.0	10.1
65”	140.0 x 87.5	66.8 – 91.4	10.3
66”	142.2 x 88.8	67.9 – 92.9	10.4
67”	144.3 x 90.2	68.9 – 94.4	10.6
68”	146.5 x 91.5	70.0 – 95.8	10.8
69”	148.6 x 92.9	71.1 – 97.3	10.9
A70”A	150.8 x 94.2	72.2 – 98.7	11.1
71”	152.9 x 95.6	73.3 – 100.2	11.2
72”	155.1 x 96.9	74.4 – 101.7	11.4
73”	157.2 x 98.3	75.4 – 103.1	11.5
74”	159.4 x 99.6	76.5 – 104.6	11.7
75”	161.5 x 101.0	77.6 – 106.1	11.9
76”	163.7 x 102.3	78.7 – 107.5	12.0
77”	165.9 x 103.7	79.8 – 109.0	12.2
78”	168.0 x 105.0	80.9 – 110.5	12.3
79”	170.2 x 106.3	81.9 – 111.9	12.5
A80”A	172.3 x 107.7	83.0 – 113.4	12.7
81”	174.5 x 109.0	84.1 – 114.8	12.8

16:10 WXGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
82”	176.6 x 110.4	85.2 – 116.3	13.0
83”	178.8 x 111.7	86.3 – 117.8	13.1
84”	180.9 x 113.1	87.4 – 119.2	13.3
85”	183.1 x 114.4	88.5 – 120.7	13.4
86”	185.2 x 115.8	89.5 – 122	13.6
87”	187.4 x 117.1	90.6 – 122	13.8
88”	189.5 x 118.5	91.7 – 122	13.9
89”	191.7 x 119.8	92.8 – 122	14.1
90”	193.9 x 121.2	93.9 – 122	14.2
91”	196.0 x 122.5	95.0 – 122	14.4
92”	198.2 x 123.9	96.0 – 122	14.6
93”	200.3 x 125.2	97.1 – 122	14.7
94”	202.5 x 126.5	98.2 – 122	14.9
95”	204.6 x 127.9	99.3 – 122	15.0
96”	206.8 x 129.2	100.4 – 122	15.2
97”	208.9 x 130.6	101.5 – 122	15.3
98”	211.1 x 131.9	102.5 – 122	15.5
99”	213.2 x 133.3	103.6 – 122	15.7
100”	215.4 x 134.6	104.7 – 122	15.8
101”	217.5 x 136.0	105.8 – 122	16.0
102”	219.7 x 137.3	106.9 – 122	16.1
103”	221.9 x 138.7	108.0 – 122	16.3
104”	224.0 x 140.0	109.0 – 122	16.5
105”	226.2 x 141.4	110.1 – 122	16.6
106”	228.3 x 142.7	111.2 – 122	16.8
107”	230.5 x 144.0	112.3 – 122	16.9
108”	232.6 x 145.4	113.4 – 122	17.1

Units: cm

16:10 WXGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
109”	234.8 x 146.7	114.5 – 122	17.2
110”	236.9 x 148.1	115.5 – 122	17.4
111”	239.1 x 149.4	116.6 – 122	17.6
112”	241.2 x 150.8	117.7 – 122	17.7
113”	243.4 x 152.1	118.8 – 122	17.9
114”	245.5 x 153.5	119.9 – 122	18.0
115”	247.7 x 154.8	121.0 – 122	18.2
116”	249.9 x 156.2	122	18.3

16:9 Widescreen
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
A60”A	132.8 x 74.7	63.2 – 86.6	13.9
61”	135.0 x 76.0	64.3 – 88.1	14.1
62”	137.3 x 77.2	65.4 – 89.6	14.4
63”	139.5 x 78.5	66.5 – 91.1	14.6
64”	141.7 x 79.7	67.6 – 92.6	14.8
65”	143.9 x 80.9	68.7 – 94.1	15.1
66”	146.1 x 82.2	69.9 – 95.6	15.3
67”	148.3 x 83.4	71.0 – 97.1	15.5
68”	150.5 x 84.7	72.1 – 98.6	15.8
69”	152.8 x 85.9	73.2 – 100.1	16.0
A70”A	155.0 x 87.2	74.3 – 101.6	16.2
71”	157.2 x 88.4	75.4 – 103.1	16.5
72”	159.4 x 89.7	76.5 – 104.6	16.7
73”	161.6 x 90.9	77.6 – 106.1	16.9
74”	163.8 x 92.1	78.8 – 107.6	17.2
75”	166.0 x 93.4	79.9 – 109.1	17.4
76”	168.2 x 94.6	81.0 – 110.6	17.6
77”	170.5 x 95.9	82.1 – 112.1	17.8
78”	172.7 x 97.1	83.2 – 113.6	18.1
79”	174.9 x 98.4	84.3 – 115.1	18.3
A80”A	177.1 x 99.6	85.4 – 116.6	18.5
81”	179.3 x 100.9	86.6 – 118.1	18.8
82”	181.5 x 102.1	87.7 – 119.6	19.0
83”	183.7 x 103.4	88.8 – 121.1	19.2
84”	186.0 x 104.6	89.9 – 122	19.5
85”	188.2 x 105.8	91.0 – 122	19.7
86”	190.4 x 107.1	92.1 – 122	19.9

Units: cm

16:9 Widescreen
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
87”	192.6 x 108.3	93.2 – 122	20.2
88”	194.8 x 109.6	94.4 – 122	20.4
89”	197.0 x 110.8	95.5 – 122	20.6
A90”A	199.2 x 112.1	96.6 – 122	20.9
91”	201.5 x 113.3	97.7 – 122	21.1
92”	203.7 x 114.6	98.8 – 122	21.3
93”	205.9 x 115.8	99.9 – 122	21.6
94”	208.1 x 117.1	101.0 – 122	21.8
95”	210.3 x 118.3	102.2 – 122	22.0
96”	212.5 x 119.5	103.3 – 122	22.2
97”	214.7 x 120.8	104.4 – 122	22.5
98”	217.0 x 122.0	105.5 – 122	22.7
99”	219.2 x 123.3	106.6 – 122	22.9
100”	221.4 x 124.5	107.7 – 122	23.2
101”	223.6 x 125.8	108.8 – 122	23.4
102”	225.8 x 127.0	109.9 – 122	23.6
103”	228.0 x 128.3	111.1 – 122	23.9
104”	230.2 x 129.5	112.2 – 122	24.1
105”	232.5 x 130.8	113.3 – 122	24.3
106”	234.7 x 132.0	114.4 – 122	24.6
107”	236.9 x 133.2	115.5 – 122	24.8
108”	239.1 x 134.5	116.6 – 122	25.0
109”	241.3 x 135.7	117.7 – 122	25.3
110”	243.5 x 137.0	118.9 – 122	25.5
111”	245.7 x 138.2	120.0 – 122	25.7
112”	248.0 x 139.5	121.1 – 122	26.0
113”	250.2 x 140.7	122	26.1

Projection Distance Table (EB-530/520)

Units: cm

4:3 XGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
A50”A	101.6 x 76.2	54.4 – 74.7	6.5
51”	103.6 x 77.7	55.5 – 76.2	6.6
52”	105.7 x 79.3	56.7 – 77.8	6.7
53”	107.7 x 80.8	57.8 – 79.4	6.8
54”	109.7 x 82.3	59.0 – 80.9	7.0
A55”A	111.8 x 83.8	60.2 – 82.5	7.1
56”	113.8 x 85.3	61.3 – 84.1	7.2
57”	115.8 x 86.9	62.5 – 85.6	7.4
58”	117.9 x 88.4	63.6 – 87.2	7.5
59”	119.9 x 89.9	64.8 – 88.8	7.6
60”	121.9 x 91.4	66.0 – 90.3	7.7
61”	124.0 x 93.0	67.1 – 91.9	7.9
62”	126.0 x 94.5	68.3 – 93.5	8.0
63”	128.0 x 96.0	69.4 – 95.1	8.1
64”	130.0 x 97.5	70.6 – 96.6	8.3
A65”A	132.1 x 99.1	71.8 – 98.2	8.4
66”	134.1 x 100.6	72.9 – 99.8	8.5
67”	136.1 x 102.1	74.1 – 101.3	8.7
68”	138.2 x 103.6	75.3 – 102.9	8.8
69”	140.2 x 105.2	76.4 – 104.5	8.9
70”	142.2 x 106.7	77.6 – 106.0	9.0
71”	144.3 x 108.2	78.7 – 107.6	9.2
72”	146.3 x 109.7	79.9 – 109.2	9.3
73”	148.3 x 111.3	81.1 – 110.7	9.4
74”	150.4 x 112.8	82.2 – 112.3	9.6

4:3 XGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
A75”A	152.4 x 114.3	83.4 – 113.9	9.7
76”	154.4 x 115.8	84.5 – 115.4	9.8
77”	156.5 x 117.3	85.7 – 117.0	9.9
78”	158.5 x 118.9	86.9 – 118.6	10.1
79”	160.5 x 120.4	88.0 – 120.1	10.2
80”	162.6 x 121.9	89.2 – 121.7	10.3
81”	164.6 x 123.4	90.3 – 122	10.5
82”	166.6 x 125.0	91.5 – 122	10.6
83”	168.7 x 126.5	92.7 – 122	10.7
84”	170.7 x 128.0	93.8 – 122	10.8
85”	172.7 x 129.5	95.0 – 122	11.0
86”	174.8 x 131.1	96.2 – 122	11.1
87”	176.8 x 132.6	97.3 – 122	11.2
88”	178.8 x 134.1	98.5 – 122	11.4
89”	180.8 x 135.6	99.6 – 122	11.5
90”	182.9 x 137.2	100.8 – 122	11.6
91”	184.9 x 138.7	102.0 – 122	11.8
92”	186.9 x 140.2	103.1 – 122	11.9
93”	189.0 x 141.7	104.3 – 122	12.0
94”	191.0 x 143.3	105.4 – 122	12.1
95”	193.0 x 144.8	106.6 – 122	12.3
96”	195.1 x 146.3	107.8 – 122	12.4
97”	197.1 x 147.8	108.9 – 122	12.5
98”	199.1 x 149.4	110.1 – 122	12.7
99”	201.2 x 150.9	111.2 – 122	12.8

4:3 XGA
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
100”	203.2 x 152.4	112.4 – 122	12.9
101”	205.2 x 153.9	113.6 – 122	13.0
102”	207.3 x 155.5	114.7 – 122	13.2
103”	209.3 x 157.0	115.9 – 122	13.3
104”	211.3 x 158.5	117.1 – 122	13.4
105”	213.4 x 160.0	118.2 – 122	13.6
106”	215.4 x 161.5	119.4 – 122	13.7
107”	217.4 x 163.1	120.5 – 122	13.8
108”	219.5 x 164.6	121.7 – 122	13.9

Units: cm

16:9 Widescreen
A	B	1 Minimum (Wide) to Maximum(Tele)	2 (Wide)
A50”A	110.7 x 62.3	59.5 – 81.7	17.4
51”	112.9 x 63.5	60.8 – 83.4	17.8
52”	115.1 x 64.8	62.1 – 85.1	18.1
53”	117.3 x 66.0	63.3 – 86.8	18.5
54”	119.6 x 67.2	64.6 – 88.5	18.8
55”	121.8 x 68.5	65.9 – 90.2	19.2
56”	124.0 x 69.7	67.1 – 91.9	19.5
57”	126.2 x 71.0	68.4 – 93.6	19.9
58”	128.4 x 72.2	69.7 – 95.3	20.2
59”	130.6 x 73.5	70.9 – 97.1	20.5
A60”A	132.8 x 74.7	72.2 – 98.8	20.9
61”	135.0 x 76.0	73.5 – 100.5	21.2
62”	137.3 x 77.2	74.7 – 102.2	21.6
63”	139.5 x 78.5	76.0 – 103.9	21.9
64”	141.7 x 79.7	77.3 – 105.6	22.3
65”	143.9 x 80.9	78.5 – 107.3	22.6
66”	146.1 x 82.2	79.8 – 109.0	23.0
67”	148.3 x 83.4	81.1 – 110.7	23.3
68”	150.5 x 84.7	82.3 – 112.4	23.7
69”	152.8 x 85.9	83.6 – 114.1	24.0
A70”A	155.0 x 87.2	84.8 – 115.8	24.4
71”	157.2 x 88.4	86.1 – 117.5	24.7
72”	159.4 x 89.7	87.4 – 119.3	25.1
73”	161.6 x 90.9	88.6 – 121.0	25.4
74”	163.8 x 92.1	89.9 – 122	25.8
75”	166.0 x 93.4	91.2 – 122	26.1
76”	168.3 x 94.6	92.4 – 122	26.5

Units: cm

16:9 Widescreen
A	B	1	2
77”	170.5 x 95.9	93.7 – 122	26.8
78”	172.7 x 97.1	95.0 – 122	27.2
79”	174.9 x 98.4	96.2 – 122	27.5
80”	177.1 x 99.6	97.5 – 122	27.9
81”	179.3 x 100.9	98.8 – 122	28.2
82”	181.5 x 102.1	100.0 – 122	28.6
83”	183.8 x 103.4	101.3 – 122	28.9
84”	186.0 x 104.6	102.6 – 122	29.3
85”	188.2 x 105.8	103.8 – 122	29.6
86”	190.4 x 107.1	105.1 – 122	30.0
87”	192.6 x 108.3	106.4 – 122	30.3
88”	194.8 x 109.6	107.6 – 122	30.6
89”	197.0 x 110.8	108.9 – 122	31.0
90”	199.2 x 112.1	110.1 – 122	31.3
91”	201.5 x 113.3	111.4 – 122	31.7
92”	203.7 x 114.6	112.7 – 122	32.0
93”	205.9 x 115.8	113.9 – 122	32.4
94”	208.1 x 117.1	115.2 – 122	32.7
95”	210.3 x 118.3	116.5 – 122	33.1
96”	212.5 x 119.5	117.7 – 122	33.4
97”	214.7 x 120.8	119.0 – 122	33.8
98”	217.0 x 122.0	120.3 – 122	34.1
99”	219.2 x 123.3	121.5 – 122	34.5
