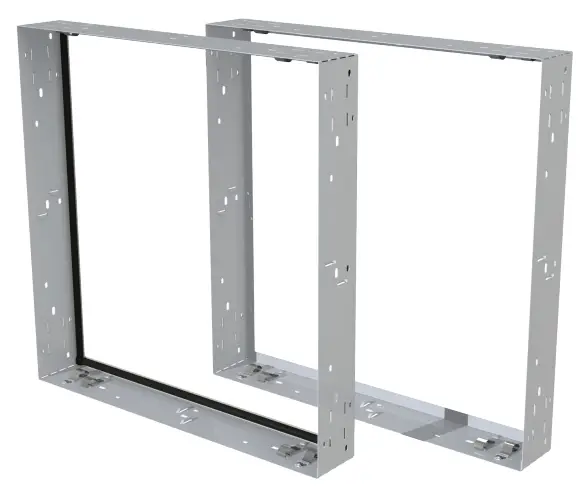

FASTFRAME
ADVANTAGES
- Modular concept for all installations
- Holds a variety of bag filters, compact filters (with header frame) , prefilters or a combination thereof
- No clamp manipulation optimizes filter change out times
- Rapid installation of the frame
| Application | Mounting frame for Hi-Flo, Opakfil, EcoPleat and other bag- and compact filters |
| Frame | Stainless steel;Galvanised steel |
| Comment | Option: Stainless steel Gasket: Hygienic endless polyurethane Filter Types: Pre-filters and header frame type filters. Filter fixing: Using 4 corner mounted clips, to suit the installed filter. Also available in stainless steel 304 and 430 |
| Art. No. | Type | Dimensions WxHxD (mm) | Filter size HxWxD (mm) | Weight (kg) |
| 4304004 | Fast Frame GI-PU | 610x610x91 | 592×592 | 2.6 |
| 4304002 | Fast Frame GI-PU | 610x508x91 | 490×592 | 2.4 |
| 4304003 | Fast Frame GI-PU | 508x508x91 | 490×490 | 2.1 |
| 4304001 | Fast Frame GI-PU | 610x305x91 | 287×592 | 1.9 |
| 4304008 | Fast Frame GI | 610x610x91 | 592×592 | 2.6 |
| 4304006 | Fast Frame GI | 610x508x91 | 490×592 | 2.4 |
| 4304007 | Fast Frame GI | 508x508x91 | 490×490 | 2.1 |
| 4304005 | Fast Frame GI | 610x305x91 | 287×592 | 1.9 |
www.camfil.com
As part of our program for continuous improvement, Camfil reserves the right to change specifications without notice.
2023-03-08
