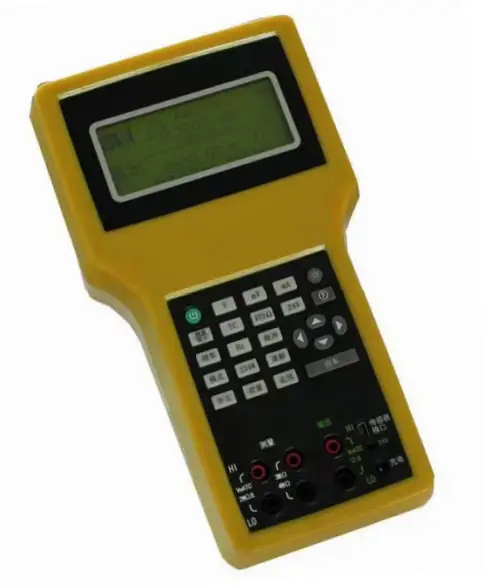

HZ-3500 Process Calibrator Thermal Instrument
Instruction Manual
Huazheng Electric Manufacturing (Baoding) Co., Ltd
Overview
The thermal instrument calibrator can not only provide a variety of standard signal sources, but also have an intelligent instrument calibration system. It can excellently measure DC voltage, millivolt voltage, current, resistance, temperature, and frequency signals, and can also provide DC voltage, current, resistance, and frequency signal output, and can calibrate various data collectors, recorders, and multimeters. and other industrial instruments.
- Measure and output DC voltage, millivolt voltage, DC current, two, three, four-wire resistance, frequency and other signals.
- Measure and output 8 kinds of thermocouples (K, E, J, T, N, R, S, B), 4 kinds of thermal resistances (Pt100, Pt10, Cu100, Cu50), and provide cold junction compensation function. Thermal resistance measurement is divided into 3-wire and 4-wire measurement, which provides more convenience for users.
- Six-digit display, using 128X64 dot-matrix graphic liquid crystal display, the display content is rich, clear and practical, its simple operation buttons and screen display make it easy for you every day, and the large screen with high-brightness backlight allows you to easily read data .
- Because the instrument uses high-precision devices, the accuracy and linearity are very high. In manual calibration, each option of measurement and output is 2 calibration points, no linear correction is required, and cumbersome operations are avoided.
- All measurements and outputs are digitally set for easy operation.
- High-performance zero-impedance terminals and test leads are more reliable to use.
- DC24V output, can be used for loop verification (0-30mA).
- Built-in rechargeable battery.
Technical indicators
General technical indicators
Display: 128×64 high-brightness dot matrix graphic LCD.
Power supply: AC 220V/50Hz±20V, internal rechargeable battery 3×2400mAH lithium battery.
Continuous working time: 10 hours (DC24V without load), DC24V with load for 7 hours.
Power off charging time: 3 hours.
Benchmark working environment: Temperature: 23 ℃±1 ℃ Relative humidity: (45 ～ 75)℅.
Normal working environment: Temperature: 23 ℃±10 ℃ Relative humidity: (20 ～80)℅.
Storage environment: Temperature: -20 ℃ ～55 ℃ Relative humidity: ≤90℅.
Working environment atmospheric pressure: (86 ~ 106) KPa.
Measuring Function Specifications
| Function | Output range | Maximum allowable error | Resolution Remark |
| Voltage | 0～±200mV | 0.01 ％R.D ＋0.005 ％F.S | 1uV |
| Current | 0～±30V | 0.01 ％R.D ＋0.005 ％F.S | 0.1mV |
| Resistance | 0～±25mA | 0.01 ％R.D ＋0.005 ％F.S | 0.1uA |
| 3 wire | |||
| Resistance | 0～400Ω | 0.01 ％R.D ＋0.005 ％F.S | 1mΩ |
| 4 wire | 0～400Ω | 0.01 ％R.D ＋0.005 ％F.S | 1mΩ |
| Frequency | 0～50KHz | 0.01 ％R.D ＋0.005 ％F.S | 0.1Hz |
DC signal measurement ：
| Function | Output range | Stability（℃/Year ） | Resolution |
| PT100 3wire | -200 ～+850 | 0.3 | 0.01 |
| PT100 4wire | -200 ～+850 | 0.3 | 0.01 |
| PT10 3wire | -200 ～+850 | 1.5 | 0.01 |
| PT10 4wire | -200 ～+850 | 1.5 | 0.01 |
| Cu50 3wire | -50 ～+150 | 0.3 | 0.01 |
| Cu50 4wire | -50 ～+150 | 0.3 | 0.01 |
| Cu100 3wire | -50 ～+150 | 0.3 | 0.01 |
| Cu100 4wire | -50 ～+150 | 0.3 | 0.01 |
Temperature measurement (using RTD sensor) ：
| Function | Output range | Stability（ ℃/Yea | Resolution |
| Thermocouple （S） | -50 ～+1760 ℃ | 0.5 | 0.01 |
| Thermocouple （R ） | -50 ～+1760 ℃ | 0.5 | 0.01 |
| Thermocouple （B） | +600 ～+1820℃ | 0.5 | 0.01 |
| Thermocouple （K） | -200 ～+1370 ℃ | 0.3 | 0.01 |
| Thermocouple （N ） | -200 ～+1300 ℃ | 0.4 | 0.01 |
| Thermocouple （E） | -200 ～+1000 ℃ | 0.3 | 0.01 |
| Thermocouple （J ） | -200 ～+1200 ℃ | 0.3 | 0.01 |
| Thermocouple （T） | -200 ～+400 ℃ | 0.3 | 0.01 |
Temperature measurement (with thermocouple sensor) ：
| Function | Output range ℃ | Maximum allowable error | Resolution |
| Voltage | 0～+100mV | 0.01 ％R.D ＋0.005 ％ F.S | 1uV |
| Current | 0～+10V | 0.01 ％R.D ＋0.005 ％ F.S | 0.1mV |
| Resistance | 0～+25mA | 0.01 ％R.D ＋0.005 ％ F.S | 0.1uV |
| Frequency | 0～400Ω | 0.01 ％R.D ＋0.005 ％ F.S | 1mΩ |
| 0～10KHz | 0.01 ％R.D ＋0.005 ％ F.S | 0.1Hz |
Output Function technical indicators ：
| Function | Output range ℃ | Stability （ ℃/Year ） | Resolution ℃ | Remark |
| PT100 | -200 ～850 | 0.3 | 0.01 | |
| PT10 | -200 ～850 | 1 | 0.01 | Excitation |
| Cu50 | -50 ～150 | 0.3 | 0.01 | current |
| Cu100 | -50 ～150 | 0.3 | 0.01 | 0.5 ～3.0mA |
DC signal output ：
| Function | Output range ℃ | Stability （ ℃/Year ） | Resolution ℃ |
| Thermocouple（S ） | 0～+1760 ℃ | 0.3 | 0.01 |
| Thermocouple（R ） | 0～+1760 ℃ | 0.3 | 0.01 |
| Thermocouple（B ） | 100 ～+1820 ℃ | 0.3 | 0.01 |
| Thermocouple（K ） | 0～+1370 ℃ | 0.3 | 0.01 |
| Thermocouple（N ） | 0～+1300 ℃ | 0.3 | 0.01 |
| Thermocouple（E ） | 0～+1000 ℃ | 0.3 | 0.01 |
| Thermocouple（J ） | 0～+1200 ℃ | 0.3 | 0.01 |
| Thermocouple（T ） | 0～+400 ℃ | 0.3 | 0.01 |
Analog RTD output ：
| Function | Output range ℃ | Stability （℃/Year ） | Resolution ℃ | Remark |
| PT100 | -200 ～850 | 0.3 | 0.01 | |
| PT10 | -200 ～850 | 1 | 0.01 | Excitation |
| Cu50 | -50 ～150 | 0.3 | 0.01 | current |
| Cu100 | -50 ～150 | 0.3 | 0.01 | 0.5 ～3.0mA |
Analog thermocouple output ：
| Function | Output range ℃ | Stability （ ℃/Year ） | Resolution ℃ |
| Thermocouple（S ） | 0～+1760 ℃ | 0.3 | 0.01 |
| Thermocouple（R ） | 0～+1760 ℃ | 0.3 | 0.01 |
| Thermocouple（B ） | 100 ～+1820 ℃ | 0.3 | 0.01 |
| Thermocouple（K ） | 0～+1370 ℃ | 0.3 | 0.01 |
| Thermocouple（N ） | 0～+1300 ℃ | 0.3 | 0.01 |
| Thermocouple（E ） | 0～+1000 ℃ | 0.3 | 0.01 |
| Thermocouple（J ） | 0～+1200 ℃ | 0.3 | 0.01 |
| Thermocouple（T ） | 0～+400 ℃ | 0.3 | 0.01 |
Caution:
- The above error does not include the temperature error of cold junction compensation, and the error of cold junction compensation is ±0.5 ℃.
- The above indicators are valid within the range of 23 ℃±5 ℃.
Dimensions: 212×92×48mm (length×width×height)
Weight: 1.5kg
