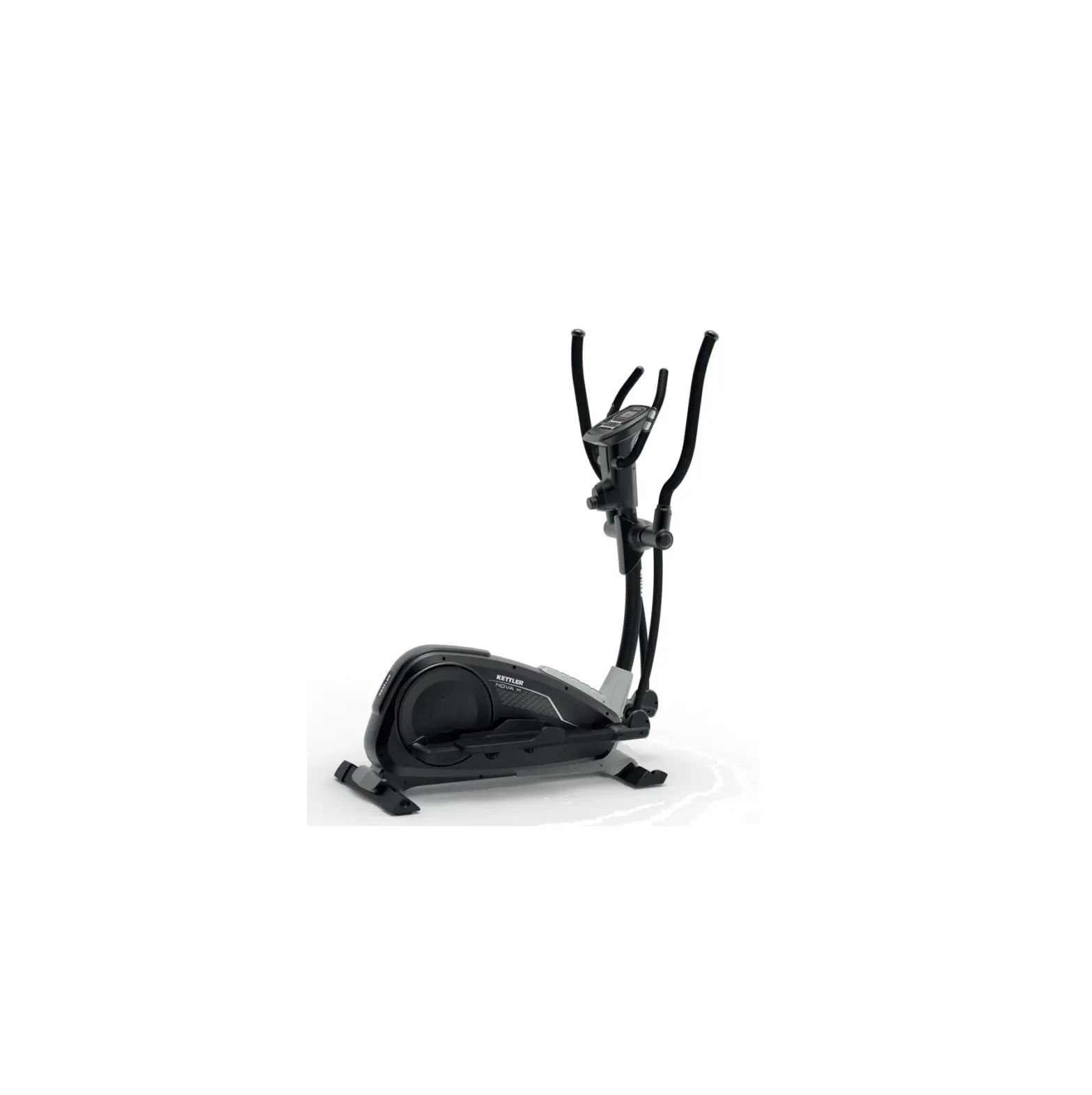

Kettler Ct1019-100 Crostrainer Nova M Instruction Manual

KETTLER CT1019-100 Crostrainer Nova M

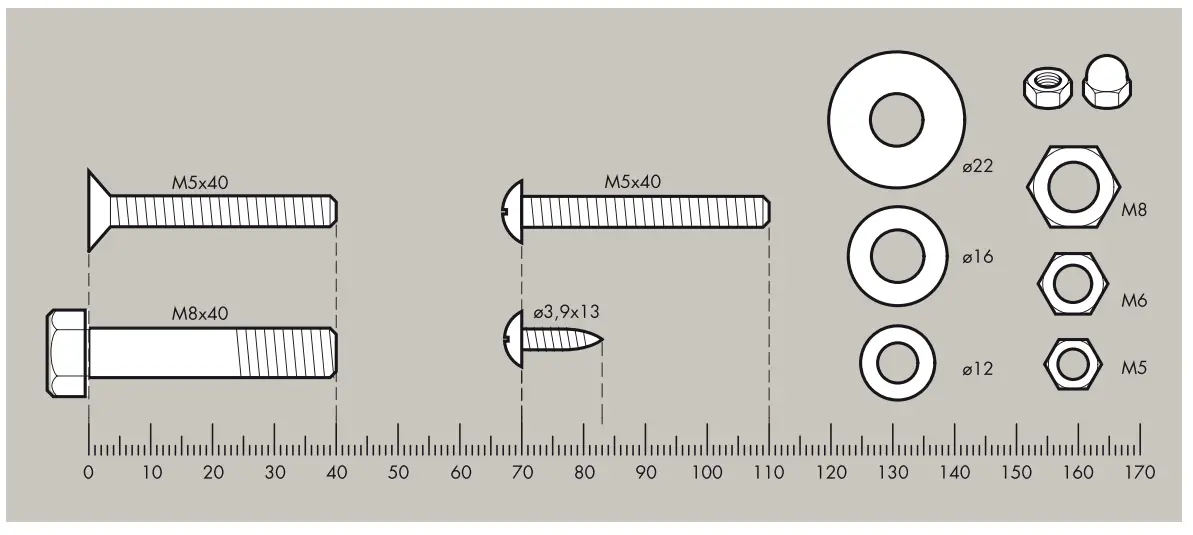

Measuring help for screw connections

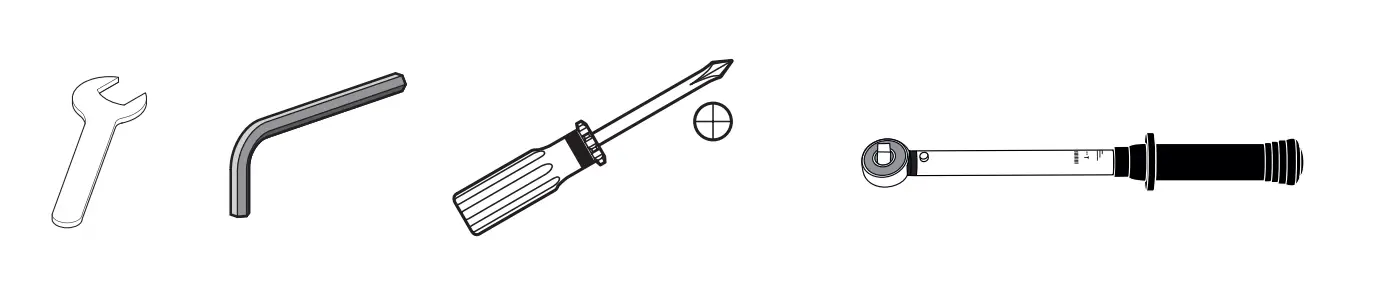

Tools required – Not included

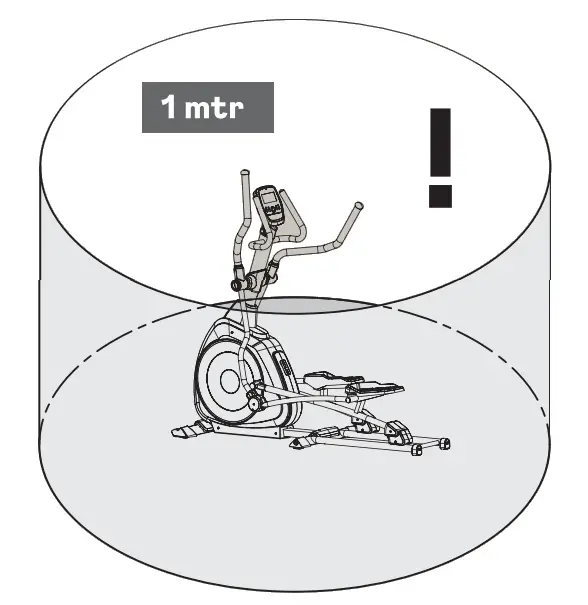

DISTANCE

The screwed connections must be controled at regular intervals.

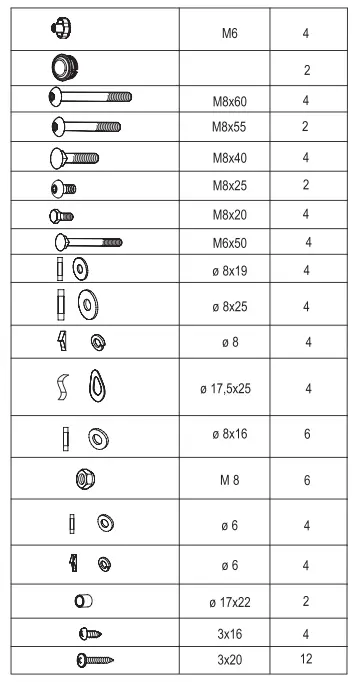

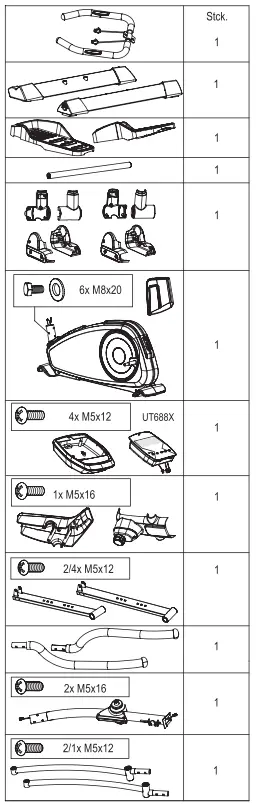

Checklist (contents of packaging)

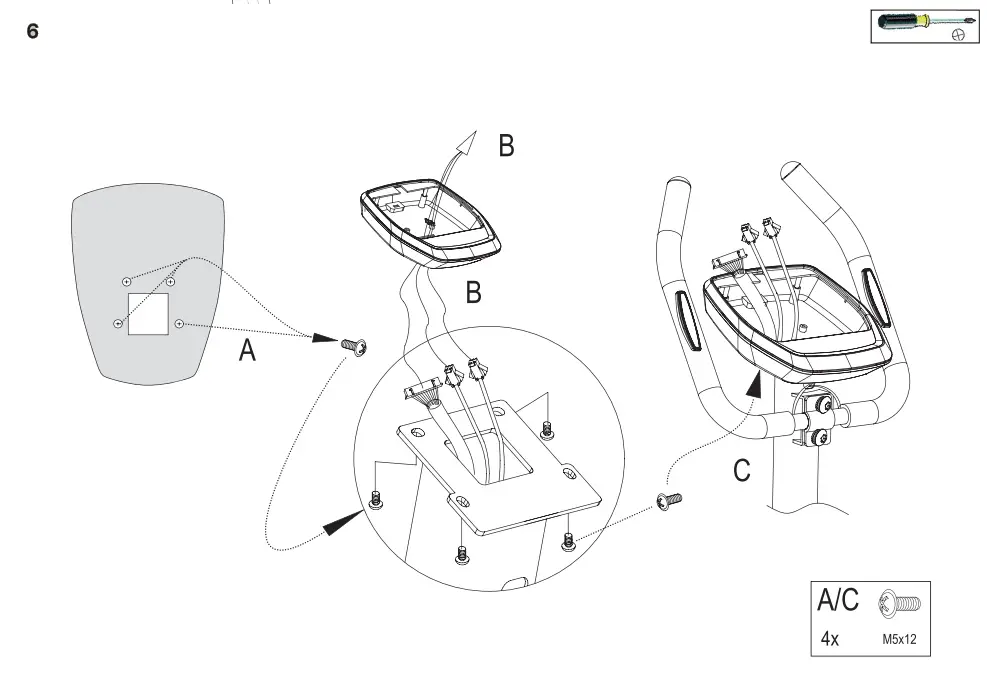

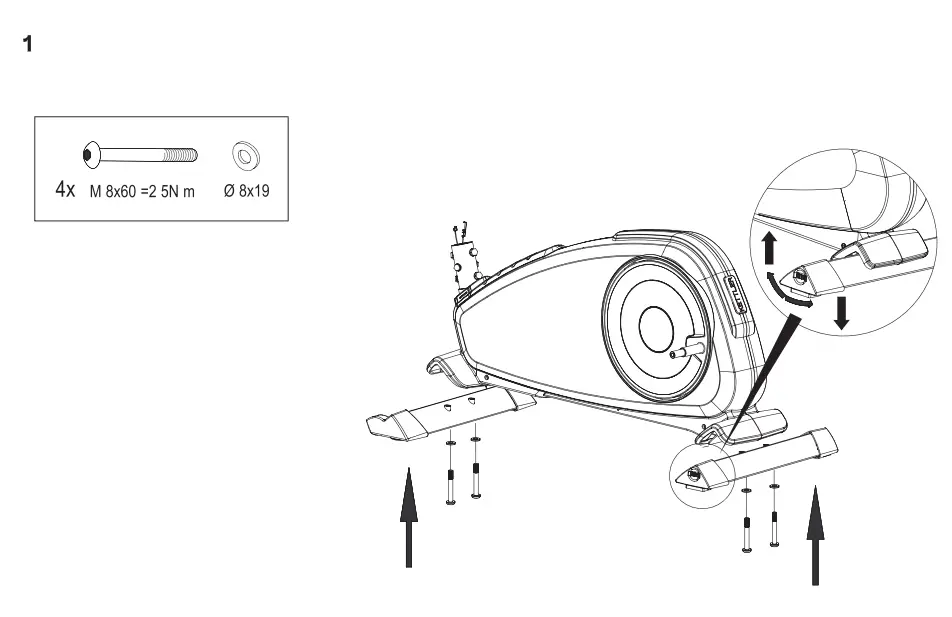

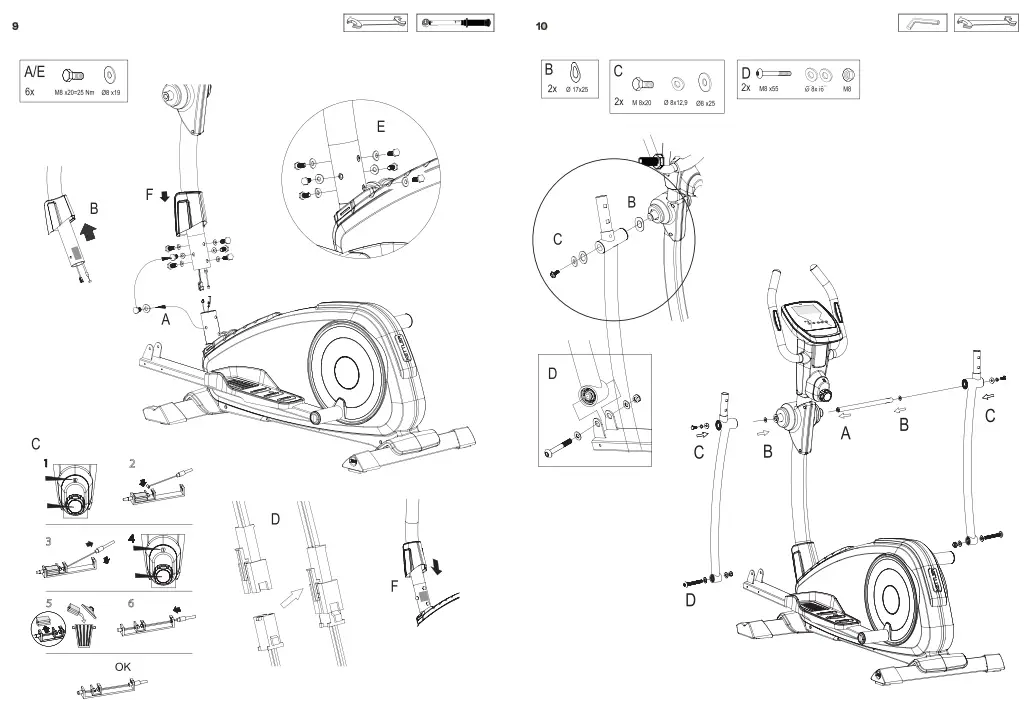

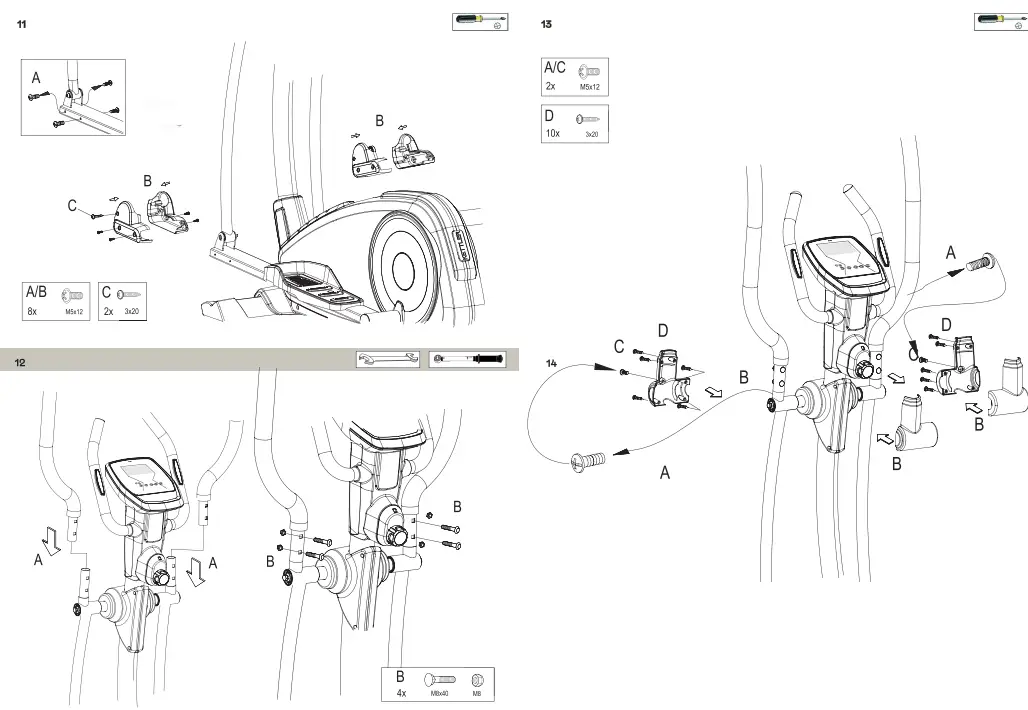

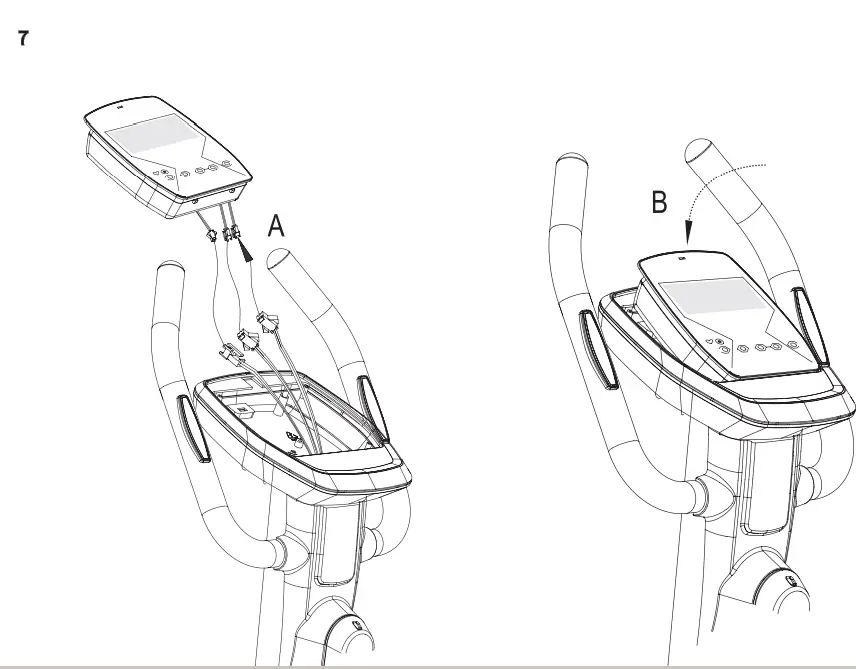

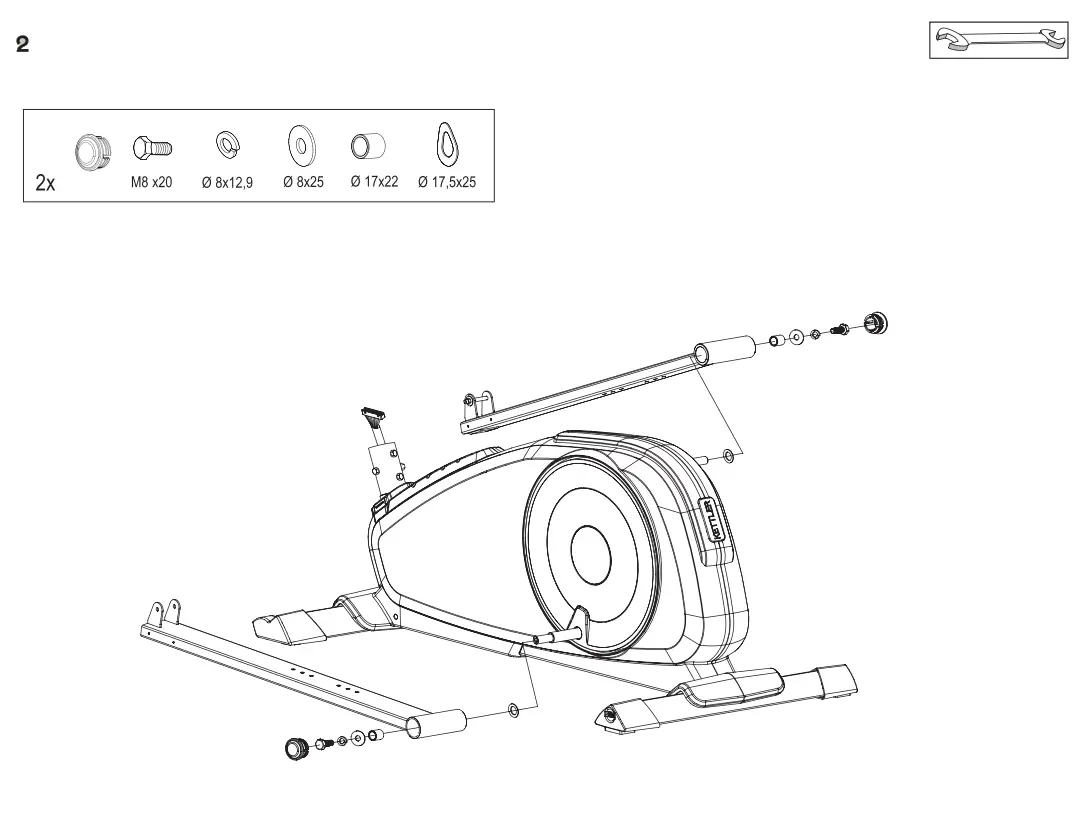

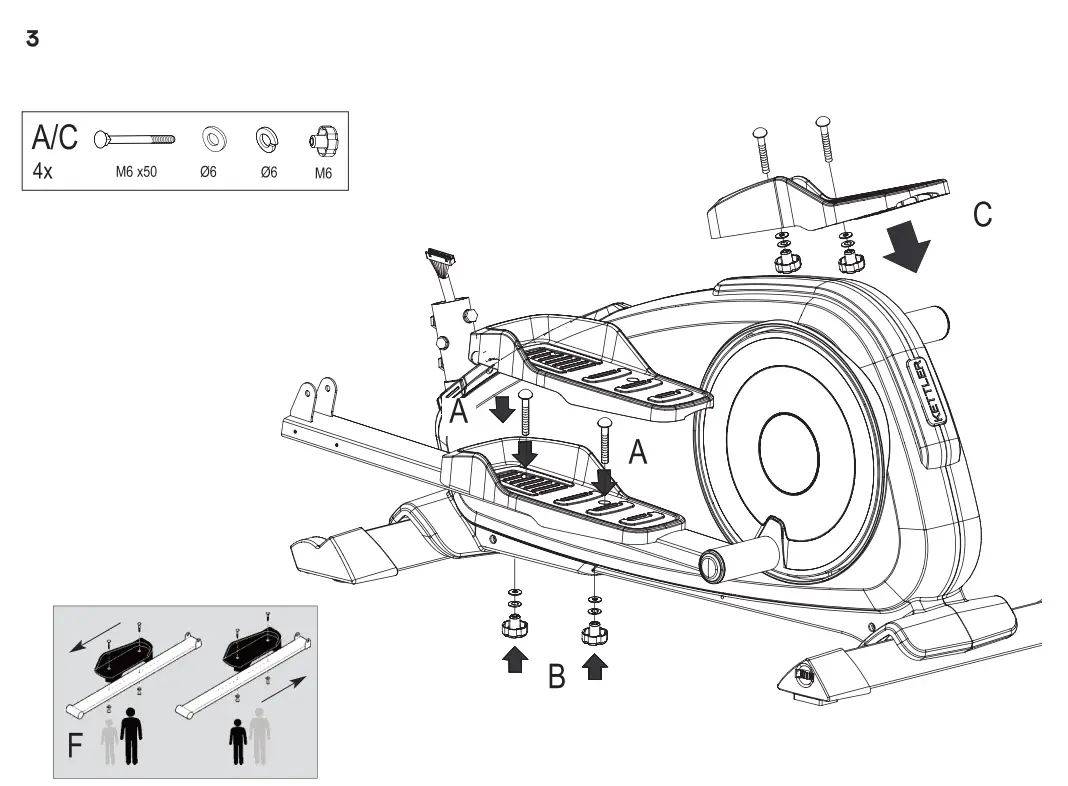

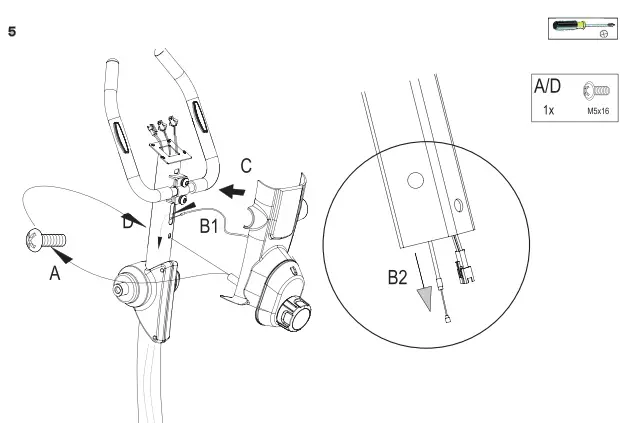

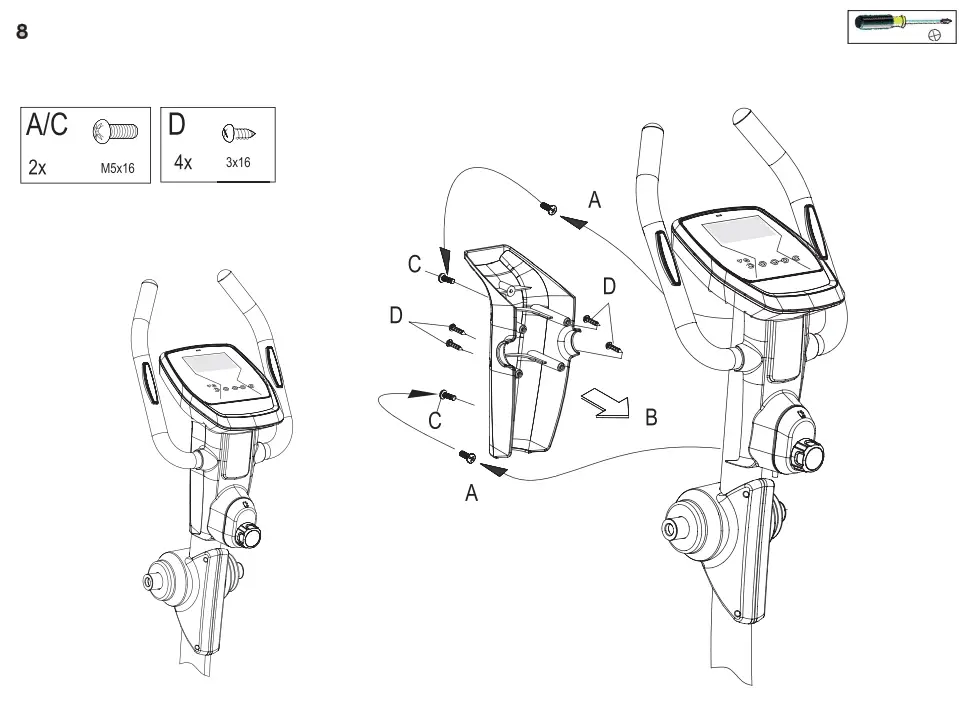

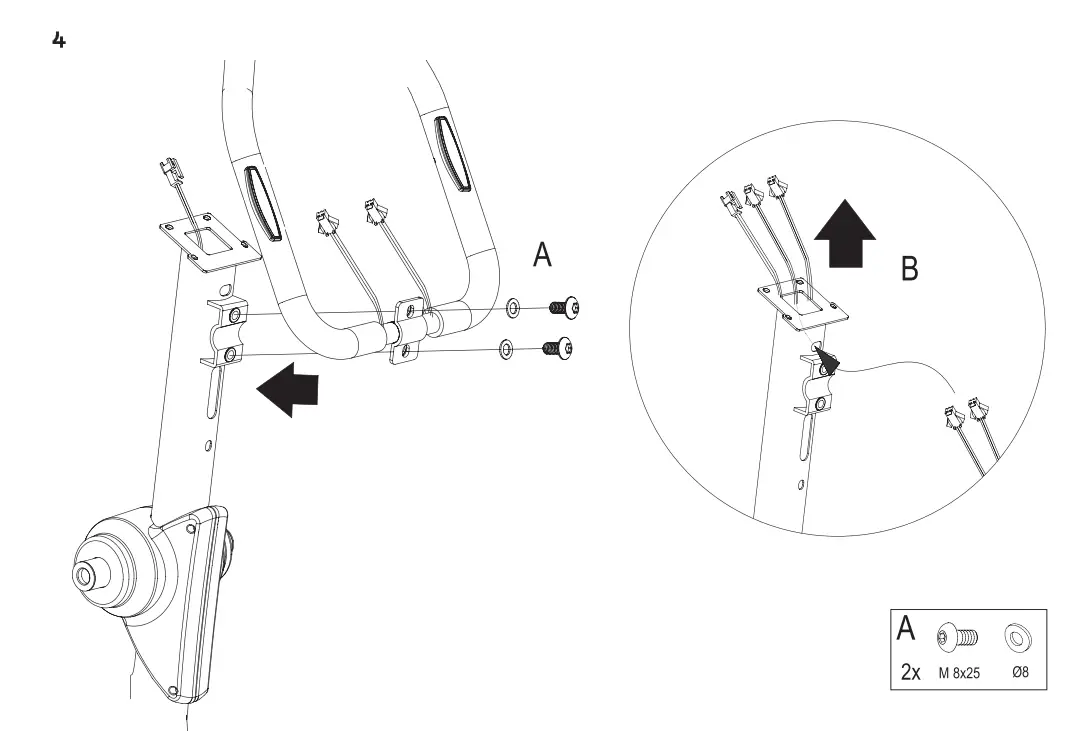

ASSEMBLY INSTRUCTIONS

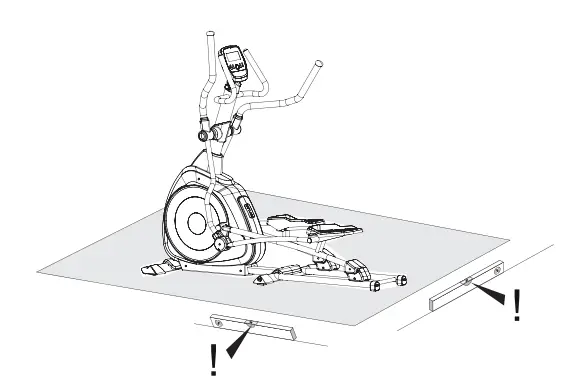

Handling

The screwed connections must be controlled at regular intervals.

EXERCISING INSTRUCTIONS

CROSSTRAINER

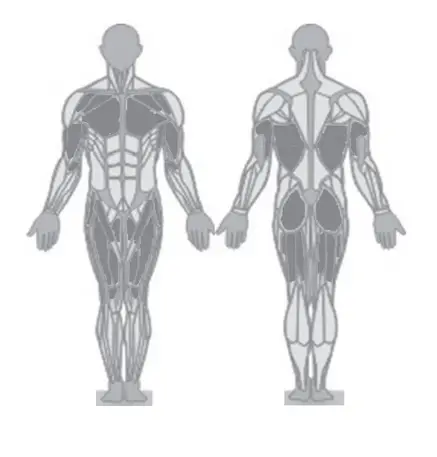

Ideal for training major muscle groups like the legs, arms, torso and shoulders.

The workout is particularly easy on the joints thanks to the elliptical movement. Cross training is particularly suitable for people whose job involves a lot of sitting.

When you are working out on the cross trainer you are in an upright position. There is therefore no pressure on the back and spine. Different training intensities are possible: just a leg workout – your hands then stay on the fixed handle, full body workout with passive use of the arms, full body workout with active use of the arms. Combining an arm and leg workout provides an effective full body workout using all the important muscle groups.

Upper body training on the handlebars also works out the arm, shoulder and back muscles.

THE ADVANTAGES:

• Elliptical movement that is easy on the joints.
• Effective full body workout using all the important muscle groups.
• A varied workout with forwards and backwards movement.
• Ideal for health based fitness training.

Calories burned (kcal): approx. 700 per hour Fat burned: approx. 55-59 g per hour

POSTURE AND HOW TO WORK OUT CORRECTLY

Make sure you are standing firmly and securely on the footboards.

The sole of the shoe may meet the front end of the footboard (especially with small people).

The hands grip the handlebars at chest height and the elbows are slightly bent. The upper body is in an upright position. Make sure that your knees and elbows always remain slightly bend during the workout.

During the forward movement, make sure that you lift your heels off the floor, similar to normal running, to ensure that you work out your calf muscles and improve circulation to the feet.

WORKOUT OPTIONS

Your cross trainer provides you with a number of workout options. You can determine the intensity of your upper body workout yourself by actively and passively moving the handlebars. For example, you can increase the intensity on the leg and gluteal muscles simply by moving the handlebars in a more passive and relaxed way.

To intensify the upper body workout move the handlebars more dynamically using your arms.

On the whole though, it is still a full body workout, where besides the gluteal and leg muscles, the shoulder, arm and back muscles are also worked out.

Your cross trainer also offers you the chance to leave out the arms completely. For this, grip the fixed handle with your hands. In doing so, keep your elbows relaxed next to your upper body so that the handlebars can continue to swing freely. In this position you are only working out your leg and gluteal muscles.

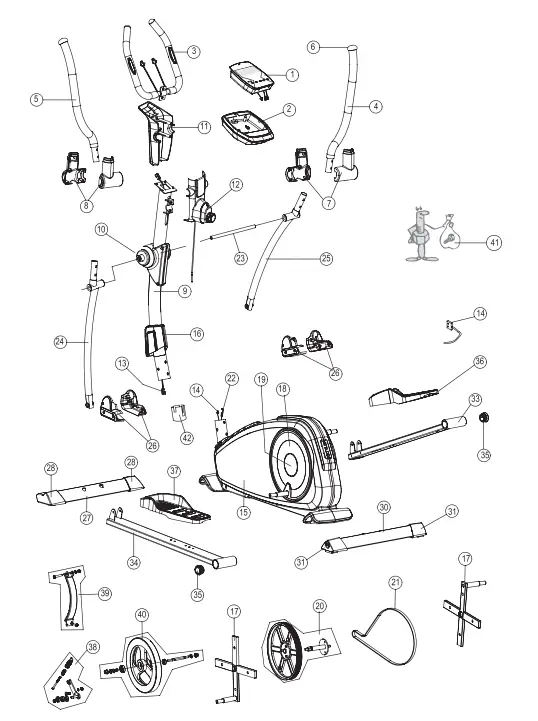

Spare parts order

Colours may vary with repeat orders and this does not constitute grounds for complaint. The com- 70001194 ponentes marked with X are available from stock as spare parts
