Schr der ALBANY GEN2 Enhance Urban Lighting

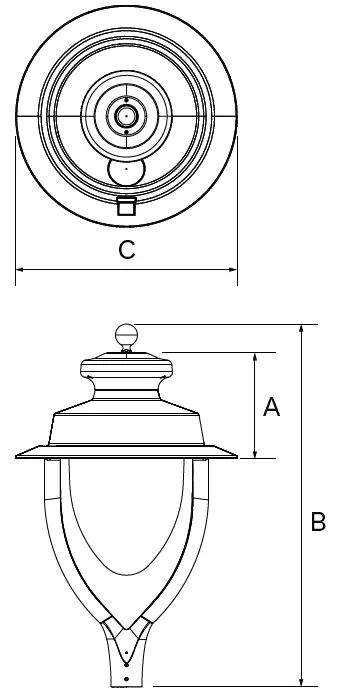

Dimension
| Windage area (Post-top) | ||
| Front 0° | Side | |
| Cd.S | 0.184 m² | 0.104 m² |
| Cs.S | 0.019 m² | 0.035 m² |
| Cl.S | 0.076 m² | 0.036 m² |
| Suspended | Post Top | ||
| Deep Protector | Flat Glass | Deep Protector/ Flat Glass | |
| A (mm) | 263 | ||
| B (mm) | 555 | N/A | 906 |
| C (mm) | 555 Ø | ||
| D (mm) | 629 | 337 | N/A |
| Mass (kg) | 8.8 +/- 0.5 | 11.8 +/- 0.5 | |

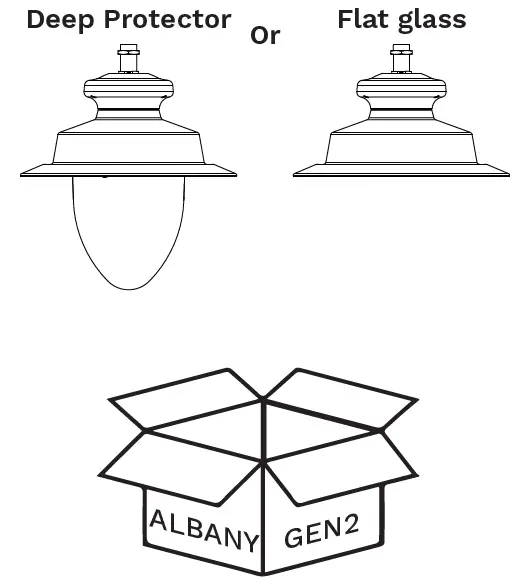

Packaging Suspended
- 1a
- MALE 3/4’’
- MALE 1’’
- MALE 1’’ 1/4

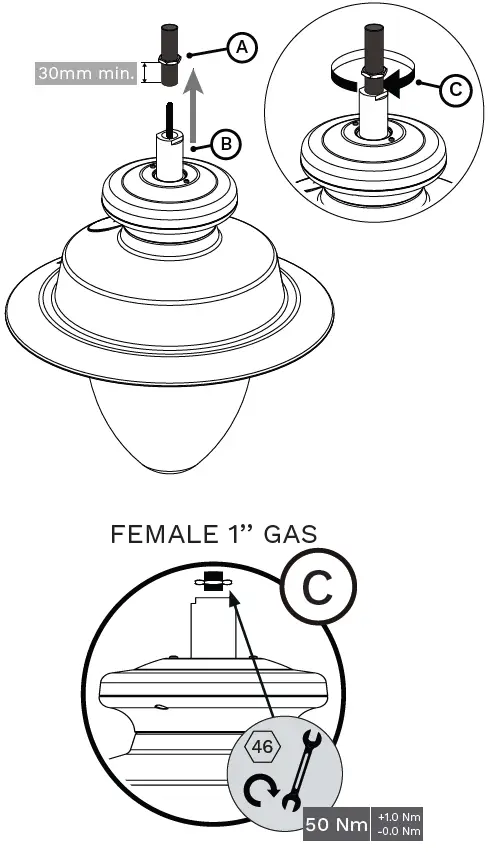

- 1b FEMALE 1’’ GAS

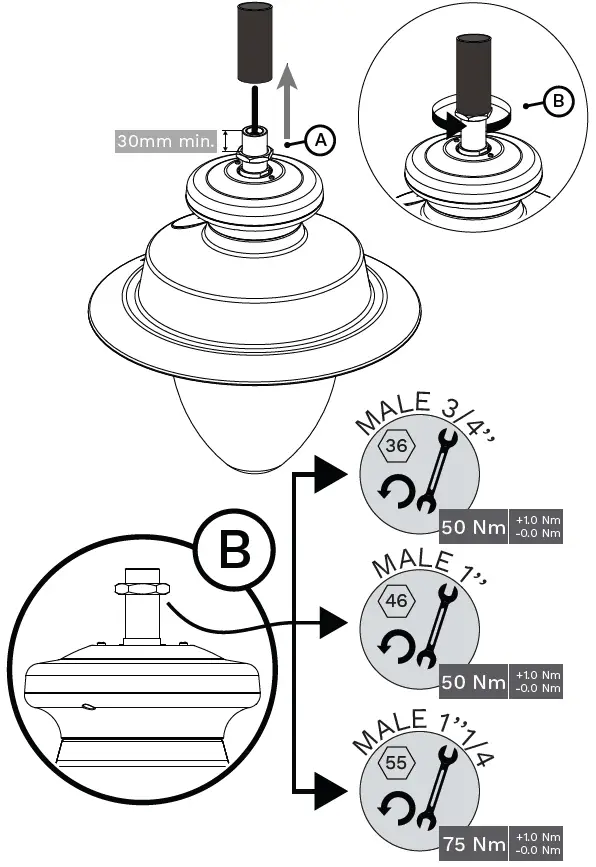

Mechanical Installation
- 1a
- MALE 3/4’’
- MALE 1’’
- MALE 1’’ 1/4
- 1b FEMALE 1’’ GAS

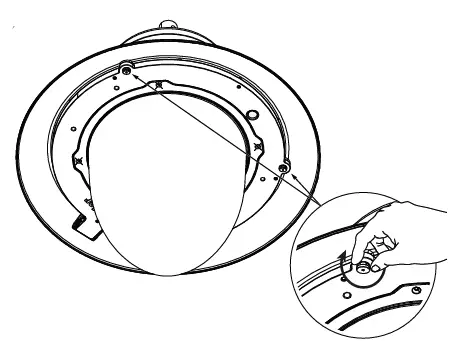

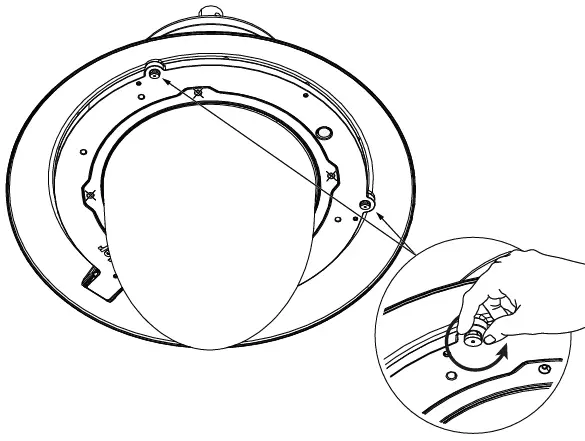

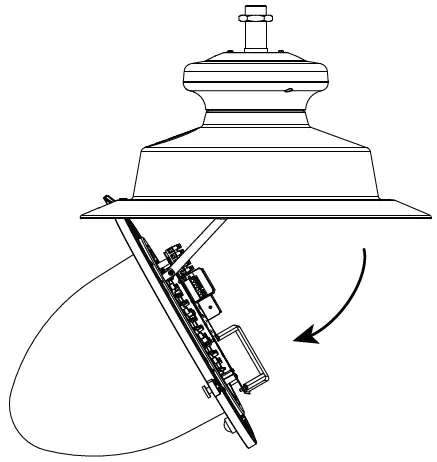

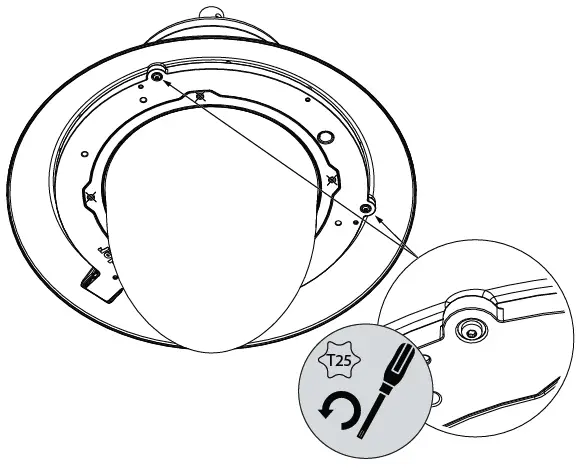

Opening
- 1a Toolless version
- 1b No toolless version

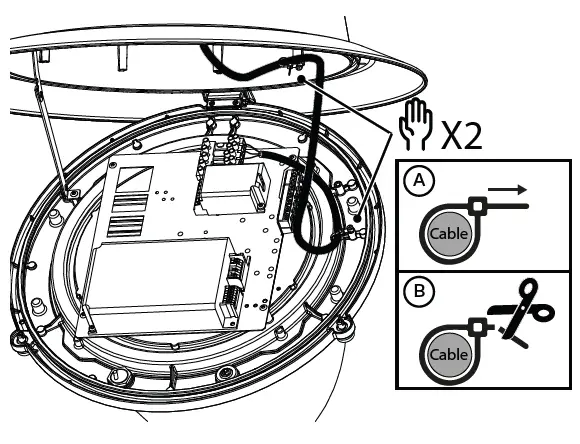

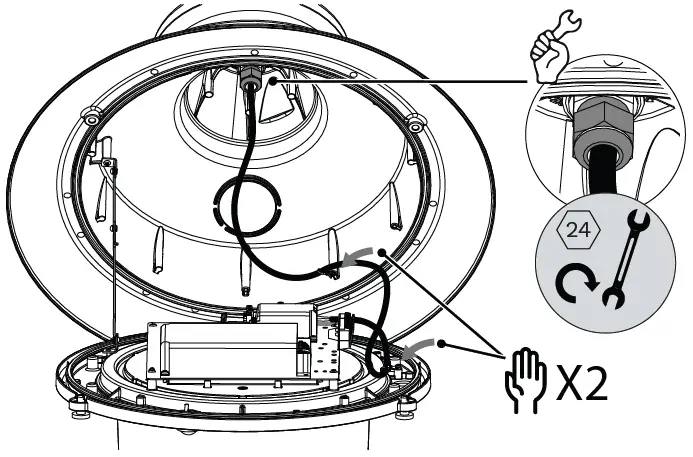

Electrical Installation
No main cable

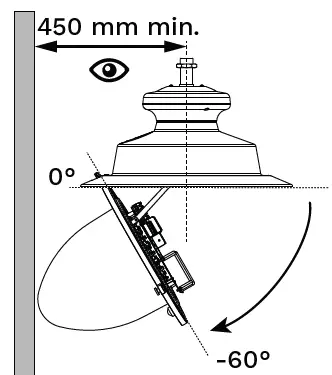

Tilting Angle Suspended

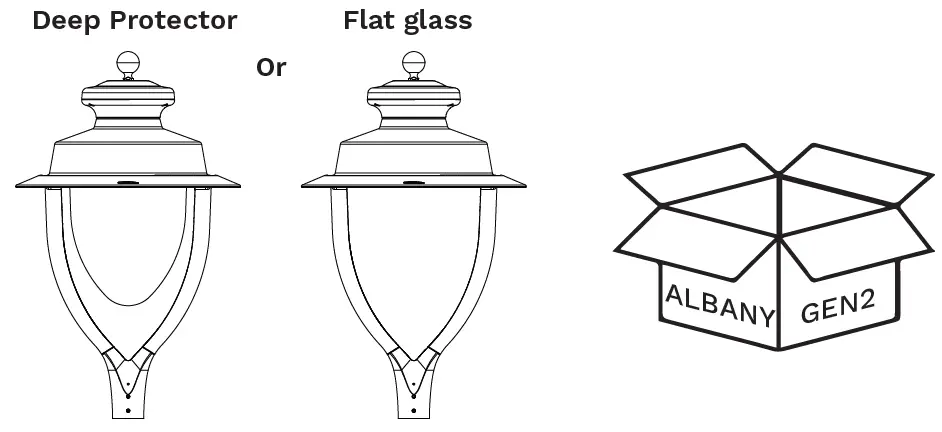

Packaging post top

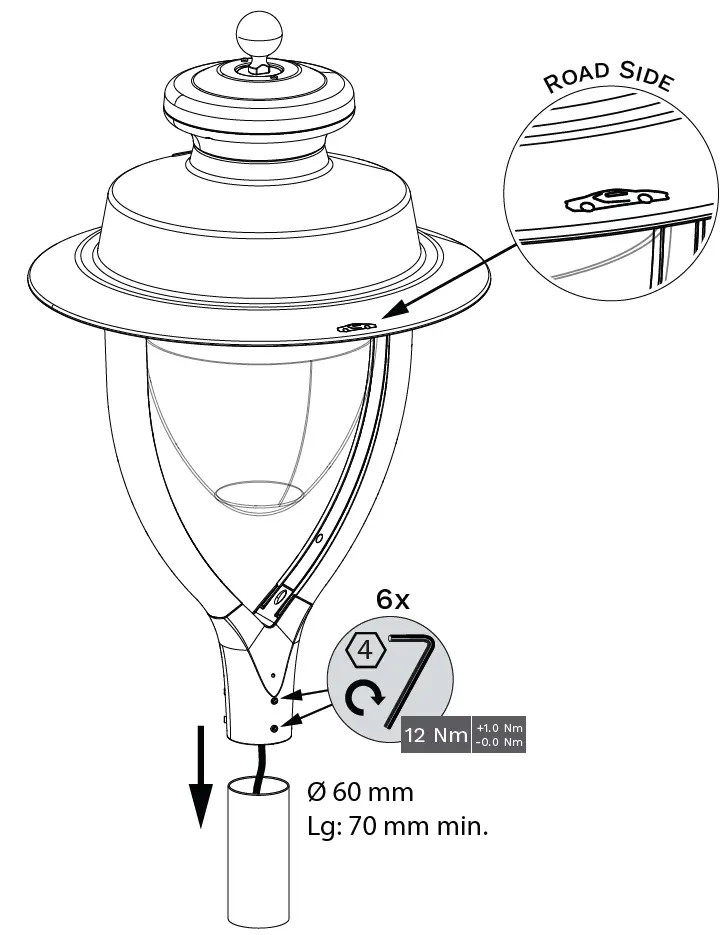

Mechanical Installation post top
Main cables are always pre-fitted

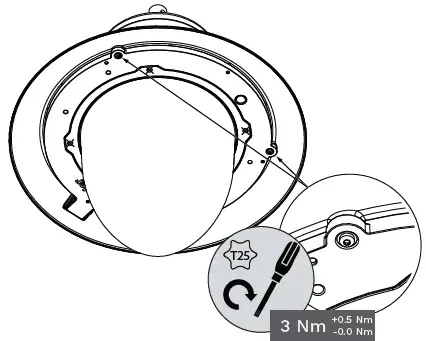

Closing
- Toolless version
- No toolless version

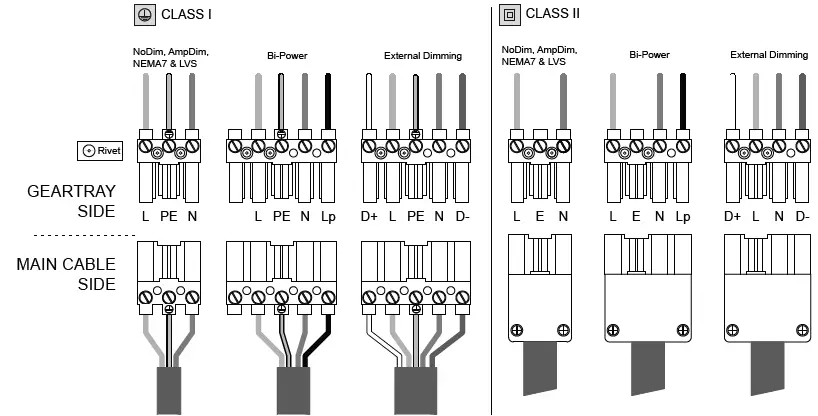

Connection
No main cable supply
Line and neutral MUST be respected!

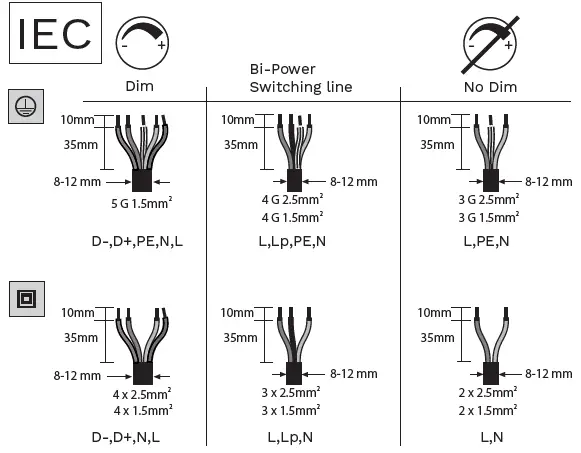

IEC

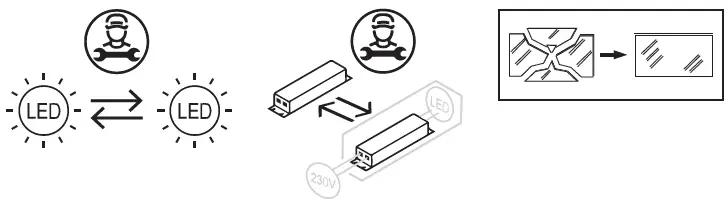

SAFETY INSTRUCTIONS
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. Always switch off the power prior to installation, maintenance or repair activities.

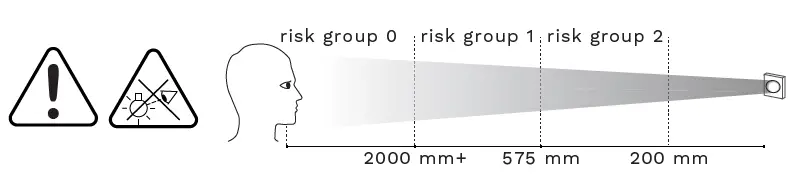

RISK GROUP 2
CAUTION!
Hazardous optical radiation may be emitted from this product. Do not stare at the luminaire when operating as it may be harmful to the eyes. The luminaire should be positioned so that prolonged staring at the luminaire at a distance of less than 0.94m is not expected.
ENERGY EFFICIENCY
This product contains a light source of an energy efficiency class G or higher.
PVC INSULATION AND Y CONNECTION
In case of PVC insulated mains cable, the installer MUST ensure that the WHOLE cable is protected against climatic conditions, especially UV rays and rain, by making sure that the cable is contained inside the luminaire and pole. Y-connection: In case of damage to the wire, it has to be replaced only by the manufacturer, distributor or by an expert, to avoid risks.
