QUICK START GUIDE

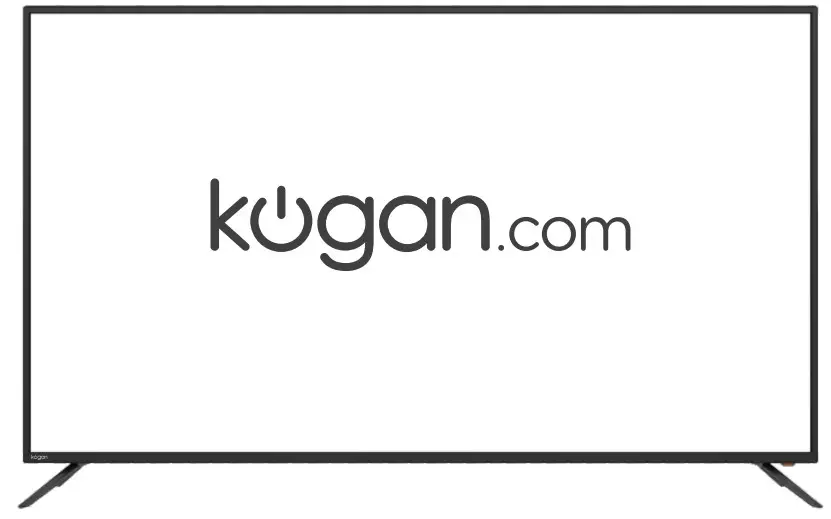

65″ SMART HDR 4K UHD LED TV
SERIES 9 RT9210
(KALED65RT9210SVA)

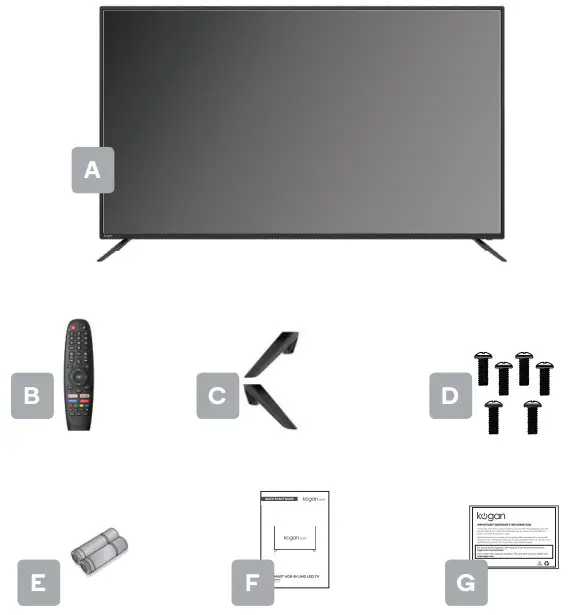

COMPONENTS

NOT INCLUDED
Phillips head screwdriver, antenna cable, broadband internet connection.

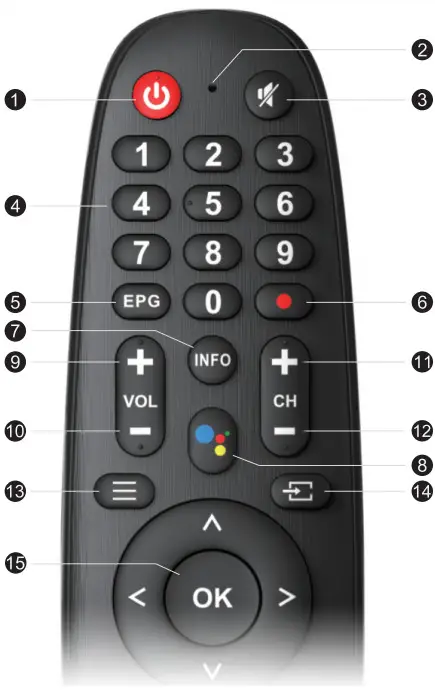

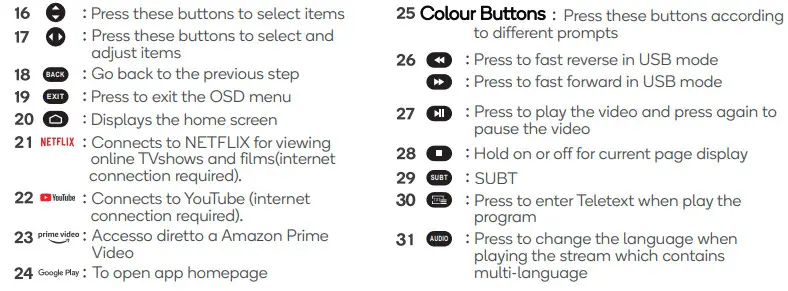

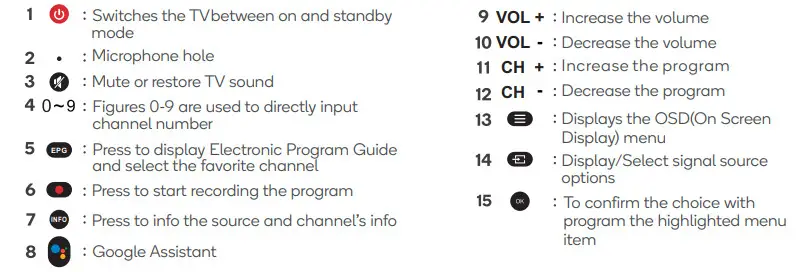

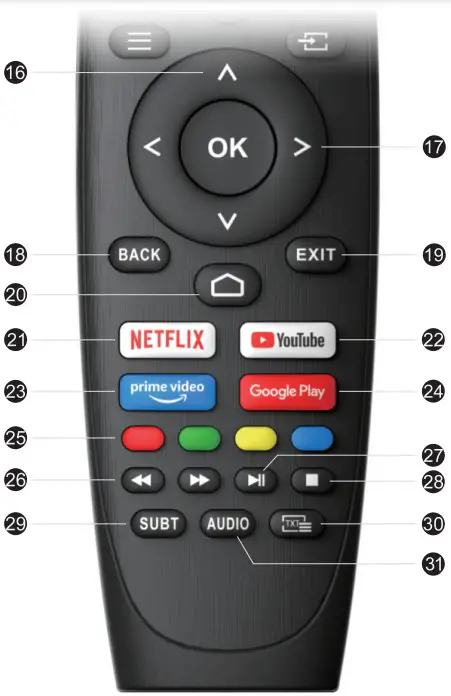

REMOTE CONTROL OVERVIEW

REMOTE CONTROL OVERVIEW

ASSEMBLY AND INSTALLATION

BEFORE YOU GET STARTED
Spread cushioning flat to lay the TV on. This will help to prevent damage.

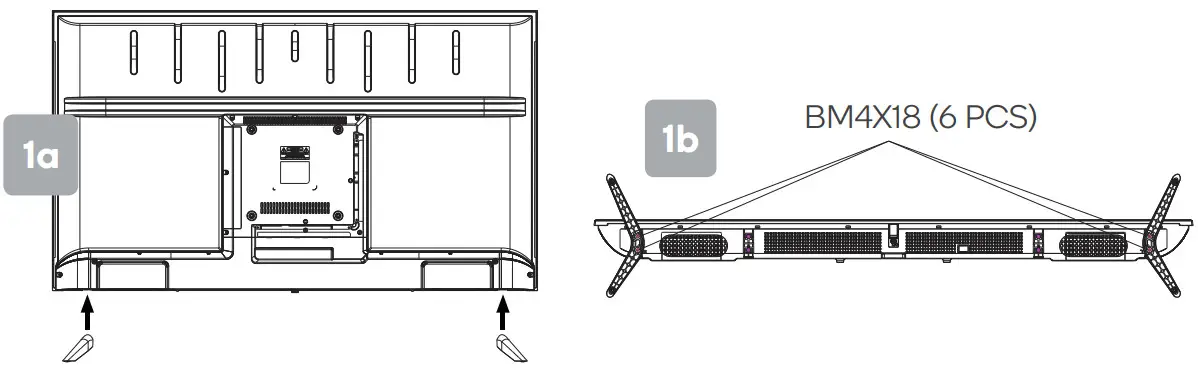

1. Stand assembly
   a. Attach stands to the base of the TV.
   b.Insert three 18 mm screws for each stand, and use a Phillips head screwdriver (not supplied) to tighten.

2. Remote control assembly
   a. Open the battery compartment cover on the back side.
   b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings (+ / -) of the batteries with the diagram inside the compartment.
   c. Replace battery compartment cover.


   ASSEMBLY AND INSTALLATION

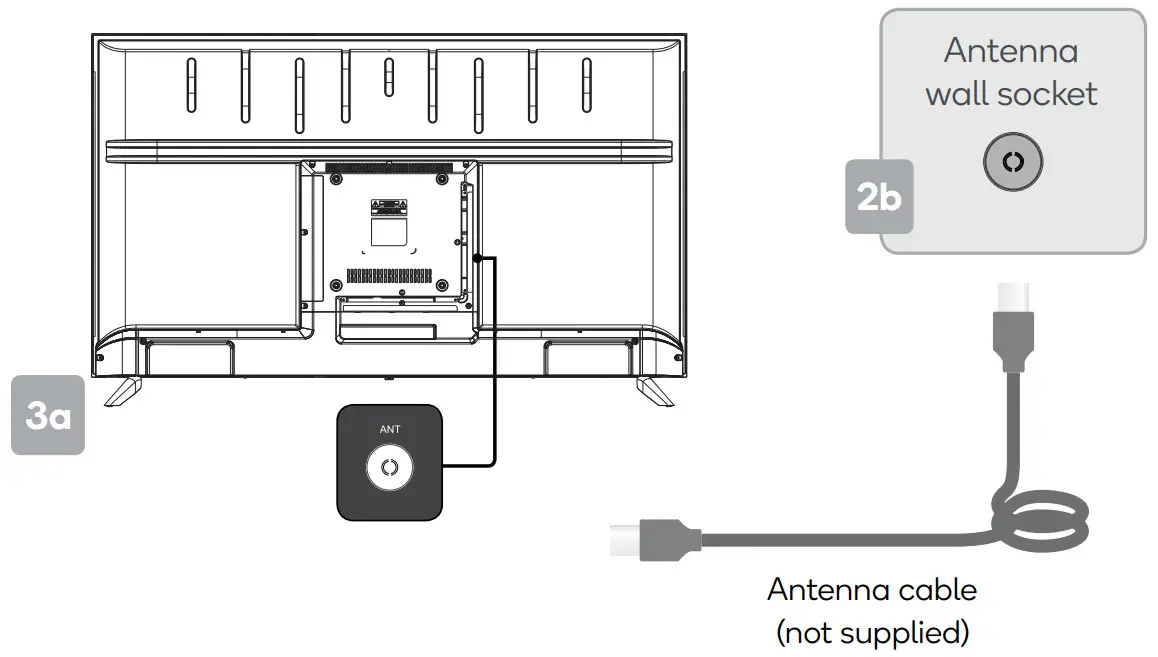

3. Connect to antenna

   a. Connect an antenna cable (not supplied) via the ‘ANT’ input port at the back of the TV.
   b. Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly.


4. Turning TV on
   Plug the power cord into a suitable power outlet, then press the POWER ( ) button on the remote control, making sure to aim it at the sensor at the front of the TV. Alternatively, you can press the power button on the lower side of the back panel on the TV.

TURNING TV OFF
Press the POWER ( ) button on the remote control to enter standby mode.
To power down the TV completely, unplug the power cord from the power outlet.
Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from both the power outlet and aerial.

INITIAL INSTALLATION

Initial Installation
The first time you switch the TV on, the initial step screen appears which guides you through the initial process.Please according to the Text Tips to finish the initial installation.

 Language select
>Press / remote control to select the language option, then click【OK】to confirm.

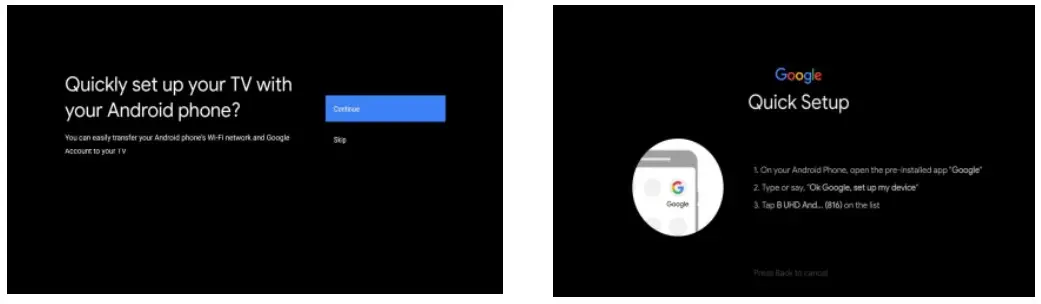

Quickly set up your TV with your Android phone? (Continue/skip) Steps:

1.  On your Android Phone, open the Pre-installed app “Google”.
2.  Type or say, “Ok Google, set up my device”.
3. Tap the model name on the list. Configure the network
   >Select wired or wireless to connect to the internet.
   >If you select skip,it could be performed in the homepage or settings menu.

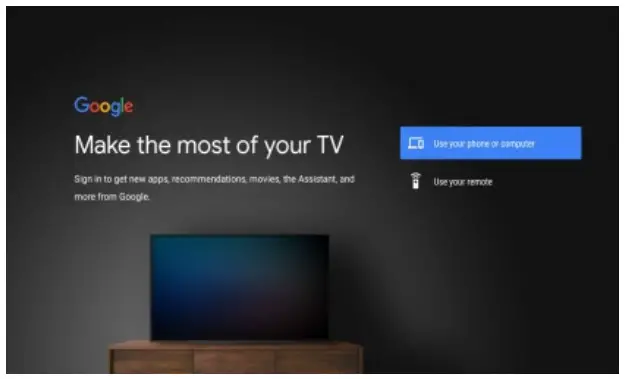

   Google Account Sign in
   Sign in to get new apps, recommendations, movies, the Assistant, and more from Google. Two ways to log in Google account:


->Use your phone or computer:

1.  Visit androidtv.com/setup on your phone or computer, Make sure your other device is on the same Wi-Fi network as your Android TV ™INITIAL INSTALLATION

2. Enter the display code on your phone or computer


->Use your remote:
Use the remote to enter your Google account and password to sign in to your Google account.
Google setting
In these steps, you will setup the Terms of Service, Location,Help improve Android, Google Assistant and additional Google functions.

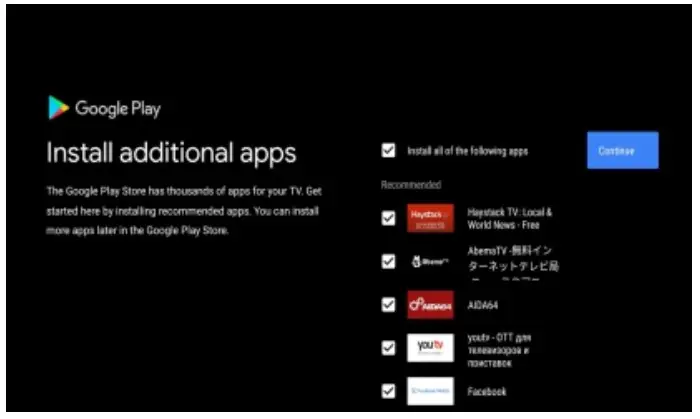

Play Auto Installs
Select install or un-install the recommended apps and Google apps by using this process.
->Press “Continue” to the next setting page.

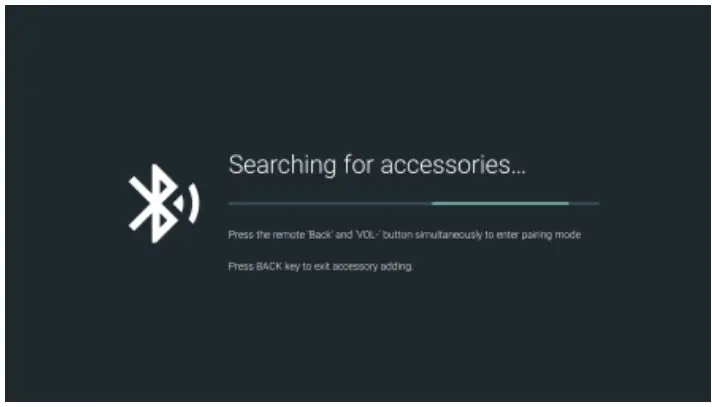

Pairing Bluetooth Remote
-> Press’BACK ‘and ‘ VOL- ‘ simultaneously on the remote control to enter the Bluetooth pairing mode.
The Indicator light on the remote control will flash when entering the pairing mode.
-> Press【OK】to begin pairing.
-> Press on the remote control to skip the pairing mode.

INITIAL INSTALLATION

Country select
->Press / on the remote control to select the country option,then click【OK】to confirm.
Set the TV password for Parental Controls,”0000″ is invalid.
Select TV mode(Home/Retail)
Home mode is optimized for efficient energy usage for home use.
Retail mode is optimized to store demo with fixed settings.
Chromecast built-in™
Select On/Off to make Chromecast built-in available.

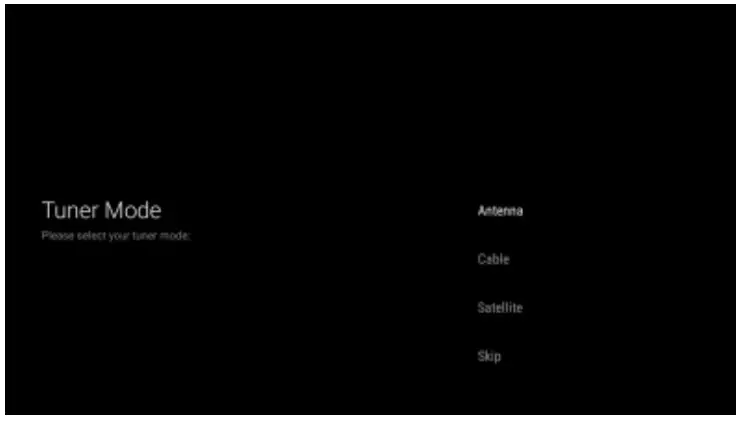

TV Channel Setting
->Select Antenna/Cable/Satelite to scan TV channel.
->If you select skip, the channel scan could be performed in the menu.

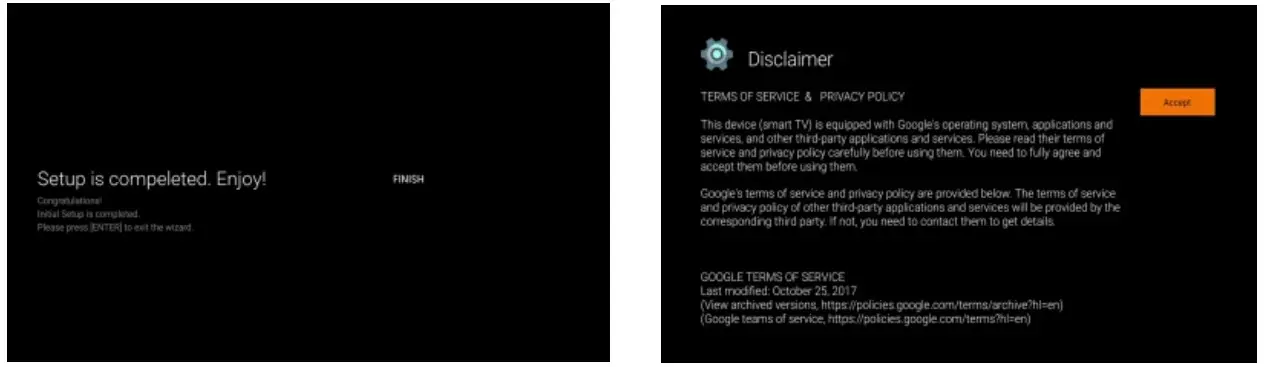

Setup completed and Disclaimer Terms

SETTINGS

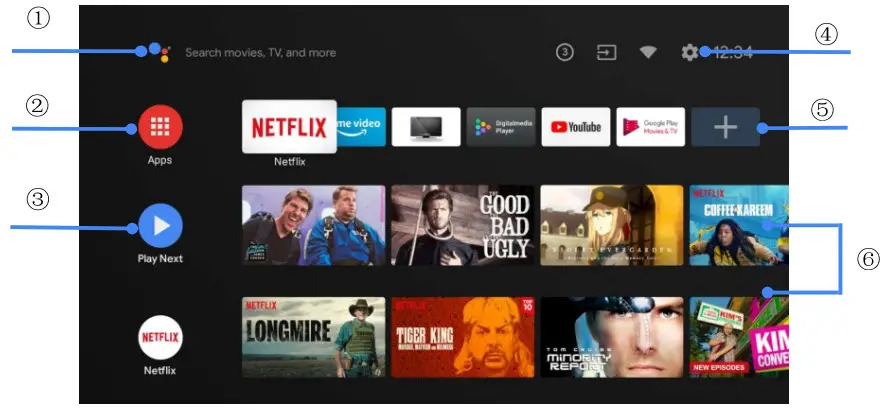

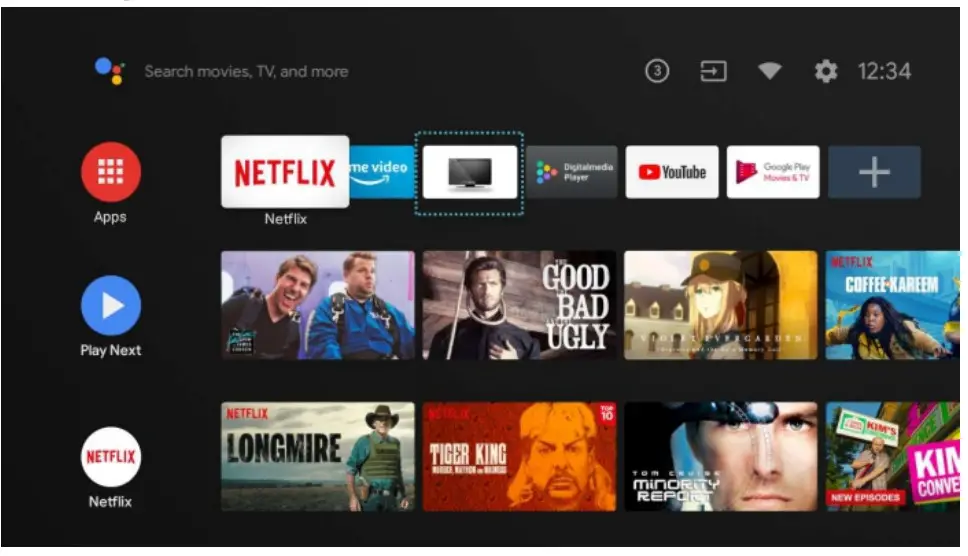

HOME

When the initial setup is complete, the TV will enter the homepage by default, or press on the remote control to display the homepage.
->Press∧ /∨ /< /> on remote control to switch between Google Assistant,Apps, Play Next, Netflix, YouTube, and more on the Homepage.
-> Press【OK】to enter.

1. Google Assistant
   Use your voice to jump to shows,control devices,and more—with Google Assistant
2. Apps
   List of downloaded and pre-loaded apps on your device
3. Play Next
   Based on your watch history and includes next episode in a series or unfinished movies
4. Settings
   Manage apps and TV controls, change preferences, sounds,and account
5. Favorite apps
   Quick access to frequently used apps
6. Channels
   For easy content discovery

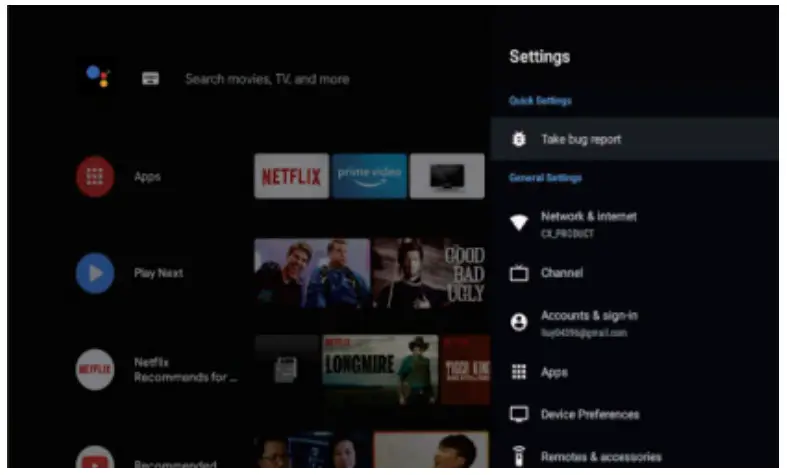

CONNECTING TO THE INTERNET

Settings

Allows setting various performance of your TV.
-> Press </> on the ∨remote control to select “Settings” which is in the upper right corner of the screen.
-> Press ∧/∨ on the remote control to select the option which you want to adjust in the Settings menu.
-> Press【OK】to enter.
Network&internet
Adjust all network settings and check connection if you have connection problems.
-> Press∧ /∨ remote control to select “Network&internet” in the settings menu.
-> Press ∧/∨ remote control to select:Wi–Fi/Add new network/Scanning always available/Proxy settings/IP settings.

Channel
-> Press ∧/∨ on the remote control to select the “Channel” menu.

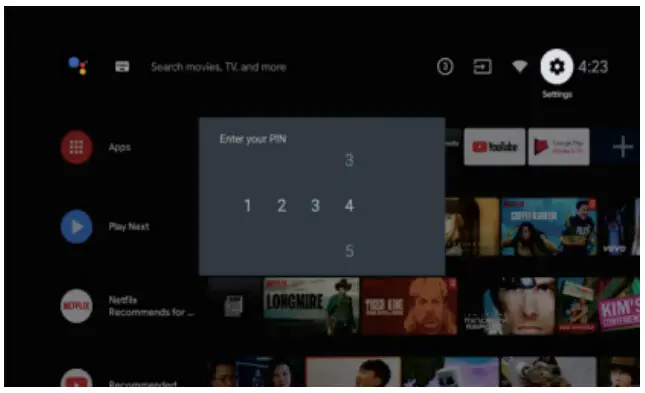

->Press【OK】to enter”Parental Controls”, then click / or use the number buttons on the remote control to enter your PIN(Password for Parental Controls).

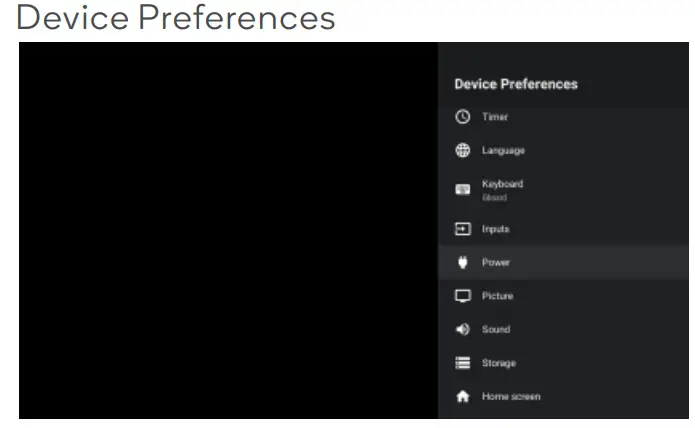

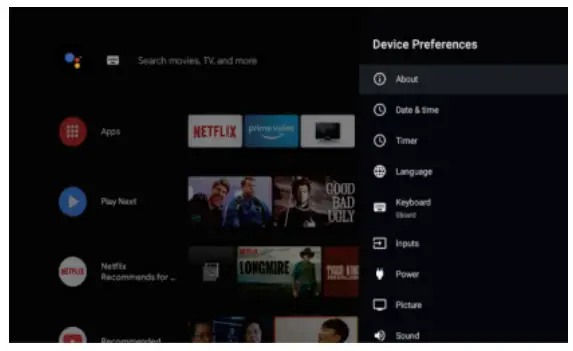

Device Preferences
-> Press∧ /∨ on the remote control to select “Device Preferences”.
-> Press∧ /∨ on the remote control to select the options of About, Date&time, Timer, Language, Inputs,
Picture, Sound, Google Assistant, Reset, etc.

TUNING

->Press【OK】to jump to the corresponding sub-option.

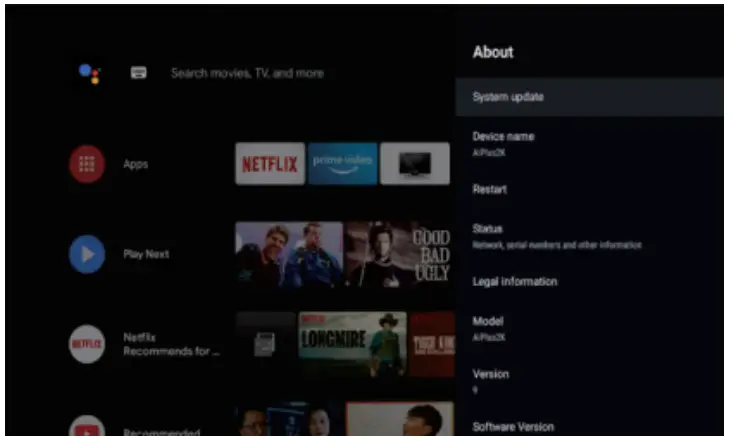

About
-> Press / on remote control to select “About”.
-> Press / on the remote control to check additional information such as System update, Device name, Restart, Status, and more.
-> Press on the remote control to return to the previous menu. Press on the remote control to exit the menu.

Reset

If you select reset, it will erase all data from your device’s internal storage, including your Google account, System and app data and settings, and downloaded apps.
-> Press∧ / ∨on remote control to select “Reset”.
-> Press∧ /∨ on remote control to select “Cancel” or “Erase everything”.

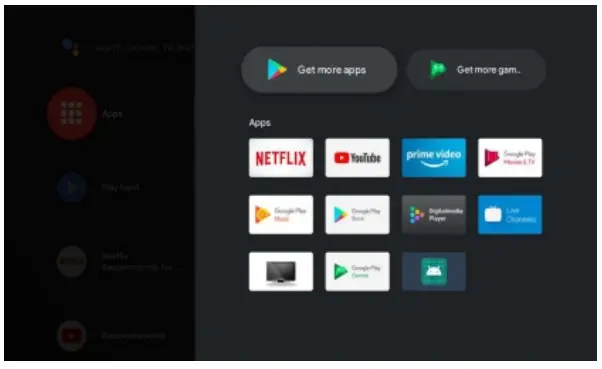

APP INSTALL/MOVE/UNINSTALL

->Press∧ /∨ on the remote control to select”Apps” on Homepage, then click【OK】to enter.
-> Select “Get more apps” and input the app name.
->Select “search” which is in the upper right corner of the page.

Example for “Facebook”
Install
->Input “Facebook”, find “Facebook” App will show in the list, then click【OK】to select it.
->Select “Install”, when completed select to open or Uninstall.
Move
->Select”Facebook”, press and hold【OK】on remote control, then click ∧/∨ remote control to select”Move”
-> Press∧/∨/< /> on remote control to move,then click【OK】to confirm.

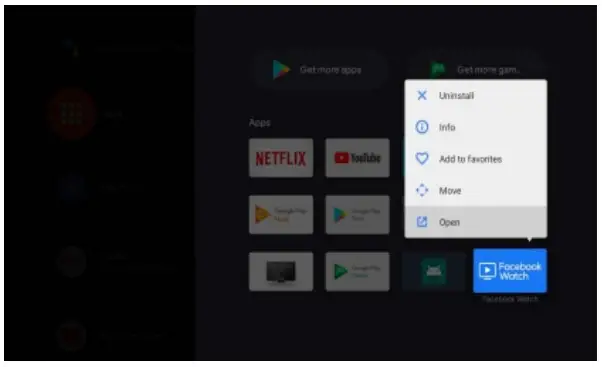

Uninstall
->Select “Facebook”, press and hold【OK】on the remote control, then click∧/∨on the remote control to select”Uninstall”.
-> press【OK】to uninstall.

TV SOURCE SETTING

 TV source setting
The way to enter TV source in Homepage:
->Press on the remote control or select”Live TV” on the Homepage.

->Press on the remote control.
->Press∧ on the remote control to select”Channels” and select”New Channels Available” to enter.

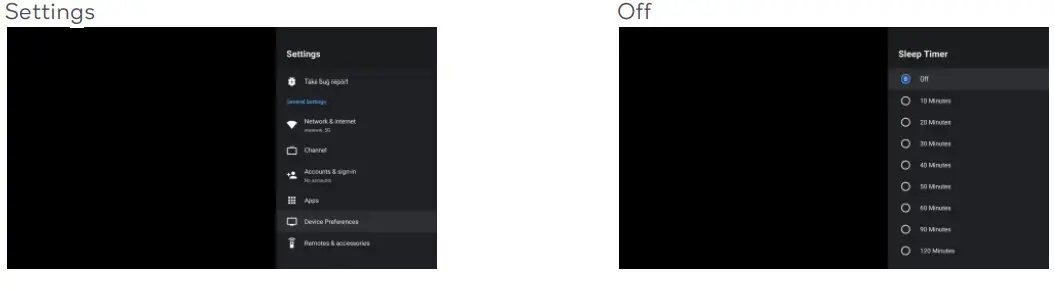

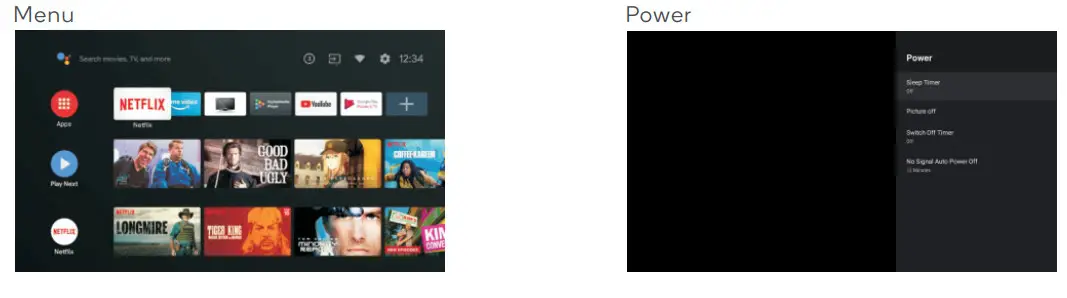

HOW TO TURN OFF AUTO SLEEP FUNCTION

BASIC TROUBLESHOOTING

Poor picture and sound quality

• Try a different channel
• Adjust the antenna
• Check all connections

No picture or sound in TV status

• Try another channel
• Press the TV/AV button
• Make sure TV is plugged in
• Check the antenna connection

No sound or sound is too low at maximum volume

• Check the volume settings on any external speakers connected to your television
• Adjust the TV volume accordingly
• Check another channel or input
• Check that MUTE hasn’t been turned on

No color, wrong color or tints

• Make sure the program itself is broadcast in color
• Select the picture menu, then adjust the color and tint submenus

Picture rolls vertically

• Check all connections

Blurred or snowy picture, distorted sound

• Check the direction, location, and connections to your antenna
• Issues may be caused by the use of an indoor antenna (poor signal)

Remote control malfunctions

• Replace remote control batteries
• Check battery terminals
• Remote is out of range, move closer to TV
• Remove any obstructions between remote and IR sensor of TV
• Make sure the power cord to your TV is plugged in and turned on

Image is not centered on the screen

• Adjust the horizontal and vertical position

“No Signal” on HDMI source

• Test the device with a different HDMI cable
• Plug the device into another HDMI port
• Try a different device connected to the same cable and port
• Perform a factory reset on your TV
  For our full TV troubleshooting guide and extended User Manual for this TV, head online to help.kogan.com

NOTES

————————————————————————————————————————————————————–

Need more information?
This is a Quick Start Guide, and while we hope that this has given you the assistance needed for a simple set-up, a full user guide outlining all of this product’s instructions and features can be found online at help.kogan.com
