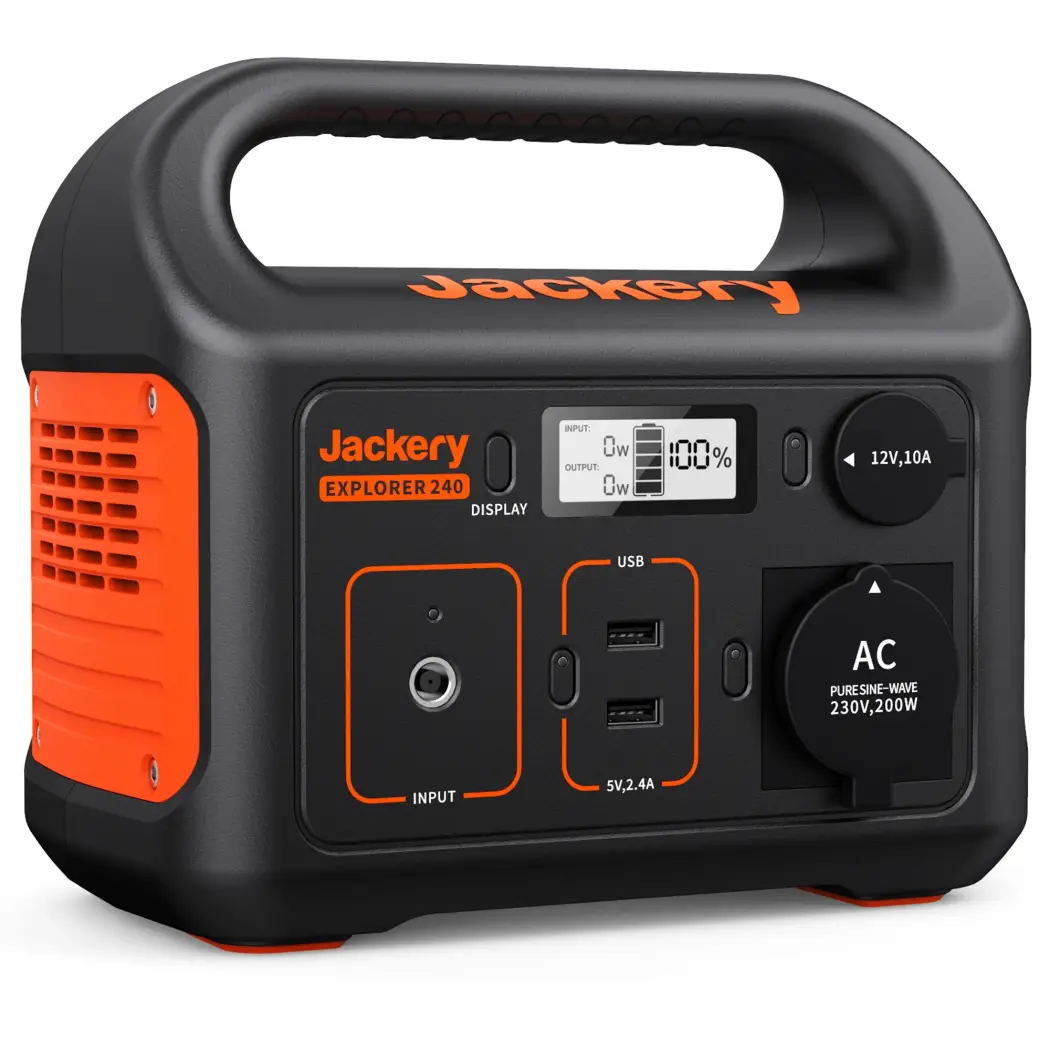

Jackery Explorer 240EU Power Station User Manual

Congratulations on your new Jackery Explorer 240EU

CHARGE FIRST! Before using your new Jackery Explorer, plug it into a suitable power outlet until it is fully charged. Then you can start your exciting journey with it.

SPECIFICATIONS

Capacity	Weight	Dimensions	DC Input	AC Output	Car Port	USB Output
16.8Ah/14.4V (241.9Wh)	Around 3kg/ Around 6.61bs	Around 23 x 14.2 x 20cm Around 9.1 x 5.5 x 7.8in	19V= 3.42A (Support 12-30V)	230V– 50Hz, 0.87A 200W max continuous 400W surge peak	12V-10A	2 x USB-A Output: 5V-2.4A

Battery	Lifecycles	Operating Temperature	Recharging Temperature	Management System	MPPT	Warranty	Certifications	Technical Support
Lithium-ion	>  500	10-40 °C	O’40°C	Under voltage Protection Over voltage Protection Over current in Charge/Discharge Protection Short Circuit in Charge/Discharge Protection Over temperature in Charge/Discharge Protection Overcharging Voltage Protection	Support Solar Panel MPPT Charging	24 Months	REACH UN38.3 0 RoHS	Lifetime

WHATS IN THE BOX

Jackery Explorer 240EU

Car Charger Cable

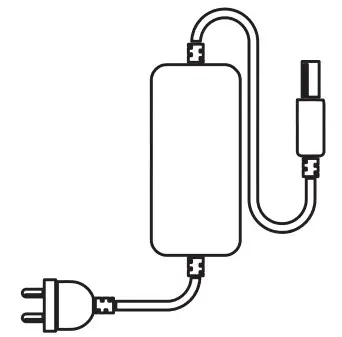

AC & AC Cable(2 Parts)

User Manual

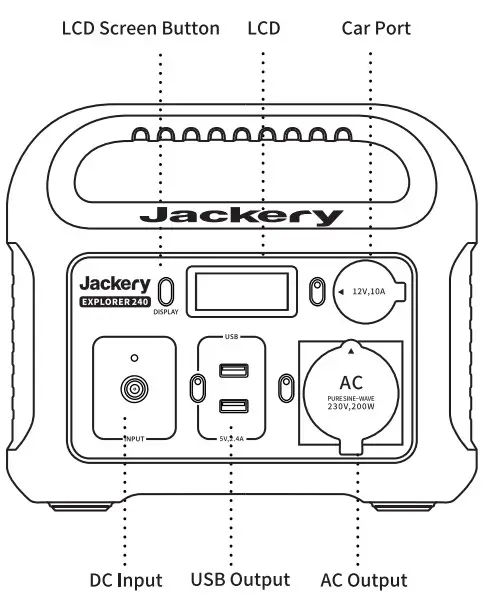

Product Overview

POWER

LCD Screen Button
Press the power button to check the remaining battery.

AC Button / DC 12V Button / USB Button
Turn off each output by pressing its power button as it does not turn off automatically or it will drain the battery out.

LCD

Power Level Percentage
Check the battery level by pressing the display button before use. If battery is at a low level, charge first.

LCD screen flickers 10 times when battery capacity drains to 20% and 10%.

Power of Input & Output (W)
If the Jackery Explorer’ s total output exceeds 200W, it will automatically shut off. Please ensure the power consumption is less than 200W, then press the power button.

Low & High Temperature Alarm
The Explorer 240EU can power your devices at temperatures ranging from -10-40°C (14-104°F). If your working temperature is outside this range, the Explorer 240EU may stop working.

DC INPUT

Wall Charger: Car Charger
Solar Panels(optional):  Electric Generator

CHARGING

Here are some common devices and their power requirements for each charging port.

Car Port

Car Fridge (60W) Around 19 Hours

Drone(90W max) Around 4.5 Recharges

AC Output

12″ Laptop(30W) Around 3.5 Recharges

32″ TV (60W) Around 3.5 Hours

CPAP Machine Around 6-21 Hours

USB Output

Smartphone (18W max) Around 25 Recharges

Motion Camera (5W max) Around 45 Recharges

Explorer 240EU will be turned off automatically in 12 hours when being drawn under lOW power for power saving.

RECHARGING

Before use or storage, plug your Explorer 240EU into the wall until it is fully charged. If the LCD shows less than 20% capacity, plug it into a power source, like an AC outlet or a solar panel, as soon as possible. There are four ways to recharge your Jackery Explorer:

Wall Charger Around 5.5 Hours

100W Solar Panels (Optional) Around 5 Hours (Depending on Weather)

Car Charger Around 6.5 Hours

Electric Generator Around 5.5 Hours

SAFETY INSTRUCTIONS

Read the following instructions to ensure safe usage:

DANGER

Noncompliance may very likely lead to serious injury* or death

• DO NOT disassemble, repair or modify the unit or the battery.
• DO NOT place the unit close to or in a fire or expose it to heat. Keep out of direct sunlight.
• DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.
• Only use the output socket to power external devices. Never connect the output to mains power under any circumstances.
• DO NOT touch the unit or the plug-in points. ifyourhands are wet.
• DO NOT connect any metallic objects to the AC input or output.
• DO NOT rub your eyes if fluid from inside the unit should get in your eyes.
• DO NOT dispose the unit together with household waste.
• DO NOT use any inappropriate power cords.
• DO NOT operate the unit above the specified input voltage.
• DO NOT use the unit ifitis not functioning correctly.
• DO NOT move the unit ifit is recharging or in use.
• DO NOT put fingers or hands into the product.
• DO NOT use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• DO NOT disassemble the power pack, take it to aqualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.

WARNING

A Noncompliance may lead to serious injury** or death

• Use and store the unit only ina clean and dry environment, DO NOT use and store in dusty and wet environment.
• Check the unit prior to every use. DO NOT use the unit if itis damaged, broken.
• DO NOT use the unit if the power cord is damaged or broken.
• Keep the unit away from children. DO NOT let children use the power supply unit.
• Keep this product away from pets.
• DO NOT use or store the unit in an area or environment with high temperature.
• Should fluid from inside of the unit come in contact with your skin or clothing, wash the affected areas with tap water.
• Inastorm, unplug the power cord from the socket.
• DO NOT charge the unit via power supply systems that operate outside of 100-240V.
• DO NOT place the unit on its side or upside down while in use or storage.
• DO NOT use accessories for other usage.

WARNING – RISK OF EXPLOSIVE GASES

To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on these products and on engine.

CAUTION

A Noncompliance may lead to injuries and/or property damage***

• If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immediately and contact the dealer or our customer service center.
• The unit complies with all legal requirements for transport of dangerous goods.
• Make sure that the unit is properly secured when transporting it in a motor vehicle.
• Only charge, use and store the unit within an ambient temperature of 0 to 40°C (32 ~104°F),
• Switch the unit offimmediately ifit has accidentally fallen, was dropped or was exposed to vibrations.
• Carefully read the instructions for the electric devices that you intend to connect to your power supply unit.
• Make sure that the device you are connecting is switched off before you connect it.

PERSONAL PRECAUTIONS

1. NEVER smoke or allow a spark or flame in vicinity of battery.
2. Be extra cautious to reduce risk of dropping, a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion.
3. DO NOT expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

• Serious injuries include blindness, burns, electric shock, fractures, poisoning, etc., which can lead to complications, hospitalization or permanent treatment.
• Injuries include burns, electric shock, etc., which do not lead to hospitalization or permanent treatment.
• Property damage: includes buildings, belongings and pets, etc.

ATTENTION

Not permitted on aircrafts.

To preserve the battery lifespan, please use and recharge at least once every 3 months.

Use original or certified charger and cables.

Avoid extreme temperature.

Avoid dropping.

Do not disassemble.

It’s not waterproof,do not expose to liquids.

Please dispose of batteries and electronic goods in accordance with local regulations.

DICLAIMER

• Our company cannot be held liable for damages caused by fire,earthquake,use by a third party, other accidents, intentional misconduct on the part of the customer, abuse or other abnormal conditions.
• Do not repair any damage to the AC plug or power supply on your own.
• The warranty covers all terms and conditions of the warranty. Contents that are not specified in the warranty terms and conditions are beyond our responsibility.
• Our company assumes no liability for damages caused by incorrect use or non-compliance with this instruction manual.

Intended use: The Jackery Explorer 240EU portable power unit is intended as a power supply for electronic devices with a maximum power consumption of 200W. Our product is not suitable to be used with equipment that relates to one’s own personal safety and relies heavily on electricity, such as medical devices, equipment for nuclear facilities, the manufacture of air and spacecraft, etc. We therefore assume no liability for accidents involving personal safety, fires, or machine failures, caused by using our product with the aforementioned devices.

WARRANTY

Limited Warranty

Jackery Inc. warrants to the original consumer purchaser that the Jackery product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in the ‘Warranty Period’ section below, subject to the exclusions set forth below. This warranty statement sets forth Jackery’s total and exclusive warranty obligation. We will not assume, nor authorize any person to assume for us, any other liability in connection with the sale of our products.

Warranty Period

The warranty period is 24 months. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

Remedy

Jackery will repair or replace (at Jackery’s option) any Jackery product that fails to operate during the applicable warranty period due to defect in workmanship or material. Ifa valid claim is made during the applicable period, Jackery, at its option, will either (1) replace the product, or (2) exchange the product with a product that is of equal value. A replacement product assumes the remaining warranty of the original product or 180 days from the date of replacement, whichever is greater. Customer is responsible for the return shipping costs.

Limited to Original Consumer Buyer
The warranty on Jackery’s products limited to the original consumer purchaser and to any subsequent owner.

Exclusions

Jackery’s warranty does not apply to (i) any product that is misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Jackery’s current product literature, or (ii) any product purchased through an online auction house. Jackery’s warranty does not apply to the battery cell unless the battery cell is fully charged by you within seven days after you purchase the product and at least every 3 months thereafter.

How to Receive Service
To obtain warranty service, contact our customer service team at [email protected]

FAQs

What type of battery is in an Explorer 240EU?
Explorer 240EU contains a battery pack which consists of an array of cylindrical 18650 lithium-ion battery cells with high energy density.

How do | know if my Explorer 240EU is charged?
To check the charge level of the Explorer 240EU, refer to the LCD Battery Display.

Can I charge the Explorer 240EU while supplying power at the same time?
The Explorer 240EU could power other devices while recharging itself.

How do | know if my device will work with the Explorer 240EU?
You will need to check the amount of power your device requires. This may require some research on your end. An online search or examining the user guide for your device should suffice. To be compatible with the Explorer 240EU you should use devices that require less than 200W.
