RYOBI P2906VNM 18 Volt Grass Shear
| REPAIR SHEET | ||||
| BRAND RYOBI | DESCRIPTION | 18 Volt Grass Shear | ||
| MODEL NO. P2906VNM | MFG. NO. 108640001 | |||
|
| ||||
| TTI OUTDOOR POWER EQUIPMENT, INC. P.O. Box 1288, Anderson, SC 29622 n 1-800-525-2579 n www.ryobitools.com | 2-15-22 (Rev:02) | |||
| The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts. | ||||

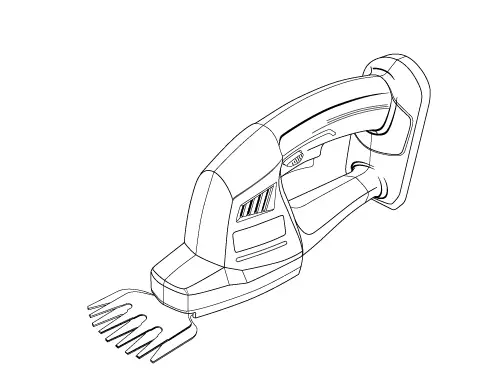

P2906VNM

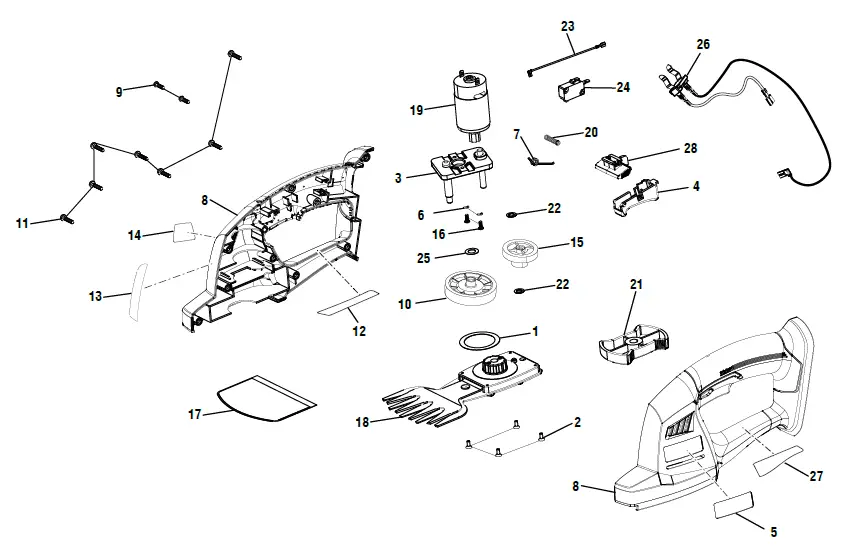

PARTS LIST

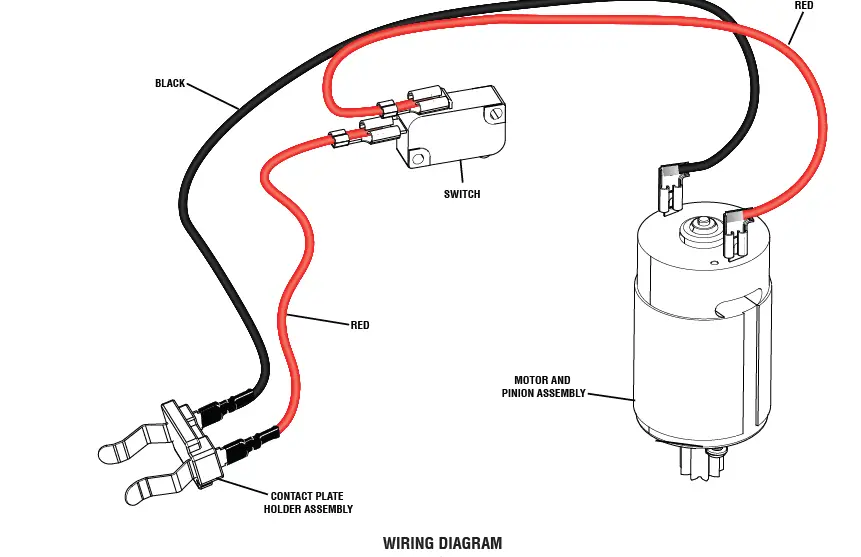

| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 672729001 | O-Ring | 1 |
| 2 | 660204013 | Screw (M3 x 8.5 mm, Flat Hd.) | 4 |
| 3 | 302347001 | Motor Mount Assembly | 1 |
| 4 | 516708004 | Trigger | 1 |
| 5 | 940705511 | Logo Label | 1 |
| 6 | 670028003 | Washer (OD5.7 x ID3.1 x 0.8t) | 2 |
| 7 | 672752001 | Trigger Spring | 1 |
| 8 | 316966001 | Housing Assembly (Inc. Key Nos. 5, 12-14, & 27) | 1 |
| 9 | 660206058 | Screw (M3.5 x 12mm, Pan Hd.) | 2 |
| 10 | 516711001 | Gear | 1 |
| 11 | 660206059 | Screw (M3.5 x 16 mm, Pan Hd.) | 7 |
| 12 | 941657029 | Warning Label | 1 |
| 13 | 941657025 | Icon Label | 1 |
| 14 | 941588703 | Data Label | 1 |
| 15 | 516712001 | Step Gear | 1 |
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 16 | 660086009 | Screw (M3 x 8 mm) | 2 |
| 17 | 900205004 | Sheath | 1 |
| 18 | 302348001 | Grass Shear Blade Assembly (Inc. Keys 2 & 17) | 1 |
| 19 | 230172001 | Motor and Pinion Assembly | 1 |
| 20 | 670499001 | Compression Spring | 1 |
| 21 | 302311001 | Knob Assembly | 1 |
| 22 | 670914001 | Washer (ID 6.5 x OD11 x 0.3t) | 2 |
| 23 | 290044002 | Receptacle and Wire Assembly | 1 |
| 24 | 760689001 | Switch | 1 |
| 25 | 672728001 | Washer (OD15 x 8.4 x 0.3t) | 1 |
| 26 | 316962001 | Contact Plate Holder Assembly | 1 |
| 27 | 941657026 | Danger Label | 1 |
| 28 | 546479001 | Lock-Off Button | 1 |
| Not Shown: | |||
| 998000278 | Operator’s Manual |
