Alecto Smartcoa10 Smart Carbon Monoxide Alarm Instruction Manual

Alecto SMARTCOA10 Smart Carbon Monoxide Alarm Instruction Manual

This sensor can only be liked on to a previously liked Zigbee bridge. We gurantee correct operation on the Alecto SMART-BRIDGE10.

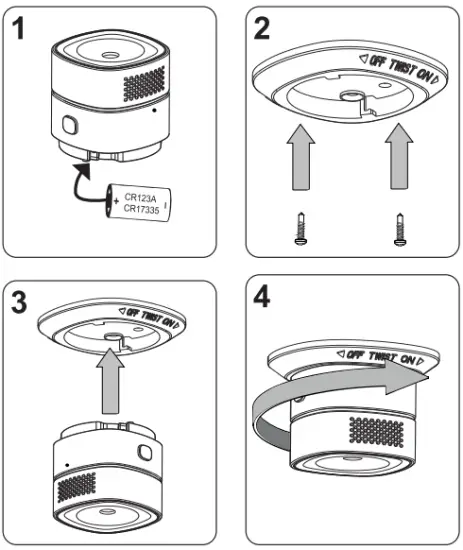

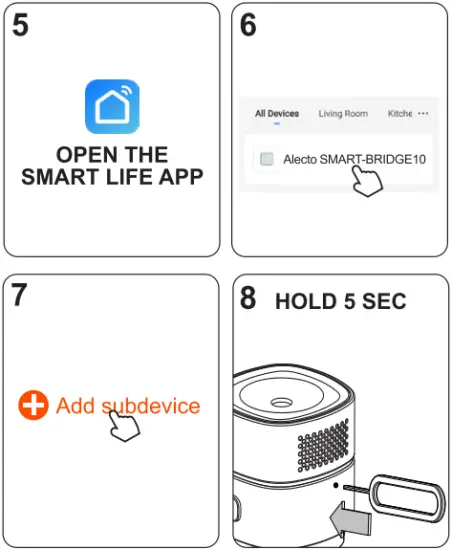

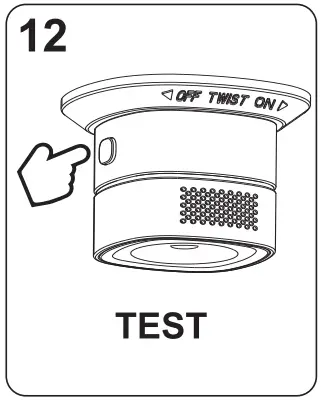

Installation Instructions

ATTENTION!

• Make sure that the SMARTCOA10 is within range of the SMART-BRIDGE10 during the registration process.
• Keep away from liquids and humidity.
• See the detailed manual for installation and maintenance advice.

SPECIFICATIONS

Transport protocol: Zigbee
Wireless frequency:  2.4 GHz
Transmit power: 8 dBm
Transmission distance: < 30m (indoor) <100m open area
Working voltage: 2.6-3.3 V (1xCR1123A)
Alarm current: <13 mA
Standby current: <21 uA
Alarm signal: 85dB @3m
Lifespan: Up to 36 months (1 test weekly)
Operating system:  Android 4.4+ or iOS 9.0+
Battery: lx CR123A
Working temperature:  -10°C — 40°C
Relative humidity: 0% – 95%
Dimensions: 60×049 mm
Environment of use:   Only indoor!

DECLARATION OF CONFORMITY

Hereby, Hesdo declares that the radio equipment type Alecto SMART-SMART10 is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://DOC.hesdo.com/SMARTCOA10-DOC.pdf
Hesdo BV Azielaan 12
5232 BA, ‘s-Hertogenbosch
The Netherlands
