Char-Griller 9800 Smart Grill Controller

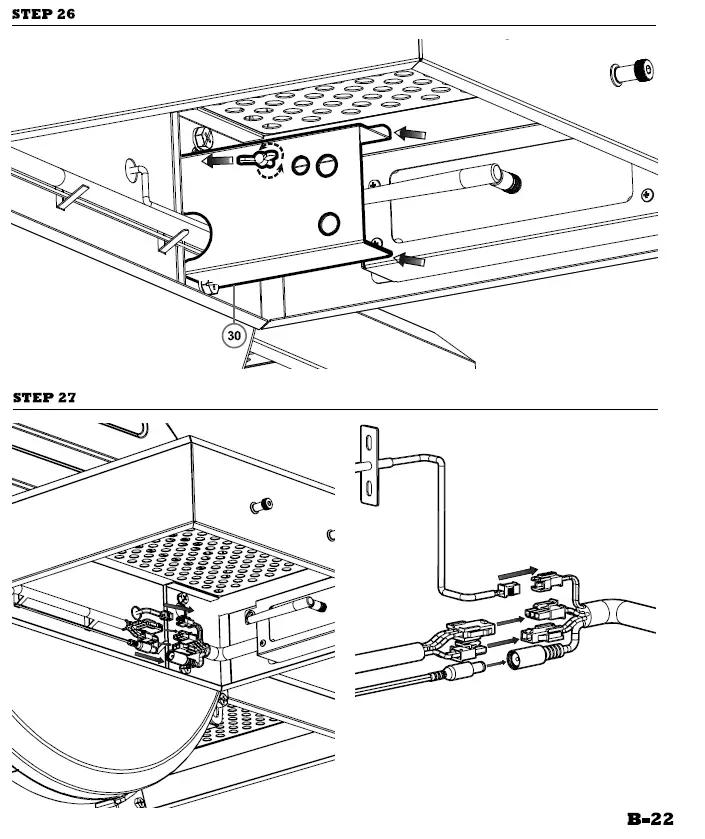

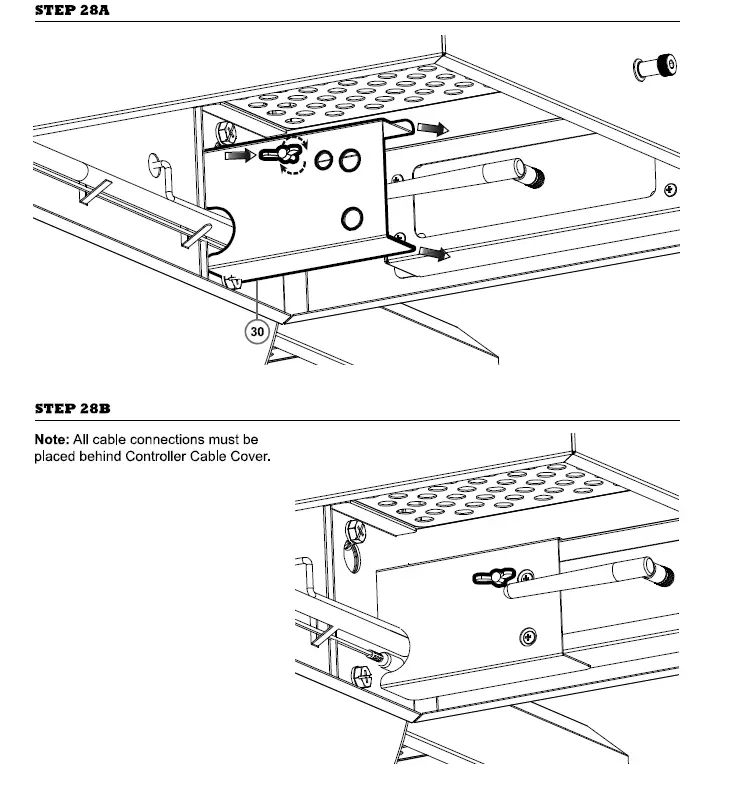

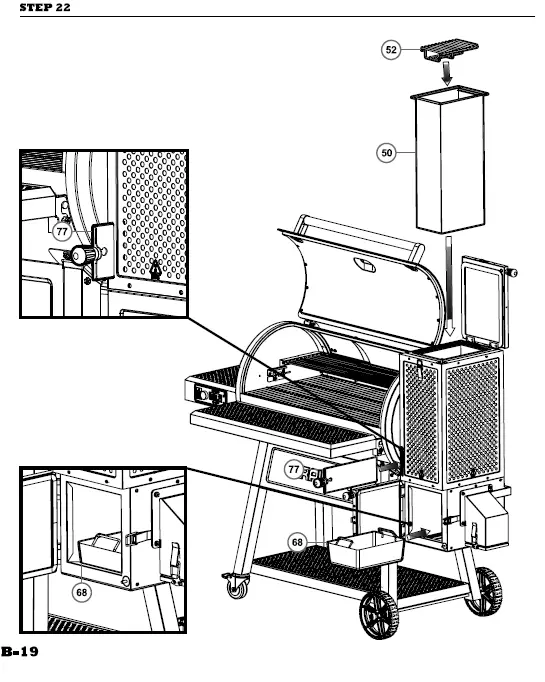

INSTALLATION INSTRUCTION

OPERATING INSTRUCTIONS

Setting Up

This grill is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions and that there is a minimum distance of 12 feet (-4 meters) from the grill. It is important that the ventilation openings of the grill are not obstructed. The grill must be used on a level, stable surface. The grill should be protected from direct drafts and positioned or protected against direct penetration by any trickling water (e.g. rain). Do not move grill while hot and do not leave unattended during operation. Follow basic electrical safety precautions for outdoor appliances including: 1) Use only approved GFCI electrical outlet. 2) Do not plug appliance in until fully assembled and ready for use. 3) Do not expose electrical connections to rain or water at any time. 4) Place cords to avoid tripping hazards. 5) Ensure all extension cords are rated for outdoor use. 6) Employ a licensed electrical contractor to address any additional concerns for safe installation and operation.
NEVER EXCEED 700°F BECAUSE THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT WARRANTED AND WILL REQUIRE TOUCH-UP. THIS UNIT IS NOT WARRANTED AGAINST RUST.

Important Safety Notes

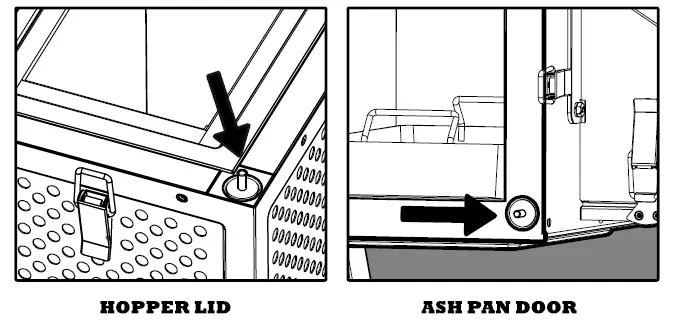

GRAVITY 980 SAFETY SWITCHES

• Your Gravity 980 is equipped with safety switches on the hopper lid and ash pan door
• Before your grill can begin temperature control, the hopper lid and ash pan door MUST be closed
• If the fan is not coming on, please check first that both safety switches have been activated by closing each of these doors

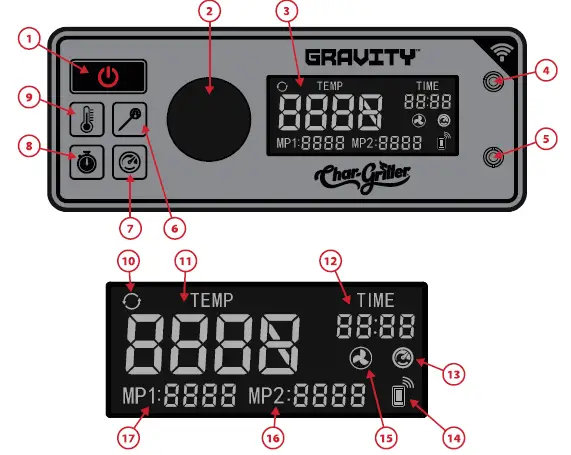

Using the Gravity 980 Digital Controller

1. Power On/ Off: Press 1 second to turn on. Press and hold for 2 seconds to turn off
2. Control Dial: Rotate to make a selection up or down. Press the center of the dial to confirm
3. Status Screen
4. Meat Probe 1 Jack
5.  Meat Probe 2 Jack
6. Set Meat Probe Temperature Goal
7. Turbo Fan Setting
8. Set Countdown Timer
9. Set Grill Temperature Goal
10. Door Open Indicator
11. Grill Temperature Display
12. Countdown Timer
13. Turbo Mode Enabled
14. Paired with Phone: Will light up when a smartphone is paired with the controller
15. Fan Speed Display: Shows if the fan is running and at what speed
16. Meat Probe 2 Temperature
17. Meat Probe 1 Temperature
