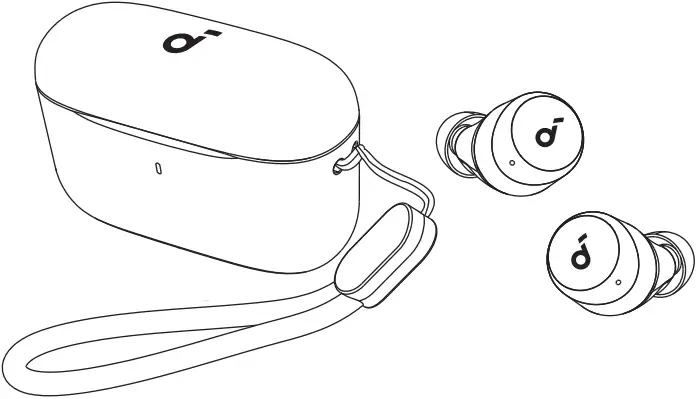

soundcore A20i/A25i
USER MANUAL
APP
APP
Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc.
Download the soundcore app to enhance your experience (Gaming mode, Find device, EQ tuning, Firmware update, and more).
If your earbuds cannot connect with the soundcore app, update it to the latest version in your mobile app store.

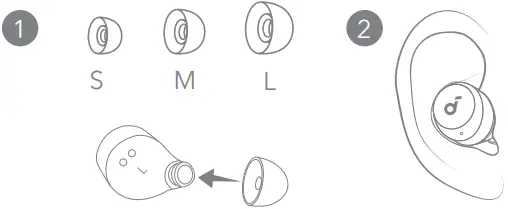

WEARING
WEARING
Choose the ear tips that fit your ears best.

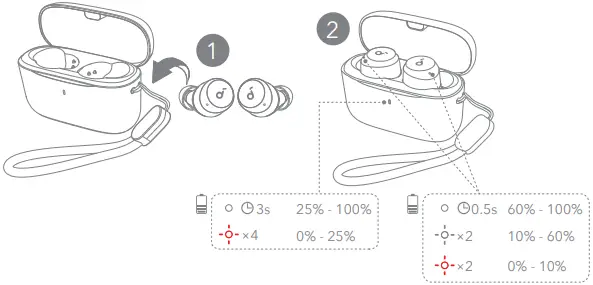

CHARGING
CHARGING
1. Tear off the insulation sticker on the earbuds before first use.

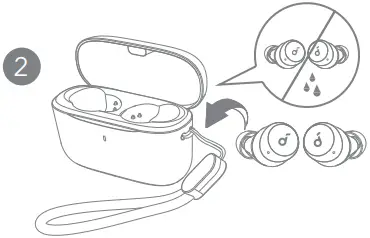

2. Place the earbuds in the charging case and close it.
• Fully dry off the earbuds and the USB-C charging port before charging.

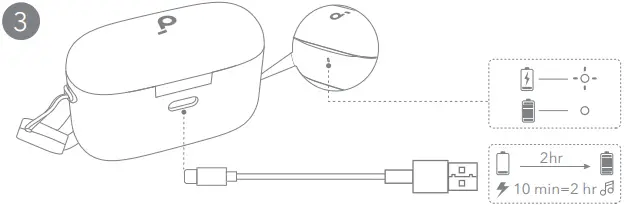

3. Connect the charging case to a power supply by using a certified USB-C charging cable.
• Fully charge both the earbuds and the charging case before first use.
POWERING ON & PAIRING
POWERING ON & PAIRING

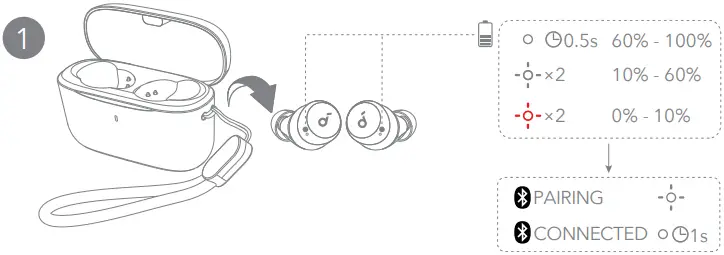

Open the charging case and take the earbuds out. They will automatically power on and enter Bluetooth pairing mode.

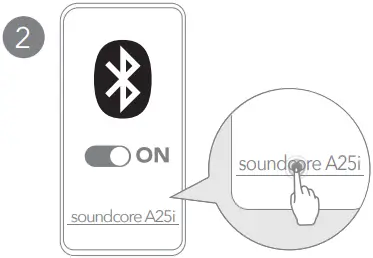

Select “soundcore A20i / A25i” * on your device’s Bluetooth list when connecting for the first time.
*The device name may vary depending on the region.
MANUAL PAIRING
MANUAL PAIRING

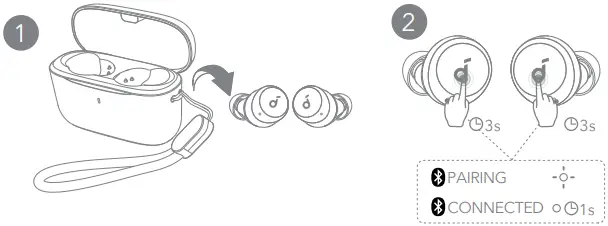

To manually enter Bluetooth pairing mode, take the earbuds out of the case, then tap and hold the touchpads on both earbuds for 3 seconds until the earbuds’ LED indicators flash white rapidly.

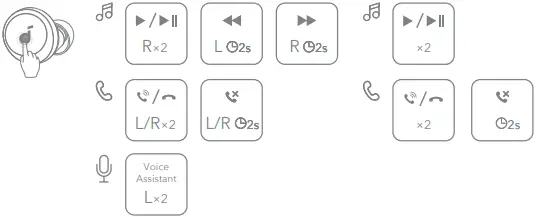

CONTROLS
CONTROLSTWS MONO
You can also customize controls in the soundcore app.
| TWS mode | Mono mode | ||
 | Play / Pause | Tap twice (R) | Tap twice |
| Previous track | Tap and hold for 2 seconds (L) | / | |
| Next track | Tap and hold for 2 seconds (R) | / | |
 | Answer / End a call | Tap twice (L/R) | Tap twice |
| Reject a call | Tap and hold for 2 seconds (L/R) | Tap and hold for 2 seconds | |
 | Activate voice assistant software | Tap twice (L) | / |

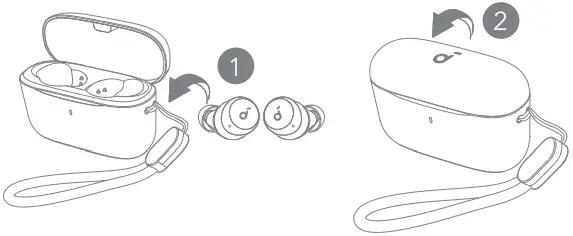

POWERING OFF
To power off, return the earbuds to the charging case and close it. The earbuds will automatically power off after 30 minutes if they are not connected.
RESET
RESET
Reset if the earbuds have issues pairing with each other or with other devices. Place the earbuds in the charging case and leave the case open, then tap and hold the touchpads on both earbuds for 8 seconds until the earbuds’ LED indicators flash red rapidly three times.
LED LIGHT GUIDE
LED LIGHT GUIDE
Steady white
Flashing white
Flashing red

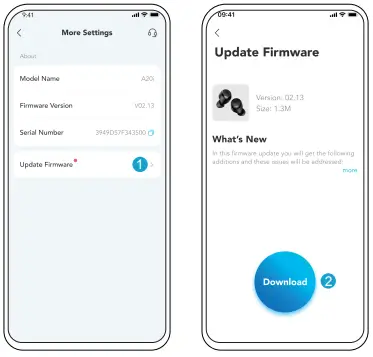

FIRMWARE UPDATE
FIRMWARE UPDATE
You will be notified once a new firmware version is detected when you connect the earbuds to the app. Ensure the earbuds are placed in the charging case and the case remains open until the firmware update is complete. During the update, make sure the earbuds are being charged and avoid any usage.
SPECS
SPECSSpecifications are subject to change without notice.
| Input | 5V  0.5A |
| Rated output power | 5mW |
| Battery capacity | 60mAh × 2 (earbuds); 350Ah (charging case) |
| Charging time | Up to 2 hours |
| Playtime (varies by volume level and content) | Up to 9 hours (up to 28 hours with the charging case) |
| Driver unit | 6mm dynamic driver |
| Frequency response | 20Hz – 20kHz |
| Impedance | 16Ω |
| Waterproof level (earbuds) | IPX5 |
| Bluetooth version | 5.3 |
| Bluetooth range | 10m / 33ft |
