Corsair High Performance Atx Power Supply User Guide

RMx SERIES™
RM550x | RM650x | RM750x
RM850x | RM1000x
High Performance ATX Power Supply

INTRODUCTION

Congratulations on the purchase of your new CORSAIR RMx Series ATX Power Supply!
CORSAIR RMx Series fully modular power supplies deliver reliable 80 PLUS Gold efficient power to your system combined with a high-performance 140mm magnetic levitation (ML) fan.

SAFETY AND PROTECTION

• Over-Voltage Protection (OVP)
  Over-voltage protection for the 12V, 5V, and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer.
• Over-Current Protection (OCP)
  The RMx Series features OCP on the 3.3V, 5V, and 12V rails. OCP ensures that the output of the DC voltage rails remains within safe operating limits.
• Over-Temperature Protection (OTP)
  OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as a result of internal current overloading or a fan failure.
• Short-Circuit Protection (SCP)
  A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V, and 12V rails short to any other rail, or to the ground. It also ensures that no damage should occur to the unit or your PC’s components in the event of a short.

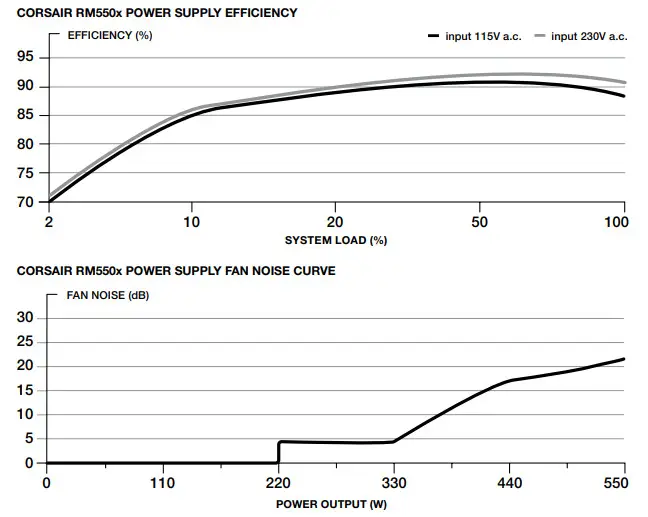

RM550x INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet

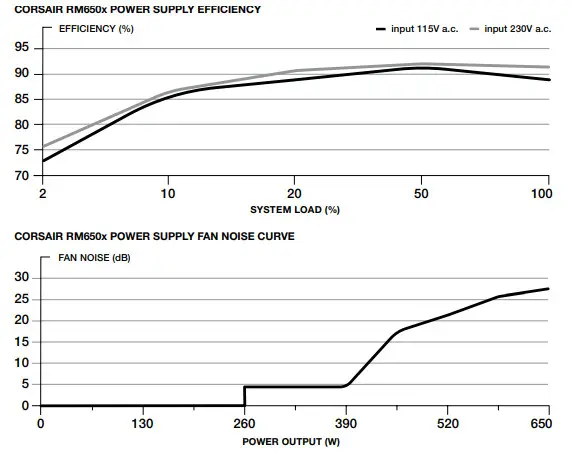

RM650x INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet

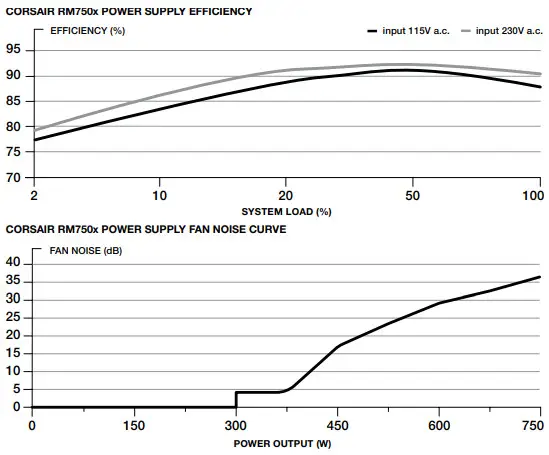

RM750x INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet

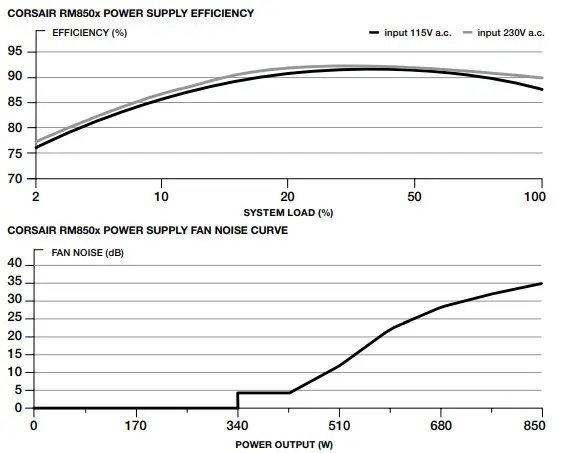

RM850x INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet

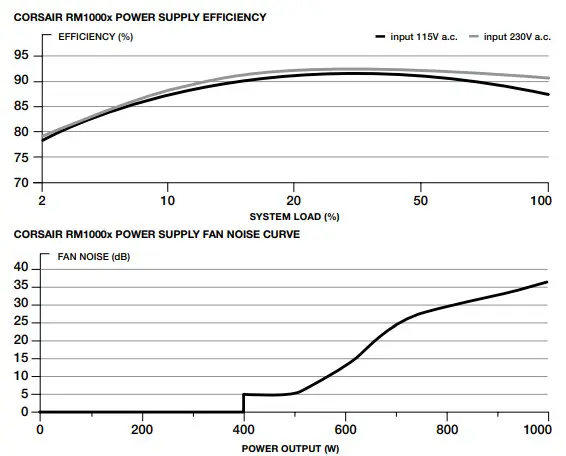

RM1000x INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 180mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet

CORSAIR RMx SERIES CABLE INFORMATION

Description		Quantity
Connectors	Total length	550W	1	750W	1	1000W
ATX cable 24 pin	61Orrrn it 10mm)	1	1	1	1	1
EPS/ATX12V 8 pin (4+4)	650mm (t 10mm)	1	2	2	3	3
Pete cable 8 pm (6+2)	750mm (i 10mm)	1	2	2	2	3
SATA cable (3 SATA – right angle)	75Orm (t 10mm)	1	1	2	2	2
SATA cable (4 SATA – right angle)	Et5Omm (t 10mm)	1	1	1	2	2
Peripheral cable (4-pin)	750mm is 10mm)	1	1	1	1	2

INSTALLING YOUR NEW RMx SERIES POWER SUPPLY

Step 1: Removing Your existing PSU
WARNING! To ensure proper function, only use the DC cables included with your new PSU, unless your old cables are genuine CORSAIR cables of the same type. Please confirm your existing cables’ type before using them.
If you are building a new system, skip to Step 2:

1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing PSU.
4.  Proceed to Step 2.

Step 2: Installing the new power supply

1. Make sure the power supply’s AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3.  Connect the 24-pin (ATX) cable to the motherboard. Connect the eight-pin +12V (EPS12V) cable to the motherboard.
   a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
   b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.
   c. Some motherboards will require a mix of 8+4 pins, use as many EPS12V cables as necessary, and do not mistake them for PCIe cables.
4. Connect the peripheral cables, PCI-Express cables, and SATA cables.
   a. Connect the SATA cables to your SATA SSD or hard drive’s power sockets.
   b. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
   c. Connect the peripheral cables to any peripherals requiring a 4-pin connector.
   d. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
5. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with “I”).
