BC1200 Professional 7-Piece Drum Microphone
Set for Studio and Live Applications
User Guide
BC1200
BC1200 Professional 7-Piece Drum Microphone Set for Studio and Live Applications
Professional 7-Piece Drum Microphone Set for Studio and Live Applications
Safety Instruction
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Use only attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specifiedby the manufacturer, or sold with the apparatus. When a cart is used, use caution when movingthe the cart/apparatus combination to avoid injury from tip-over.
Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.- Do not install in a confined space, such as a book case or similar unit.
- Do not place naked flame sources, such as lighted candles, on the apparatus.
Use only with the cart, stand, tripod, bracket, or table specifiedby the manufacturer, or sold with the apparatus. When a cart is used, use caution when movingthe the cart/apparatus combination to avoid injury from tip-over.
Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.Thank you for purchasing the BC1200 drum microphone package. These mics will provide accurate capture of the entire drum set for both live and studio applications. Read through these instructions proper use and technical details.

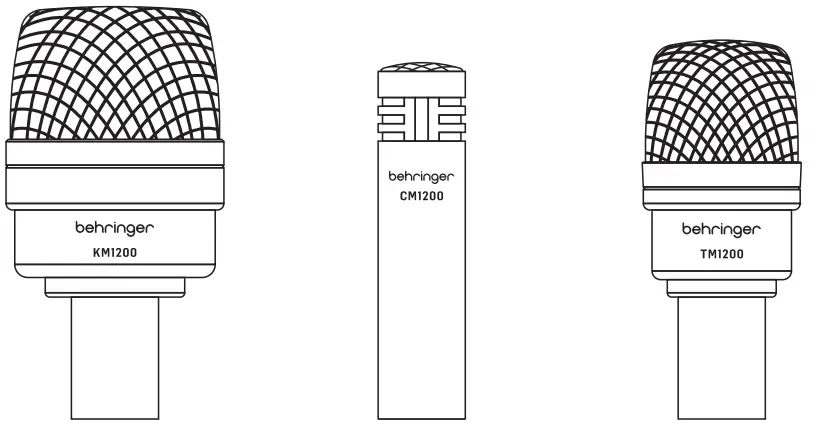

KM1200 Bass Drum Mic
Mount the bass drum mic onto a short microphone stand, then position the mic just inside the kick drum port. Aim the mic directly at the beater for more attack, or toward the far edge of the drum for more resonant tone.
TM1200 Tom Mics
Screw the mounting clips onto each mic so that the mic points toward the clip end. Attach each mic onto the hoop of a tom or snare drum. The distance from the mic to the drumhead is adjustable, as well as the angle. Position each mic toward the center of the drum head for best results.
CM1200 Cymbal Mics
Screw the mic clips onto a pair of tripod boom stands. Slide the cymbal mics into the mic clips and position them in one of these patterns:
- Each mic positioned about 3 ft (1 m) above the ride cymbal and hi hat, pointing directly down.
- Both mics positioned directly above the snare drum in an “XY” pattern, with the capsule ends nearly touching, one pointing at the ride cymbal and the other at the hi hat.
NOTE: These mics require 48 V phantom power to be engaged on the mixer or interface.

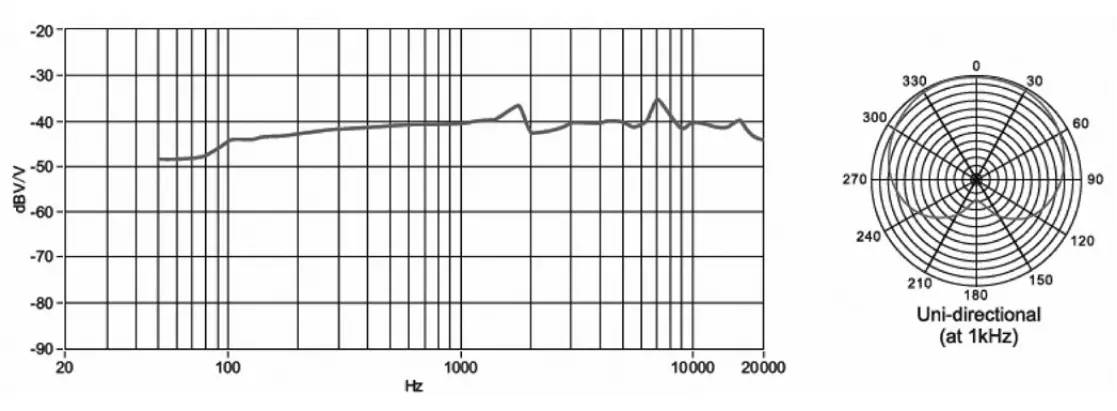

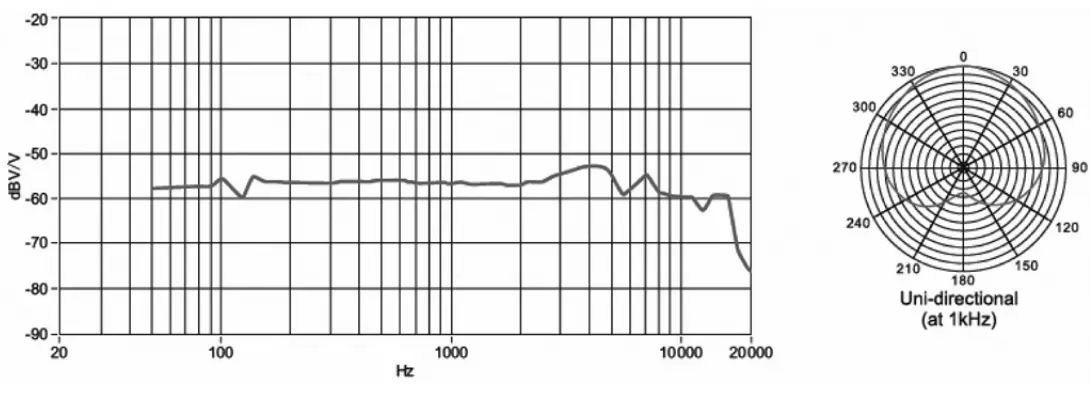

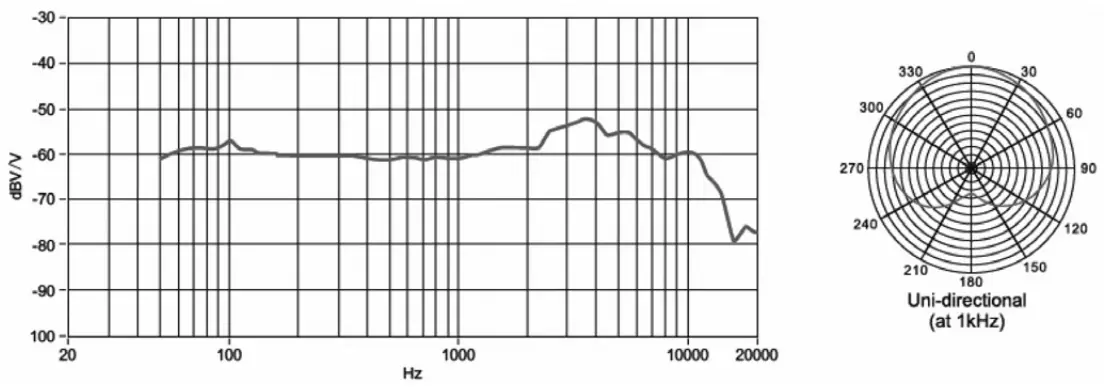

Specifications
| Tom Mic | Bass Drum Mic | Cymbal Mic | |
| Type | Dynamic | Dynamic | Condenser |
| Polar pattern | Uni-directional | Uni-directional | Uni-directional |
| Frequency response | 70 Hz – 14 kHz | 50 Hz – 14 kHz | 70 Hz – 18 kHz |
| Sensitivity | -56 dB (±3 dB) @ 1 kHz, 0 dB = 1V/Pa | -58 dB (±3 dB) @ 1 kHz, 0 dB = 1 V/Pa | 45 dB (±3 dB) @ 1 kHz, 0 dB = V/Pa |
| Impedance | 250 Ω (±30%) @ 1 kHz | 250 Ω (±30%) @ 1 kHz | 250 Ω (±30%) @ 1 kHz |
| Power supply | – | – | +48 V phantom power |
| Max. SPL | 145 dB @ 1 kHz, ≤1% THD | 150 dB @ 1 kHz, ≤1% THD | 136 dB @ 1 kHz, ≤1% THD |
| S/N ratio | 75 dB | 79 dB | 70 dB |
Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.
Full text of EU DoC is available at https://community.musictribe.com/
EU Representative: Music Tribe Brands DK A/S
Address: Gammel Strand 44, DK-1202 København K, Denmark
UK Representative: Music Tribe Brands UK Ltd.
Address: 6 Lloyds Avenue, Unit 4CL London EC3N 3AX, United Kingdom
