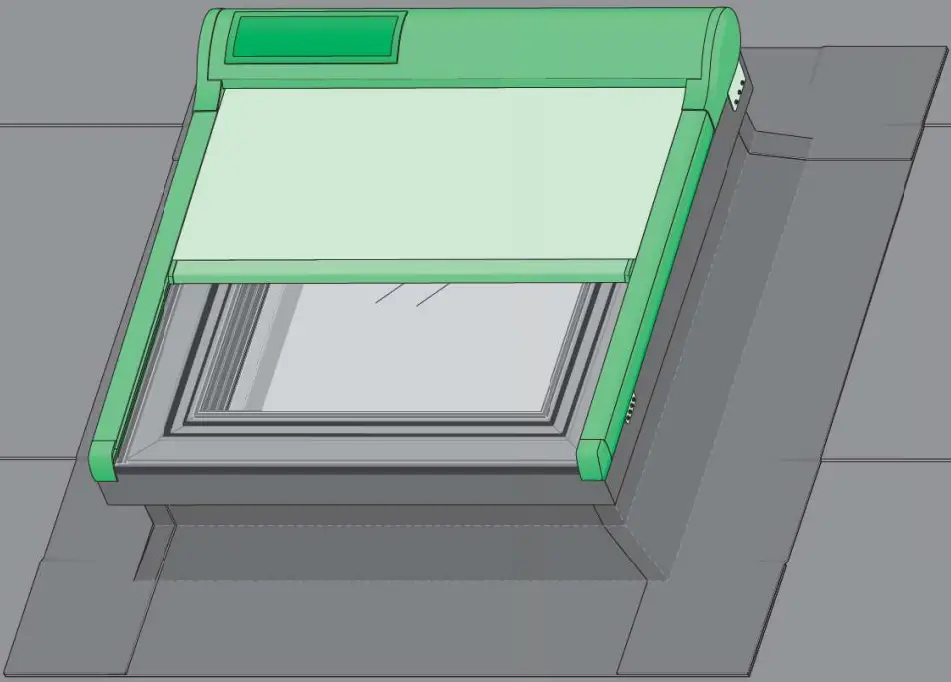

AMZ F Solar Awning Blind
User Manual
AMZ F Solar Awning Blind
 |  |
 |  |
 |  |
 |  |
 |  |
Before installation, it is compulsory to read the NC9BB „ORIGINAL INSTRUCTIONS 2/3 Installation and user manual”.

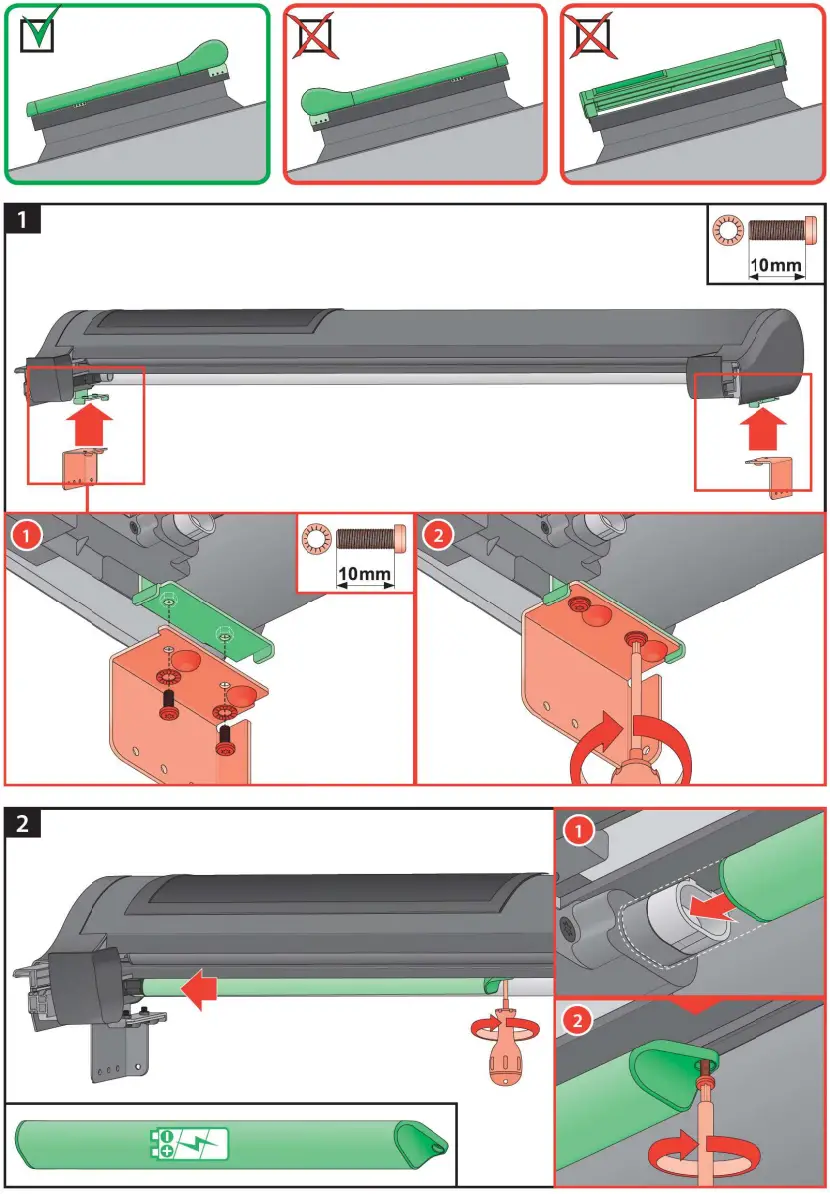

| 1 | Screw top holders to the cassette. |
| 2 | Install the battery under the awning cassette. |

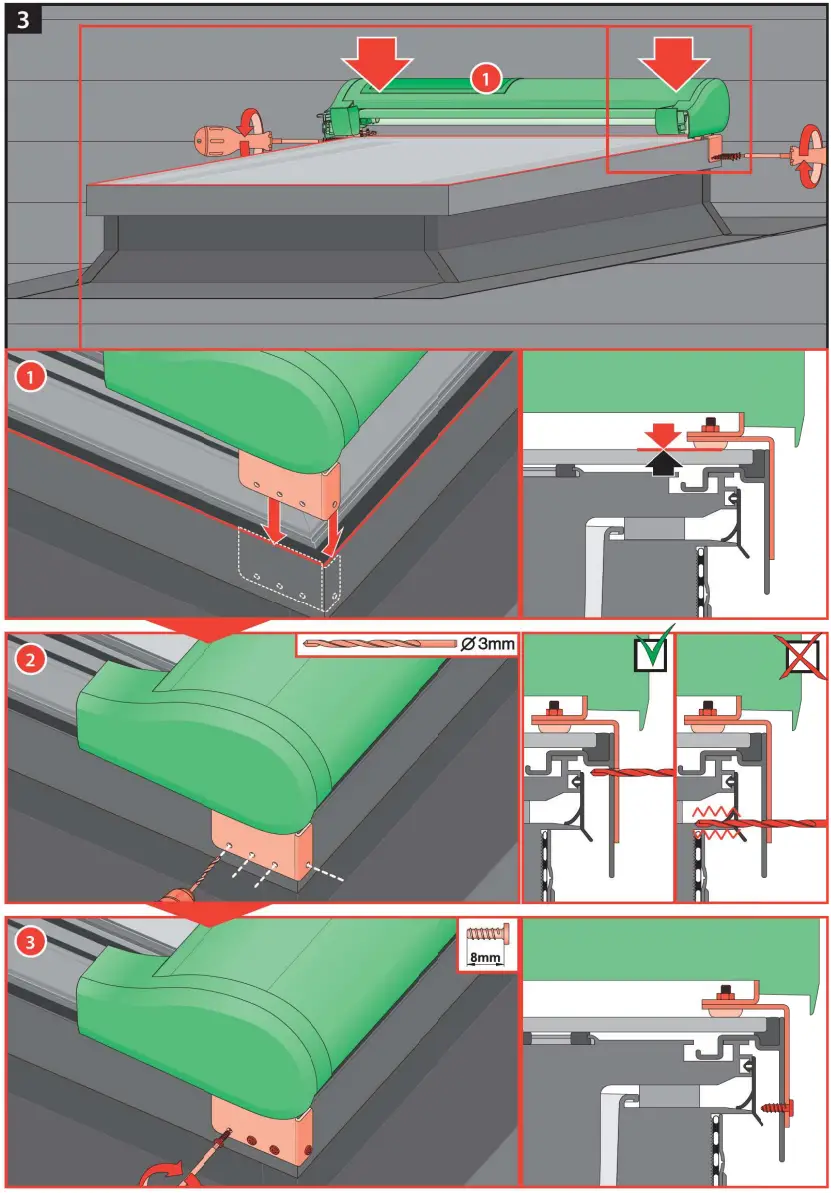

| 3 | Place the awning cassette on the window sash and then screw it. |

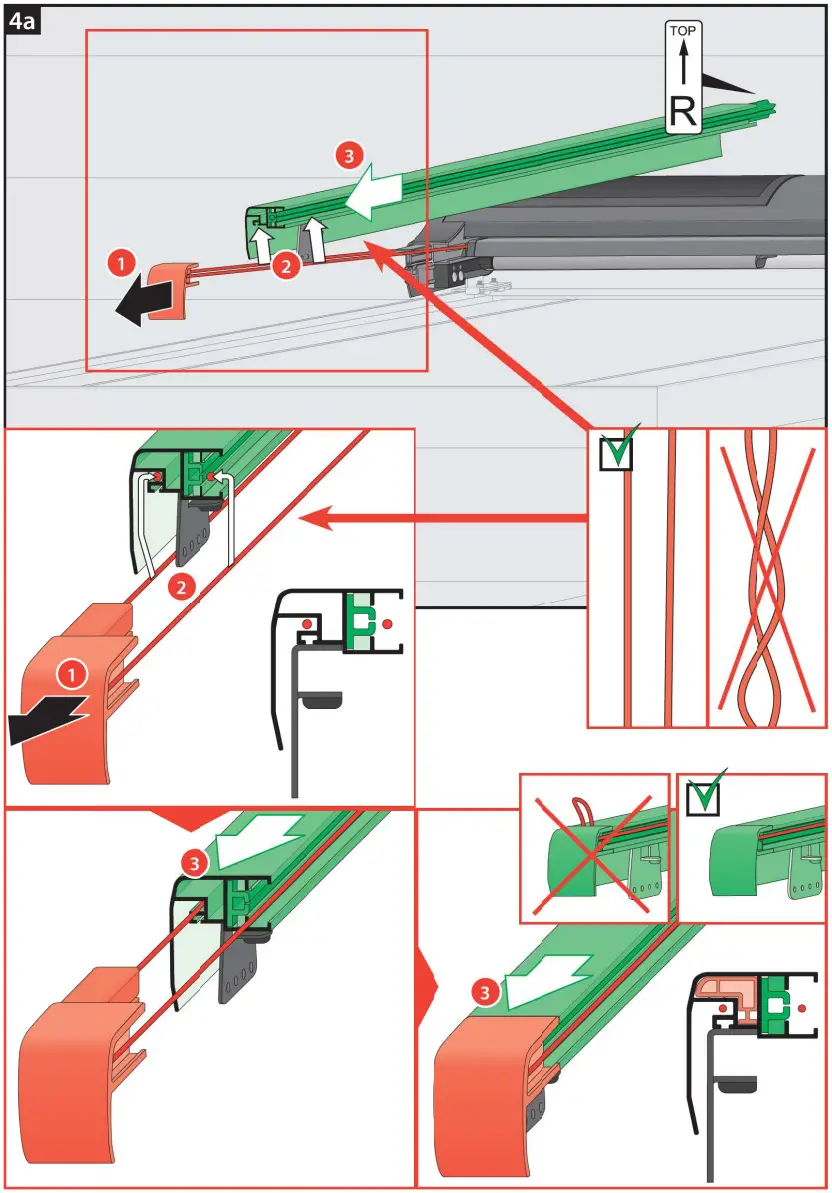

| 4a | Slide the corner into the awning guide rail. |

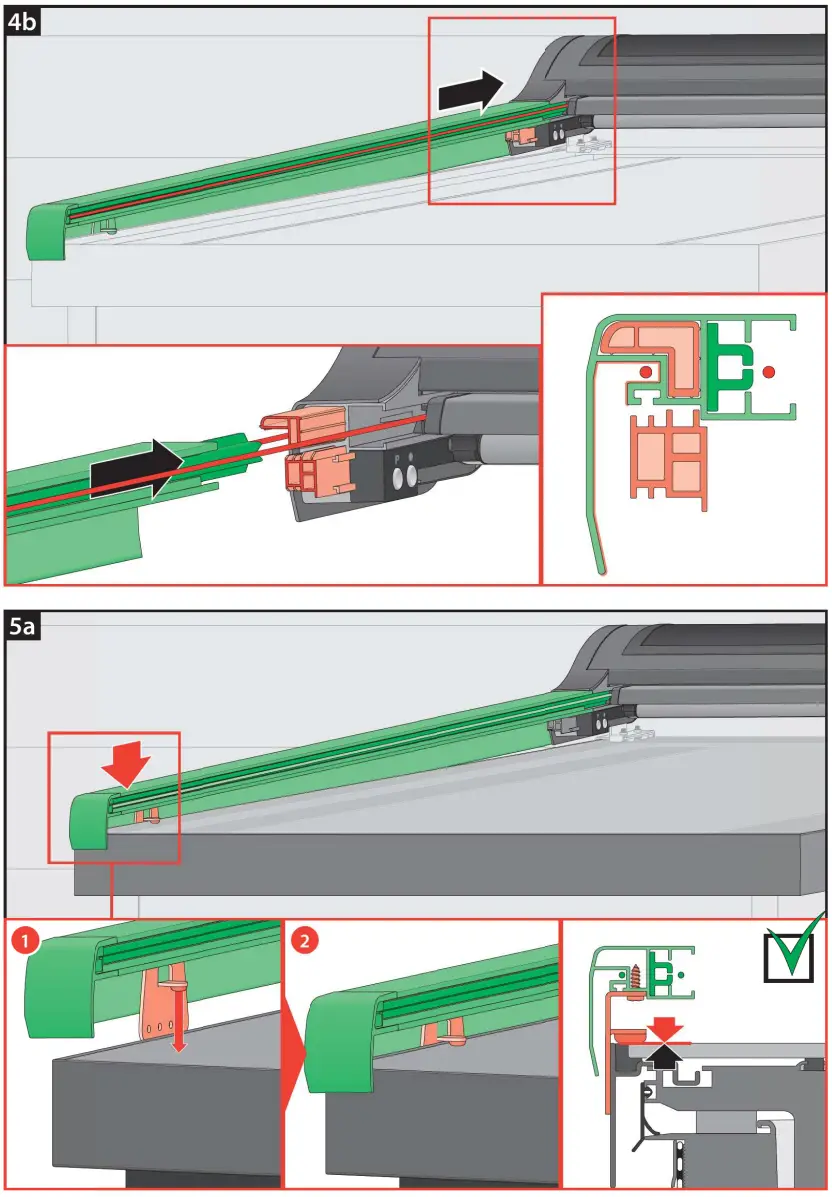

| 4b | Slide the side guide rail into the awning casing. |
| 5a | Place the bottom holder of the guide rail in the correct position. |

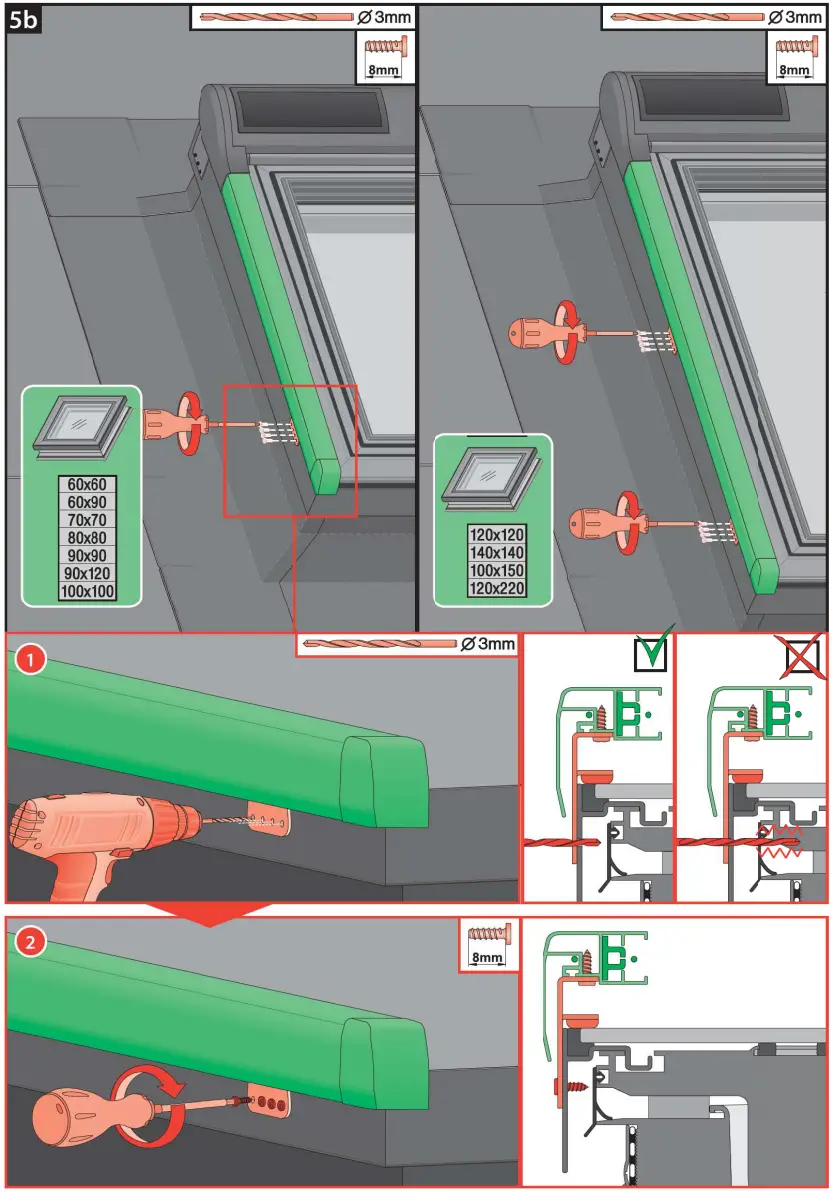

| 5b | Screw the guide rail to the window sash. |

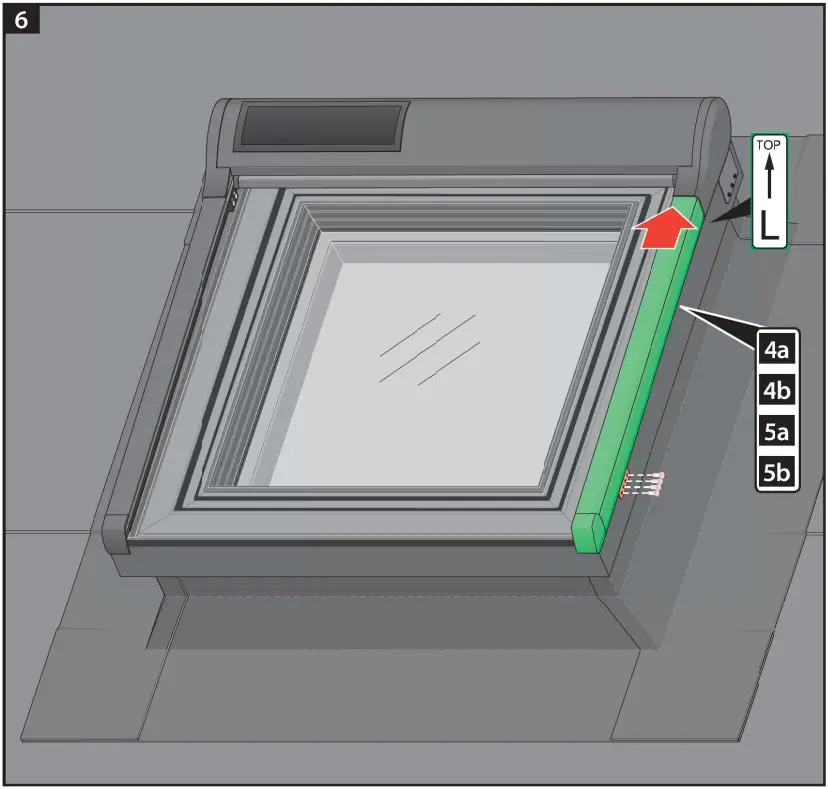

| 6 | Repeat steps 4a-5b for the left guide rail. |
Manufacturer and Sellers shall bear no liability for failure to comply with the applicable laws, building codes, and safety requirements by the user of the product, architect, fitter, or owner of the building.
