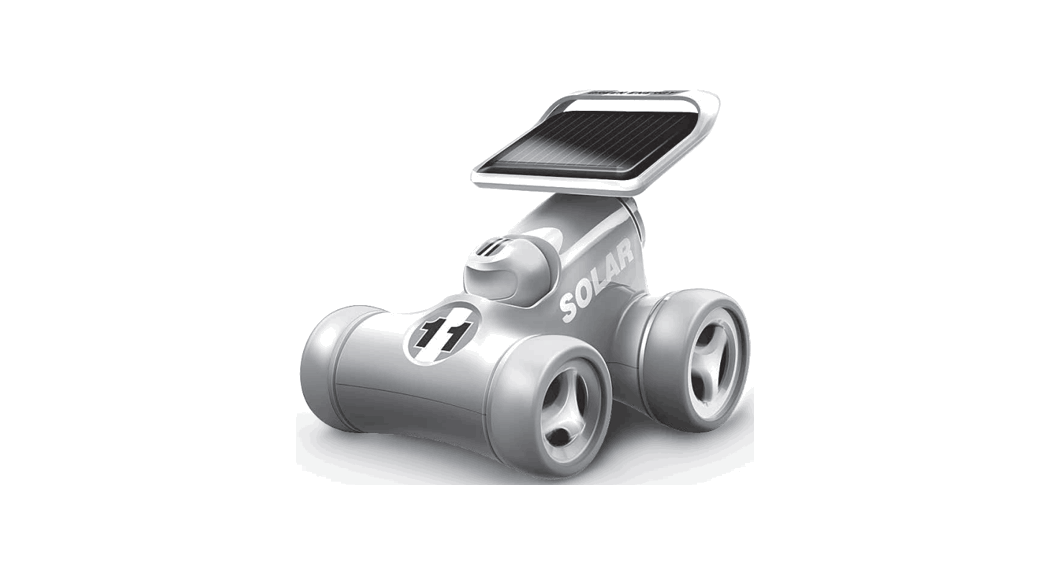

Pro Skit Ge-685 Solar Racer Car Instruction Manual (+ PDF)

GE-685

Assembly&Instruction
Manual
Keeping the instructions for future reference

Contents hide

1 Product Introduction

2 Mechanical Parts List

3 Plastic Parts

4 Mechanical Assembly

5 Sticker

6 Documents / Resources

6.1 References

7 Related Posts

Product Introduction

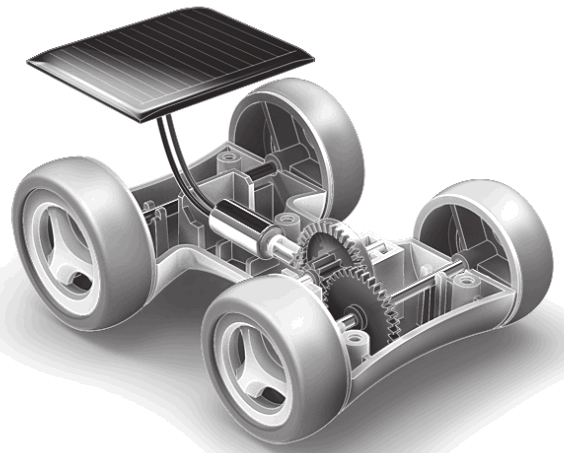

Let’s have a racing game with the little solar racer. No batteries required but only the sunny weather. Making good use of the endless power and enjoy the ride.
The little racer harnesses the energy from the sun to power an electric motor that gets it moving.
With only 23 parts and surprisingly no screw at all, kids need nothing but a diagonal cutter during the assembly. Looking for a real experience with solar power? This unique racing car demonstrates the solar basics in an easy-comprehensive way while offering great fun. Let’s take a ride to future of clean energy!

Tool You May Need

PM-200 PM-202 Diagonal Cutter

Warning

Choking hazard – Small parts. Not for children under 3 years.
Adult supervision is recommended when children use scissors.
To avoid danger of suffocation, keep the plastic bag away from babies and children.

Mechanical Parts List

Product contains functional edges and sharp points.

P1	Gear (Red)
		QTY
		1

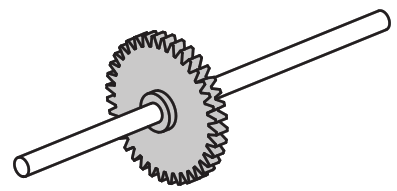

P2	Gear with Shaft
		QTY
		1

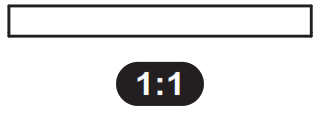

P3	Sponge
		QTY
		2

P4	Round Shaft (Short)
		QTY
		1

P5	Round Shaft (Long)
		QTY
		1

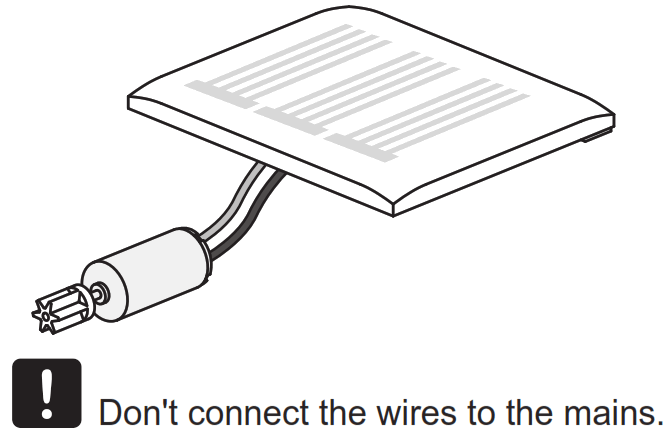

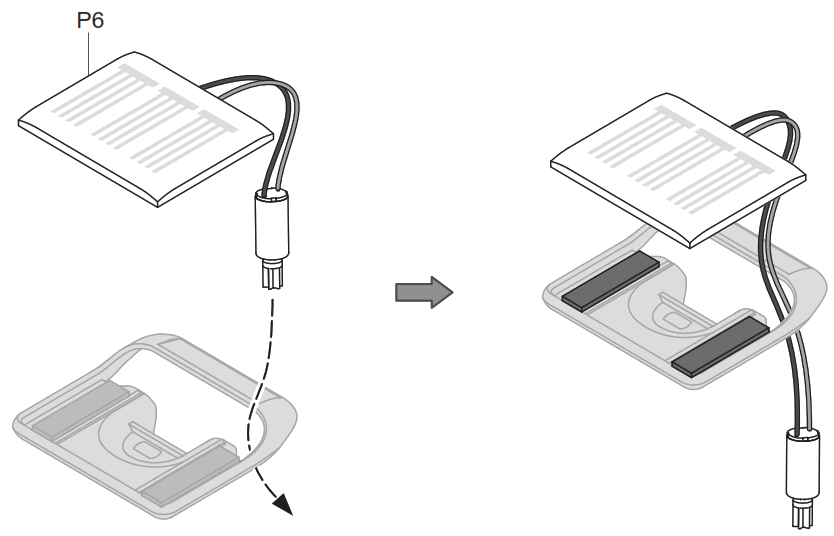

P6	Solar Panel with Motor
		QTY
		1

P7	Sticker
		QTY
		1

Goods cut are not returnable.

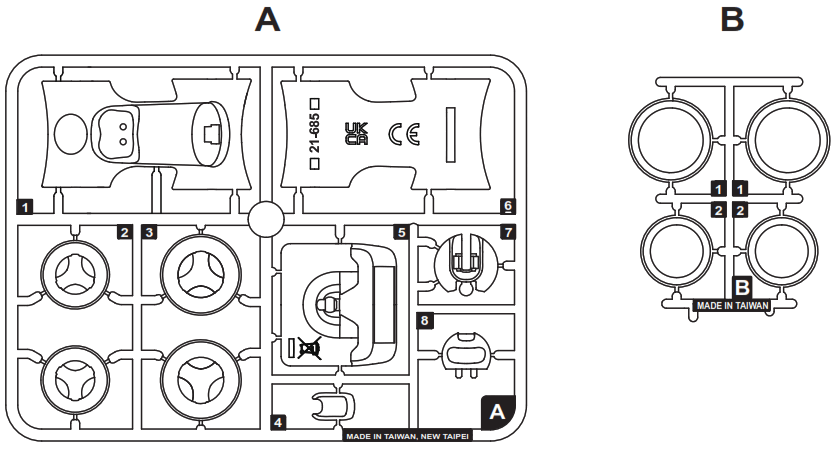

Plastic Parts

Cut the plastic parts when they are required. Do not cut them in advance.

Tip

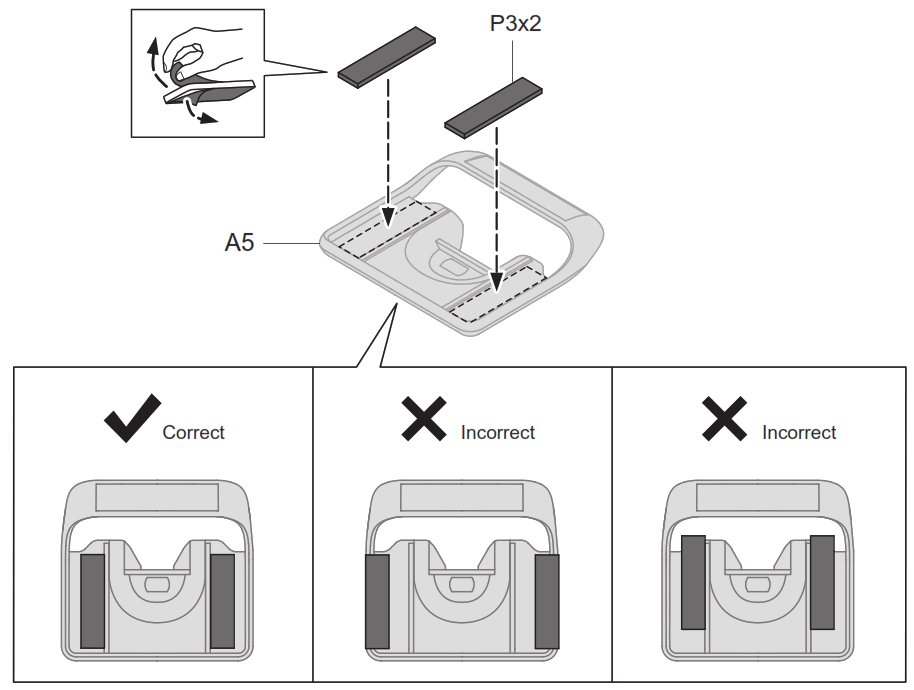

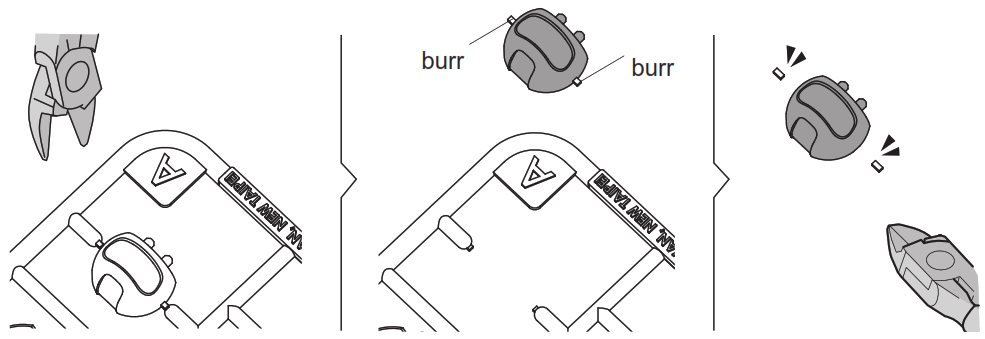

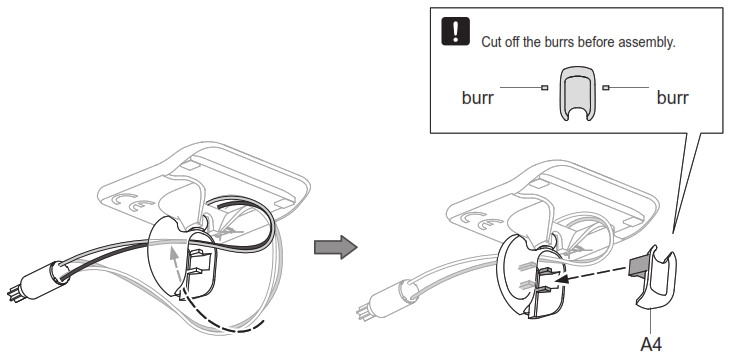

Cut off the burrs before assembly.

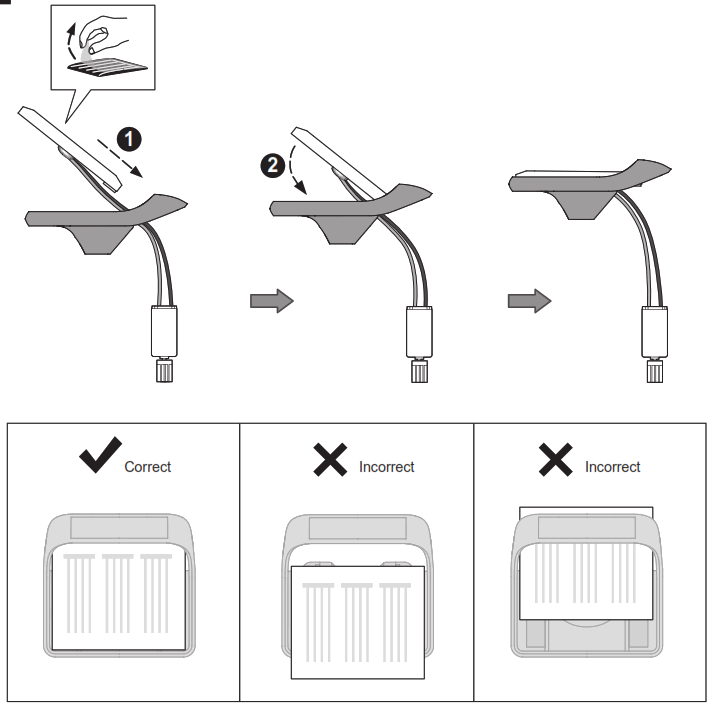

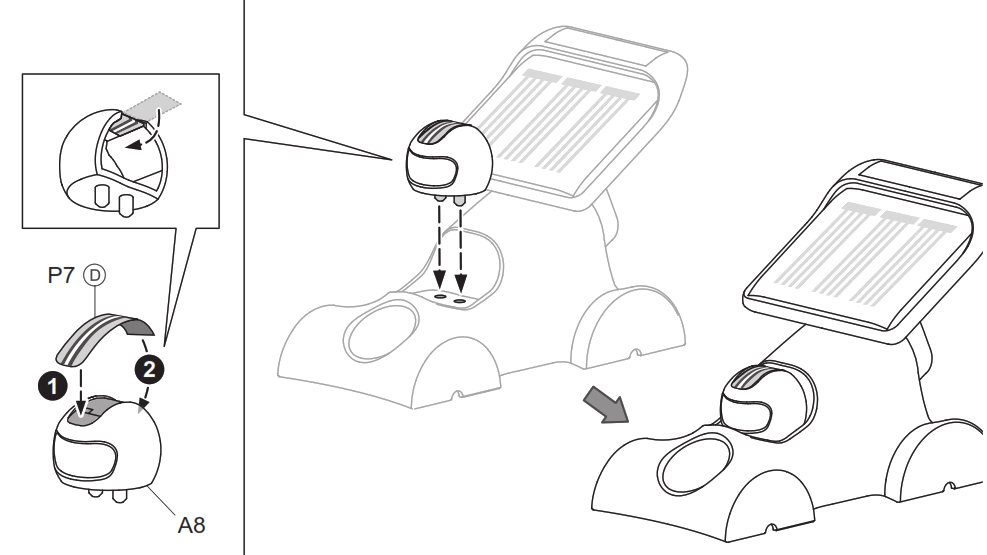

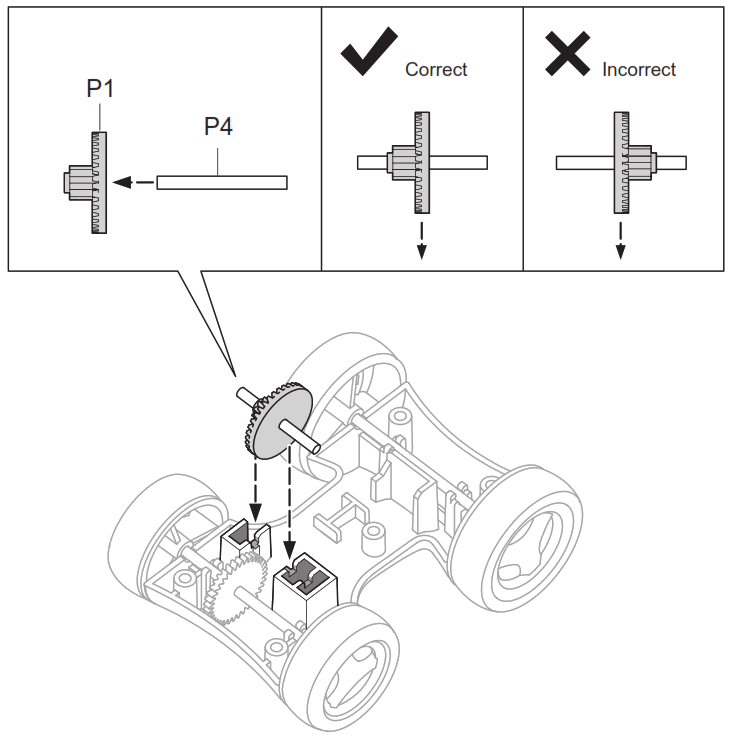

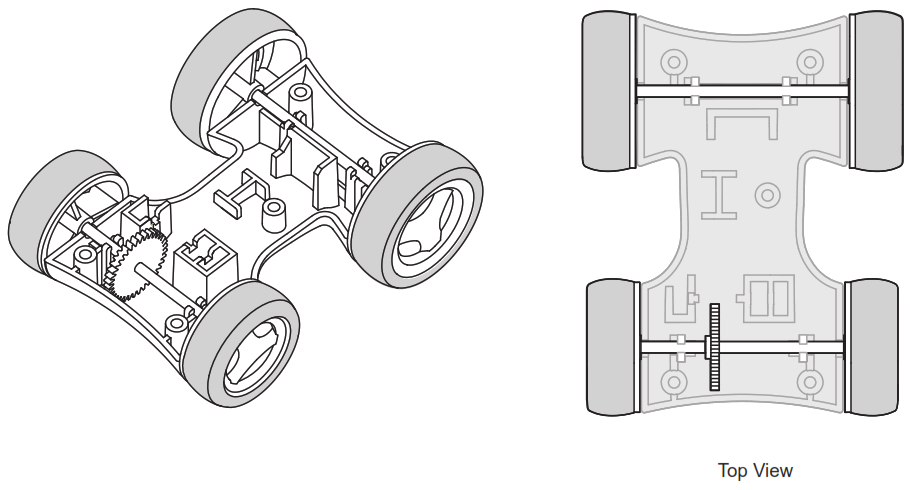

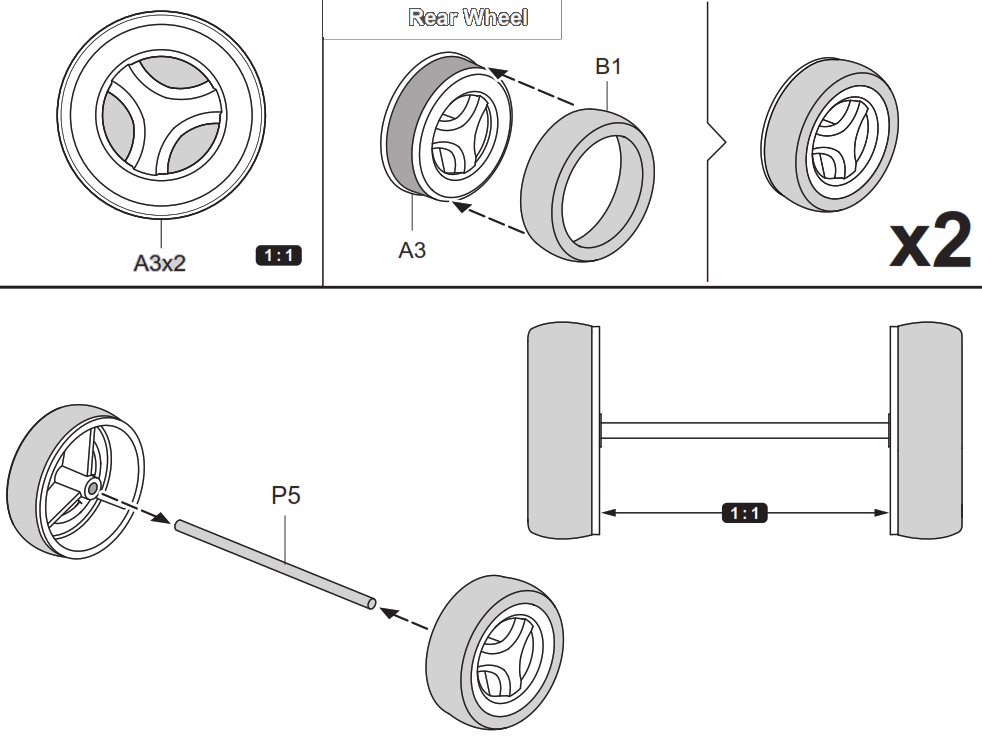

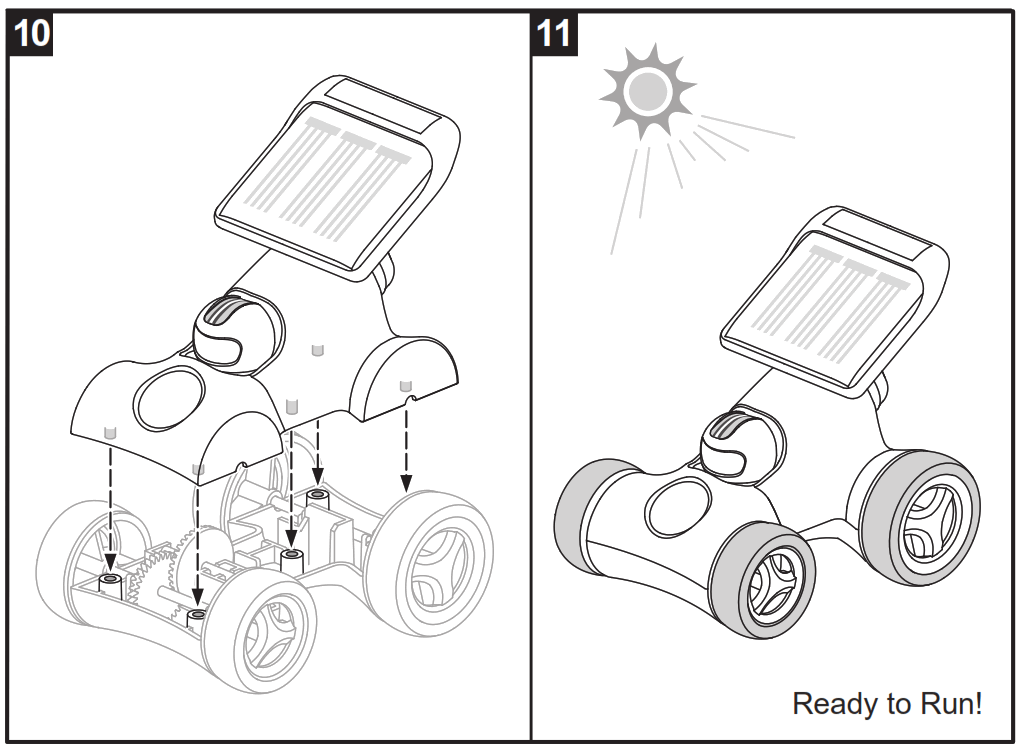

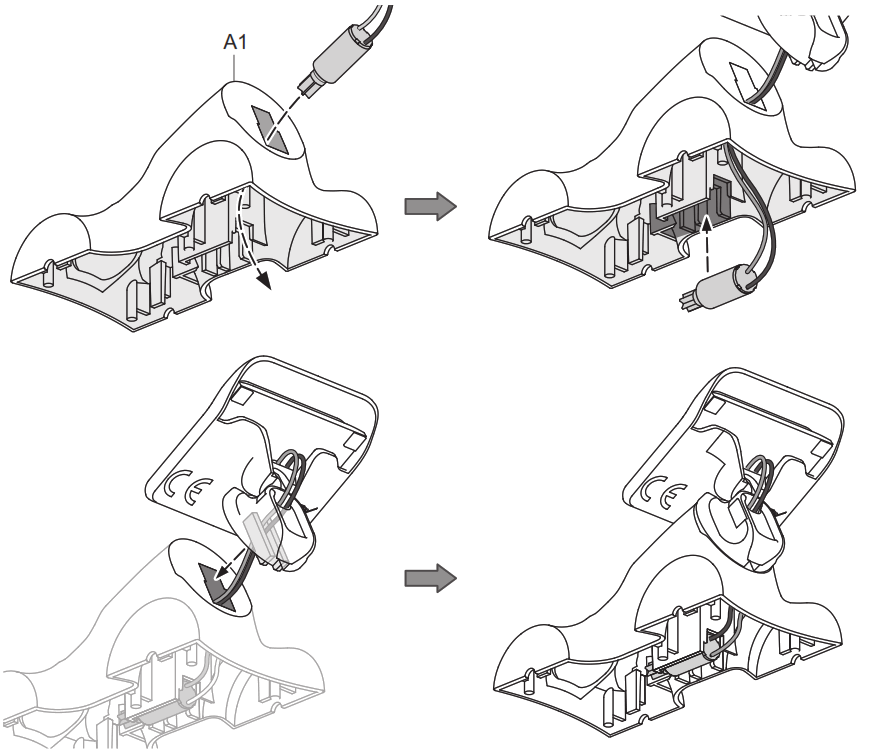

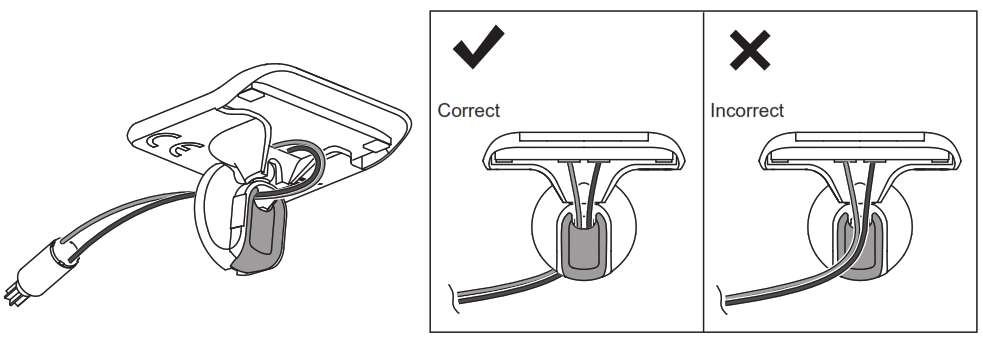

Mechanical Assembly

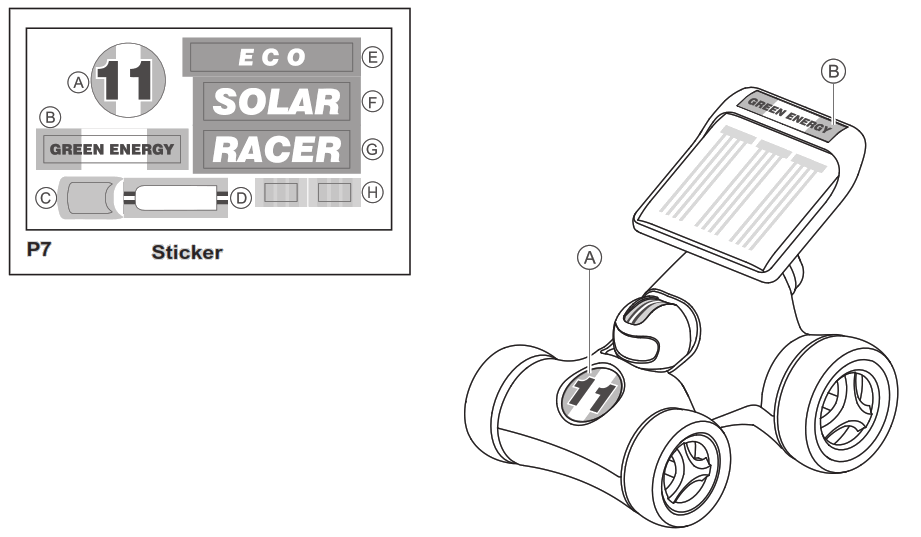

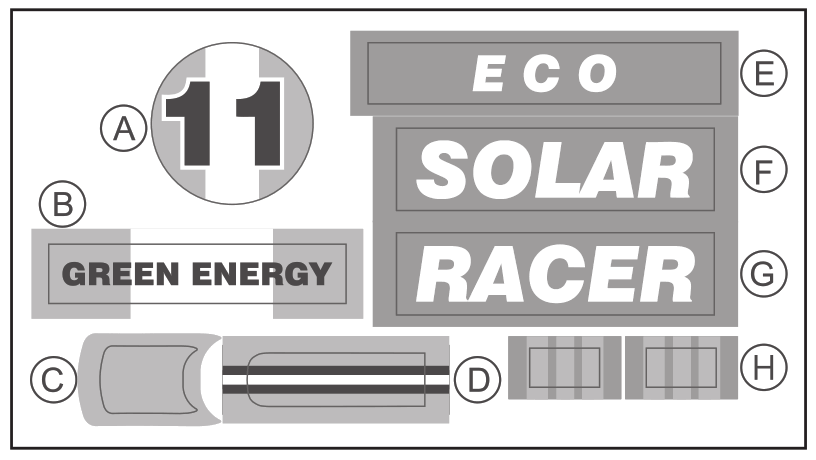

Sticker

It’s time to have some FUN !

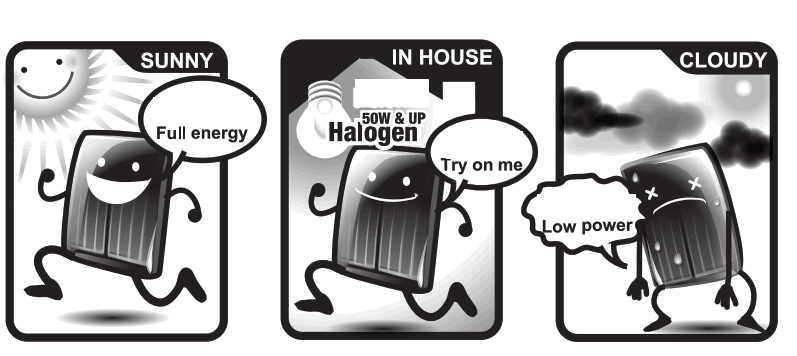

Take it outside under direct sunlight. Best results are obtained when operating on a sunny day.
For indoor fun, use a 50 watt halogen light.
The product will not run on a cloudy day, shaded locations, indirect sunlight or under a fluorescent light.
Sunlight intensity recognition: Keep palm close to the ground, the shadow shall be appeared with sharp edge; if not, the sunlight is considered weak. The product will ot un or move slowly under insufficient sunlight.

When ordering parts, please include the following

Name, address (no P.O. Box), telephone number, and email address.
Model name and model number.Part number, part name, and quantity.
Please contact local distributor if any query.

GE-685

Racer Solar Science Kit

Parts List

Part Number	Part Name	Qty
5GE-63500P1	Gear (Red)
5GE-63500P2	Gear with Shaft
5GE-63500P3	Sponge
5GE-63500P4	Round Shaft (Short)
5GE-63500P5	Round Shaft (Long)
5GE-63500P6	Solar Panel with Motor
5GE-63500P7	Sticker

Goods cut are not returnable.

Warnings and Precautions Contains small parts, please do not let children under the age of three use to avoid the danger of accidental ingestion. Do not collide with people’s faces and eyes to avoid accidental injuries.
